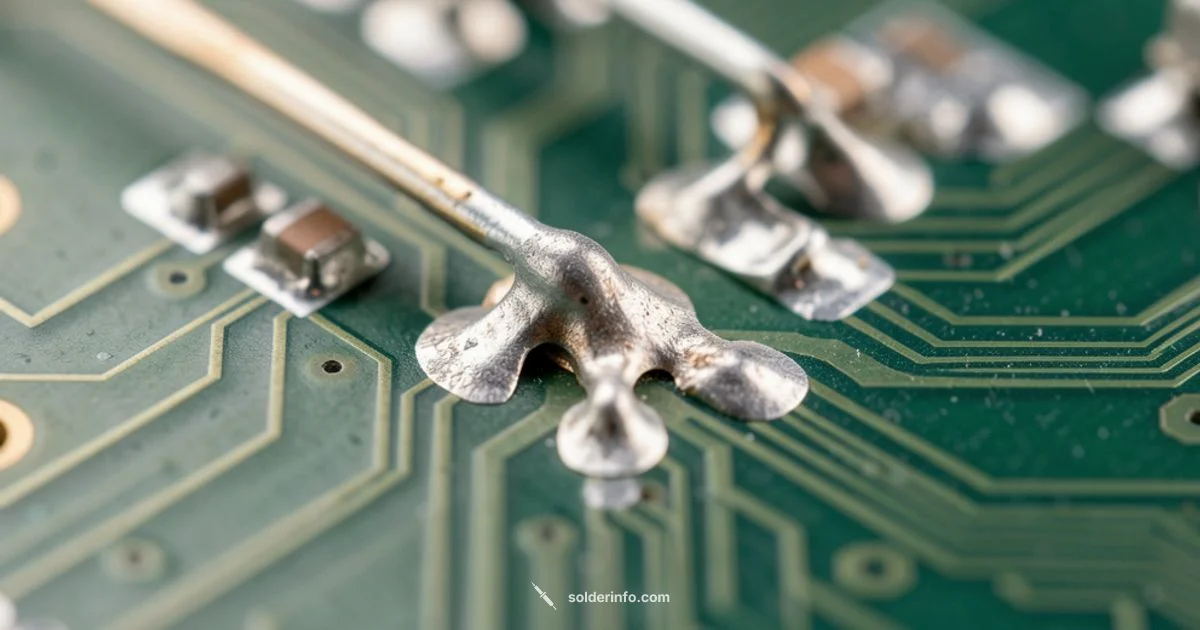

What Causes Solder Bridging and How to Prevent It

Why Solder Bridging Happens in Practice

According to SolderInfo, bridging is the result of capillary action and wetting that occur when two or more pads are too close and the solder has a path to flow between them. When flux or paste bridges the gap, or when the joint is heated too little or too much, the solder can creep into unwanted areas. In densely packed PCBs, tiny gaps between copper features are common, and a momentary imbalance in surface tension can create a bridge. The SolderInfo team notes that bridging is not a failure of a single step but the culmination of several small decisions about design, materials, and technique. Good pad geometry, clean surfaces, and disciplined heating reduce the odds dramatically. Understanding the physics — how molten solder wets metals, how flux lowers surface tension, and how heat moves through a joint — helps solderers anticipate where bridges might form and intervene before the joint solidifies. Bridging can also arise in jewelry soldering and plumbing when joints are crowded and temperatures shift unexpectedly.

Primary Causes of Solder Bridging

• Excess solder or flux volume: When there is more paste or flux than the joint can accommodate, surplus solder can wick across gaps.
• Inadequate heat control: If the heat is too low or uneven, the solder fails to form a clean, contained fillet and tends to flow toward nearby pads.
• Pad crowding and poor geometry: Very close traces or pads with insufficient clearance promote bridging risk, especially at fine pitch.
• Poor stencil alignment or smeared paste: Misalignment causes uneven deposition, increasing the chance of a bridge.
• Contaminants on the surface: Oils, fingerprints, or oxidation on pads reduce surface tension control and encourage unintended wetting.
• Flux residue and cleanliness: Residues left on the board can attract moisture or create conductive paths that invite bridging.
• Atmospheric conditions and cooling: Rapid cooling can trap solder in intermediate states that bridge between pads. These factors often interact — for example, crowded pads with excess paste under a slow reflow profile are a common recipe for bridges, particularly with lead-free alloys that require higher temperatures.

Electronics Specific Causes and Pitfalls

In electronics, high density boards with fine pitch footprints are especially vulnerable. Lead-free solders, while environmentally friendly, melt at higher temperatures and flow more aggressively, demanding precise reflow profiles. When a stencil printer leaves inconsistent paste deposits or when a pad is jutted or partially lifted, bridging can occur. Poor flux selection for the solder alloy can cause too much flux to flow and carry solder along unintended paths. In addition, inadequate inspection after rework increases the risk that a bridge will go undetected until the device fails in the field. The result is a short or intermittent connection that may be difficult to diagnose without a magnifier or X-ray.

Plumbing and Jewelry Considerations

In plumbing, bridging occurs when molten solder flows beyond the joint in crowded fittings, particularly with copper pipes and fittings that have tight joints. Flux residues can trap moisture and carry more solder into adjacent joints, while heat sources like a torch can create large beads of solder that connect two adjacent joints. For jewelry, small-scale bridges can form between delicate metal surfaces, often due to oversized torch flames or rapid movement that splashes solder across gaps. These contexts share the same physics but require different safety and technique: slower, controlled heating; careful positioning; and thorough cleaning to avoid stray solder.

Prevention Strategies Across Contexts

• Start with sound design: ensure pads are adequately spaced and use appropriate solder mask to limit wicking.
• Use the right amount of flux and solder paste: apply just enough to wet the joint, but not so much that it can bridge.
• Optimize heat: follow manufacturer guidelines for reflow or heating, and maintain a stable temperature ramp.
• Cleanliness and inspection: remove flux residues and inspect under magnification before cooling.
• Stencil quality and deposition: align stencil with boards; avoid smear; calibrate paste deposition.
• Process controls: run consistent reflow profiles; use inert environment to minimize oxidation; apply proper cooling. These steps reduce bridging risk for electronics, plumbing, and jewelry.

Diagnostics and Early Detection

• Visual inspection: look for solder beads bridging between pads under good lighting and a loupe.
• Continuity testing: check for unintended shorts with a multimeter after soldering.
• Cross-section analysis: inspect the fillet shape to see if bridging occurred.
• In-process checks: use magnification during rework; calibrate the hot air station to avoid over-wetting.
• If you see bridging: stop and rework with care to avoid damaging pads or components.
