How to Fix a Solder Bridge: Step-by-Step Guide

What is a solder bridge and how it affects circuits

A solder bridge forms when molten solder connects two adjacent pads or traces that should remain electrically separate. In many electronics projects, this bridge can produce a short, cause a device to malfunction, or create unpredictable behavior. If you're wondering how to fix solder bridge, this guide will show you how to identify the issue, select a safe removal method, and verify a clean, reliable joint. According to SolderInfo, a solder bridge occurs more often on crowded boards or when heat is applied for too long, causing solder to wick across copper surfaces and solder pads. Bridges can occur during assembly, rework, or field repairs, and they are particularly common on fine-pitch ICs, connector footprints, and densely populated PCBs.

The immediate risk is shorting adjacent traces, which can blow fuses, reset microcontrollers, or damage sensitive components. A bridge can also appear as a bright metal path between pads when tested with a multimeter continuity check. Even if the board still powers on, bridged paths may alter logic levels or drain power. The goal of this guide is not just to remove a bridge but to prevent reoccurrence. You’ll learn to assess the scale of the problem, select a safe removal method, and verify the repair with proper tests.

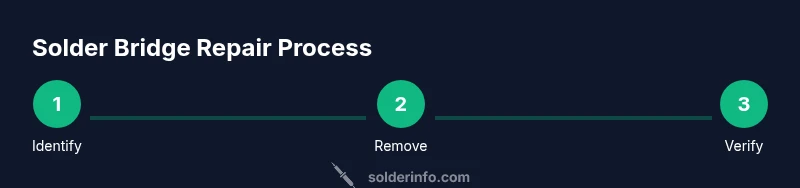

How to identify a solder bridge: symptoms and tests

Bridges often present as visible metal strands or blobs that connect two pads that should stay separate. You may also notice unexpected shorts, flickering indicators, or devices that reset intermittently. Use a 10x loupe or microscope and bright lighting to inspect masked traces, gull-wing joints, or dense fine-pitch areas. A quick continuity check with a multimeter between the two pads should show a near-zero resistance if a bridge exists; measure across neighboring pads to ensure there is no unintended path. SolderInfo analysis shows that even small bridging across a single trace in fine-pitch boards can cause intermittent faults, so thorough inspection is essential. Document any suspicious geometry before you begin work.

Safety first: preparing your workspace and tools

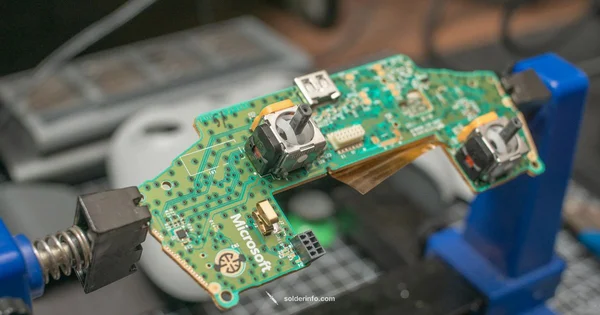

Before you touch a live board, set up a clean, static-safe workspace. Use an ESD mat and wrist strap, clean glass work surface, and good ventilation. Remove power sources, discharge capacitors if safe, and never work on a powered circuit. Wear safety goggles and use tweezers to handle small components. Keep a fire-safe container nearby for scrap solder. Soldering flux, isopropyl alcohol, and a properly rated soldering iron should be within reach. SolderInfo emphasizes consistent heat control and proper PPE to prevent burns or inhalation of fumes. Secure the board in a PCB holder to minimize movement while applying heat.

Assessing the scope: simple bridge vs. complex situations

Not every bridged pad needs the same approach. A light bridge on a single trace near a noncritical pad may be resolved with wick and careful heat; however, bridges beneath a thermal pad, under a dense IC, or spanning multiple traces require a more controlled rework strategy. Start by assessing pad integrity and trace width; if plating lifted or copper underneath shows discoloration, you may be facing pad lift and should adjust your plan. This assessment helps you choose between desoldering braid, hot air, or a combination approach. Remember, the smallest mechanical disturbance can propagate cracks on older boards, so plan your moves.

Removing the bridge with desoldering braid

Desoldering braid (flux wick) is a reliable first approach for simple bridges. After applying a small amount of flux to the bridge, place the braid over the bridge and gently press the hot iron tip onto the braid to wick away solder. Lift the braid away as solder wicks, then reapply flux and inspect the pads under magnification. If any copper remains bridging pads, repeat the process in a controlled, incremental fashion. This method minimizes heat and reduces risk to nearby components.

Pro tip: Keep the braid flat to maximize capillary action and avoid trapping air beneath it. Use a clean, slightly dampened braid for best results. Avoid dragging the solder across pads, which can smear the bridge instead of removing it.

Using hot air or a rework station for stubborn bridges

For bridges that resist wick removal, a hot air rework station can selectively heat the bridge area while protecting surrounding copper. Set a conservative temperature (typically under 350°C for standard lead-free solder) and use a nozzle that concentrates heat on the bridge without affecting adjacent pads. Move the nozzle in small circles, watching the bridge melt and retract. Once you see a clean separation, quickly wick away any residual solder with braid and re-flux the area. This method requires steady hands and a stable workholding setup to prevent accidental displacement of nearby components.

Cleaning, inspecting, and reworking pads

After removing the bridge, thoroughly clean the pads with isopropyl alcohol to remove flux residues, then inspect for pad lift or trace damage. If you see lifted copper or misaligned pads, address them before reflow. You may need to re-tin small areas or apply a light coat of flux to improve solderability. Look at the entire footprint for any micro-bridges that might have formed during removal. Rework any suspect areas with a careful, controlled reflow sequence to prevent new bridges from forming.

Verifying the repair and preventing future bridges

Begin verification with a low-resistance continuity check between the pads you just repaired and adjacent nodes. Confirm that there is no unintended path and that the intended traces remain connected as designed. Power up the circuit in a controlled environment and perform functional tests relevant to the board. For future projects, adopt best practices: use flux consistently, avoid excessive heat, and validate a clean joint under magnification before powering the device. The goal is a robust repair that stands up to handling and reuse.

Troubleshooting and next steps

If the repair fails and a short persists, re-check all related traces and pads for hidden bridges, rework the area again with smaller heat input, and consider replacing the affected component if pad damage occurred. Keep test points accessible to verify future circuits. For ongoing learning purposes, The SolderInfo Team emphasizes documenting your repair steps and outcomes for future projects, noting the techniques that worked best for your board type.
