How to Stop Solder Spreading: Clean, Reliable Joints
Learn proven techniques to stop solder spreading across electronics, jewelry, and plumbing projects. This guide covers heat control, flux selection, pad prep, and thorough inspection with actionable steps from SolderInfo.
You will stop solder spreading by controlling heat, applying flux correctly, using the right amount of solder, and shielding adjacent areas. Start with a clean work surface, warm the joint evenly, wick away excess solder, and inspect joints under magnification. This approach reduces bridging and cold joints while preserving component integrity.
Why Solder Spreading Happens and Why It Matters
If you’re learning how to stop solder spreading, understanding the physics helps: solder wicks along copper traces by capillary action when heat and surface tension are favorable. In practice, bridging often starts when heat is applied too aggressively or when flux coverage is uneven. According to SolderInfo, mastering heat control and flux application is essential to preventing solder spreading. When bridges form, they can cause shorts, intermittent connections, and difficult-to-trace failures on both PCBs and jewelry pieces. The goal is to keep solder within the intended copper area without sacrificing wetting quality or joint strength. By focusing on predictable heat delivery and disciplined flux use, you set the stage for consistent, high-quality joints while reducing rework.
Core Principles for a Clean Solder Joint
A clean joint begins with two core ideas: heat must be localized to the joint area, and flux must actively promote wetting and capillary flow. Use flux designed for your solder type and ensure the pad surface is clean and free of oxides. Lead-free solders often require slightly longer dwell times and careful airflow management, especially on dense boards. When you ask how to stop solder spreading, remember that proper pad geometry, mask integrity, and minimal solder consumption are equally important. Practicing controlled pre-tinning on pads can improve predictability, but avoid over-tinning, which can encourage solder to migrate beyond the pad edges. Regular inspection during practice sessions helps build muscle memory for precise application.
Pad and Board Preparation Essentials
Begin with a clean, prepared pad and an intact solder mask. Remove oxidation from copper surfaces with a gentle brush or low-strength cleaner, then re-apply flux to promote even solder flow. If pads are damaged or lifted, repair or rework the footprint before attempting a joint. This preparation reduces the likelihood of premature solder wicking to adjacent copper and helps you maintain a crisp, well-defined joint geometry. For jewelry and delicate electronics, consider using magnification to confirm pad edges are crisp and free of stray copper that could attract excess solder.
Flux and Solder Selection for Bridging Prevention
Flux lowers surface tension barriers and improves solder wetting, which is essential when dealing with fine pitches and dense PCBs. Rosin-core and no-clean fluxes are common choices for electronics; the key is to apply enough flux to cover the joint without creating excessive residue. When choosing solder, prefer alloys with predictable wetting behavior and compatible flux chemistry. If you’re working with lead-free solder, allow slightly longer reflow times and follow the manufacturer’s guidelines for temperature profiles to avoid excessive spreading. Remember: flux is not a substitute for good heat control, but it dramatically reduces the risk of bridges when used correctly.
Practical Techniques for Fine-Pin and SMD Work
Bridging is especially common with fine-pitch components and SMDs. Start with smaller solder deposits and place the component so the pads align cleanly. Use a fine-tipped iron or a precision hot-air setup for controlled heat delivery. Apply flux precisely to the pad region and only enough solder to wet the pad. When you need to fix a nearby bridge, wait until the joint cools slightly, then wick away excess solder with a braid while applying heat to the bridge area only. Practice on test boards to build consistency before touching production boards.
Rework and Correction: Fixing Bridges Without Damage
If a bridge forms, act quickly but carefully. Isolate the bridged area with flux, then apply heat to the joint while lifting the excess solder with desoldering braid. Work from the outer edges toward the center to avoid pulling solder onto adjacent traces. When rework is complete, clean the area with isopropyl alcohol and re-check with a magnifier. For stubborn bridges, a second pass with a small amount of flux and a fresh braid can restore proper clearance without lifting pads or lifting copper.
Quality Control: Inspection and Verification
Post-solder inspection is essential to confirm success. Use a loupe or microscope to verify there are no unintended bridges, and verify that the joint forms a smooth, convex fillet without gaps. Look for consistent fillet shape around each pad and ensure there is no solder on adjacent copper. Record any deviations and rework as needed before the board leaves the workstation. Regular practice with standardized inspection criteria reduces the rate of false negatives and improves long-term reliability.
Tools & Materials
- Soldering iron (temperature-controlled, suitable for lead-free work)(Set to the appropriate temperature for your solder; avoid excessive heat that spreads solder.)
- Lead-free solder (Sn-Ag-Cu or similar)(Choose a diameter appropriate for the joint size and pitch; avoid overly large deposits.)
- Flux (rosin-core or no-clean)(Apply precisely to the pad/joint to promote wetting without excessive residue.)
- Solder wick (desoldering braid)(For removing excess solder and bridges without damaging pads.)
- Magnification aid (loupe or stereo microscope)(Essential for detecting bridges and subtle joint defects.)
- Isopropyl alcohol (or proper flux remover) and lint-free wipes(Used for residue cleanup and post-rework inspection.)
- ESD-safe mat and tools(Reduces static risk on sensitive electronics.)
- Fine tip cleaning sponge or brass wool(Keeps tips clean to maintain precise heat delivery.)

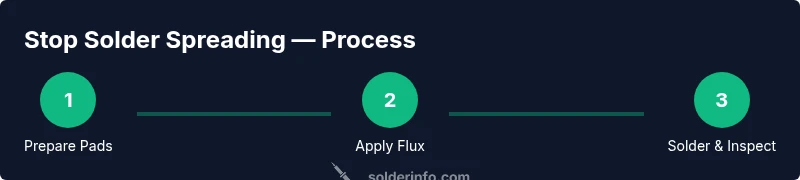

Steps
Estimated time: 15-25 minutes
- 1
Prepare the workspace and board
Clear the area, set up ESD protection, and inspect pads for damage. Ensure there is no condensation, dust, or oils that could affect solder flow. This setup reduces the chance of accidental bridging when heat is applied.
Tip: Use a clean, static-free mat and keep components organized to avoid cross-contamination. - 2
Pre-tin pads or apply flux
If pads appear dull or oxidized, lightly pre-tin or apply flux to promote even wetting. Flux helps solder flow toward the joint and away from adjacent copper. Avoid over-fluxing, which can spread solder unintentionally.
Tip: Flux only the pad area you intend to solder; excessive flux can hide wetting problems. - 3
Position component and heat the joint
Place the component so pins align with their pads. Apply heat to the joint area, not the entire pad, using a controlled, even dwell. Allow capillary action to draw solder into the joint while avoiding spreading toward neighboring traces.
Tip: Keep the iron tip clean and use short, controlled pulses to prevent overheating. - 4
Apply solder with precision
Feed solder to the joint at the pad edge, not directly onto the component lead. Let the solder wick into the joint through capillary action. Stop adding solder once a clean fillet appears.
Tip: If a bridge forms, pause, wick the excess with braid, and reflow only the affected area. - 5
Inspect and correct bridges
Use magnification to check for any bridges. If found, rework by applying flux, heating the bridge area, and lifting the excess solder with braid. Remove residue before moving to the next joint.
Tip: Address bridges before they harden; fresh braid is more effective than an old one. - 6
Clean and verify
Clean flux residue with isopropyl alcohol and inspect again. Verify each joint has a smooth fillet and no solder on adjacent copper. Document any borderline joints for future practice.
Tip: A final visual check with lighting at a low angle reveals hidden bridges.
Quick Answers
What causes solder spreading in PCB work?
Solder spreading is usually caused by excessive heat, poor flux coverage, or improper pad preparation. Capillary action can draw molten solder toward adjacent copper if heat is too localized or if flux fails to promote wetting. Correcting temperature, flux application, and pad prep lowers bridging risk.
Bridging happens when heat and flux don’t line up with the pad geometry; adjusting temperature and flux helps prevent it.
How can flux help prevent bridging?
Flux reduces surface tension barriers and improves wetting, guiding solder to stay within the pad boundaries. Proper flux coverage is essential for controlling solder flow, especially on dense or fine-pitch boards.
Flux helps the solder flow where you want it and stops it from spreading to nearby copper.
Is lead-free solder more prone to spreading?
Lead-free solder can require slightly different heat profiles and dwell times, which may influence spreading if not managed. Focus on precise heat control and consistent flux use regardless of alloy.
Lead-free doesn’t inherently spread more; it just requires careful control of heat and wetting.
Can I fix bridges without damaging pads?
Yes. Use flux, apply heat to the bridge area, and wick away excess solder with braid. Work slowly and verify pad integrity after rework to avoid lifting copper.
Yes—careful heat and the right braid can fix bridges without harming pads.
What inspection methods best reveal bridges?
Inspect with a magnifying tool under proper lighting and at multiple angles. Look for thin bridges that may not be obvious at first glance, and rework any suspicious joints before powering the board.
Use magnification and good lighting to spot any bridges, then fix them before testing.
What should I do for fine-pitch components?
For fine pitch, use small amounts of solder and flux precisely on each pad. Consider using a dedicated fine-tip iron or hot air with careful temperature control to prevent unintended spreading.
Fine-pitch work benefits from small solder deposits and precise heat.
Watch Video
Top Takeaways
- Control heat to localize solder flow
- Apply flux precisely to promote wetting
- Use minimal solder and wick excess carefully
- Inspect joints under magnification
- Practice on test boards to build consistency
