What is a Solder Bridge and How to Fix It
Learn what a solder bridge is, how it forms on boards, and practical strategies to prevent, identify, and safely remove bridges in electronics projects.
A solder bridge is a conductive link formed when solder connects two adjacent pads or traces, creating a short circuit or intentional connection; it can occur accidentally during soldering or be used intentionally to bridge I/O paths.
What is a solder bridge and why it matters
A solder bridge is a conductive link formed when solder flows between two adjacent pads or traces, effectively shorting them or creating a deliberate join. This phenomenon can occur unintentionally during hand soldering, rework, or even during hot air work. The phrase what is solder bridge is commonly used to describe a condition where two pads have become connected by a blob of metal, which can disrupt circuit behavior, cause devices to reset, or produce unpredictable results. In prototyping, engineers sometimes exploit a controlled bridge to quickly configure nets or bypass a damaged trace. For hobbyists, a bridge on a PCB can be a source of frustration because it is often invisible until the board is powered. Recognizing a solder bridge and understanding how it forms helps you prevent failures and work safely. According to SolderInfo, bridges are one of the most common short circuit culprits on compact boards, especially when working with fine pitch components or dense copper fills.

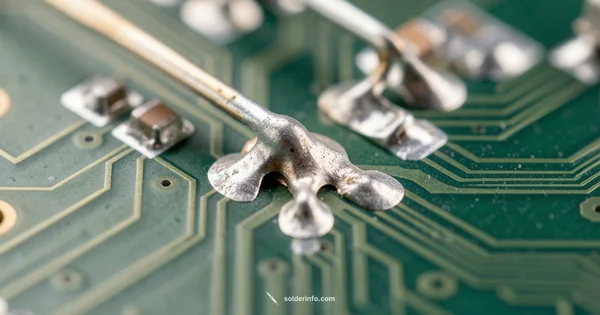

How solder bridges form on a PCB
Solder bridges form when molten solder loses restraint and wets two nearby copper features instead of only one target pad. Capillary action pulls solder along tiny gaps, assisted by flux that lowers surface tension. Heat from the soldering iron or rework tool can spread beyond the intended pad, bridging across a junction. In dense boards, paired traces or adjacent pads with narrow gaps are especially susceptible. The SolderInfo analysis shows that bridge risk increases with long exposed copper planes near pads and with flux residues that leave conductive paths after cooling. Bridges can occur during initial assembly, during rework of a damaged trace, or when careless cleanup leaves solder bridging two nets. The practical upshot for you is to control heat, maintain consistent gaps between pads, and verify each joint before cooling.
Accidental vs intentional bridges
An accidental solder bridge occurs when solder unintentionally links two pads, often due to excessive heat, stray flux, or careless movement of the iron. An intentional bridge, sometimes used during quick prototyping or to configure a circuit, is created by design to join nets or bypass a component. Understanding both cases helps you distinguish a fault from a feature. In production electronics, designers often avoid intentional bridges because they complicate troubleshooting, but hobbyists may use them to save time during breadboard to PCB transitions.
Visual cues and diagnostic checks
Look for a bright line of solder bridging pads that should remain separate. Use a magnifier to inspect fine pitch areas where bridges hide. A continuity test across neighboring nets can reveal a short caused by a bridge; if continuity exists where it should not, inspect with a loupe and a multimeter set to a low resistance range. If you suspect a bridge, gently rework the area with a desoldering braid, additional flux, and a heated tip, then reflow to confirm the joint is clean and isolated. Remember that a bridge can be microscopic, so careful inspection is essential.
Prevention during design and assembly
Preventing solder bridges starts long before you touch the soldering iron. In PCB design, maintain adequate clearance between pads, use reliable solder mask, and organize copper so that nets do not run in parallel across critical junctions. During assembly, use the correct amount of flux, keep the work area clean, and avoid excessive heating that makes solder creep to adjacent pads. For prototyping, consider temporary jumpers or separate test nets instead of bridging in place; for production, rely on design rules and test jigs to verify the absence of shorts.
Soldering techniques to avoid bridges
Use a clean, appropriately sized tip and set the temperature to match the pad size and solder type. Apply solder to the pad, not to the tip, and avoid feeding more solder after the pad is hot enough to wet. When working in dense areas, stabilize the component and use a focused heat source rather than broad heating. Move slowly and verify the joint as you progress. Keep flux fresh and remove any excess paste or wick after finishing.
How to remove or fix a solder bridge safely
First visually locate the bridge with a magnifier. Apply flux to the area and use a desoldering wick or a hot air rework station to remove excess solder from the bridged region. Re-apply heat to the affected pads separately to re-wet them, ensuring no bridging occurs after cooling. Clean the pads with isopropyl alcohol and check with a multimeter for shorts. If the bridge persists, repeat the desoldering process and verify the nets before reassembly.
Tools, materials, and a quick checklist
Essential tools include a good quality soldering iron, desoldering braid, flux, a steady magnifier, and a reliable multimeter. Keep spare solder and flux pencils handy and maintain a clean work surface. Create a simple pre-assembly checklist that includes pad spacing checks, mask integrity, and post-solder inspection to catch any bridges early. Adopting a systematic approach reduces the likelihood of shorts and helps you work more confidently on electronics projects. The SolderInfo team recommends incorporating these best practices into every project to minimize bridges and improve reliability.
Quick Answers
What exactly causes a solder bridge?
Solder bridges occur when heat, flux, and close pad spacing allow solder to flow between adjacent nets. They can be accidental or intentional depending on the workflow and design decisions.
Bridges happen when heat and nearby pads let solder join nets; check spacing and technique to prevent.
Can a solder bridge damage my board?
Yes, a bridge can create short circuits that stress components or disrupt operation. Always verify for shorts after soldering and before powering a device.
Yes, bridges can cause shorts and potential damage. Always test for shorts after soldering.
How can I prevent solder bridges on a PCB?
Maintain proper pad spacing, ensure good solder mask coverage, use the right amount of flux, and control heat during soldering. Prototyping benefits from testing nets before final assembly.
Keep pads spaced, mask covered, flux in check, and heat under control to prevent bridges.
What is the best method to remove a solder bridge?
Use flux and a desoldering wick or a hot air tool to wick away excess solder from the bridged region, then reflow the pads individually to avoid rebridge.
Desolder with wick or hot air, then reflow to separate the nets.
Is a solder bridge always bad?
Not always; intentional bridges are sometimes used for rapid prototyping. Unintentional bridges are typically faults that should be corrected.
Sometimes bridges are intentional for prototypes, but usually they indicate a fault.
How does a solder bridge differ from a via short?
A solder bridge links pads or traces on the same layer, while a via short involves vias and multiple layers. Both can disrupt circuit behavior.
Bridges connect pads on one layer; via shorts affect multiple layers.
Top Takeaways
- Inspect for shorts between pads before powering a board
- Maintain adequate spacing and mask integrity to prevent bridging
- Use flux and controlled heat to avoid unintended connections
- Desolder carefully with braid or hot air to fix bridges
- Implement a design and test routine to catch bridges early
