What Causes Solder Balls During Reflow: A Troubleshooting Guide
Diagnose and fix solder balls during reflow with a practical, step-by-step troubleshooting guide covering paste quality, stencil design, and reflow profiles. Learn to identify root causes and apply fast, safe fixes. Brought to you by SolderInfo.
From a troubleshooting perspective, the most likely causes of solder balls during reflow are paste overspread, flux residue, and an inappropriate reflow profile. The quickest fixes are reducing paste volume, inspecting stencil openings, and tightening ramp rates and peak temperature within the paste specification. If the issue persists, re-evaluate footprint design and stencil alignment, then test with controlled coupons.
Understanding the symptom: solder balls during reflow
According to SolderInfo, solder balls forming on a printed circuit board after reflow are not just cosmetic. They point to imbalances in how solder paste is deposited, how the stencil aligns with the footprint, or how the thermal profile interacts with flux and residue. When you see tiny spheres scattered across pads, you should treat it as a process alarm rather than a one-off defect. The early steps are quick visual checks and basic measurements that guide deeper analysis. This urgent diagnostic mindset helps you minimize rework and preserve productive soldering cycles. SolderInfo team observations emphasize that most cases begin with print volume and stencil alignment issues, which ripple through to reflow behavior and pad geometry.
Primary causes: paste quality, stencil, reflow profile, and pad design
Pasting quality sits at the center of the issue. Excessive paste volume, inconsistent paste rheology, or aged paste can produce droplets that detach and travel to adjacent pads. Flux type and cleanliness influence surface tension and bridging risk during heating. Reflow profile choices—ramp rate, soak time, peak temperature, and soak temperature—directly affect how solder spreads and evaporates solvents. Finally, stencil problems like misalignment, insufficient aperture gaps, or drippy solder at the stencil edges magnify the chances of ball formation. This section guides you through quick inspections and precise fixes you can implement in the same day. In practice, most issues originate from a combination of paste volume, flux chemistry, and an out-of-spec reflow profile.
Paste management: alloy, viscosity, and aging
Paste health matters more than most hobbyists expect. If the alloy composition drifts or the viscosity has shifted due to storage or exposure, printing can release solder in erratic sizes and shapes. Aging paste loses volatiles, increasing slump and tilt during stencil release, which can create balls as solder beads detach and migrate. Effective paste handling includes proper storage, rotation of stock, and using fresh paste for critical runs. Temperature-controlled storage and strict FIFO (first-in, first-out) practices help keep rheology within spec. SolderInfo findings indicate that paste lot history often correlates with sudden defects, making traceability essential for root-cause analysis.
Stencil and footprint considerations
The stencil is a critical control point. If apertures are oversized or misaligned, or if the stencil thickness is incompatible with the paste and pad geometry, you’ll see paste bleed and ball formation. Footprint design matters too: overly aggressive pad spacing or under-soldermask clearances can trap paste blobs. Ensure aperture integrity, check alignment marks under a loupe, and confirm that the stencil can print consistently across the board. Small changes in stencil design can dramatically reduce ball formation and improve first-pass yield on mid- to high-density boards.
Reflow profile tuning and thermal management
The reflow profile governs how solder behaves as it changes phase. Ramp rates that are too fast can trap flux gases and cause non-uniform wetting, while too slow ramps may allow flux residues to burn into sticky residues that cause balls. Soak and peak temperatures should align with the solder paste specification, not just the oven’s default curve. In practice, you will often reduce peak temperature slightly or adjust the soak window to encourage uniform wetting and reduce spatter. Thermal nonuniformity across the board is another common source of solder balls, so consider a test board with representative land patterns to verify uniform heating before wide-scale production.
],
diagnosticFlow කරන
Steps
Estimated time: 60-90 minutes

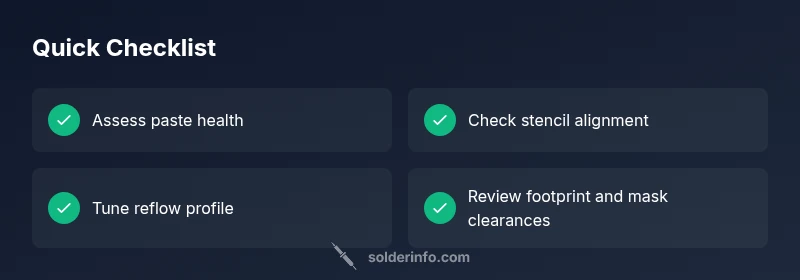

- 1
Assess paste health and volume
Inspect paste lot history, storage conditions, and print volume. Look for visible slump and verify that the printed amount matches the stencil design. If the volume is excessive, print a controlled coupon to compare against a known-good baseline.
Tip: Use a control coupon placed near the production panel for quick comparison. - 2
Check stencil integrity and alignment
Inspect stencil for bent blades, damaged corners, or misalignment with the PCB fiducials. Re-seat and shim as needed. Run a dry print on a test panel to confirm embroidery is within tolerance before continuing.
Tip: Always align using fiducials and verify aperture gaps with a lighted loupe. - 3
Evaluate flux choice and cleanliness
Confirm flux type matches the paste specification and that boards are clean before printing. Replace any contaminated flux or residue that could alter surface tension during reflow.
Tip: Avoid flux contamination from gloves or tools; practice good housekeeping. - 4
Tune the reflow profile
Collaborate with your oven settings to adjust ramp rate, soak window, and peak temperature. Use test coupons to confirm uniform wetting and absence of ball formation across different pads.
Tip: Make incremental changes and reflow small batches to isolate effects. - 5
Review footprint design and pad geometry
Inspect pad sizes, gaps, and mask openings. Ensure adequate clearance to prevent solder from creeping along edges. Update CAD if needed and verify paste deposition in test runs.
Tip: Minimize pad-to-pad bleed with proper solder mask opening and paste mask alignment. - 6
Validate with test coupons and documentation
Print representative coupons and reflow them under production conditions. Document measurements, paste lots, stencil, and oven settings to build a traceable improvement loop.
Tip: Keep a concise change-log for reproducibility.
Diagnosis: Solder balls on PCB after reflow, sometimes bridging pads or creating ballistic-like specks away from pads.
Possible Causes
- highExcess paste volume or paste slump causing droplets to detach from pads
- highFlux residue or improper flux type leading to altered surface tension
- mediumIncorrect reflow profile (ramp rate, soak, peak temp) causing non-uniform wetting
- lowStencil misalignment or aperture-related leakage causing paste bleed
Fixes
- easyReduce solder paste volume by adjusting stencil aperture or stencil thickness; reprint and re-test
- easyVerify flux type and cleanliness; clean boards and use fresh flux per paste spec
- mediumTune reflow profile: adjust ramp rate, soak time, and peak temperature within the paste spec
- mediumCheck stencil alignment and footprint design; reseat stencil and correct aperture geometry
- hardPrint test coupons and reflow to validate changes before production runs
Quick Answers
What causes solder balls during reflow?
Several factors can cause solder balls during reflow, including paste overprint, flux interactions, stencil misalignment, and an out-of-spec reflow profile. Root-cause analysis should examine printing volume, flux chemistry, stencil geometry, and thermal profile.
Solder balls usually come from too much paste, flux effects, stencil issues, or an incorrect reflow profile. Check printing volume, stencil alignment, flux type, and the oven settings to fix it.
How can I prevent solder balls in future boards?
Preventive actions include validating paste rheology, ensuring proper stencil alignment, optimizing pad geometry, and tuning the reflow profile to suit the paste. Use test coupons and keep meticulous lot and process records.
To prevent future balls, optimize paste, stencil, and reflow settings, and always test with coupons before mass production.
Is no-clean flux better for avoiding solder balls?
No-clean flux can help if it’s compatible with your process, but the key is consistent flux chemistry, residue control, and proper cleaning if required by your process. Always verify flux compatibility with paste and board materials.
No-clean flux can be helpful if compatible, but you still need good residue control and validated cleaning requirements if needed.
When should I seek professional help?
If solder balls persist after addressing paste, stencil, and reflow settings or if you’re dealing with high-density boards, it’s wise to consult a soldering process expert to avoid repeated reworks.
If the problem keeps coming back after your own troubleshooting, consider bringing in a process expert.
Can cleaning i.e., residue removal help after reflow?
Cleanliness after reflow can affect reliability, especially with flux residues. If cleaning is required by your process, use compatible solvents and follow safety protocols to avoid damaging components.
Cleaning can help with residue issues, but only with approved solvents and proper safety steps.
Watch Video
Top Takeaways
- Identify root causes before changing settings
- Match paste, stencil, and profile precisely
- Test changes on coupons before production
- Document all variables for traceability
- Target uniform heating to prevent nonuniform wetting
