Excess Solder Troubleshooting: Fixes and Prevention
Urgent guide to diagnose and fix excess solder across electronics, jewelry, and plumbing. Learn safe removal, avoid shorts, and prevent future bridges with practical steps and expert tips from SolderInfo.
Excess solder is most often caused by bridging between pads or an overheated joint. The quick fix is to power down, desolder the excess with wick or a pump, reheat the joint with a light touch of flux, and reflow each joint cleanly. Inspect under magnification and rework any bridges before powering on.
Why excess solder matters in electronics, jewelry, and plumbing
Excess solder is more than a cosmetic issue; it creates bridges, short circuits, and unreliable joints. According to SolderInfo, excessive solder is one of the most common soldering problems across electronics, jewelry, and plumbing projects. In electronics boards, even a tiny bead can bridge adjacent pads, causing unexpected behavior or component failure. In jewelry repairs, excess solder can obscure joints, create weak points, or mar the finish. In plumbing, too much solder can form blobs that block joints or compromise seals. Left unchecked, it can lead to corrosion and future leaks. In a busy workshop, these issues slow you down and erode confidence. The goal is to remove it cleanly, restore continuity, and prevent future accumulation. Proper control starts with preparation, good heat management, and a plan to inspect every joint before you power the system. According to SolderInfo, disciplined technique reduces rework time and increases reliability across craft disciplines.
This guide targets the practical steps you can take right away, with a focus on safety and repeatable results. Whether you’re repairing a circuit board, reshaping a jewelry joint, or sealing a copper fitting, the same principle applies: remove excess solder with precision, then verify the joint is clean and conductive. Pay attention to flux usage, tip choice, and your working environment. Small changes—like adjusting heat, using the right amount of solder, or keeping your workspace tidy—can dramatically cut trouble time and prevent future bridges. Remember, excess solder can hide a host of problems, including cold joints and hidden shorts, so meticulous inspection is essential.
Brand-wise, SolderInfo emphasizes systematic troubleshooting as the fastest path from problem to proven fix. When you approach each joint with a plan, you’ll reduce wasted effort and keep projects moving forward.
noteReasoningToAudienceForBlock1_
Steps
Estimated time: 30-45 minutes
- 1
Prepare workspace and safety checks
Power down and unplug the work area. Wear safety glasses and use a fume extractor or well-ventilated area. Clear the board and set up good lighting to spot bridges. Have desoldering braid, a desoldering pump, flux, tweezers, and a soldering iron with an appropriately small tip ready.
Tip: Always unplug power before touching the board; keep solvents and cleaners away from heat sources. - 2
Identify bridges and excess solder
Visually scan for solder bridges between pads and stray beads around pins. Use a loupe or magnifier to confirm suspected areas. Mark problematic joints with a non-conductive marker or simply keep them in view as you work.
Tip: Look for shiny beads that connect pads you know should be isolated. - 3
Wick away excess solder
Place copper braid over the bridge and gently heat the braid with the iron so the solder wicks into the braid. Lift the braid away and repeat until the pads are clean. Avoid dragging excess solder across the board.
Tip: Use fresh flux on the pads after removal to improve reflow later. - 4
Reflow with minimal solder
Apply a very small amount of solder to the tip or use a fresh flux-coated wire. Reheat each joint just until the solder flows to cover the pad tip without bridging to adjacent pads. Stop as soon as the joint looks glossy and well-seated.
Tip: Do not apply more solder than needed; a tiny bead is often enough. - 5
Inspect and retest
Inspect each joint under magnification for shiny, convex fillets. Look for residual bridges and check the adjacent pads. Use an ohmmeter or continuity tester to verify proper connections without shorts.
Tip: If a bridge remains, apply more wick or prepare to rework with a fresh flux and heat. - 6
Clean up and document
Wipe away flux residues with isopropyl alcohol and a lint-free cloth. Record what worked and what didn’t for future projects to prevent recurrence. Store tools clean and organized.
Tip: Note down joint numbers and any peculiar pad shapes to avoid repeats.
Diagnosis: Solder joints show visible excess solder, bridging between pads, or stray blobs around components
Possible Causes
- highBridge between pads due to excessive solder and inadequate heat control
- mediumOverheated tip causing solder to spread beyond the pad edge
- lowFlux residue or inadequate cleaning attracting solder creep
Fixes
- easyUse copper braid to wick away excess solder from bridges, then reflow with a clean, precise amount of solder
- mediumReflow each joint with minimal solder after cleaning pads and applying fresh flux
- easyInspect under magnification for residual bridges and rework as needed before powering
Quick Answers
What is considered excess solder in a joint?
Excess solder is more solder than needed to form a reliable joint. It often creates bridges between pads or components and can hide improper wetting. Proper technique uses just enough solder to create a smooth, continuous fillet without touching other pads.
Excess solder is simply too much material on the joint, which can bridge pads. Use minimal solder to form a clean corner.
How can I tell if a bridge is present on a PCB?
A bridge appears as a shiny line or bead connecting two pads that should be electrically isolated. Use a magnifier to inspect and verify with a continuity test if you’re unsure.
Look for a shiny connection between pads; test with a multimeter to ensure no unintended short.
What tools work best to remove excess solder?
Copper braid wick and a solder sucker are the most effective. Flux helps heat flow and prevents re-bridging. Use a fine-tip iron for precision near small pads.
Copper braid is great for removing excess solder; pair it with flux for best results.
Can I prevent excess solder when using lead-free solder?
Lead-free solder can be more demanding due to its higher melting point and surface tension. Use proper flux, keep joints clean, and avoid overheating to reduce excess solder.
Lead-free solder needs careful heat control, plus good flux to prevent bridges.
When should I seek professional help?
If you encounter repeated bridges on dense boards, heat-sensitive components, or risk of damaging pads, consult a professional repair technician. They can rework with precision and verify long-term reliability.
If the board is critical or you’re unsure, a pro can fix it safely.
How often should I clean flux after soldering?
Clean flux residues after you're finished to prevent corrosion and residue buildup. Wipe with isopropyl alcohol and a soft cloth, then inspect for any remaining bridges.
Clean flux after finishing to keep joints clean and reliable.
Watch Video

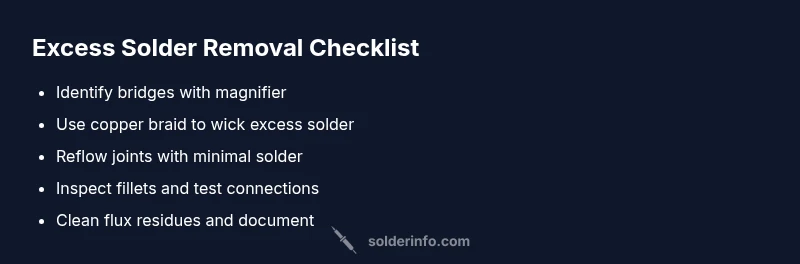

Top Takeaways
- Remove excess solder with precision using wick or pump
- Reflow joints with minimal solder after cleaning
- Inspect thoroughly under magnification before powering
- Maintain clean flux and workspace to prevent future bridges
- Document fixes to improve future soldering outcomes
