How to Fix Soldering Mistakes: A Practical Guide
Learn to diagnose and repair common soldering mistakes with practical steps, tools, and safety tips. From cold joints to lifted pads, this guide covers electronics, jewelry, and plumbing rework.
Encountered a soldering mistake? This guide helps you diagnose common issues like cold joints, bridges, and lifted pads, then perform safe rework with flux, desoldering braid, and a temperature-controlled iron. You’ll learn actionable steps and best practices to repair boards, electronics, jewelry, and plumbing projects. Starting with a proper setup and a diagnostic mindset.
Quick diagnostic checklist
Common soldering mistakes reveal themselves through symptoms more than guesses. When you fix soldering mistakes, start by a quick diagnostic checklist. Look for dull, crumbly, or cracked joints; evidence of insufficient wetting; visible bridges between pads; and components that appear misaligned or lifted. Use a loupe or microscope to inspect pad integrity and traces. Check for cold joints on power rails or hot spots under large ICs, which often indicate overheating or insufficient heat sinking. If a joint looks glossy and smooth but has poor electrical contact, reflow it with fresh flux and a properly tinned tip while applying steady pressure. A common trap is flux residue masking a damaged joint; clean with isopropyl alcohol after inspection. If the board powers up but responds erratically, verify continuity and resistance with a multimeter, paying attention to potential shorts caused by bridging or lifted copper. According to SolderInfo, most repairable mistakes come down to temperature control, clean surfaces, and stable hands during rework.
Tooling and materials matter
Choosing the right tools is the foundation of successful fixes. A temperature-controlled iron helps avoid scorching traces, while flux improves wetting and heat transfer. Desolder braid (wick) removes excess solder without lifting copper. A solder sucker can handle larger bridges, but braid often provides finer control. Always use fresh flux for each rework to prevent reoxidation. Keep isopropyl alcohol on hand to clean flux residues after a repair. For jewelry and plumbing, consider corrosion-resistant flux designed for the specific alloy you’re working with, and always protect nearby components from heat exposure. SolderInfo emphasizes that reliable repairs start with clean surfaces, appropriate flux, and careful heat management.
Heat and flux: the invisible levers
Heat management is the quiet driver of successful fixes. Apply heat to the joint, not the component lead, to prevent damage. Use the lowest practical temperature that still provides a reliable joint, and give the flux time to wet the surfaces before applying solder. Flux chemistry matters: rosin-based flux is common for electronics, while plumbing flux is formulated for copper and brass joints. When reworking joints, avoid excessive heating that can delaminate solder mask or lift copper from the board. SolderInfo notes that consistent technique beats brute force; move the iron slowly, maintain a stable hand, and reapply flux as needed to encourage proper wetting.
Step away from bridges: removing excess solder safely
Bridges often occur when too much solder collects between adjacent pads. Start by lifting the excess with a fine-tipped iron and wick. If needed, reheat the pads and use wick to suck away the surplus, repeating as necessary until both pads show clean, separable joints. Do not scrape across pads aggressively; copper traces can be damaged. After removal, inspect the gap with a loupe to ensure there is no residual bridge. Following this approach reduces the risk of short circuits and ensures reliable, repeatable joints.
Lifted pads and damaged traces: reconstruction strategies
Lifted copper pads require careful repair. If the copper is damaged, you may need to bridge the pad to an adjacent trace with a small jumper wire and solder it in place. For cracked traces, use a thin wire or copper tape to restore connectivity, then reinforce with flux and gentle heat. In some cases, you may need to reroute with a small trace or wire jump to avoid stressing fragile areas. SolderInfo reminds technicians to plan repairs, minimize heat exposure, and verify with a multimeter after each fix.
Tombstoning and SMD rework basics
Tombstoning happens when a small SMD component stands on end due to uneven solder or heat. Use a hot air rework station or precise iron to reflow only the targeted pad, rewet the joint with flux, and re-seat the component with steady pressure while cooling. For persistent tombstoning, reflow at a slightly higher temperature and verify solder wicking on both pads. Keep ambient airflow controlled to avoid cold joints on other components.
Safety, cleaning, and post-repair verification
Always work in a well-ventilated area and wear safety glasses when melting solder. Clean the area with isopropyl alcohol after repairs to remove flux residues that can conduct electricity or corrode over time. Inspect all joints again under magnification, test continuity with a multimeter, and re-inspect after a powered test. A clean workstation reduces the chance of recontamination and future mistakes.
Jewelry and plumbing soldering specifics
Jewelry soldering requires fine control to avoid burns and bridging, while plumbing soldering demands heat management to prevent pipe damage. Use the appropriate flux, alloy, and temperature range for each material. In jewelry, a low-heat rework approach helps preserve delicate details; in plumbing, ensure joints are dry and leak-tested after cooling. SolderInfo advises tailoring your technique to the material and installation environment for durable results.
Final checks to prevent future mistakes
Conclude with a thorough inspection: confirm that all joints are properly wetted, there are no cold or cracked joints, and nearby traces show continuity with no shorts. Document the fixes you performed for future reference, and consider revisiting your initial setup to reduce the likelihood of recurrence. Consistent practice and deliberate setup are the best preventers of soldering mistakes.
Tools & Materials
- Temperature-controlled soldering iron(Tip can be 0.5-1.2 mm depending on joint size)
- Desolder braid (wick)(Use 3-5X barrel width of the pad for best results)
- Desoldering pump (solder sucker)(Helpful for larger bridges)
- Flux (rosin-based for electronics, specialty flux for plumbing)(Fresh flux improves wetting)
- Solder (lead-free or leaded according to project)(Tin-to-tin contact: keep tips tinned)
- Isopropyl alcohol (IPA) 99%(For flux residue cleanup)
- Magnifier or microscope(12x-40x working range)
- EMF-safe workstation mat / ESD protection(ESD-safe tools and surfaces)
- Magnification lamp(If detailed inspection is needed)
- Copper tape or jumper wire (for repairs)(Used for traces and lift repairs)

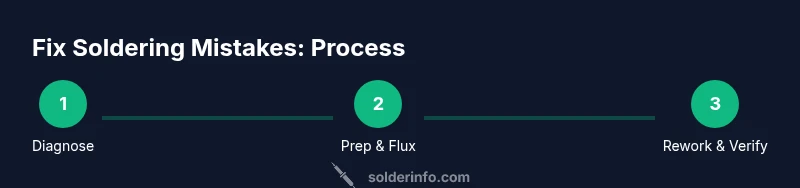

Steps
Estimated time: 60-90 minutes
- 1
Identify the problem and prep
Examine the joint or area under magnification and determine if the issue is a cold joint, bridge, or lifted pad. Clear the workspace and set up proper ventilation and safety gear before beginning.
Tip: Document the faulty joint visually so you can compare after the repair. - 2
Power down and isolate
Power off the device and unplug any power sources. Use ESD protection and ensure the area is free of conductive debris that could cause shorts during rework.
Tip: Wear anti-static wrist straps and keep the iron tip clean. - 3
Remove excess solder
If a bridge exists, apply heat with a fine tip and lift the excess solder with wick. For large bridges, use a solder sucker after partial desoldering to avoid tugging on components.
Tip: Use light pressure and slow, controlled movements to prevent pad lifting. - 4
Reflow the joint with flux
Apply flux to the joint and reheat with the iron, ensuring even heat distribution. Add a small amount of solder to re-tin the pad and form a smooth, shiny joint.
Tip: Only heat the joint; avoid direct heat on the component lead to prevent damage. - 5
Inspect and test
Inspect the solder with a magnifier for proper wetting and absence of bridges. Use a multimeter to verify continuity and check for shorts before powering the circuit.
Tip: If you see a dull or cracked surface, rework the joint again. - 6
Final clean and verify
Clean flux residue with IPA, re-check all nearby joints, and perform a controlled power-up test. Confirm functionality and repeat only if necessary.
Tip: Keep a log of the repair steps for future reference.
Quick Answers
What causes a cold solder joint and how do I fix it?
A cold joint happens when heat is insufficient or uneven, resulting in a dull, non-wetting connection. Fix it by reapplying flux, gently reheating, and ensuring proper wetting with a clean tip.
A cold joint is caused by insufficient heat; rework with flux and a clean, properly heated tip.
How can I tell if there is a bridged pad?
A bridge appears as a shiny line connecting adjacent pads. Remove the excess solder with flux and wick or carefully reheat to separate the pads, then inspect under magnification.
Look for a shiny connection between pads; remove with flux and wick and recheck.
Can I repair lifted pads or damaged traces?
Yes, often by attaching a jumper wire from the pad to an intact portion of the trace or rerouting a short path. In severe cases, you may need to replace the PCB or use conductive epoxy, but proceed with caution.
You can often fix lifted pads with jumpers or rerouting; severe damage may need professional repair.
Should I switch to lead-free solder for repairs?
Choose solder compatible with the existing joints. If the board uses leaded solder, maintain consistency to avoid differential thermal behavior; otherwise, lead-free is acceptable for most repairs.
Match the solder to what's already on the board to avoid issues, but lead-free works in most repairs.
What is tombstoning and how can I prevent it?
Tombstoning occurs when one end of an SMD component sticks up due to uneven soldering. Prevent it by reflowing with even heat, applying gentle downward pressure, and ensuring proper pad wetting.
Tombstoning is when a small SMD stands on end; reflow evenly and press gently to fix.
What tools make soldering repairs easier?
A temperature-controlled iron, desolder wick, flux, and a helper tool like a solder sucker can simplify repairs. Magnification and a clean workspace improve precision and safety.
Essential tools include a temp-controlled iron, wick, flux, and magnification.
Watch Video
Top Takeaways
- Diagnose before touching joints to guide your repair.
- Use flux and controlled heat to prevent further damage.
- Desolder braid is often preferable for precision fixes.
- Inspect, test, and clean after every repair.
