Quick AnswerSteps

You will master essential techniques for soldering circuit boards, including surface-mount and through-hole basics, selecting the right solder and flux, and avoiding common mistakes. You’ll learn practical prep, alignment, heating, and inspection steps to ensure solid joints. This guide also covers safety practices and quality checks for reliable electronics. Whether you're repairing a prototype or building a hobby project, these fundamentals apply.

Why precision matters in circuit board soldering

Precision is the difference between a reliable prototype and a flaky circuit. In soldering, tiny missteps—lifted pads, cold joints, or overheated traces—can lead to intermittent failures that are hard to diagnose. According to SolderInfo, proper technique reduces the risk of cold joints and trace damage by promoting uniform heat transfer and clean interfaces. This is especially true when working with dense boards, fine-pitch components, or heat-sensitive substrates. The goal is smooth, shiny joints where the copper pad and component lead fuse together with minimal solder fillet, not blobs that bridge adjacent pads.

To build intuition, visualize joints as electrical seams. Clean seams allow electrons to travel with minimal resistance and minimal risk of corrosion over time. Start with a clean working surface, fresh flux, and well-tinned tips. Small practice boards help you feel lead angles and heat absorption before you touch a live project. As you gain experience, you’ll recognize telltales of a good joint: a crisp corner, a centered solder fillet, and no solder on the pad itself. This section lays the foundation for the rest of the guide and links technique to long-term reliability. (SolderInfo Analysis, 2026).

Choosing the right materials: solder, flux, and tools

Selecting the right materials is as critical as the technique itself. Lead-free solders are common in consumer electronics and require proper flux to improve wetting and heat transfer. Rosin-core flux is widely used for hobbyist and professional work because it provides flux during soldering and leaves manageable residues. FluxPen or flux paste can enhance precision on crowded boards. For tools, a temperature-controlled soldering iron with a fine tip reduces the risk of overheating neighboring pads. Solder wick is essential for clean desoldering and rework. According to SolderInfo analysis, flux quality correlates with joint reliability, so choose rosin-based flux from reputable brands. (SolderInfo Analysis, 2026).

Prep work: cleaning, tinning, and stencil alignment

Effective prep starts with a clean surface. Wipe PCBs with isopropyl alcohol to remove oils and fingerprint residues that impede solder flow. Inspect pads for oxidation or lifted copper and address any issues before heating. Tinning the iron tip ensures rapid heat transfer when you touch the joint and helps prevent cold joints. If using an SMT stencil, verify alignment with fiducials and double-check pad contacts to minimize tombstoning risk. A tidy prep reduces surprises once heat is applied and improves first-pass yield.

Through-hole vs surface-mount soldering techniques

Through-hole soldering relies on component leads penetrating the PCB and forming a strong mechanical and electrical bond. Surface-mount technology (SMT) requires precise templating and shorter heat cycles; pads and leads are smaller, so even slight heat drift can cause bridging. The best practice is to separate the two techniques on different sections of a board, use a steady hand, and apply heat to the pad until the solder flows and wets the joint. Practice on scrap boards to understand how long heat should be applied and how quickly you should remove the iron.

Achieving strong joints: heat control and technique

Strong joints come from clean surfaces, proper flux, and controlled heat. Approach each joint by touching the pad first, then bring the solder wire to the hot joint, not the iron tip. Avoid prolonged hold times that can damage nearby traces or lift copper. If joints look dull or have a rough edge, reheat briefly and add a small amount of flux. For SMT, consider using a fine-tipped iron or a hot-air station when appropriate, and always keep the nozzle clean and well-maintained. (SolderInfo Analysis, 2026).

Inspection, rework, and avoiding common defects

Always inspect joints after cooling. Look for shiny, smooth fillets that are centered on the pad with no bridges. If you see a dull appearance, cold joints, or excess solder bridging two pads, rework the joint by reheating and applying fresh flux. Use a magnifier or stereo microscope for dense boards and SMT work, and keep a desoldering pump or wick handy for quick repairs. Residue from flux should be cleaned if it interferes with subsequent assembly or testing.

Safety, ventilation, and workspace setup

Ventilation reduces inhalation of flux fumes and solvent vapors. Work in a well-lit area with a stable stand for the PCB and a comfortable, non-static surface. Wear safety glasses and an anti-static wrist strap to protect yourself and the board. Keep flammable materials away from the work area, and store heated irons in a stand when not in use. Good habit is to turn off power and unplug equipment before moving between boards, and to allow tools to cool before storing.

Tools & Materials

Soldering iron (temperature-controlled)(Fine/tiny tip preferred for SMT work; maintain tip cleanliness.)
Lead-free rosin-core solder(Use rosin-core for ease of wetting and residue cleanup.)
Flux pen or flux paste(Applies flux precisely where needed to improve wetting.)
Solder wick (desoldering braid)(For removing excess solder or unintentional bridges.)
Isopropyl alcohol (99% preferred)(Cleans flux residues and oils before/after soldering.)
Lint-free wipes(Used with IPA for residue-free cleaning.)
PCB holder or helping hands(Keeps the board stable during soldering.)
ESD-safe wrist strap(Prevents electrostatic damage to components.)
Magnifier or loupe(Helps inspect fine SMT joints.)
Desoldering pump(Helpful for quick rework on through-hole joints.)

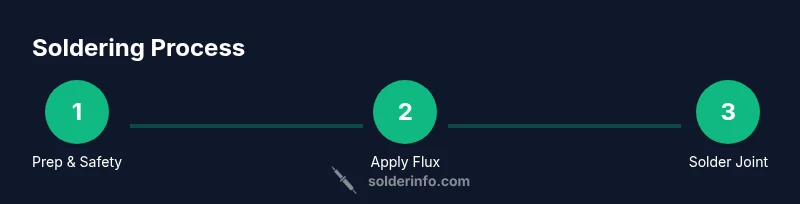

Steps

Estimated time: 45-60 minutes

1
Prepare workspace and safety setup
Clear the area, secure the PCB, and connect an ESD-safe wrist strap. Ensure good lighting and ventilation before powering any tool. Set the board on a stable stand to prevent movement during soldering.
Tip: Test the iron on a scrap pad to verify consistency before touching your project.
2
Power on and test iron on scrap
Plug in the iron and let it reach a stable temperature. Wipe the tip on a damp sponge or brass cleaner to remove protective coating and ensure a clean surface for tinning.
Tip: Avoid overshooting temperature; start at a moderate setting and adjust as needed.
3
Tin the iron tip and apply flux
Coat the tip lightly with solder to improve heat transfer. Apply a thin layer of flux at the joint area to aid wetting and reduce oxidation during heating.
Tip: Keep flux away from fingertips; flux residue can corrode if left on copper long-term.
4
Position components and align pads
Place the components on their pads and verify alignment with a magnifier if needed. For SMT, ensure pads are clean and the footprint matches the component from the silkscreen.
Tip: Use a small dab of flux to help hold parts in place temporarily.
5
Apply heat and form joints
Touch the pad and component lead with the heated iron and feed solder to the joint, not directly to the iron. Remove the heat as soon as the solder wets the pad and forms a smooth fillet.
Tip: Avoid dragging the iron along the joint; steady, brief contact yields better results.
6
Inspect joints and clean excess solder
Allow joints to cool briefly, then inspect for shine, shape, and centering. Use a small amount of flux cleaner if residues remain; wipe with IPA if needed.
Tip: If a joint looks dull or has a gap, reheat with a small amount of flux and re-solder.
7
Rework defective joints
For bridged or cold joints, rework by removing excess solder and re-etching the joint with fresh flux. Use the wick or pump to remove excess solder, then re-solder cleanly.
Tip: Work from the outside of the bridge inward to minimize flux spread and accidental bridging.
8
Cleanup and storage
Power down and unplug tools, clean the work area, and store tools in a safe place. Verify the board will be in a dry, dust-free environment before testing.
Tip: Label boards and components to prevent confusion during rework.

Pro Tip: Keep the iron tip clean and properly tinned between joints to ensure consistent heat transfer.

Pro Tip: Flux reduces oxidation and improves wetting; use it generously but clean residues after soldering.

Warning: Ventilate work area to avoid inhaling fumes; wear safety glasses and avoid skin contact with flux.

Note: Practice on scrap boards before touching an actual project.

Pro Tip: Use a magnifier for dense SMT boards to prevent bridging.

Quick Answers

What is the best solder for circuit boards?

For most hobby and professional PCBs, lead-free rosin-core solder is preferred due to safety and regulatory considerations. It provides reliable wetting with proper flux and heat control. Always follow manufacturer recommendations for your materials.

How do I prevent cold joints?

Ensure the joint is heated evenly and enough solder flows, but not so much that it bridges nearby pads. Clean surfaces, proper flux, and the right temperature help prevent cold joints. If unsure, reheat briefly and rework the joint with fresh solder.

Is lead-based solder safe to use?

Many regions regulate lead-based solders due to health concerns. When used, work in a well-ventilated area and wash hands after handling. Prefer lead-free options for general projects when possible.

What’s the difference between through-hole and SMT soldering?

Through-hole soldering uses component leads through holes for strong mechanical joints; SMT relies on tiny pads and shorter heat cycles. Each requires different techniques and equipment, but both benefit from clean pads and proper flux.

How do I fix a bridged joint?

Let the joint cool, rehearse desoldering with wick or a pump, and reapply flux before re-soldering carefully. Work slowly to avoid creating additional bridges.

Do I need a flux pen for every job?

Flux pens offer precision for crowded boards or SMT work, but you can also apply paste flux or use flux from the solder core. Choose a method that matches your board density and workflow.
