Solder on Circuit Board: A Practical How-To Guide

Why solder on circuit board matters

Solder joints are the invisible bridges that connect electrical signals and power paths on a PCB. A high‑quality joint ensures reliable current flow, minimal resistance, and mechanical stability under vibration or temperature changes. Poor joints can cause intermittent connectivity, short circuits, or component damage. According to SolderInfo, the most common failures start with insufficient prep, dirty pads, or using the wrong flux or alloy for the task. When done well, the solder wets the pad and lead smoothly, forming a clean fillet that’s both visually unobtrusive and mechanically sturdy. If you rush or skip flux, oxidation and bridging are likely, especially on fine‑pitch parts. The goal is a repeatable workflow that yields dependable joints on through‑hole and surface‑mount components alike while staying mindful of safety and cleanliness.

Key idea: good surface prep and correct heat control are your biggest reliability levers, regardless of board complexity.

Tools, materials, and safety gear

Before you touch a board, assemble a compact, reliable toolset. The essentials include a temperature‑controlled soldering iron with a fine tip, rosin‑core or lead‑free solder, and flux (or a flux pen) to improve wetting. Have a desoldering wick or a solder sucker for corrections, a magnifier or loupe for inspection, bright lighting, and a heat‑resistant mat. Eye protection and a well‑ventilated workspace with fume extraction or a fan are recommended. For practice, keep spare boards, spare components, and scrap copper pads handy. Optional aids include a third‑hand tool, an anti‑static strap if you’re handling sensitive parts, and a PCB holder to keep parts steady during soldering.

Safety note: never work with a live power source nearby; unplug equipment when not actively soldering, and keep solvents away from hot surfaces.

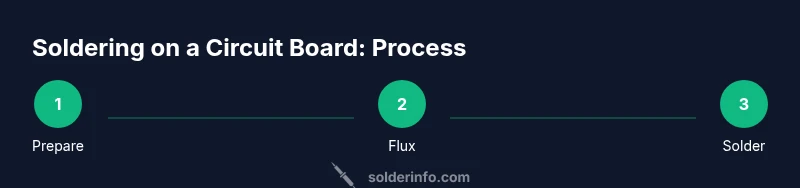

Preparing the PCB and components

Start by inspecting the PCB pads for oxidation, scratches, or damaged copper. If needed, lightly abrade the pads with a Scotch‑Brite pad or fine sandpaper to restore shininess. Clean the pads with isopropyl alcohol to remove oils and fingerprints, then visually verify component leads line up with pads. For through‑hole parts, bend leads to match the pad spacing and slide the component into place so its body sits flat on the board. If you’re using SMD parts, ensure the package sits flush and that there’s no bridging risk between adjacent pads. Apply a tiny amount of flux to each pad to promote wetting and reduce heat required to form a solid joint.

Note on heat: excessive heat can lift pads or damage nearby components; apply heat gently and precisely to the joint, not the body of the part.

Soldering technique: heat, flux, and alloy

The core of soldering is clean wetting and controlled heat. Place the iron so the tip touches the pad and the component lead, then apply a thin line of solder at the leading edge of the joint. The goal is to have the solder flow onto the pad and lead simultaneously, forming a smooth fillet without bridges. For most electronics work, flux helps the molten solder form a reliable connection and reduces the need for excessive heat. Avoid applying solder directly to the iron tip for long periods; this creates oxide buildup that impairs wetting. If you’re working with temperature‑sensitive parts, pause to cool the joint briefly before continuing. For tiny, dense grids, consider preheating the board slightly with a hot air station or by using a preheater to minimize thermal shock.

Practical tip: keep the iron tip tinned and maintain a clean, sharp point for precise control.

Inspection, testing, and avoiding common defects

Once a joint cools, inspect it with a magnifier. Look for a shiny, uniform fillet that covers both pad and lead without gaps. Signs of trouble include dull or grainy surfaces (cold joints), shiny bridges between adjacent pads (solder bridges), or lifted pads that move with the lead. Test the circuit with a multimeter in continuity mode to confirm proper connections and resistance paths. If a joint looks suspect, rework it: re‑apply flux, re‑heat focused on the pad and lead, and add a fresh dab of solder if needed. Keep your workspace clean and remove excess flux residue after soldering to prevent corrosion over time.

For fine‑pitch components or sensitive parts, work slowly and verify after each joint to prevent cumulative errors.

Troubleshooting common issues

Even experienced technicians encounter issues like tombstoning on small diodes, bridging on tight footprints, or lifted pads after excessive heat. Common fixes include applying a small amount of flux, carefully re‑heating the joint, or removing excess solder with wick and re‑placing the part. If a pad has lifted from the copper layer, you may need to repair it with a small piece of copper foil or by re‑tinning the pad area and re‑soldering. When you encounter persistent problems, assess tool condition: a worn tip or dirty iron reduces heat transfer and wetting efficiency. Consistent practice on test boards helps you recognize the subtle cues of a good joint versus a bad one.

Maintenance and storage of tools

After soldering, clean the iron tip on a damp sponge or brass cleaner and tin it again to preserve life. Store solder and flux in a dry, closed area away from heat sources. Periodically inspect the iron for loose connections or worn cords. Check your desoldering braid for residue buildup and replace it if necessary. Keeping tools organized and in good condition reduces the likelihood of accidental damage during future projects.

Safety reminders and best practices

Always work in a ventilated area to avoid inhaling fumes. Wear safety glasses to protect your eyes from splashes, and never touch the hot tip. Keep liquids away from the soldering area and unplug the iron when not in use. When handling hot boards, use needle nose pliers or tongs to avoid burns. Finally, follow proper static precautions for sensitive digital components by grounding yourself before handling boards.
