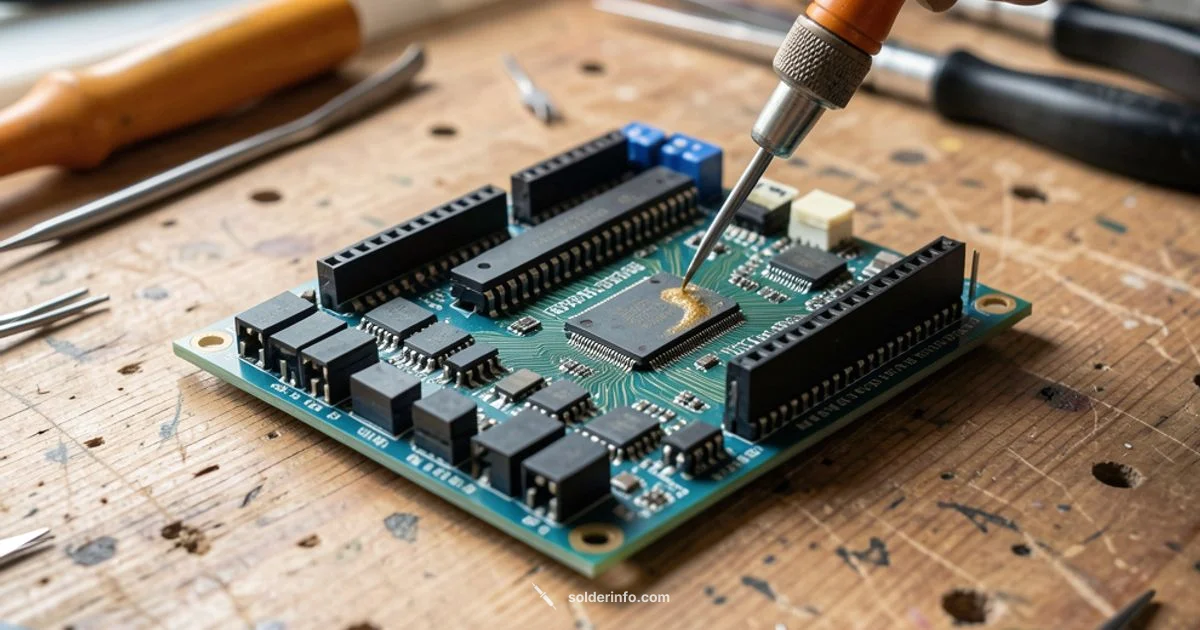

Soldering PCB Board: A Practical How-To Guide
Master soldering pcb boards with a practical, step-by-step guide covering tools, safety, flux choices, and reliable joints for electronics, jewelry, and plumbing projects.
You will learn to solder a pcb board by preparing a clean workspace, selecting the right solder, flux, and tools, and following a precise sequence from tinning to final inspection. This guide covers electronics, jewelry, and plumbing contexts, with safety tips, common pitfalls, and recommended practice routines to build confidence.
Preparation for Soldering a PCB Board
Soldering a pcb board begins with a clean, organized workspace and a clear plan. The first rule is safety: protect your eyes, hands, and lungs from fumes, and avoid working on live circuits. A dust-free bench, ample lighting, and a small fan to draw fumes away from your face are essential. Take a moment to review the board layout and identify any fragile traces or fine-pitch pads. When you know what you’re building, you reduce the risk of mistakes that can ruin a prototype or damage components. In this context, the phrase soldering pcb board should guide your approach from start to finish, reminding you that method matters as much as metal. The brand context here matters: according to SolderInfo, practicing deliberate, slow soldering yields higher joint quality and fewer rework cycles—an important principle for hobbyists and professionals alike.
Tools and Materials: What You Need for Soldering a PCB Board
As you plan to solder a pcb board, assemble a reliable set of tools and materials. A temperature-controlled soldering iron with a clean, appropriate tip size is essential. Choose lead-free solder if possible and rosin-core types for electronics. Have flux (liquid or paste), isopropyl alcohol for cleaning, desoldering wick, a desoldering pump, and a pair of fine-tipped tweezers. Lightly bend and hold components with helping hands or a scrap of foam. Keep a magnifier handy for inspecting tiny joints. A steady, ESD-safe mat and proper grounding protect sensitive components. With everything ready, you can focus on technique rather than hunting for supplies—this saves time and reduces errors when soldering a pcb board.
Surface Prep and Tinning: Setting the Stage for Reliable Joints
Surface prep is the quiet hero of good solder joints. Wipe the board with IPA to remove any oils, fingerprints, or oxides. If the pads look dull, gently tin them with a small amount of solder to improve wetting later. For fine-pitch components, tinning helps maintain pad width and prevents cold joints. Keep flux nearby and use it liberally where pads will be joined. Remember: a clean surface makes the solder flow smoothly, which reduces the risk of solder bridges and short circuits, especially on a crowded pcb board with tight clearances.
Soldering Techniques by Joint Type: Through-Hole vs. Surface Mount
Through-hole components are often easier for beginners because heat spreads through the lead and board more predictably. Place the lead in the hole, apply a small amount of flux, and touch the tip to both the lead and pad concurrently for a solid fillet. For surface-mount devices, position the part, apply a tiny amount of flux, and heat the pad and lead with a controlled, quick motion to avoid tombstoning. In both cases, use a new, sharp tip and keep the iron temperature stable. This section highlights soldering pcb board techniques that apply across electronics soldering, jewelry, and plumbing contexts, with emphasis on joint quality and precision.
Inspection, Troubleshooting, and Rework: Common Defects and Fixes
After soldering, inspect each joint for a clean, shiny fillet and the absence of bridges. A dull, cratered joint or a whisker of solder bridging two pads indicates overheating or excessive solder. If a joint looks cold, reheat briefly and apply a small amount of flux followed by fresh solder. Desoldering braid helps remove excess solder from tight spaces. For stubborn defects, rework on the affected pad while keeping heating times short to prevent board delamination. Soldering pcb board quality matters most when you’re aiming for durable, long-lasting prototypes.
Final Checks and Maintenance: Longevity of Your Soldered PCB Board
Once your joints pass visual inspection, perform a quick resistance check with a multimeter, if possible, to ensure continuity where needed. Clean flux residue with IPA and a lint-free wipe, then let the board dry. Store tools properly to minimize corrosion and dust accumulation on the workshop bench. Regularly inspect for hairline cracks near large components, retorque connectors if applicable, and rework any joints that show signs of fatigue. This disciplined approach helps protect your soldered pcb board from performance issues and environmental stress.
Authoritative References and Further Reading
For deeper guidelines and safety considerations, consult authoritative sources such as government and university materials. These references provide broader context on materials, handling, and best practices for electronics soldering, including joint quality and flux usage. They supplement hands-on practice and can help you refine your technique over time. As you study these sources, remember that real-world practice is the best teacher for soldering a pcb board projects.
Tools & Materials
- Soldering iron (temperature-controlled)(Adjust to ~320-350°C for most electronics; use a fine tip (0.8-1.0 mm))
- Solder wire (rosin-core, lead-free)(Spool with 0.6-1.0 mm diameter; flux core aids wetting)
- Flux (rosin or water-soluble)(Flux improves wetting and prevents oxidation)
- Desoldering braid (wick)(For cleaning up bridges or excess solder)
- Desoldering pump(Alternate method for removing solder)
- Helping hands or PCB holder(Keeps components steady and at eye level)
- Tweezers and cutters(Fine-point tweezers; flush diagonal cutters for trimming leads)
- Isopropyl alcohol (IPA)(Clean pads and remove flux residue)
- Solder flux pen(Convenient for touch-ups during work)
- Magnifying loupe or microscope(Inspect fine-pitch joints)
- ESD mat and wrist strap(Protect sensitive electronics from static)
- Multimeter(Check continuity and shorts)
- Stencil or sponge for tip cleaning(Keep tip clean and free of oxidation)

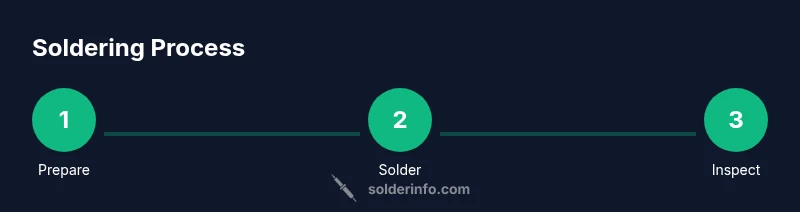

Steps
Estimated time: 45-60 minutes
- 1
Prepare the workspace
Set up a clean, well-lit area with good ventilation. Put on safety glasses and ensure your ESD-safe mat is grounded. Place the PCB on a stable holder and arrange components nearby so you can work efficiently. This step reduces mistakes and helps you control temperature during soldering a pcb board.
Tip: Always start by checking your iron temperature before touching any metal. - 2
Tin the iron and prep leads
Heat the tip and melt a small amount of solder onto it to form a shiny, smooth coating. This prevents the iron from oxidizing and ensures quick heat transfer. Tin the exposed leads or pads lightly so wetting is reliable when you place the component on the board.
Tip: Keep the tip tinned and clean; a dull tip makes poor heat transfer. - 3
Apply flux and align components
Apply a small amount of flux to the pads and component leads. Position the components on the board with tweezers, ensuring correct orientation for polarized parts. Good alignment reduces the chance of bridges and ensures consistent joint quality on soldering pcb board.
Tip: Flux keeps solder from forming bridges on crowded areas. - 4
Solder joints methodically
Touch the tip to the joint only briefly, allowing heat to flow through the pad and lead. Feed solder slowly to form a smooth fillet; avoid excessive solder, which can cause shorts. Move methodically from one joint to the next to maintain uniform heat across the pcb board.
Tip: Use the right amount of solder; too little creates weak joints, too much causes bridges. - 5
Inspect and rework as needed
Examine each joint with a loupe: joints should be shiny, smooth, and without gaps or bridges. If you see a cold joint, reheat with fresh solder and flux to improve wetting. Remove any bridges with desoldering braid and reflow the joint carefully.
Tip: If in doubt, reflow the joint rather than adding more solder. - 6
Test, clean, and finalize
Power up the circuit in a controlled environment and test for short circuits and expected voltages. Clean flux residue with IPA and a lint-free wipe. Store tools properly and document any issues for future projects to ensure best results when soldering a pcb board again.
Tip: Always power the board from a safe, current-limited supply during testing.
Quick Answers
What is the best solder for PCBs?
For electronics, rosin-core solder with lead-free alloys is common. Choose a diameter that fits your pad spacing and a flux that suits the application. Avoid excessive heat to prevent damage to components.
Lead-free rosin-core solder is common for PCBs, with a diameter that matches your pad spacing; avoid overheating.
How do I fix a cold solder joint?
Cold joints appear dull and crumbly. Reheat the joint with a small amount of flux and fresh solder, ensuring adequate heat transfer and wetting. Inspect for gaps and reflow if needed.
If a joint looks dull, reheat it with flux and solder to reflow properly.
Is lead-free solder safe for beginners?
Lead-free solder is safer for casual hobbies but requires careful handling due to higher melting temperatures. Use proper ventilation and avoid inhaling fumes.
Lead-free solder is generally safer, but heat is higher, so ventilate well when soldering.
What temperature should I set my soldering iron to?
Set the iron to a temperature appropriate for the solder alloy you use; common ranges are around 320-350°C for rosin-core lead-free solder, adjusting for pad sensitivity and component types.
Keep your iron around 320-350°C for lead-free solder; adjust if pads get damaged.
Do I need flux for through-hole components?
Flux helps heat transfer and prevents oxidation on all joints. Use flux on pads and leads before soldering, especially in crowded or delicate layouts.
Flux helps, especially for crowded or delicate boards.
How can I prevent damaging PCB traces?
Use proper heat control, avoid excessive force, and never press hard on the copper with the iron. Keep pads clean and use flux to reduce mechanical stress.
Control heat and avoid pressing on traces; flux helps reduce stress.
Watch Video
Top Takeaways
- Prepare workspace and safety measures first
- Tin the iron and pads to improve heat transfer
- Apply flux to wetting joints and prevent bridges
- Inspect joints for cleanliness and proper wetting
- Test and clean to finalize a reliable PCB soldering
- Maintain tools and workspace to extend longevity
