How to Solder a Circuit Board: Step-by-Step Guide

Master the art of soldering a circuit board with a practical, safety-focused step-by-step guide. Learn tool selection, flux use, heat control, joint inspection, and testing for reliable PCB assembly.

SolderInfo
SolderInfo Team
·6 min read

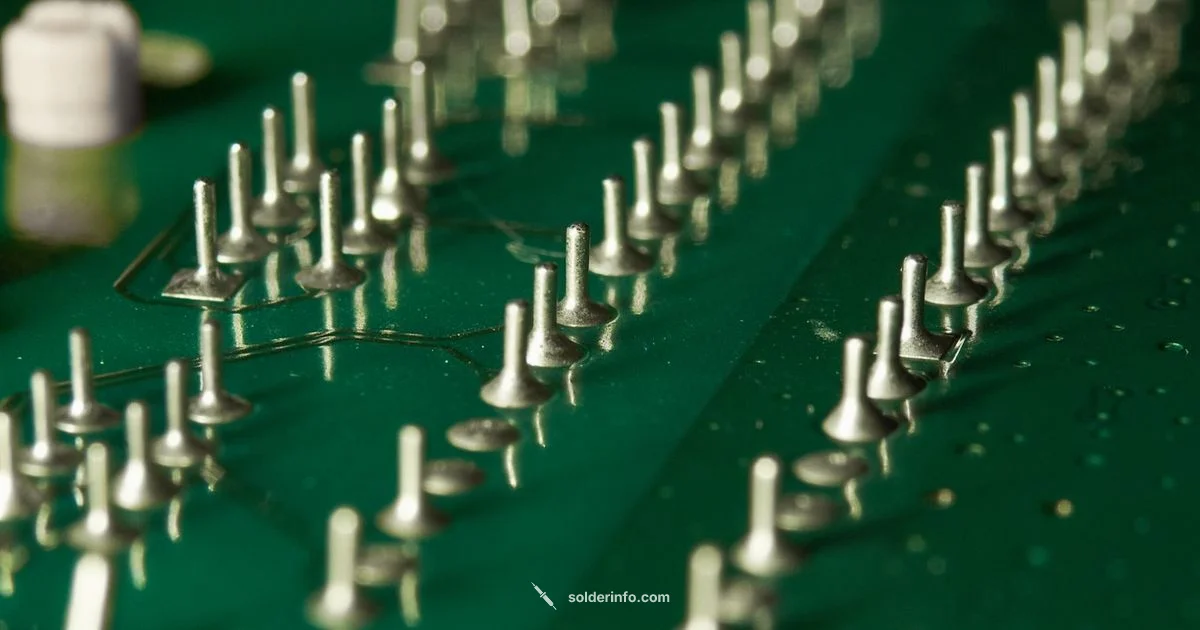

Soldering a PCB - SolderInfo
Photo by 21754954via Pixabay
Quick AnswerSteps

By following this guide, you will learn how to solder a circuit board from start to finish. You’ll set up a safe workspace, choose appropriate flux and lead-free solder, tin the iron tip, and position components precisely. With careful heat control and inspection, you’ll form clean joints that test reliably and endure use.

What is Soldering and Why It Matters

Soldering is a manufacturing and hobby technique used to join metal parts by melting a filler metal, called solder, into a joint. When you solder a circuit board, you’re creating electrically conductive paths that hold components in place and connect pins to copper pads. A good solder joint is smooth, shiny, and well-wetted to both the pad and the component lead. Poor joints can be weak, brittle, or electrically noisy, causing intermittent failures or dead circuits. The process relies on clean surfaces, the right amount of heat, and a steady hand. Flux plays a crucial role by dissolving oxides and allowing solder to flow evenly across the pad and lead. Inadequate heat or contamination can lead to cold joints, bridging, or lifted copper. According to SolderInfo, the key to reliable PCB work is planning the joint sequence, keeping joints small, and allowing time for each joint to cool before moving on. Before you begin, ensure you have a quiet, well-lit workspace, a comfortable stance, and ready safety equipment. With practice, soldering becomes a precise craft rather than a race against the clock.

Types of Solder and Flux You Should Know

In electronics you will typically choose between lead-free solder and traditional leaded solder. Lead-free solders are common in modern manufacturing due to environmental and health concerns. They often use tin-silver-copper alloys and require slightly higher temperatures to melt, so heat control becomes more important. Leaded solders are easier to work with and have a lower melting point, which some hobbyists still prefer for prototyping. For flux, electronics use rosin-core flux or flux that is no-clean. Rosin-core solder contains a flux core that helps solder flow, but you should still clean after heavy flux use to avoid residues on sensitive boards. No-clean flux leaves minimal residues that are generally safe to leave on a board, though some assemblies benefit from cleaning. Flux is essential for oxide removal and to promote proper wetting of the copper. Solder wire comes in various diameters; smaller diameters (0.5–0.8 mm) let you place solder precisely on fine-pitch components. Based on SolderInfo research, planning which alloy and flux you use will influence joint quality, thermal stress, and ease of rework, so choose thoughtfully based on your project and lead-free requirements.

Tools and Workstation Setup

A well-equipped workstation makes soldering safer, faster, and more reliable. You’ll want a temperature-controlled soldering iron, a fine-tipped chisel or conical tip, a sturdy stand with a damp sponge, and a clean workspace free from clutter. Have flux on hand—rosin-core or no-clean works well—and a small roll of desoldering wick for quick fixes. An eye loupe or magnifier helps you inspect joints, while an ESD wrist strap and a non-static mat protect sensitive components. Good ventilation is essential when using flux or lead-free solder. For accuracy and repeatability, consider a helping hand or a PCB vise to hold the board steady. As you work, keep the work area well lit and maintain a comfortable posture to reduce fatigue. The SolderInfo team emphasizes keeping heat focused on the joint and avoiding unnecessary contact with adjacent pads. Proper setup reduces rework and improves first-pass success.

Preparing Your PCB and Components

Preparation starts with a careful inspection of the PCB for damaged traces, lifted pads, or missing vias. Clean the pads with isopropyl alcohol to remove oils and fingerprints, then visually verify pad geometry and lead alignment. Lay out the board so components will be inserted in a logical sequence, typically starting with the smallest pitch or lowest-profile parts. Orient diodes and LEDs according to the silkscreen markings, and pre-bend component leads to match the pad spacing where needed. If you’re reworking an existing board, remove old flux and solder remnants with the wick and alcohol, being mindful not to lift copper. In the preparation phase, confirm the soldering iron tip size matches the pads you’ll be joining; a small tip improves control on tight layouts. Planning and cleanliness at this stage pay dividends during the actual soldering.

The Soldering Process: Step-by-Step Overview

With components oriented and pads clean, you begin the soldering sequence. Flux the pads to improve wettability, then lightly tack the first lead in place to prevent movement. Heat the joint and touch the solder to the pad–lead interface, not directly to the iron tip, until a small bead forms and flows smoothly. Remove heat and allow the joint to cool briefly before moving to the next pin. Work methodically, completing one component before moving to the next, to avoid heat transfer to nearby parts. For fine-pitch components, use a steady, short contact with the joint and avoid applying excessive solder. If a joint bridges two pads, use desoldering wick to remove the excess and reflow with a fresh amount of flux. After completing all joints, inspect each one for a shiny, concave fillet that fully covers the pad and lead. The goal is consistent, reliable joints that won’t crack with thermal cycling.

Common Mistakes and How to Fix Them

Cold joints are dull and brittle; reheat the joint with a clean tip and apply a fresh amount of solder. Bridges occur when excess solder flows between pads; use wick or a properly sized tip to rework. Overheating can lift copper, damage the solder mask, or scorch nearby traces; keep the iron in contact with the joint only as long as needed. Exess flux can leave residues. Clean them with isopropyl alcohol after cooling. If a lead is bent or misaligned, remove the component and reattach it with fresh solder. Finally, if you notice continuity issues, re-check the circuit against the schematic and test with a multimeter.

Finishing, Cleaning, and Inspection

After soldering, give the board a final clean with isopropyl alcohol to remove flux residues. Inspect each joint with a loupe to confirm the fillet is smooth and uniform. Look for cold joints, bridging, or lifted pads, and touch up any suspect joints. If you’re assembling a prototype, perform a low-voltage functional test before applying power. Use a multimeter to verify continuity across traces and to confirm that no short circuits exist between adjacent pins. A clean, well-inspected board reduces debugging time during later prototyping rounds.

Troubleshooting Common Issues

If a joint looks dull or cracks when flexed, rework it with fresh flux and heat to reflow the solder. A joint that looks shiny but tests open may have poor wetting; reapply flux and reflow. If you get unexpected shorts, inspect for bridged pads or tombstoned components. For lead-free solder, you may need slightly higher temperatures and longer dwell times; ensure your tip is clean and your iron is well heated. Always confirm your power supply, ground connections, and test rig before applying power to prevent component damage. Regular calibration and tip maintenance are essential for consistent performance.

Authoritative Resources

For trusted guidelines on safe handling and electronics workmanship, consult authoritative resources such as:

  • https://www.osha.gov
  • https://www.nist.gov
  • https://www.mit.edu

According to SolderInfo, referencing credible standards helps hobbyists and professionals alike maintain quality and safety in every PCB project.

Tools & Materials

  • Temperature-controlled soldering iron(Tip diameter ~0.6-0.8 mm for precise joints; set around 320-370°C for lead-free solder.)
  • Solder wire (lead-free, rosin-core)(Diameter 0.6-0.8 mm; choose Sn99.3-Cu0.7 or equivalent.)
  • Flux pen or flux paste(Rosin-based or no-clean flux; helps wetting and reduces oxidation.)
  • Solder wick (desoldering braid)(5-10 cm length; width 0.5-1.0 mm for fine joints.)
  • Soldering iron stand and damp sponge(Keeps the tip clean and safe when not in use.)
  • Isopropyl alcohol (99%)(For cleaning pads before soldering and removing flux residues.)
  • ESD wrist strap and anti-static mat(Prevents static damage to sensitive components.)
  • PCB holder or helping hands(Stabilizes the board and allows hands-free work.)
  • Magnifying loupe or head-mounted magnifier(Helpful for fine-pitch components.)
  • Diagonal cutters(Trim excess leads after soldering.)
  • Multimeter(For continuity and resistance checks.)
  • Safety glasses(Protect eyes from splashes and splatter.)
  • Ventilation or fume extractor(Reduces exposure to solder flux fumes.)

Steps

Estimated time: 60-90 minutes

  1. 1

    Set up a clean, safe workstation

    Clear the workspace, assemble your tools, and ensure good lighting. Put on safety glasses and connect the ESD strap to a grounded surface. Verify ventilation and have a timer handy to manage heat exposure during longer sessions.

    Tip: Keep the area uncluttered and use a comfortable stance to reduce hand fatigue.
  2. 2

    Identify components and orient the PCB

    Read the silkscreen and BOM, verify polarity for diodes/LEDs, and lay out components in placement order. Confirm there are no bent leads and that pads are clean. Tack the first joint with a small amount of flux to aid wetting.

    Tip: Tack one corner first to prevent movement while you solder remaining pins.
  3. 3

    Tin the soldering iron tip

    Heat the iron and apply a small amount of solder to the tip until it coats evenly. Wipe away excess. A tinned tip transfers heat better and reduces the chance of cold joints.

    Tip: Keep the tip clean to prevent oxidation and maintain consistent heat transfer.
  4. 4

    Apply flux to the pads

    Brush or pen flux onto the pads where components will be placed. Flux improves wetting and helps solder flow along the joint. Do not flood the board; a light coat is enough.

    Tip: Flux helps reduce oxidation and improves the reliability of each joint.
  5. 5

    Position the component leads

    Insert the leads through their holes or place SMD packages as required. Align components so that leads sit flat and don’t short against other pads. Lightly hold the components in place.

    Tip: If needed, use a piece of tape to temporarily secure through-hole components.
  6. 6

    Heat the joint and apply solder

    Touch the iron tip to the joint (pad and lead) and feed solder to the joint, not directly to the iron. Stop applying heat once the solder flows smoothly and covers the pad. Remove the iron and let the joint cool without moving it.

    Tip: Use a gentle, continuous motion rather than quick, jerky touches.
  7. 7

    Remove heat and allow to cool

    Watch the joint as it cools; a shiny, concave bead indicates a good joint. If the joint remains dull or forms a blob, reheat and reflow with fresh flux and solder.

    Tip: Avoid blowing on the joint; temperature influences the cooling rate and reliability.
  8. 8

    Repeat for all pins and components

    Proceed methodically component by component. Keep joints clean, and avoid repositioning parts once soldered. If you encounter tight spaces, use a thinner tip or angled approach.

    Tip: Work from one corner toward the opposite side to manage heat spread.
  9. 9

    Inspect joints and rework as needed

    Under magnification, check for bridging, cold joints, or lifted pads. Rework suspicious joints by applying flux and reflowing, or remove excess solder with wick and reflow again.

    Tip: Don’t force a joint; if you must, rework with patience to avoid board damage.
  10. 10

    Clean, test, and document

    Wipe the board with isopropyl alcohol to remove flux residues. Use a multimeter to test continuity and resistance and perform a light functional test before applying power. Label the board and record any anomalies for future revisions.

    Tip: Documentation helps track changes and reduces debugging time in future builds.
Pro Tip: Keep the tip clean and tinned; clean tips transfer heat better and prevent cold joints.
Warning: Avoid prolonged heat on dense or heat-sensitive components to prevent damage.
Pro Tip: Use small diameter solder for fine-pitch work and flux sparingly for precise joints.
Note: Lead-free solder requires slightly higher temperatures; adjust your iron accordingly.

Quick Answers

What temperature should I use for lead-free solder on a circuit board?

Lead-free solder typically requires higher temperatures than traditional tin-lead solders. Set the iron around 350–380°C and adjust based on your solder alloy and component sensitivity. Avoid overheating pads or ICs by testing on a scrap board first and watching the joint behavior.

Lead-free solders usually need higher heat; try around 350 to 380 degrees and adjust as needed, while watching the joint closely.

How can I tell if a solder joint is good?

A good solder joint is smooth, shiny, and fully wets the pad and pin with no gaps or bridges. It should require a small amount of force to move the component and should show a clean fillet around the lead. If you see dullness, gaps, or a bead that’s too large, rework.

Look for a smooth, shiny bead that covers the pad and lead without bridges; dull or cracked joints usually need rework.

Why does my joint look dull or grainy?

Dull or grainy joints often indicate insufficient wetting or overheating. It can be caused by using too much heat too quickly, insufficient flux, or a dirty pad. Reheat the joint with a small amount of flux and reflow until you get a clean, glossy fillet.

Dull joints usually mean poor wetting or too much heat; reheat with flux and redo the joint for a glossy finish.

Can I rework a joint after it cools?

Yes. Rework by reheating the joint with flux and applying more solder if needed. Be careful not to overheat the pad or lift copper. Allow the joint to cool between attempts and test electrical continuity after rework.

You can rework a joint by reheating with flux and adding solder if needed, being careful not to damage the board.

Is flux essential to soldering?

Flux is essential to prevent oxidation and improve solder flow. It helps the molten solder wet the pad and lead. For best results, use fresh flux and clean the board after you finish soldering if you used rosin flux.

Flux helps you get good joints by keeping surfaces clean and improving solder flow.

What safety precautions should I follow?

Work in a well-ventilated area, wear eye protection, and avoid touching hot components. Use an ESD strap for sensitive parts and keep a fire-safe mat nearby. Unplug equipment and allow the board to cool before handling post-solder inspection.

Always work with good ventilation, eye protection, and static precautions; safety first when soldering.

Watch Video

Top Takeaways

  • Plan joints before soldering to minimize heat exposure
  • Use flux and proper tip temperature for reliable joints
  • Avoid bridges by neat placement and controlled solder flow
  • Inspect every joint with magnification and test continuity for reliability

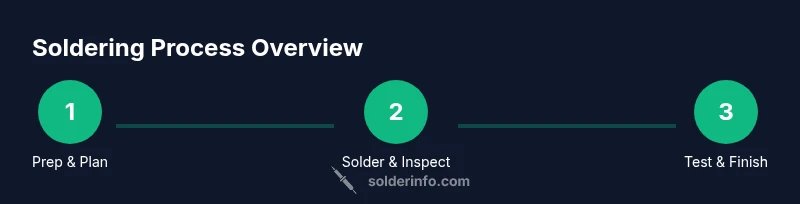

Process infographic showing prep, solder, inspect steps
Soldering workflow: prep, place, heat, inspect
