How to Solder on a Motherboard: A Practical Guide

Learn safe, precise techniques to solder on a motherboard. This step-by-step guide covers prep, tool selection, heat control, inspection, and testing, with pro tips from SolderInfo.

SolderInfo
SolderInfo Team
·5 min read

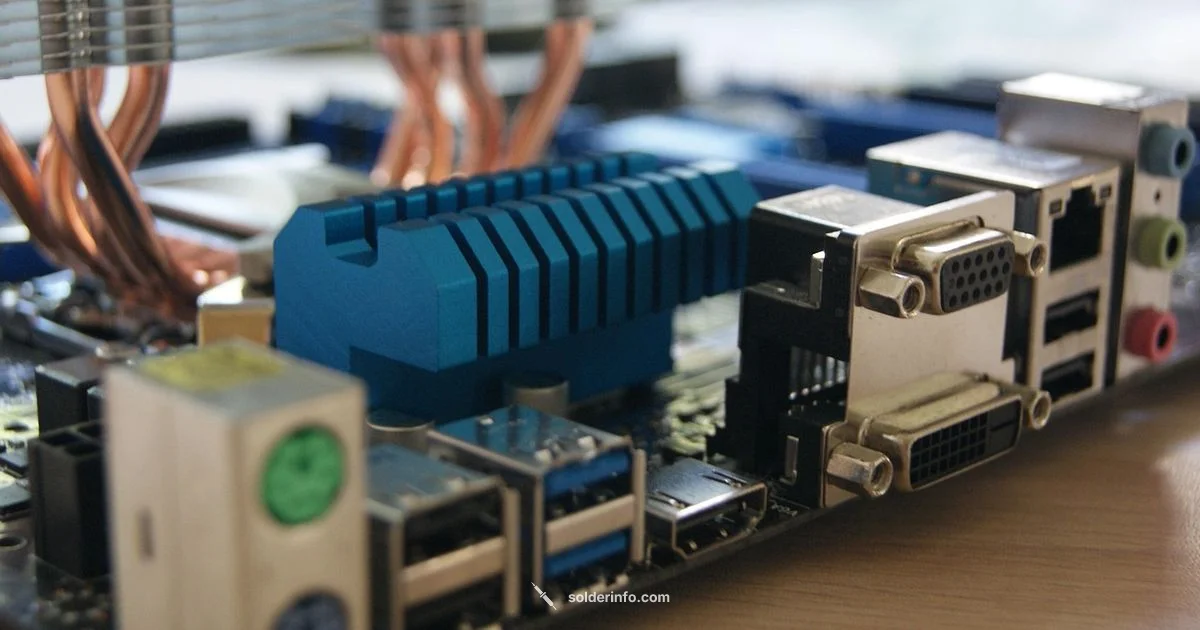

Soldering a Motherboard - SolderInfo
Photo by john_mitrichvia Pixabay
Quick AnswerSteps

Learn how to solder on a motherboard safely and effectively. This guide covers essential prep, identifying pads and components, tinning tips, flux usage, controlled heat application, and post-rework inspection. You’ll perform a careful re-solder or component replacement while minimizing board damage, static risk, and thermal stress. Follow the step-by-step process to improve joints and reliability.

Why soldering on a motherboard matters

Soldering on a motherboard is a precision task that determines whether a circuit will power up reliably and maintain long-term performance. If joints are weak or cold, you risk intermittent failures, short circuits, or damage to traces. The goal is a clean metallurgical bond that conducts current without introducing noise or impedance. According to SolderInfo you should approach every repair with a plan: inspect the area, minimize heat exposure, and verify cleanliness before, during, and after the job. When you learn how to solder on a motherboard, you’ll gain the ability to rescue a failed RAM socket, replace a loose connector, or reflow a sticky power pad without replacing the entire board. This section reviews why quality joints matter and how heat, flux, and tooling influence outcomes. The first step is recognizing that every joint has a thermal story, and your technique writes that story for better performance.

Safety and setup prerequisites

Soldering on a motherboard carries risks if basic safety steps are ignored. Always power down completely and unplug the system before touching any components. Use an ESD-safe workstation, wear an anti-static wrist strap, and work on an grounded mat to prevent static discharge. Adequate ventilation matters because flux fumes can irritate the eyes and lungs, especially during prolonged work. Keep a fire extinguisher or safety blanket nearby, and never work near flammable liquids. Portable fume extractors or small fans help reduce exposure to fumes without creating drafts that disrupt your soldering posture. Finally, protect your eyes with safety glasses and keep children or pets away from the work area. These precautions set the stage for cleaner joints and fewer follow-up failures, which is part of a responsible soldering practice.

Essential tools and materials overview

Before you begin, assemble a focused kit designed for electronics soldering rather than bulky general purpose tools. An adjustable-temperature, enclosed soldering iron reduces the risk of thermal damage. Use lead-free solder suitable for electronics and a reliable flux that suits your joint type. A desoldering braid helps clean bridges, while a small magnifier or loupe makes tiny joints legible. A calibrated multimeter assists in verifying continuity and shorts after the repair. A grounded wrist strap and an anti-static storage container keep components safe from static, while isopropyl alcohol and lint-free wipes help clean flux residue. Finally, plan for a heat source alternative (hot air rework station or heat gun) for delicate components like connectors or BGA packages. With the right kit, you maintain control and reduce the chance of errors.

Prep the board and identify the target area

Start by visually inspecting the affected area under good light and, if possible, a magnifier. Identify pins, pads, and any damaged traces. Clean the surface with isopropyl alcohol to remove oils that can impede solder flow. If you’re replacing a connector or chip, remove any old solder only from the immediate area using a desoldering braid, keeping heat away from adjacent traces. Mark the area with non-conductive tape to avoid accidental bridging while you work. Take photos or make a quick sketch so you can reassemble components in their original orientation. The goal is to approach the repair with precise knowledge of the pad geometry and a plan for heat management during rework.

Flux, tinning, and pad preparation

Flux is your friend because it improves wetting, protects copper from oxidation, and helps distribute heat evenly. Apply a light coat to pads and the component leads. Tin the soldering iron tip first to promote consistent heat transfer, then lightly tin the pads you’ll be working on. If a pad is lifted or damaged, you may need to bridge it with a short length of conductor or a replacement pad. Avoid leaving excess flux that can attract dust; clean it after the joint has cooled. For lead-free solder, remember that joints require slightly higher temperatures and a longer dwell time, but overheating pads can still ruin them. Practice on a sacrificial board if you can.

Heat control and joint formation

Controlled heat is how you finish strong solder joints without harming the motherboard. Set your iron between 320–370°C for most lead-free solders and adjust based on the solder alloy and board conditions. Use quick, deliberate touches and avoid lingering heat on any single pad. For larger components or heavy copper traces, consider a hot air or rework station to provide uniform heat rather than relying on the iron alone. Keep the nozzle or tip at the correct distance to avoid blowing away nearby components. Watch for a smooth, shiny fillet forming between pad and lead, with no holes or gaps. If you see a cold joint, rework promptly with fresh flux and a hotter, shorter cycle.

Replacing components or repairing pads

When replacing a connector or a small IC, secure the part in place before soldering to prevent shifting. Use a bead of solder to anchor one end, then complete the other end with a controlled wave of heat. For stubborn pads or lifted copper, you may need to add a small jumper wire or a replacement copper trace. Avoid bridging adjacent pads; if you must, use a thin insulator to isolate the connection. After the component is seated, inspect the joints with a loupe, looking for uniform solder fillets, no skewed angles, and no solder bridges. If you damage a pad beyond simple repair, you may need board-level repair services or a replacement board.

Inspection, cleaning, and testing

Let joints cool naturally and then clean the area with isopropyl alcohol to remove flux residues. Inspect each joint under magnification for uniform fillet shape and absence of cold joints. Use a continuity tester to verify there are no shorts and that power rails connect as expected. Reconnect the power and observe for any abnormal heat, odors, or smoke. If you notice instability, re-check the affected joints and consider redoing the task on a freshly fluxed surface. Document the repair steps and outcomes for future reference, and return to normal operation only after you confirm the board behaves as designed on a bench power supply.

Common challenges and troubleshooting

A frequent issue is a cold solder joint or a cracked pad that appears shiny but is not properly bonded. In such cases, rework with fresh flux, ensure the iron temperature is appropriate, and avoid prolonged heat exposure. Bridges between pads are another common problem that can occur if too much solder flows. Use desoldering wick to remove excess material and then reflow with minimal solder. Heat creep and thermal stress can damage nearby components, so work in short cycles and step away if you notice overheating. If the board still behaves oddly, test individual circuits with a multimeter and consult the circuit diagram to identify where the fault originates.

Best practices for reliability and safety

Consistency wins when you learn how to solder on a motherboard. Always work on a clean, static-safe surface, use flux correctly, and calibrate your iron for lead-free solder. Keep joints uniform and avoid overheating important traces; use heat control tactics to prevent delamination or substrate damage. After finishing, test thoroughly and document your repair in case you need to revisit it later. The SolderInfo team emphasizes patience and discipline as core elements of success, reminding DIY enthusiasts that methodical practice leads to reliable results and safer electronics work.

Tools & Materials

  • ESD-safe workstation mat(Protects components and prevents static discharge)
  • Lead-free solder (tin-argent-copper)(Electronic-grade, eutectic 0.6-0.8 mm diameter recommended)
  • Flux (rosin-core or no-clean)(Apply a light coat to pads and leads)
  • Soldering iron with temperature control(Set 320-370°C for lead-free solder; use fine tip)
  • Hot air rework station or heat gun(For delicate components or large joints)
  • Desoldering braid (wick)(To remove excess solder and bridges)
  • Isopropyl alcohol (99% preferred)(Cleans flux residue; use with lint-free wipes)
  • Magnifying loupe(Inspect tiny joints for quality)
  • ESD wrist strap(Grounded to prevent static buildup)
  • Multimeter(Check continuity and shorts after soldering)
  • Ventilation(Fume extractor or fan to minimize fumes)

Steps

Estimated time: 90-150 minutes

  1. 1

    Prepare workspace and safety

    Lay out tools on an anti-static mat, connect your ESD strap, and ensure the area is well-ventilated. Power down and unplug the device before touching the motherboard. This upfront preparation reduces the risk of damage and makes later steps smoother.

    Tip: Always double-check that the board is fully de-energized before any contact with components.
  2. 2

    Power down and ground yourself

    Discharge any residual energy by touching a grounded metal surface. If available, use a grounded mat and wear the ESD wrist strap throughout the procedure to prevent static damage.

    Tip: Keep your work surface clean and free of liquids to avoid shorts.
  3. 3

    Identify target area and pins

    Use a loupe to inspect the area around the damaged pad or connector. Note pad shapes, trace routes, and neighboring components to avoid accidental bridging when you apply heat.

    Tip: Take a photo for reference before you disturb the layout.
  4. 4

    Heat setup and protection

    Power up your heat source and set the iron to the recommended temperature. Move any heat-sensitive parts away, and consider shielding nearby traces with flux or solder mask tape.

    Tip: Start with a low thermal mass and increase only if needed.
  5. 5

    Tin tip and pads; apply flux

    Lightly tin the iron tip, apply a thin layer of flux to the pads, and warm the area to improve wetting. Keep each contact brief to avoid overheating the board.

    Tip: Flux helps prevent oxidation and improves joint reliability.
  6. 6

    Place component and solder joints

    Position the component precisely, anchor one end with a small amount of solder, then complete the other end with controlled heat. Keep joints clean and avoid excess solder.

    Tip: Work in short bursts; reflow if you see a dull or cracked joint.
  7. 7

    Inspect and rework if needed

    Allow joints to cool and inspect under magnification for smooth fillets and no bridging. If a joint looks suspect, reheat with fresh flux and minimal solder.

    Tip: A cold joint is more evident under magnification and should be redone promptly.
  8. 8

    Clean up and test

    Clean flux with isopropyl alcohol, then test continuity and power rails with a multimeter. Reconnect power and monitor for normal operation, heat, or signs of trouble.

    Tip: Document outcomes and any observations for future repairs.
Pro Tip: Practice on a scrap PCB to calibrate heat and technique before touching the actual board.
Warning: Never work on a powered board; always disconnect and discharge first.
Note: Use a dedicated magnet or chip puller to avoid lifting copper when removing components.
Pro Tip: Keep flux fresh and clean up excess residue to prevent conductive dust buildup.
Warning: Do not exceed recommended temperatures; excessive heat can delaminate substrate and traces.

Quick Answers

Is it safe to solder on a motherboard at home?

Soldering a motherboard at home can be safe if you follow strict safety practices: unplug power, use ESD protection, ensure proper ventilation, and control heat precisely. Do not attempt repairs on a powered system.

Soldering a motherboard at home is possible, but safety and heat control are essential. Always unplug and ground yourself before starting.

What temperature should I use for lead-free solder on motherboard joints?

Lead-free solders generally require higher temperatures than tin-lead alloys and shorter dwell times. Start around 320-350°C and adjust based on solder alloy and pad condition, avoiding overheating.

Lead-free solder needs a bit more heat, but keep sessions short to protect the board.

Do I need a hot air rework station for all motherboard repairs?

A hot air rework station is helpful for delicate components or large pads but is not always required. For small joints, a temperature-controlled iron with careful technique often suffices.

A hot air station isn't always necessary, but it helps with delicate parts.

Can I reuse flux after cleaning?

Flux can be reused if it remains uncontaminated and within its shelf life, but it's generally safer to apply fresh flux for each repair to ensure consistent wetting.

Fresh flux is usually best for reliable joints.

What are common signs of a bad solder joint?

Common signs include dull or cracked joints, whiskering, or a loose feel when wiggling the component. Use magnification and a multimeter to confirm.

Look for dull or cracked joints and verify with a meter.

Should I attempt soldering on a damaged pad or trace?

If a pad is damaged beyond simple repair, consider PCB repair services or replacing the board. Attempting to bridge or redraw traces can cause further harm.

If a pad is badly damaged, professional repair or board replacement may be safer.

Watch Video

Top Takeaways

  • Plan before you heat; double-check the board state.
  • Control heat to protect traces and components.
  • Inspect joints thoroughly with magnification.
  • Test and document results for future reference.

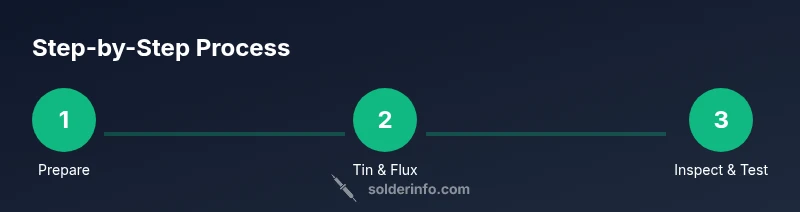

Process flow for soldering a motherboard
Step-by-step infographic: soldering a motherboard
