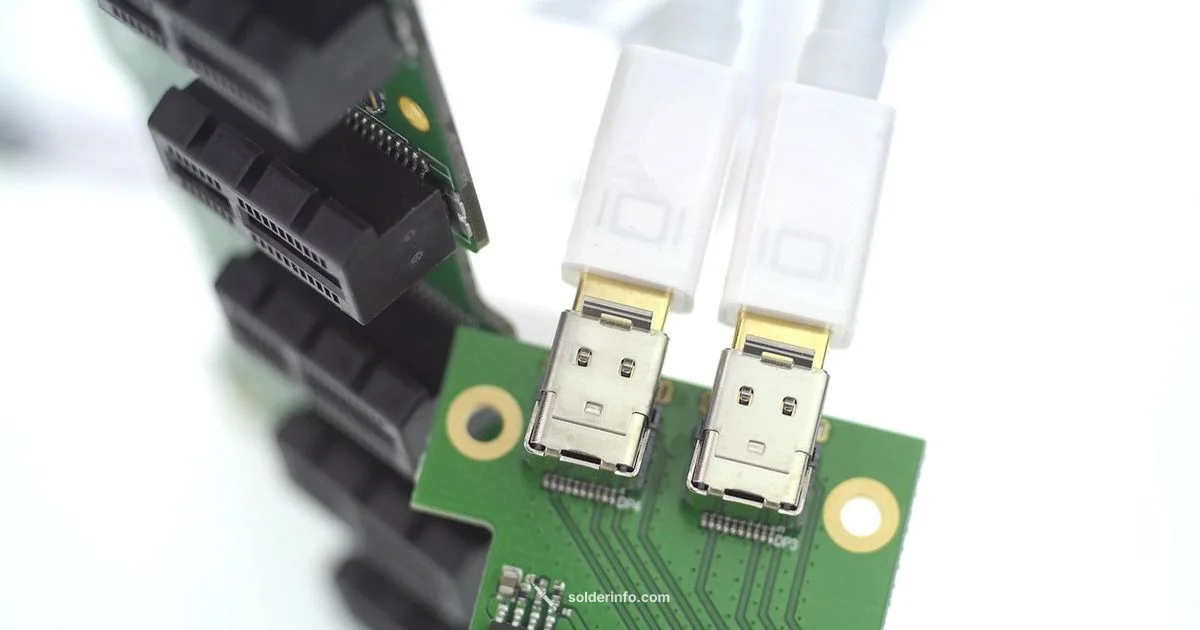

How to Solder a Micro USB Port: A Practical Guide
Learn how to solder a micro usb port on a PCB with confidence. This educational guide covers prep, flux usage, precise technique for tiny pads, inspection, and safety tips for reliable joints on electronics projects.
You will learn how to solder a micro usb port safely and reliably on a PCB, covering prep, tool setup, pad alignment, and inspection. This step-by-step guide explains flux choice, joint technique, and common rework practices for sturdy connections. By the end, you’ll complete a clean, repeatable micro usb port solder.
micro usb port solder: why this guide matters
Soldering a micro usb port is a precision task that tests steady hands, good lighting, and the right materials. The term micro usb port solder refers to attaching the tiny connector to a PCB with clean joints that won’t bridge or lift pads. This guide, drawing on SolderInfo best practices, emphasizes methodical prep, controlled heat, and rigorous inspection to avoid common failures like cold joints, bridging, or copper delamination. A careful approach reduces rework and increases reliability in portable electronics, chargers, and development boards.
Tools, materials, and preparation for micro usb port solder
Before touching the iron, assemble a focused toolkit: a fine-tipped soldering iron, flux conducive to tiny pads, lead-free or low-residue solder, a magnifier or loupe, anti-static wrist strap, fine-tipped tweezers, and desoldering braid for quick fixes. Use a stable hot plate or mini hot-air station for heat management if available. Clean, static-free surfaces and properly tinned tips improve heat transfer and prevent oxidation on the micro usb port solder joints. Ensure the board is powered off and capacitors discharged. Use safe, rosin-free handling when needed and keep a small brush of isopropyl alcohol handy for flux residue.
Footprint assessment and pad preparation for micro usb port solder
Inspect the footprint on the PCB to verify pad width, spacing, and presence of solder mask openings. If pads show wear, re-tin with a light coat of flux and solder, then align the connector so the centerline matches the PCB pads. A jig or piece of Kapton tape can help hold the connector in place during initial contact. Start by pre-tinning the pads with a small amount of flux, ensuring they gleam with a thin, even solder coat. This creates a path for the connector pins while reducing the risk of cold joints.
A practical approach to alignment and contact
Position the micro usb port so the larger shell sits squarely and the centerline runs through the middle of the pad array. Use fine tweezers to hold the connector, then lightly touch one pad with a small amount of solder to anchor. Always verify alignment from multiple angles, as a slight tilt can cause misalignment of data pins and power lines. A steady hand and a consistent heat source are critical for success in micro usb port solder work.
Soldering sequence: power, grounds, and signal pins
Begin with the VBUS (power) pad to establish a stable reference point. Then secure the ground pads along the shell, which provides mechanical strength. Progress to the signal pins (D+, D-, and ID) with short, controlled tacks. Use a very fine tip and a minimal amount of solder per pad to avoid bridging. Alternate sides if possible to balance heat distribution.
How to prevent common issues: bridges, tombstoning, and lift-off
Keep soldering irons temperatures consistent and avoid excessive heat that can lift pads. If you see a bridge, use desoldering braid and gentle desoldering to remove excess solder. Tombstoning occurs when one end of a pad is more soldered than the opposite; reflow and re-seat with a tiny blob of fresh solder on each pad as needed. If pads lift, don’t force the connector; assess the PCB, clean the area, and consider vias or alternative mounting methods.
Inspection and verification after soldering
Inspect each joint under magnification for shininess, uniform fillets, and complete coverage. Look for solder bridges between adjacent pins and verify that no pad is missing solder; rework any suspect joints with minimal heat exposure. Perform a quick continuity check with a multimeter to confirm proper connections. Clean flux residues with IPA, then test the connector’s mechanical fit and data/power continuity in the assembled device.
tip1”:null},
Tools & Materials
- Soldering iron with a fine tip (0.4–0.8 mm)(A stable stand and temperature control are essential for precise micro usb port soldering.)
- Rosin-core flux or no-clean flux(Flux helps heat transfer and pad wetting; avoid flux residues that conduct or corrode.)
- Lead-free solder or low-residue flux-core solder(Prefer 0.6–0.8 mm diameter; smaller is acceptable for fine-pitch work.)
- Magnification tool (loupe) or microscope(Critical for seeing tiny pads and misalignments.)
- Fine-tipped tweezers(Hold the connector securely without bending pins.)
- Desoldering braid(Used to remove bridges or lift-off solder without overheating pads.)
- Isopropyl alcohol (IPA) and lint-free wipes(Used to clean flux residue after soldering.)
- ESD wrist strap and anti-static mat(Protects sensitive components from static discharge.)
Steps
Estimated time: Total estimated time: 60-90 minutes
- 1
Prepare workspace and safety checks
Set up a static-free workstation, ensure power is off, and verify the micro usb port solder area is clean. Align your tools and ensure good lighting before starting. This reduces the risk of misalignment and accidental shorts.
Tip: Wear an anti-static wrist strap and keep a small brush handy for cleaning debris. - 2
Inspect footprint and pre-tin pads
Look over the PCB footprint to confirm pad width and spacing. Lightly pre-tin each pad with flux and a tiny amount of solder to create a receptive surface for the port pins.
Tip: Pre-tinning improves heat transfer and helps prevent pad lifting during soldering. - 3
Align the connector
Hold the micro usb port in place with tweezers, ensuring the shell sits flush against the board and the pin rows align with their pads.
Tip: A jig or tape can help maintain alignment during the initial contact. - 4
Anchor the power pin first
Contact the VBUS pad with a small solder blob to anchor the connector. This establishes a reference point and prevents shifting while you solder other pins.
Tip: Use minimal solder to avoid bridging to adjacent pads. - 5
Solder ground and shell pads
Solder the ground pads along the shell to add mechanical strength. These pads often take more heat; apply controlled, brief touches.
Tip: Work from the shell area outward to dissipate heat evenly. - 6
Proceed to data pins
Solder D+ and D- with short tacks using a fine tip. Avoid prolonged contact which can smear solder onto neighboring pads.
Tip: Cross-check with a magnifier for any bridges between D+ and D-. - 7
Check for bridges and misalignments
Inspect visually and with a multimeter per pin. If a bridge appears, carefully lift the excess solder with braid and reflow.
Tip: Don’t rush; step back and re-check after each major step. - 8
Rework any cold joints or lifted pads
Reheat suspect joints with light pressure, add a tiny amount of solder if needed, and ensure the pad remains intact.
Tip: Avoid overheating; excessive heat can lift pads or delaminate copper. - 9
Clean, test, and finalize
Wipe away flux residue with IPA and verify continuity and function with a test setup or board routine. Confirm the connector seats firmly.
Tip: Perform a mechanical wobble test to ensure no loose pads.
Quick Answers
What is the best flux for micro usb port soldering?
A rosin-core or no-clean flux designed for electronics is recommended. It aids wetting on fine-pitch pads and cleans up easily after soldering. Avoid overly aggressive flux that can leave conductive residues.
Use electronics flux designed for fine-pitch work to improve joint quality and make cleanup easier.
Can I use hot air to solder a micro USB port?
Yes, hot air or a hot-air rework station can be used for challenging joints, but it requires careful temperature control to avoid damaging the connector or PCB. Start at a low temperature and apply even heat.
Hot air is useful for tricky joints, but be cautious with temperature.
How do I know a joint is good after soldering?
A good joint should be shiny, with a smooth fillet, and no gaps or excessive solder. Use magnification and check for bridges between adjacent pins. Continuity testing confirms proper electrical connections.
Look for shiny, clean joints and no bridges; test with a multimeter to confirm connections.
What should I do if a pad lifts?
If a pad lifts, stop applying force, re-glue or re-anchor the package, and assess whether vias or traces are damaged. In some cases you may need to repair the trace using copper tape or reroute with a patch.
If a pad lifts, pause and assess; you may need to repair the trace or rework with care.
Is it necessary to clean flux after soldering?
Cleaning flux residue is recommended, especially on devices exposed to moisture or heat. Use IPA and a lint-free cloth or brush to remove residues that could cause corrosion over time.
Yes, clean flux residues to improve reliability and prevent corrosion.
Watch Video
Top Takeaways
- Master micro usb port solder with careful prep and alignment
- Keep heat brief and precise to avoid pad damage
- Inspect joints under magnification and clean after soldering
- Use flux effectively to improve wetting and reduce solder bridges
- Test continuity and fit before final enclosure
