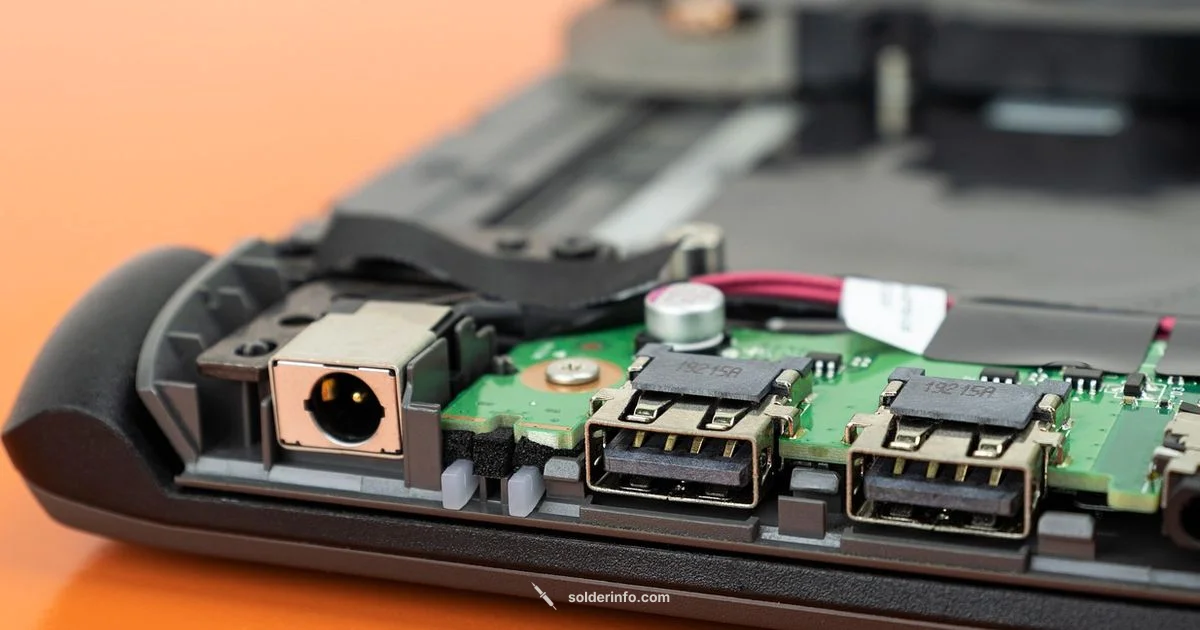

How to Solder a Micro USB Port
Learn how to solder a micro USB port safely and reliably with a detailed, beginner-friendly step-by-step guide. Includes tools, techniques, troubleshooting, and testing tips for electronics repairs.
This guide shows how to solder a micro USB port to a damaged PCB safely and reliably. You'll need a fine-tipped iron, thin solder, flux, a heat sink, and a steady hand to align the pins before heating. Follow these steps for a durable repair.
Why Soldering a Micro USB Port Matters
Micro USB ports are tiny and mechanically fragile, yet they are critical for charging and data transfer in countless devices. A poor solder joint can cause intermittent connectivity, loose charging, or complete failure. According to SolderInfo, precise heat control and clean pads dramatically improve longevity of micro USB connections, especially on compact boards where space is limited. When you replace a worn port, you not only restore functionality but also reduce the risk of future repair cycles. In this section we’ll explore why these repairs matter, common failure modes, and how a proper technique helps you avoid headaches down the road. A solid port repair also protects nearby traces and keeps the device usable for longer, which is especially important for portable electronics that see daily wear.
Safety and Prep
Before you touch the device, power it down completely and unplug any power adapters. Work on an anti-static mat, and wear an ESD wrist strap to prevent damaging sensitive pins. Adequate ventilation is important when applying flux, and safety glasses protect your eyes from solder splatter. Review the device’s casing to avoid heat damage to plastic housings or nearby shielding. A quick visual inspection with a magnifier helps you spot bent pins or lifted copper traces that could complicate the repair. If you’re unsure about the board’s condition, take photos from multiple angles before disassembly. These steps save time and prevent costly mistakes. SolderInfo recommends documenting the footprint to guide reassembly and future repairs.
Tools and Materials Preparedness (What to have ready)
A successful micro USB port soldering job depends on having the right tools within reach. Use a fine-tipped soldering iron, ideally temperature-controlled, with thin 0.3-0.5 mm solder for precision. Keep a nozzle or chisel tip to optimize shielding ground connections. Flux paste or a flux pen ensures proper wetting of the tiny pads. Solder wick (braid) helps clean bridges, and a magnifier or loupe aids joint inspection. Fresh, rosin-core solder reduces cold joints, and a heat sink or clip protects nearby components from thermal stress. Have isopropyl alcohol and lint-free wipes on hand for quick cleaning. If you’re working on a compact device, use static-safe tools and keep the work area dry and dust-free.
Preparing the Port and PCB
Start by disconnecting power and removing the back cover to access the board. Inspect the micro USB footprint—check the four signal pads and the ground shield. If the port is through-hole, you may need to desolder the old connector with care; if it’s surface-mount, precise alignment before heating is essential. Clean the footprint with isopropyl alcohol to ensure good solder wetting. Place the new port gently, align the shield tab with the ground plane, and verify there’s no interference with nearby components. A light touch of flux can hold parts in place during initial alignment. Clear visibility and a stable jig dramatically improve precision during the soldering work.
Soldering Technique: Stage-by-Stage
Approach soldering with controlled, clean actions. Start by lightly pre-tinning the pads to improve solder flow. Align the port so the pads line up with the footprint, then apply a small amount of flux to the pads and shield. Solder the outer shield first to anchor the connector, then work on the individual signal pins one by one, keeping each joint small and clean. Reflow any dull joints gently if needed. Avoid excessive heat and long contact times to prevent pad lift or dielectric damage. After finishing, visually inspect all joints for bridging and ensure pad integrity.
Common Problems and Fixes
Bridging between pads is the most common symptom of rushed soldering. If you see bridges, reheat and remove excess solder with wick, then clean and reflow the joints. A cold joint looks dull and may crack; reheat and add a touch more solder while keeping the iron still. Lifted pads happen when heat or mechanical stress separates copper from the board; if possible, use vias or jumpers to reroute broken traces. Misalignment can cause poor data or charging; realign and re-tin the pads. Always clean flux residues after soldering to prevent corrosion or residue buildup that can affect future repairs.
Testing and Final Checks
Begin with a visual inspection using a magnifier to confirm all joints are well formed. Use a continuity tester to verify there are no shorts between adjacent pads and that the shield is properly grounded. If possible, test the port with a low-current charger or USB device to confirm power delivery and data lines. Look for wiggle room by gently flexing the connector; if movement causes intermittent connections, consider reflowing the joints or replacing the port. Document the repair steps for future reference, and keep the device powered off until you’re confident in the results.
SolderInfo Best Practices and Final Thoughts
For reliable micro USB port repairs, adopt a methodical approach and use the right materials. According to SolderInfo, clean surfaces, fresh flux, and proper heat control are the foundation of durable joints. Maintain a clean, static-safe workspace and avoid over-penetrating the solder into the shield area, which can cause shorts. Take your time with alignment and joints, and don’t rush the final inspection. With patience and good technique, a damaged micro USB port can be restored to a dependable, long-lasting connection.
Tools & Materials
- Fine-tipped soldering iron (temperature-controlled)(0.3-0.5 mm tip ideal for tiny pads)
- Lead-free rosin-core solder (0.3-0.5 mm)(Sn-based alloy; choose conforming rosin-core flux)
- Flux pen or flux paste(Improves wetting on small pads)
- Solder wick (braid)(For removing bridges and excess solder)
- Tweezers or micro-pliers(For precise part handling)
- Magnification loupe or microscope(Inspect joints and pad integrity)
- Static-safe mat and grounding strap(Prevent ESD damage)
- Isopropyl alcohol (IPA) and lint-free wipes(Clean flux residues and pads)
Steps
Estimated time: 40-60 minutes
- 1
Prepare the workspace and safety gear
Clear the area, connect the iron, and put on safety glasses. Ground yourself with an anti-static strap to prevent ESD damage.
Tip: Keep your wrists supported and rest your forearm on the bench to steady the hands. - 2
Inspect the port footprint and board
Look for bent pins, lifted pads, or damaged copper traces. Photograph the area for reference and plan your approach before desoldering the old connector.
Tip: Identify ground shield and pin order to avoid wrong connections. - 3
Position the replacement port
Align the new micro USB port with the footprint. Use a small amount of flux to hold it in place and verify there’s no interference with nearby components.
Tip: Use a tiny jig or tape to keep it steady during soldering. - 4
Pre-tin the pads and shield
Heat each pad briefly and apply a small amount of solder to pre-tin. Do not flood the pads; only a thin layer is needed for good wetting.
Tip: Pre-tinning reduces heat time and promotes smooth joints. - 5
Solder the ground shield first
Solder the shield tab to the ground plane to anchor the connector. This helps prevent lift and improves overall alignment.
Tip: Keep the iron tip clean and reflow gently to avoid shifting the part. - 6
Solder the signal pins one by one
Proceed to the four signal pads; solder each pin with minimal heat to prevent pad damage. Inspect each joint for a tight wetting with a smooth, shiny finish.
Tip: Apply flux and work quickly to minimize heat exposure. - 7
Inspect, clean, and test
Check for bridges with a magnifier, clean flux residues, and perform a continuity check on the data and ground lines. Rework any suspect joints and perform a light reflow if needed.
Tip: Double-check pin order and ground connections before powering. - 8
Final functional test
With power applied (or via a safe bench supply), test charging and data line connectivity. If all tests pass, reassemble the device and document the repair.
Tip: Test with a controlled current source to avoid stressing the port.
Quick Answers
Can I solder a micro USB port directly to a PCB without a breakout board?
Yes, if the footprint and pads are intact and the connector aligns properly. If pads are damaged or traces lifted, a breakout board offers a safer, more forgiving repair option.
Yes, direct soldering is possible when the pads and traces are intact; otherwise a breakout board can simplify the repair.
What is the best solder for this task?
Use lead-free rosin-core solder with a fine diameter for precision. Flux helps wetting on tiny pads and reduces cold joints. Avoid heavy alloys that are harder to control on small footprints.
Lead-free rosin-core solder with a fine diameter is recommended for electronics like micro USB ports.
How can I prevent damage to the PCB when heating the port?
Keep heat bursts brief, use a heat sink on nearby areas, and pre-align the port to minimize heat cycles. Avoid prolonged contact between the iron and the board.
Use short heat pulses and heat sinks to protect the board.
Is it safer to replace the port with a breakout board?
A breakout board isolates the repair area, protects nearby traces, and can make rework easier on crowded or fragile boards.
A breakout board is often safer and easier for tricky layouts.
Do I need to reflow or test after replacing the port?
Yes, reflow any dull joints and perform continuity and functional tests before powering the device. This helps catch issues early before the device is fully reassembled.
Reflow joints if needed and test with a meter before full power.
What should I do if a pad lifts off the PCB?
If a pad lifts, route around it with a via or use a jumper to reconnect the trace. In stubborn cases, professional repair may be required.
Pad lifting may require vias or jumpers; consider professional repair for critical boards.
Watch Video
Top Takeaways
- Plan workspace and safety steps before soldering.
- Align pads precisely, apply flux, and tin joints.
- Limit heat exposure to protect pads and traces.
- Inspect joints thoroughly and test connectivity before reuse.
- Document the repair process for future reference.
