How to Solder in PCB Board: A Step-by-Step Guide
Learn how to solder in PCB boards with a focused, practical approach. This guide covers tools, prep, techniques, testing, safety, and troubleshooting for reliable, professional-looking joints.
Mastering soldering on a PCB board lets you repair, prototype, and build electronics with confidence. In this quick answer, you’ll learn the essential steps, the right temperatures, and safety practices to avoid cold joints or damaged traces. We cover tools, flux choices, and how to test your connections. By the end, you’ll be ready to solder in pcb board cleanly and reliably.
Why proper PCB soldering matters
In electronics, a reliable solder joint is the bridge between a component and the copper trace. Poor soldering can lead to intermittent connections, short circuits, or mechanical failure. For anyone learning how to solder in pcb board, consistency with heat, cleanliness, and flux usage dramatically reduces the risk of cold joints and lifted pads. Clean surfaces, tin the tip, and apply heat to the joint rather than the solder blob. This approach avoids overheating delicate pads and helps maintain board integrity. SolderInfo analysis shows that beginners who adopt a repeatable routine—pre-cleaning, tinning the tip, applying flux, and inspecting with a loupe—achieve noticeably more reliable joints and fewer post-build fixes. This section lays the groundwork for both through-hole and surface-mount soldering and addresses common board designs, from simple breadboard-compatible PCBs to high-density prototypes. Throughout, you’ll see practical examples and cautions you can apply to your next project.
Tools and materials
Before you start, gather a few essential tools and consumables. Having the right kit improves consistency and reduces mistakes. The recommended set below is suitable for most hobbyist and professional work. If you’re a beginner, prioritize quality on the core items (iron, solder, flux, and a good stand) and add specialized tools as needed.
- Soldering iron (adjustable temperature if possible) – essential for controlling heat
- Solder wire (rosin-core, lead-free preferred for safety and reliability)
- Flux (rosin-based or flux pen) to improve wetting
- Desoldering braid (wick) for cleanup and rework
- Isopropyl alcohol (IPA) for cleaning residues
- Cleaning sponge or brass sponge for tip maintenance
- PCB holder or helping hands to stabilize the board
- Tweezers and a magnification loupe for precise work
- Anti-static mat and wrist strap to prevent damage
- Soldering iron stand and cleaning sponge for safe storage
- Tip tinner/cleaner (optional but helpful for stubborn oxides)
- Fine-point chisel tip or small conical tip depending on density of pads
Adapt this list to your project; the core tools stay the same. Remember, a clean, well-lit workspace reduces mistakes and makes the task of how to solder in pcb board much more enjoyable. As you gain experience, you’ll learn which extras are most useful for your specific PCB designs.
Prep the PCB and components
Preparation is a critical first step when learning how to solder in pcb board. Start by cleaning the copper pads and component leads with isopropyl alcohol to remove oils and oxidation. Inspect the board for any flux residues or damaged traces, and gently scrape away corrosion or oxidation with a non-metallic tool if needed. If you’re working with a dual-row or high-density PCB, consider using a magnifier to ensure you have a clear view of pad alignment. Tin the soldering iron tip by applying a small amount of solder and wiping it clean on the sponge; a Tinned tip heats faster and distributes heat more evenly. When you place components, align through-hole leads with pads and secure them using a minimal amount of adhesive or a temporary jig. This careful prep reduces the chance of misalignment and bridging, a common pitfall for newcomers who are learning how to solder in pcb board with precision.
Soldering technique fundamentals
The core of good PCB soldering is wetting—the solder must flow smoothly onto both the pad and the component lead. Heat the joint, not the solder wick, and avoid letting the iron touch the solder directly for too long. Approach with a steady hand and small, controlled motions. For through-hole parts, touch the joint where the lead meets the pad, and introduce solder at the opposite side of the joint to create a clean, consistent fillet. For surface-mount components, apply a small dab of flux to the pad, position the component, and then melt the solder on the joint quickly. Do not drag the iron along the pad; instead, make a single, decisive contact to form a reliable joint. If the pad lifts or the lead curls, stop and re-evaluate your heat and alignment before continuing. Remember, patience is a key part of how to solder in pcb board successfully.
Flux and solder types
Flux is the invisible helper that improves wetting and guards against oxidation during soldering. Rosin-core solder is common for electronics work, especially when quality flux is available inside the core. Lead-free solder is safer for hobbyists and complies with many environmental standards, though it can require slightly higher temperatures and longer exposure to heat. Flux pens and paste flux give you targeted wetting on tricky joints. Use fresh flux or flux from a bottle with a brush or pin-point applicator to avoid contamination on nearby pads. Always clean after soldering to remove flux residues that can corrode or cause corrosion over time. As you progress, you’ll discover which flux type aligns with your preferred materials and environmental conditions.
Common mistakes and how to avoid them
Newcomers often encounter cold joints, solder bridges, or overheated pads when learning how to solder in pcb board. A cold joint looks dull and may crack under strain; a solder bridge creates unintended electrical connections between adjacent pads. To avoid these issues, keep the iron tip clean, heat pads evenly, and use just enough flux to wet the joint. Start with small leads and test joints before proceeding to dense areas. If you see a dull joint, reheat it and apply a touch more solder. For very fine-pitch SMT work, consider using a fine-tipped iron or a precision soldering station with temperature control. Finally, practice on scrap boards to become more proficient at controlling heat and avoiding common mistakes.
Testing and inspection
After completing a run of joints, inspect each one under magnification. Look for proper wetting, smooth fillets, and alignment. Use a multimeter to check for shorts or opens by performing continuity tests between adjacent pads and ground planes. A quick resistance check helps reveal poor connections or bridging. If you find any suspect joints, rework them by applying a bit more flux, reheating, and ensuring the solder flow covers both pad and lead. Clean residues with IPA and a lint-free wipe to prevent corrosion over time. This careful testing process ensures reliability when powering up the PCB.
Rework and repair tips
Sometimes a joint needs rework, whether due to bridging or a dull appearance. Start by applying flux around the joint, then gently lift the component lead with a fine-tipped tweezer while re-melting the joint. If the pad is lifted or damaged, you may need to repair with a small piece of copper tape or bridge to another pad using a thin wire. Desoldering braid can soak up excess solder; place the braid on the joint and heat with the iron until the solder is absorbed. After rework, recheck with a magnifier and a multimeter to confirm there are no shorts or opens. These steps help you maintain board integrity while learning how to solder in pcb board more confidently.
Safety and ventilation
Soldering creates fumes that can irritate the respiratory system and eyes, so ensure proper ventilation and eye protection. Work in a well-ventilated area or use a fume extractor. Wear safety glasses to guard against splashes or accidental splatter. Keep flammable materials away from the work area, and never leave a hot iron unattended. Store the soldering iron in its stand when not in use. By following these safety practices, you reduce risk and keep your projects on track while you learn how to solder in pcb board safely.
Troubleshooting quick fixes
If you encounter a bridged joint, lift one side slightly with tweezers and reapply heat and solder to prevent a short. For a cold joint, reheat the joint while applying a small amount of flux and fresh solder to improve wetting. If pads lift or break, avoid applying too much force; instead, reassess the pad’s integrity and consider using jumper wires for repairs when necessary. For intermittent connections, reflow the joint and inspect the path for any nearby shorts or contamination. These practical tips help you diagnose and fix common PCB soldering issues quickly.
Final checks before powering up
Before applying power, inspect all joints again and test with a low-current continuity check. Ensure there are no shorted pads, bridges, or deformed leads. Verify polarity and orientation for all components, especially polarized parts like diodes and electrolytics. Clean the board thoroughly to remove flux residues. If available, perform a low-voltage functional test on a spare power rail to confirm that the board is safe to energize. This last pass minimizes surprises when you power up your PCB for the first time.
Tools & Materials
- Soldering iron(Choose adjustable temperature if possible; a reliable 60W class iron is common for hobbyists.)
- Solder wire(Rosin-core; lead-free preferred for safety and environmental compliance.)
- Flux(Rosin-based flux or flux pen for targeted joints.)
- Desoldering braid (wick)(For cleaning up excess solder and rework.)
- Isopropyl alcohol (IPA)(Use 70% or higher for cleaning residues.)
- Cleaning sponge/brass sponge(Keeps the tip clean and improves heat transfer.)
- PCB holder or helping hands(Stabilizes the board for precise work.)
- Tweezers and magnification loupe(Precise alignment and inspection.)
- Anti-static mat and wrist strap(Prevents ESD damage to components.)
- Soldering iron stand(Safe storage between joints.)
- Tip cleaner or file(Keeps tips in good condition for consistent heat transfer.)

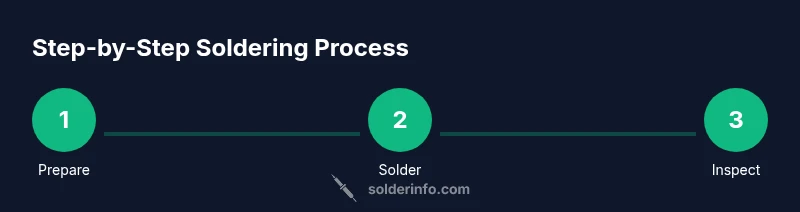

Steps
Estimated time: 45-60 minutes
- 1
Prepare workspace and safety checks
Set up in a well-ventilated area with a clear laydown of parts. Put on eye protection and ensure no flammable liquids are nearby. Plug in your iron and allow it to reach its typical starting temperature while you review the board layout.
Tip: Keep a small glass of water nearby in case of minor burns; never touch a hot tip. - 2
Secure the PCB and components
Mount the board in a steady holder and align components with their pads before soldering. Use tweezers for small parts and confirm orientation for polarized components. This reduces misalignment and bridging during the session.
Tip: Double-check polarity and orientation before applying solder to save rework time. - 3
Clean and tin the tips
Wipe the iron tip on the damp sponge to remove contaminants, then apply a tiny amount of solder to tin the tip. A properly tinned tip heats more evenly and distributes solder more reliably across joints.
Tip: If the tip looks oxidized, use tip tinner to restore surface before continuing. - 4
Apply flux and position leads
Apply a small amount of flux to each pad and lead area where joints will form. Position through-hole leads so they sit flat and perpendicularly to the board. Flux helps with wetting and prevents cold joints.
Tip: Only a light dab of flux is needed; excess flux can attract dust and cause corrosion over time. - 5
Heat and solder the joint
Place the iron tip on the pad and lead simultaneously, then feed solder to the joint until a clean fillet forms. Remove heat before removing solder to avoid drifting. For through-hole parts, be careful not to apply heat to adjacent pads.
Tip: Use quick, confidence-driven motions; long heating near pads can lift copper. - 6
Inspect and rework if needed
Look for a shiny, smooth fillet and complete wetting. If dull or cracked, reheat and apply a touch more solder. For crowded areas, consider reworking with desoldering braid to remove excess solder.
Tip: Always recheck joints under magnification after initial pass. - 7
Clean and test the joints
Wipe away flux residues with IPA and a lint-free wipe. Perform a quick continuity check with a multimeter against adjacent pads to ensure no shorts. If any issue is found, rework that joint before moving forward.
Tip: A clean board reads more predictably on tests. - 8
Final checks and power-up
Do a final visual inspection for stray solder bridges or tombstoning. Ensure polarized parts are correctly oriented. Power up with a limited supply and monitor for heat or smoke. If anything looks off, power down and reassess.
Tip: Never power a hot board immediately after heavy rework; give joints a cooling period.
Quick Answers
What is the difference between leaded and lead-free solder?
Leaded solder generally wets more easily and flows at lower temperatures, but it contains lead. Lead-free solder is safer for health and the environment but may require higher temperatures and slightly longer heating. For most hobby projects, lead-free solder is recommended for safety.
Leaded solder flows easily but contains lead; lead-free solder is safer and commonly used today, though it might need a bit more heat.
How can I prevent solder bridges?
Use proper spacing between pads, apply flux to the joint, and heat only the joint area. For dense boards, work methodically from one side to the other and use a sharp tip to avoid bridging.
Keep joints separate and fluxed; use a precise tip to avoid bridging in dense areas.
Is it okay to power up immediately after soldering?
Powering up immediately can be risky if a joint is faulty or there are undetected shorts. Check visually and with a low-current test first, and only power up when joints look sound and the board passes continuity checks.
Power up only after a careful inspection and low-current testing.
What should I do if a pad is lifted?
If a pad lifts, avoid forcing more solder. Use small jumper wires to route to the component and consider copper foil repair or re-routing. For critical boards, you may need a professional repair.
A lifted pad needs cautious remapping; avoid forcing solder and use jumpers if needed.
Can I reuse flux from previous projects?
Reuse is not recommended. Flux performance degrades over time and can become contaminated. Use fresh flux or flux pens to ensure reliable wetting.
Fresh flux gives better wetting and reduces joint problems.
What is tombstoning and how can I prevent it?
Tombstoning happens when one end of a tiny component lifts during soldering. To prevent it, ensure pads are well-aligned, apply flux, and solder both leads with even heat and tension.
Tombstoning is a single-end lift; fix alignment and apply even heat to both ends.
What tools improve PCB soldering accuracy for beginners?
A good adjustable-temperature iron, a fine-point tip, flux, precision tweezers, a magnifier, and a stable bench setup greatly improve accuracy for beginners.
Invest in a steady setup with a precise iron and good lighting.
How do I fix a dull or gray solder joint?
Dull joints can be revived by cleaning the joint, applying flux, and reflowing with a fresh bit of solder. Ensure you don’t overheat, which can damage the pad.
Dull joints often need a clean reflow with fresh flux and solder.
Watch Video
Top Takeaways
- Prepare and clean the board before soldering
- Use flux to improve wetting and reduce cold joints
- Avoid overheating pads to prevent trace damage
- Inspect each joint and test with a multimeter
- Prioritize safety and ventilation throughout the process
