PCB Solder Mask: Definition, Uses, and Design Tips

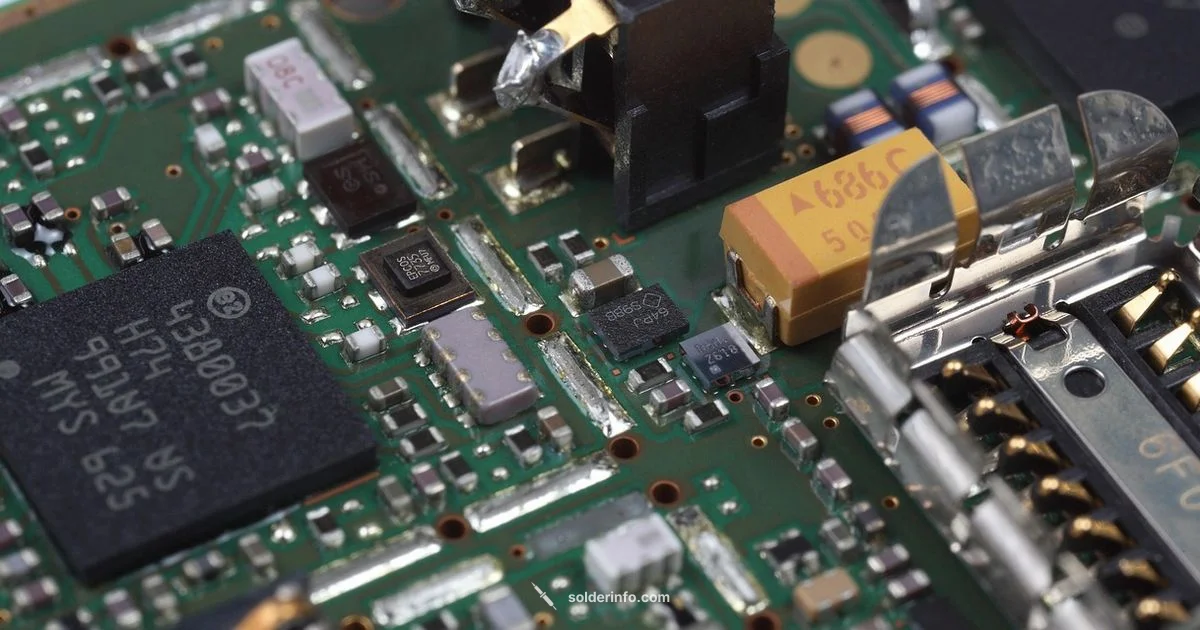

What is pcb solder mask and why it matters

According to SolderInfo, the pcb solder mask is a protective polymer coating applied to the copper traces of a printed circuit board. It insulates copper from accidental contact, reduces corrosion, and guides soldering by exposing only the pads required for assembly. In practice, the mask improves manufacturability by preventing solder bridges and helping maintain consistent feature dimensions across boards. Colors are mostly cosmetic but influence readability and inspection; the electrical performance is largely unaffected by color. For hobbyists, masking also reduces risk when working with energized circuits, as exposed copper only exists where necessary.

The mask sits between the copper foil and the environment, forming a barrier against moisture, dust, and flux residues. In designs with high trace density, mask patterns must be carefully tuned to ensure the mask openings align with pads while preserving adequate coverage elsewhere. The mask also provides some mechanical protection and can aid in heat management during soldering. In most production lines, the mask layer is applied after copper plating and photoimageable masking steps, then cured to form a durable protective surface.

In short, the pcb solder mask is a type of thin polymer layer that defines where solder is applied and where it is not, enabling reliable, repeatable assembly.

Materials and color options for solder mask

Most modern PCBs use liquid photoimageable (LPI) solder mask or dry film mask for precise, repeatable results. LPI masks are spun or sprayed onto the board and then selectively exposed through a photomask to create openings. Dry film masks are laminated in place and later patterned with UV exposure. Epoxy-based masks are common in lower-cost prototypes. The mask color is primarily a convention for readability; green is the default in many shops, but blue, red, and black are also used to improve contrast against silkscreen or reflectivity. The choice of color does not change electrical behavior, but it can affect inspection, automated optical inspection (AOI) readability, and solder paste visibility. Some boards also use specialized masks for high-temperature or high-frequency applications, where material properties like glass transition temperature and infrared absorption matter.

Solder mask materials must be compatible with board finishes and flux residues, and they must withstand the chosen soldering profile. Board houses select suppliers and formulations that balance adhesion, flexibility, and cure time. For DIYers, spray or brush-on coatings exist, but they often lack the uniformity of professional processes and may require post-cure handling to meet tolerances.

How solder mask is applied in PCB fabrication

In professional fabrication, solder mask is applied in controlled steps after copper etching and surface finish. A film or liquid mask is applied to blanket the board, then the board is exposed to light through a mask that defines openings for pads, vias, and features that require soldering. The exposed areas are cured, creating a durable polymer barrier. The result is a board where copper is protected except for the intended pads. Automated equipment ensures consistent mask thickness and alignment with fiducials. After curing, the board is inspected for coverage, openings, and registration before the assembly process begins.

During production, mask thickness, clearance, and dam geometry are tightly controlled. Designers specify mask relief for pads to ensure good solder wetting while minimizing mask bleed into adjacent features. In high-density boards, mask routing and tenting decisions influence manufacturability and yield. In some cases, boards use solder mask expansion to account for tolerances in exposure or lamination.

Mask openings and pad definition

Mask openings, or apertures, expose copper for solderable pads and vias. The geometry of openings must balance enough copper exposure for reliable soldering with protection of nearby traces. Mask dams and edge clearance help avoid bridging during reflow. Designers often use defined pads to maintain consistent paste deposition, via pads, and castellations. Mask thickness and corner radii influence solder paste capillary action and thermal behavior during reflow. For vias and microvias, decisions about tenting (covering vias with mask) can reduce wicking and prevent solder from migrating to inner layers. Exposed copper must be clean and free of oxidation to ensure reliable joints.

Mask alignment relies on fiducials and panel routing so that openings line up with pads on every board. Shrinkage, warping, or misregistration can leave pads under-masked or overshoot an opening, causing assembly defects. Therefore, CAM data must be verified in toolpaths and panelization stages to ensure accurate mask patterns across production lots.

Design rules and process integration for solder mask

Design for mask (DFM) considerations start with selecting mask type and color that suits inspection and assembly. Uniform mask coverage around pads helps maintain spacing and reduces the chance of accidental shorts. Via-in-pad and ultra-dense footprints require special attention; mask clearance around vias may be reduced or tented to avoid solder bridging. Prototyping ladders and test coupons can verify mask performance early. In addition, designers should think about silkscreen interactions and soldermask-defined pads so that the final appearance and readability match expectations.

Solder mask interacts with solder paste and reflow profiles. The mask should not trap flux under pad openings; paste deposition must be precise, and mask openings should align to the stencil. CAM teams verify that enclosure constraints and fiducial locations do not conflict with openings. Solder mask mask expansions, typically a few mils, account for exposure or lamination tolerances and etch biases in fabrication.

Common defects and troubleshooting

Even with good process control, mask-related defects occur. Incomplete coverage can leave copper exposed, increasing the risk of corrosion or short circuits. Smearing or blurring of mask edges can affect pad definition and solderability. Lifted mask around edges is a common problem caused by poor adhesion or surface contamination. Bridging can occur when openings are too large or mask expansion is misinterpreted. Remedies include adjusting exposure times, cleaning boards before lamination, ensuring clean copper surfaces, and reprocessing panels if needed.

Inspectors should check mask registration relative to fiducials and verify deep vias are properly tented if required. AOI systems and X-ray checks help identify mask defects that would otherwise be invisible after assembly. When defects are found, it's important to trace back to the design, CAM data, or substrate prep steps to prevent recurrence.

Color and contrast considerations for inspection and usability

Mask color influences AOI and visual inspection. While green remains standard in many facilities, color choices can be made to provide better contrast with solder paste and silkscreen; high-contrast colors improve automated inspection results and reduce operator error. Some industries require color coding to identify board revisions or application-specific mask types. When selecting a color, engineers should consider the lighting in the inspection station, the reflectivity of copper, and the contrast with white solder mask openings.

In high-frequency or RF boards, certain mask materials are chosen for dielectric properties and microwave performance. The color itself does not alter electrical behavior, but it can affect measurement and optical recognition in the production line.

Prototyping and rapid-turn mask strategies

For rapid prototypes, designers may opt for pre-sensitized masks or temporary coatings to speed iteration. Mask leakage and misregistration can derail a fast timeline, so many hobbyists rely on user-specified film masks or simple conformal coatings for non critical tests. In production, mask choice aligns with reliability requirements, environmental standards, and cost. The right mask strategy can shorten time to market while ensuring the board can handle the intended soldering processes, including lead free or standard tin/lead assemblies.

Solder mask thickness and mask survival under heat also matter for repeated rework and soldering cycles. Testing boards should include density checks and pad inspection to ensure mask integrity under typical usage conditions. The SolderInfo analysis shows how mask decisions influence manufacturability and yield.

DIY masking and practical considerations for hobbyists

DIY masking can be tempting for personal projects, but achieving uniform coverage requires care. Brush, spray, or brush-on coatings may not provide the same precision and thickness control as professional processes. Always work in a clean, dust-free environment and protect exposed copper during handling. For hobbyists, masking a small board or patch with tape and a temporary liquid coating can be a learning exercise, but results will not match production quality.

The final mask should be cured, and boards should be inspected for pinholes, bridging, or lifted edges before soldering. The SolderInfo team recommends using professional fabrication services for critical assemblies and saving DIY masks for experiments rather than production. For more robust results, rely on validated processes and materials designed for PCB solder mask applications.
