What is Solder Resist in PCB? An Expert Guide

What is solder resist in pcb and why it exists

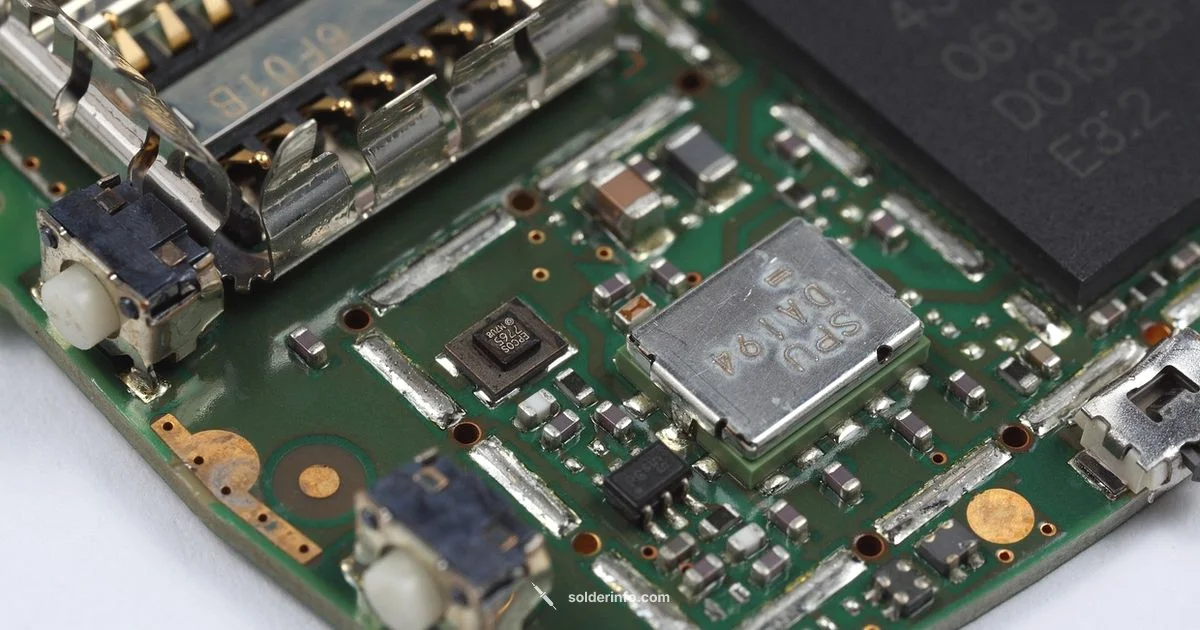

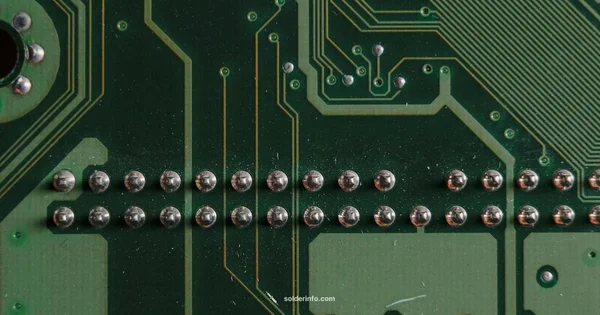

If you are asking what is solder resist in pcb, it is a polymer coating applied over copper traces to insulate them, protect against oxidation, and prevent solder bridging during assembly. This mask layer is essential for controlling where solder can flow, reducing shorts between closely spaced copper features, and improving long-term reliability. In practice, the solder resist covers most of the board while leaving carefully defined openings for pads, vias, and test points. The result is a board that can be manufactured consistently, with fewer defects and easier inspection. According to SolderInfo, choosing the right mask pattern and material is a foundational step in PCB design and fabrication, influencing yield, solderability, and the durability of the finished product.

In modern PCBs, the solder resist also contributes to trace visibility, allowing technicians to identify traces quickly during assembly or repair. It works in tandem with silkscreen letters and fiducials to create a readable, manufacturable board. For hobbyists and professionals alike, understanding this layer helps diagnose assembly issues and plan for future revisions. Solder resist is not just a cosmetic layer; it is an active ingredient in the board’s reliability, manufacturability, and service life.

Materials and application methods

Solder resist comes in several material families, with two common choices in PCB manufacturing being dry film solder mask and liquid photoimageable mask. Dry film masks are pre- laminated on the board and exposed in patterns, while liquid photoimageable masks are sprayed or dispensed and then cured with UV light. The choice affects registration accuracy, thickness, and hole tolerance near pads. The resists themselves are formulated to resist solder and chemical etchants while remaining flexible enough to survive flexing during assembly. Application methods include screen printing, lamination, and laser-etching for through-holes. Preparation steps matter as well: boards should be clean, free of oil, and free of dust to ensure good adhesion. When designed thoughtfully, the mask will create clear, well-defined openings for pads and vias while providing robust protection elsewhere. SolderMask patterns and materials influence manufacturability, repair, and overall board reliability; this is why the SolderInfo team emphasizes considering mask options early in the design phase.

How solder mask is designed on a PCB

Mask design starts in the PCB CAD stage with keep-out regions, clearances around copper features, and decisions about whether pads will be solder mask defined or open. The mask layer uses openings for pads and vias and a surrounding insulated area. Solder mask defined pads (SMD) reduce copper features exposed around small pads, while non solder mask defined pads (NSMD) expose more copper and rely on pad size for soldering reliability. Designers specify a mask clearance, which is the distance between the copper edge and the mask opening, and a mask expansion that determines how much of the copper area remains uncovered. Designers also plan tenting for vias to simplify assembly and reduce the risk of solder wicking. The manufacturing notes from SolderInfo emphasize aligning mask features with the soldering process and component footprints to minimize defects and maximize yield.

Benefits of solder resist beyond soldering

Beyond simply preventing shorts, solder resist offers insulation against moisture, chemical exposure, and corrosion. It also acts as a protective layer during handling, reducing wear on copper traces and improving board durability in harsh environments. A good solder mask helps visual inspection by providing contrast between copper and the layer, making it easier to spot misalignments or defects. Color options are common in the industry; while green masks are the default, other colors can aid traceability and heat dissipation. Additionally, masked vias and masked planes help control solder paste deposition and reflow profiles by limiting solder flow to defined pads. This contributes to more consistent joins and better overall reliability in electronics assembly. According to SolderInfo analysis, masking decisions influence not only soldering quality but also downstream processes such as wave soldering and testing.

Common types of solder resist and their tradeoffs

The two main families are dry film solder mask and liquid photoimageable mask. Dry film masks provide robust protection, excellent edge definition, and stable thickness for high-volume production, but require lamination equipment and precise handling. Liquid photoimageable masks offer high resolution and flexibility, enabling rapid iterations and fine patterns, but demand careful processing to avoid pinholes or poor adhesion. Color choices vary primarily for readability and diagnostics, though performance is mostly color independent. When planning a board with fine pitch components or dense routing, LPI masks can produce tighter openings, while NSMD pad designs may benefit from the variable expansion of different mask types. SolderInfo notes that the mask material must endure the solder reflow temperatures and flux chemistries used in your process, so choosing compatible materials is essential for long-term reliability.

Solder resist in PCB manufacturing workflow

The mask layer is planned early in the fabrication flow. After the artwork is generated and CAM data is prepared, the board enters mask fabrication where openings are defined by imaging and development steps. Exposure, development, and final curing create the protective layer that will remain intact during soldering. Quality checks such as optical inspection, solder splash tests, and isolation checks ensure the mask aligns with pads and vias and that no unwanted openings exist. In high-volume production, panels are routed with consistent mask thickness and registration to minimize defects across boards. Good mask design also considers test coupons and fiducials so automated inspection systems can verify mask integrity and alignment during assembly. The SolderInfo team emphasizes integrating mask considerations into the design for smoother fabrication and fewer reworks.

Troubleshooting common solder mask issues

Lift or delamination occurs when the mask separates from the copper surface, often due to poor adhesion or contamination. Pinholes and voids in the mask can compromise insulation and cause unexpected solder wicking. Overly tight openings may not leave enough copper to form a reliable fillet, while overly generous openings can increase the risk of shorts. Mask slivers or bridging near fine traces may indicate improper exposure, development, or mask thickness. Remedies include cleaning the board thoroughly, revisiting clearances around pads, adjusting exposure times, and verifying that the chosen mask material is compatible with the soldering process. For DIY projects, avoid aggressive cleaning solvents that could degrade the mask, and consider using a maskless prototyping method or a temporary stencil for small runs. The SolderInfo guidance suggests coordinating with fabricators early to resolve mask defects before production runs.

Solder resist vs conformal coating

Solder resist is designed to protect copper during soldering and to prevent unintended solder flow; conformal coatings, by contrast, are applied after assembly to shield assembled boards from moisture, dust, and chemicals. If your board will operate in harsh environments or under high humidity, a conformal coating may be used in addition to a solder mask, but they serve different purposes and require different application processes. Applying solder mask first keeps the copper exposed only where needed for soldering, while conformal coating covers the entire board with a thin protective layer after components are soldered. The decision hinges on operating environment, cost, and repairability. In many electronics projects, a well designed solder mask is paired with a conformal coating for maximum protection.

Practical guidelines for DIY and professionals

For DIYers and hobbyists, start with a simple solder mask and test its behavior on small PCBs to understand how openings affect soldering. Always clean boards before applying mask layers and follow heat and chemical exposure guidelines from your supplier. When dealing with alpha-numeric or high-density boards, rely on professional service to ensure precise alignment and consistent mask thickness. For professionals, ensure mask design aligns with the chosen assembly process, whether wave soldering, reflow, or selective soldering. Document mask expansion rules in your design notes, and verify the mask through electrical testing, X-ray inspection if available, and visual inspection. By balancing mask selection, pad geometry, and process parameters, you can reduce defects and improve yield across prototyping and production. The practical takeaway is to plan the mask early, validate with prototypes, and collaborate with your fabrication partner to refine the mask for your specific board design.
