How to Prevent Solder Bridging: A Step-by-Step Guide
Learn proven methods to prevent solder bridging on PCBs, covering prep, flux choices, technique, pad design, and inspection for reliable joints.
Quick answer: You will learn proven methods to prevent solder bridging on PCB assemblies. This guide covers preparation, flux selection, precise technique, pad design considerations, and post-solder inspection. By controlling heat, limiting solder quantity, and using the right tools, you can minimize bridges, improve joint quality, and speed up production with fewer reworks.
Why Solder Bridging Happens
According to SolderInfo, solder bridging happens when excess molten solder escapes from the intended joint and flows between adjacent pads. This is more likely when pad spacing is tight, flux is too viscous, or heat is applied for too long. Bridges can occur during manual soldering or rework when a joint is heated beyond what the surrounding pads can tolerate. Even small variations in component orientation or pad cleanliness can tip the balance toward a bridge. Understanding these dynamics helps you tailor your process to prevent bridges before they form. In practice, bridging is rarely a mysterious event; it is a predictable outcome when heat, solder, and surface conditions are not properly controlled. A disciplined approach to prep, technique, and inspection dramatically reduces the risk. You’ll notice that disciplined prep—clean surfaces, correctly aligned components, and properly configured flux—sets the stage for clean joints. Remember that a bridge is not just a cosmetic issue; it can cause short circuits, intermittently failing boards, or repeated rework. By catching potential issues early, you can preserve circuit integrity and save time in the long run.
Building a reliable soldering process starts before you touch the iron. It begins with clean boards, well-organized tools, and a plan for which joints pose the greatest risk. When you adopt a predictable sequence, you minimize the variables that lead to bridges and simplify troubleshooting later in production.
Tools & Materials
- Fine-tip soldering iron (temperature-controlled)(Use a sharp 0.5–0.8 mm tip when working with small pads; keep heat localized to the joint.)
- Lead-free solder (or rosin-core solder)(Choose an electronics-grade alloy and avoid mixing alloys mid-work.)
- Flux (rosin-core or no-clean)(Apply sparingly to improve wetting and guide solder flow.)
- Solder wick (desoldering braid)(Copper braid with flux improves capillary action to remove excess solder.)
- Desoldering pump (optional)(Useful for larger volumes of excess solder.)
- Isopropyl alcohol (IPA) and lint-free wipes(Clean boards before and after work to remove residues.)
- Magnifying loupe or bench microscope(Essential for early detection of bridges and poor wetting.)
- Fine-point tweezers(Precise handling of small components and pads.)
- Safety gear(Safety glasses and good ventilation to protect from fumes.)

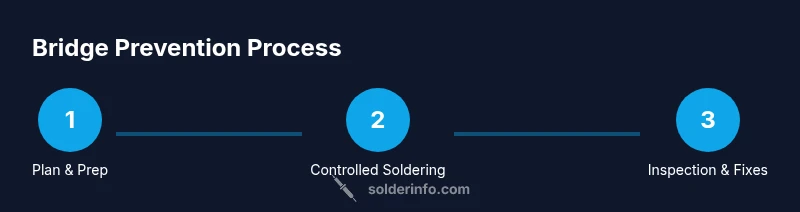

Steps
Estimated time: 90-120 minutes
- 1
Audit the PCB layout for bridging risk
Review the board design and identify pads that are close together or have tight spacing where bridging could occur. Check for vias and thermal relief features that may complicate joint formation. Confirm component orientation and pad cleanliness to prevent unexpected wetting behavior.
Tip: Use a magnifier to spot problem areas before you solder. - 2
Prep the workspace and boards
Clean surfaces with isopropyl alcohol and lint-free wipes; ensure stencil alignment if used. Verify that the work area is free from dust, moisture, and stray flux. Set up lighting that reveals wetting issues clearly.
Tip: Let solvents dry completely before you start soldering. - 3
Prepare tools and materials
Organize flux, solder, and wick within easy reach. Ensure the iron tip is clean and properly tinned, and check that you have a stable mat or board holder to reduce movement during soldering.
Tip: Keep a small container of flux for quick touch-ups. - 4
Apply flux to pads and leads
Apply a thin, even layer of flux to all pads and leads involved in the joints. Flux improves wetting and can guide solder away from adjacent pads.
Tip: If using a flux pen, draw a precise line along the pads rather than globbing flux. - 5
Position components and tack joints
Place components accurately on the pads and make single tacks at two corners to hold them in place. This prevents movement during soldering and reduces the chance of bridging due to misalignment.
Tip: Tack opposite corners to balance clamping force. - 6
Melt solder with controlled heat
Gently touch the joint with the iron, allowing just enough solder to wet the pad and lead. Avoid dragging solder across multiple pads; work small joints one at a time.
Tip: Keep the iron at a shallow angle to minimize heat spread. - 7
Inspect and fix any bridges with wick
If a bridge forms, stop, apply flux to the bridge, and wick away excess solder with a clean braid. Reflow the joint once the bridge is removed to ensure a proper connection.
Tip: Work slowly and re-check with magnification after each fix. - 8
Reflow and finalize joints
Revisit each joint with a quick, controlled pass to ensure consistent wetting and to prevent cold joints. Move the iron away smoothly and avoid sudden pressure on neighboring pads.
Tip: Avoid applying extra solder after a successful wetting. - 9
Clean up and final inspection
Wipe away flux residues and perform a final magnified inspection for any remaining bridges or defects. If needed, perform a functional test on a small portion of the board before full testing.
Tip: Document any recurring bridges to inform design or process changes.
Quick Answers
What causes solder bridging?
Bridging happens when excess molten solder flows between adjacent pads, usually due to too much solder, poor wetting, misalignment, or inadequate flux. Proper technique, flux management, and inspection reduce bridge risk.
Bridging is caused by excess solder flowing between pads, often from too much solder or poor wetting. Proper technique and flux help prevent it.
Can using flux alone prevent bridging?
Flux improves wetting and guides solder flow, but it cannot fully prevent bridges without proper heat control, correct pad design, and careful solder application. Use flux in combination with good technique.
Flux helps wet joints, but you still need good technique and heat control to prevent bridges.
Does pad spacing affect bridging?
Yes. Tighter pad spacing increases bridging risk because solder can easily flow from one pad to another. Reassess layout or stencil apertures to reduce this risk.
Narrow spacing makes bridging more likely; check pad layout and stencil fit.
Is lead-free solder more prone to bridging?
Lead-free solder requires careful heat control and precise wetting, but it is not inherently more prone to bridging than other alloys when technique is correct.
Lead-free isn’t inherently worse; focus on technique and flux for good wetting.
What’s the best way to fix a bridge on a populated board?
Turn off power, use desoldering wick to remove the excess solder, and reflow the joint. If the bridge is widespread, consider reworking the footprint or replacing the component.
Power off, wick out the bridge, and reflow. For big bridges, rework might be needed.
Watch Video
Top Takeaways
- Plan joints with spacing in mind
- Use flux to control wetting and guide solder
- Keep heat localized and apply minimal solder
- Inspect joints early and fix bridges with wick
- Maintain a clean, organized workflow for consistency
