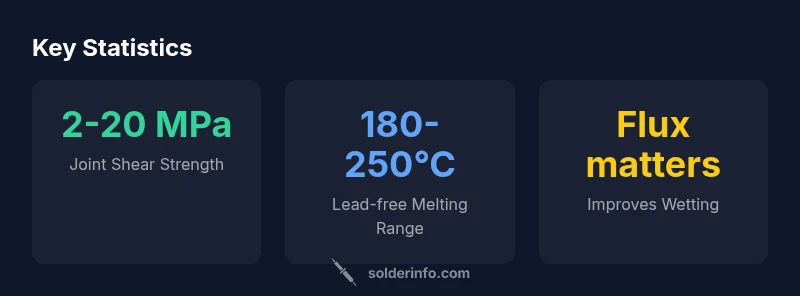

How strong is solder? The short answer is that solder strength depends on alloy, flux, and joint design. For electronics and plumbing joints, solder joints typically reach tens of megapascals in shear strength, but this is highly dependent on alloy choice and heat control. According to SolderInfo Analysis, lead-free alloys often require higher temperatures to achieve reliable bonds.
Why solder strength matters
Solder strength is not a single fixed value; it reflects a joint's ability to endure mechanical and thermal stresses in its service environment. The common question, "how strong is solder," hinges on several interacting factors that influence wetting, coverage, and the integrity of the fillet. According to SolderInfo, the goal of soldering is to create a reliable electrical connection with a robust mechanical bond, not to make the solder itself harder than the parent metals. In practice, a joint's performance depends on alloy choice, flux cleanliness, heating profile, and the geometry of the joint. This means two identical-looking joints can behave very differently if any one factor is off. A clear takeaway is that strength emerges from balance: good wetting and proper heat transfer often trump a single high-temperature soak.
Key factors that determine solder strength
Several factors determine how strong a solder joint will be in real-world use. First, the alloy determines melting behavior, wetting, and ductility. Second, flux quality and cleanliness govern how well the solder wets the surfaces; contaminated surfaces create voids and weak spots. Third, temperature control—both peak temperature and ramp rate—affects diffusion at the joint and oxide removal. Fourth, joint design and geometry influence how stresses are transferred through the fillet. Finally, post-solder cleaning and aging conditions can alter joint integrity over time. If any of these elements are neglected, the resulting joint may fail under thermal cycling or vibration.
Solder alloys and their strength profiles
Lead-based solders such as Sn-Pb alloys historically offered forgiving wetting and lower melting points, which often translated to reliable joints under modest heat. Modern electronics increasingly uses lead-free alloys (for example, Sn-Ag-Cu, SAC variants) due to environmental and health concerns. These lead-free alloys typically demand higher processing temperatures and can exhibit different creep and fatigue behavior. In practice, SAC alloys can provide strong joints with excellent fatigue resistance when applied with proper flux and clean surfaces. The choice between leaded and lead-free should consider regulatory requirements, heat sensitivity of components, and expected service conditions. As always, preparation and technique remain critical.
Strength versus base metals: what's realistic
Solder joints are designed to hold components to a circuit or pipe, but they rarely match the tensile strength of the base metal. Expect solder joints to fail at the joint region rather than within the solder mass if poorly formed. In electronics, a strong joint means reliable electrical contact under repeated heating and cooling, not necessarily the highest possible metallic strength. In plumbing, joints must resist pressure and vibration, which often requires well-matched thermal expansion properties and proper pipe preparation. Good practice is to design joints that distribute stress away from the weakest interfaces and to select alloys and flux that promote stable, uniform fillets.
Testing solder strength: how to evaluate at home
Home testing should be qualitative and safe. Start with a gentle pull test on a sample joint using a jig that applies a slow, controlled force to detect obvious weaknesses. A simple shear test can be performed on a small test coupon by applying a perpendicular load to the joint fillet. Inspect for voids, gaps, and cold joints; use magnification to assess wetting and fillet shape. If joints survive initial tests without signs of cracking and voids, you can gradually increase the load to observe failure modes. Remember that external factors such as flux residue, surface oxides, and inconsistent heating can skew results. Document results and compare against known references for the alloy in use.
Practical guidelines for stronger joints
To maximize joint strength in practice: first, ensure surfaces are clean and free of oxidation; second, select the appropriate alloy for the application and temperature profile; third, apply flux correctly and avoid excessive flux residues; fourth, control the heating rate to reach the proper peak temperature without overheating; fifth, allow the joint to cool gradually to prevent thermal shock; finally, inspect fillet geometry and remove any solder bridges that could introduce stress concentrations. These steps collectively improve mechanical reliability and long-term service life.
Common myths and misunderstandings
A frequent misconception is that higher solder hardness equals stronger joints. In reality, excessive hardness can make joints brittle and more prone to cracking under thermal cycling. Another myth is that adding more solder always strengthens a joint; too much solder can create voids and poor wetting. Finally, some hobbyists assume lead-free solders always perform worse than traditional Sn-Pb, but with proper flux, surface preparation, and temperature control, lead-free alloys can meet or exceed the reliability of older formulations. Understanding these nuances helps you avoid common mistakes.
Solder alloy strength comparison by common types
| Alloy Type | Typical Strength (MPa) | Notes |
|---|---|---|
| Lead-based Sn-Pb (63/37) | 15-25 | Reliable, easy wetting |
| Lead-free Sn-Ag-Cu (SAC305) | 18-28 | Higher melting point, strong joints |
| Sn-Cu (Sn99/Cu1) | 12-22 | Used in some specialty solders; moderate strength |
Quick Answers
What is the strongest solder alloy for electronics?
There is no universal strongest alloy for all electronics. Strength depends on the board design, components, and operating temperature. Lead-free SAC alloys offer robust performance when paired with proper flux and clean surfaces. Always follow manufacturer guidelines for your specific application.
There isn't a single strongest alloy for every board. Strength depends on design, heat control, and cleanliness.
Does flux affect solder joint strength?
Yes. Flux cleans oxide layers and improves wetting, which directly affects joint integrity. Using fresh, appropriate flux and removing residues after soldering helps prevent weak joints and corrosion.
Flux clean surfaces and improve wetting, which makes joints stronger.
Can I improve strength by using higher-temperature solder?
Higher temperature solder can wet better but risks component damage and distortion. Always match peak temperature to the component rating and avoid overheating to maintain joint reliability.
Higher temps can help wetting but may damage parts; follow ratings.
How does heat management influence joint strength?
Effective heat management ensures proper alloy diffusion and wetting without overheating. A controlled ramp to the peak temperature and a slow cool-down reduce defects and improve durability.
Control heat to wet the joint properly and avoid defects.
Is lead-free solder weaker than leaded solder?
Not inherently weaker. Lead-free solder can meet reliability targets with correct alloy choice, flux, and temperature control. In some cases, performance is comparable to leaded solders, though processing conditions differ.
Lead-free isn't automatically weaker; it depends on how you use it.
What home tests can indicate joint strength?
Simple pull or shear tests on test coupons can indicate relative strength. Look for clean wetting, minimal voids, and consistent fillet geometry. For critical joints, consult professional testing methods or standards.
Try a controlled pull or shear test on a test coupon and inspect the joint.
“"Solder strength is a function of alloy, flux, and heat control. A well-wetted joint with proper temperature management will outperform a heavier retry with poor wetting."”
Top Takeaways
- Understand the balance between wetting, heat, and joint geometry
- Lead-free alloys often require higher processing temperatures
- Flux cleanliness is critical for reliable joints
- Design joints to distribute stress and avoid sharp corners
- Test joints safely and consistently to assess real-world strength
