What is Solder Resist and How It Works

What is solder resist and why it matters

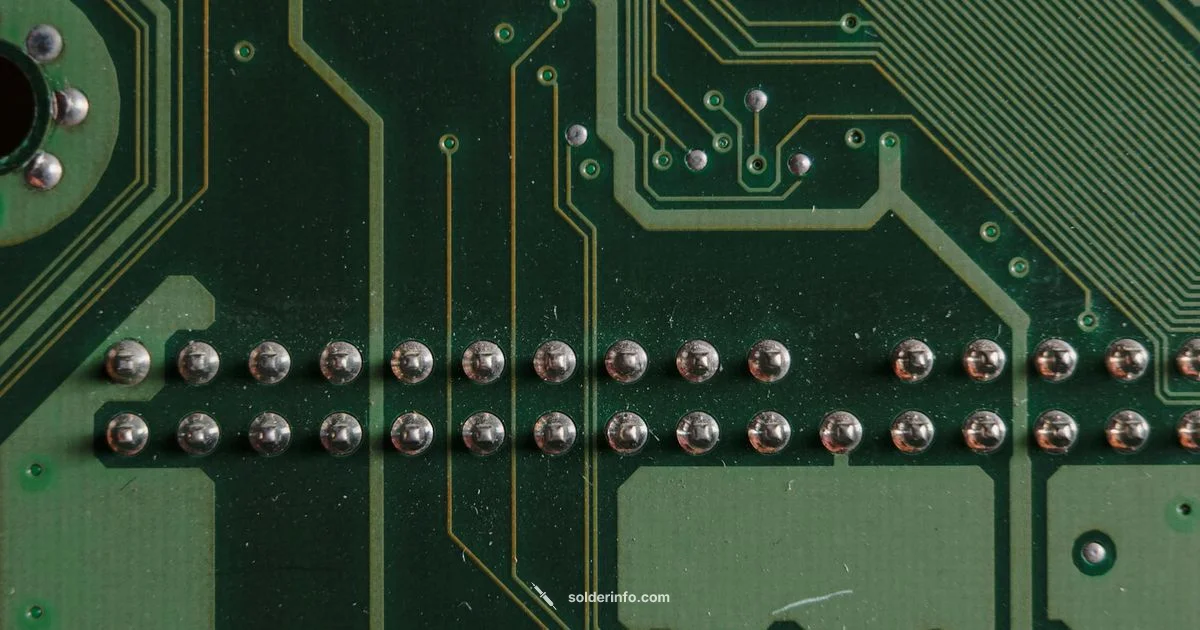

Solder resist, often called solder mask, is a protective polymer layer applied to copper traces on printed circuit boards. Its main job is to prevent solder from wetting areas where it is not wanted and to guide solder to exposed pads where components will be attached. According to SolderInfo, solder resist is a foundational tool in modern PCB fabrication, helping manufacturers achieve consistent solder joints and reduce defects. Beyond guiding solder, the mask provides electrical insulation and some environmental protection for copper traces, which reduces the risk of corrosion in harsh service conditions and contributes to board longevity. On a populated board, the mask also simplifies assembly work by defining a clear footprint for each component and by minimizing the chance of accidental shorts during hand-soldering. Design teams balance the need for protection with the requirement to expose pads and features for reliable soldering, cleaning, and inspection. The result is a mask that shields copper, improves yield, and supports repeatable assembly across production runs.

How solder resist is applied and cured

Manufacturers apply solder resist using photolithographic processes or, for simpler boards, manual methods. A liquid resist is spun or coated onto the PCB, then a patterned mask exposes the pads and features to create openings. The exposed areas are developed or cured to form a durable, adhesive layer that resists solder. In modern shops, liquid photoimageable resists (LPI) are common because they offer precise pad openings and good adhesion, while dry film masks provide robust protection on thicker boards. After application, boards are baked or cured to harden the mask, then inspected for coverage, opening accuracy, and alignment. Quality checks catch issues such as edge burrs, pinholes, or misregistration that could cause soldering defects. The curing step is critical to ensure the mask withstands soldering heat and cleaning solvents during assembly. When done correctly, the resulting mask remains intact through the entire assembly process and contributes to consistent joint quality.

Design considerations for solder resist on PCBs

Mask design choices influence soldering reliability and manufacturability. Solder mask defined pads constrain the opening to the mask, creating uniform soldering geometry and reducing solder wicking. Non mask defined pads leave more copper exposed but can introduce variability in how solder spreads. Designers must consider component density, pitch, and the intended soldering method when choosing between these approaches. Pad openings should be correctly sized and positioned, with careful attention to clearances to prevent shorts. The mask layer also affects thermal management; in some designs, masking decisions are used to protect heat-sensitive areas while leaving critical pads exposed for rapid heat transfer. For RF or high-speed boards, designers consider the dielectric effect of the mask and how it might influence impedance. Collaboration with the PCB fabricator ensures that mask specifications align with fabrication capabilities and tolerances.

Solder mask openings and pad definitions

Openings in the solder mask are defined to expose pads while protecting surrounding copper. The choice between mask defined and non mask defined pads changes how solder flows during reflow and how robust the joints are under thermal cycling. Accurate alignment of pad openings is essential; misregistration can leave pads underexposed or overcovered, leading to poor solder joints. Designers also decide on via tenting, which covers vias with mask to reduce solder wicking and contamination, or open vias for plating and rework. The mask thickness and edge quality influence solderability, so manufacturers control curing and adhesion processes to produce consistent results. When in doubt, consult the fabricator’s guidelines to ensure your artwork and panelization align with their capabilities.

Common issues and troubleshooting

Even with careful design, solder resist can present challenges. Common issues include incomplete openings, mask delamination, pinholes, or edge burrs that trap flux or reduce pad exposure. Mask slivers near pads can cause bridging or intermittent shorts if left unmanaged. Misregistration between mask and copper may leave pads partially covered or partially exposed, complicating soldering. If defects arise, technicians review exposure, development time, mask thickness, and curing parameters, then adjust the process accordingly. For DIY boards, testing with a small batch helps identify issues before committing to a full run. Regular inspection of the mask under magnification can reveal subtle defects that would otherwise impact quality in high-volume production.

Practical tips for hobbyists and DIY projects

For hobbyist boards, start with ready made boards that already feature solder mask and examine how openings align with footprints. If you apply your own mask, ensure the surface is clean and free of oils or residues, and choose a mask designed for hand soldering. When hand-soldering, keep pad exposures clear and avoid masking pads where you expect to apply heat. For rework, select mask materials that withstand typical soldering temperatures and cleaning solvents. Always test a small panel first and verify alignment with a caliper or optical method. Finally, consult vendor datasheets and community guides to pick mask materials compatible with your copper weight and board thickness.
