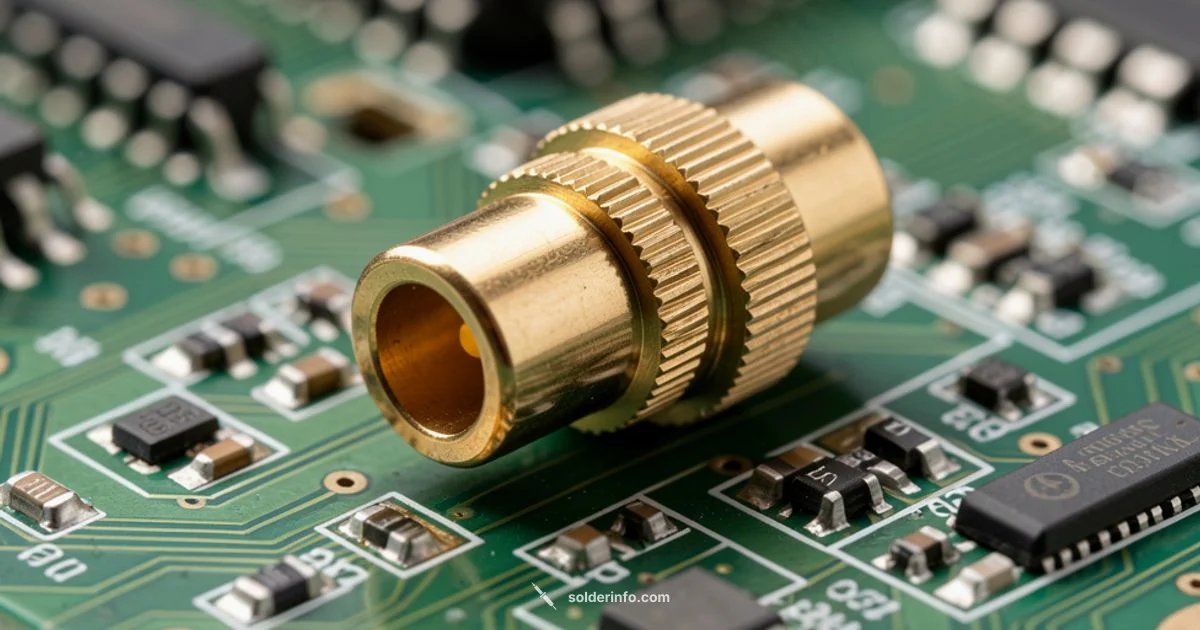

How to Solder an RCA Jack: A Complete DIY Guide
Learn to solder a replacement RCA jack with confidence. This SolderInfo guide covers tools, safety, wiring, and testing for reliable audio connections in electronics projects.
By soldering an RCA jack, you restore a reliable audio connection and reduce signal loss. This guide walks you through a safe, step-by-step process to attach a replacement RCA jack to a cable or PCB, including essential tools, flux, and safety tips, and testing after completion.
Introduction to solder rca jack and its role in audio electronics
The RCA jack is a ubiquitous connector in home audio and consumer electronics. When a jack becomes loose, corroded, or irreparably damaged, replacing it often restores signal integrity more reliably than attempting to fix worn connectors. In this guide, the focus is on the practical task of soldering a new RCA jack to either a cable harness or a printed circuit board (PCB). You’ll learn how to plan the repair, select the right jack, manage heat safely, and verify the connection with basic testing. Throughout, keep in mind that high-quality joints help minimize resistance and noise in the audio path. The SolderInfo team notes that careful workmanship leads to longer-lasting, dependable connections.
Choosing the right RCA jack and materials
RCA jacks come in a few form factors: panel-mount, PCB-mmounted, and cable-end variants. For a cable repair, a PCB-mount or panel-mount jack can be used, depending on space and mounting feasibility. The key is to match lug spacing and footprint with your target board or enclosure. When integrating a solder rca jack, pick one with robust ground lugs, accessible signal pins, and corrosion-resistant materials. For a home project, a chrome or nickel finish offers durability, while gold-plated contacts can improve long-term reliability in humid environments. Stock up on the corresponding crimp or solder tails if you’re splicing into a cable harness. Soldering technique matters more than the brand; focus on clean, heat-controlled joints.
Safety first: heat management, ESD, and PPE
Before you touch a soldering iron, ensure the device is powered off and unplugged. Use eye protection and work in a well-ventilated area or with a fume extractor. Static-sensitive components deserve an ESD-safe workstation, including a grounded mat or wrist strap. If you’re working with vintage equipment that contains lead-containing solder, handle with care and follow local safety guidelines. While lead-free solder is common today, flux choice and temperature control remain critical: overheating can damage insulation, shields, or nearby components. Keep a damp sponge handy for tip cleaning and maintain a stable tabletop to avoid accidental slips.
Wiring fundamentals: signal, ground, and shielding for RCA
An RCA connection relies on a center signal conductor and an outer shield ground. The shield should be tied to the jack’s ground lug and to the equipment’s ground network to minimize hum and noise. When wiring, identify the live conductor (often red/white or the color-coded wire) and the shield braided shield, which is typically connected to the outer lug. On PCBs, the center pin carries the audio signal while the ground pad provides the return path. Maintain clean insulation to prevent accidental shorts between signal and ground. If you’re repairing a cable, ensure the shield is continuous and not frayed, which can degrade performance.
Soldering technique for RCA jacks: cables vs. PCBs
Soldering an RCA jack to a cable harness requires a careful balance of heat and contact area. Tin the conductor first to improve wetting, then tack the jack to hold the wires in place while you apply solder. For PCB-mounted jacks, align the jack’s pins with the board pads, then solder each pin with a single, clean joint. In both cases, use a flux that matches your solder type and avoid excessive heat that could delaminate insulation or lift pads. Work quickly but calmly to prevent cold joints, which appear dull and may crack under stress. After soldering, trim excess wire and inspect each joint for a smooth, cone-shaped fillet.
Common mistakes and how to avoid them
A few frequent errors include overheating the jack or wire, which can damage insulation and cause shorts; skipping flux, which leads to dull, unreliable joints; and poor strain relief, which can cause wires to work loose after movement. Always test continuity and inspect visually. If a joint looks dull or has a whisker-like solder blob touching an adjacent pad, rework it. Using too much solder can create shorts, while too little can create high resistance. Take your time with the first joint to set a standard for the rest of the connection.
Testing and troubleshooting after soldering
Testing should confirm continuity between the signal path and the RCA connector without shorts to ground. Use a multimeter in continuity mode to verify that the center pin is connected to the corresponding wire and that the shield is properly grounded. Perform a simple functional test by connecting the assembly to a benign audio source and speaker or an input device. If you hear hum, click, or no signal, recheck joints and shielding. Remember, the goal is a clean, stable electrical path with minimal noise.
Maintenance and long-term care for RCA connections
Regular inspection helps extend the life of soldered RCA joints. Check for green oxidation on copper conductors and reflow joints if you notice any looseness or discoloration. Avoid bending wires sharply near the joint to prevent fatigue; use gentle strain relief or cable clamps. When storing or transporting gear, keep inputs capped or disconnected to reduce the chance of vibration-induced stress on the joint. Proper cleaning with a soft brush can remove dust that might trap moisture at the connector.
Authority sources and recommended reading for further learning
For safety and standard practices, consult authoritative sources. OSHA provides general safety guidelines for handling heat tools and electronics equipment. The National Institute of Standards and Technology (NIST) offers insights on general electronics assembly practices, while IEC standards provide international context for connector design and compatibility. See links such as https://www.osha.gov, https://www.nist.gov, and https://www.iec.ch for more details. These references help expand your understanding beyond the hands-on steps described here.
Tools & Materials
- Soldering iron (fine tip, adjustable temperature)(Choose a temperature range suitable for electronics work; 350-370°C typical for lead-free solder, lower for sensitive components)
- Lead-free solder (0.6-1.0 mm diameter)(Rosin-core flux helps wetting; avoid older, brittle solders)
- Flux (rosin-based or water-soluble)(Use flux appropriate for your solder type; apply sparingly)
- Desoldering braid or pump(Useful for correcting mistakes and removing excess solder)
- Wire strippers/cutters(Strip enamel-coated wires cleanly without nicking insulation)
- Replacement RCA jack (panel- or PCB-mount)(Match the footprint and connector style to your project)
- Multimeter (continuity tester)(Helpful for verifying connections and shorts)
- Safety glasses and fume extractor or well-ventilated area(Always protect eyes and manage fumes during soldering)
Steps
Estimated time: 30-45 minutes
- 1
Prepare workspace and safety gear
Power down the equipment and unplug it. Set up the work area with good ventilation, a heat-resistant mat, and safety glasses. Gather all required tools and consumables before starting.
Tip: Use a small, non-slip mat to hold components and prevent slips during soldering. - 2
Expose wiring and remove old jack if needed
Carefully access the RCA jack area. If replacing an old jack, desolder the existing joints and gently remove the jack, keeping the surrounding pads or cable ends intact.
Tip: Take photos before disassembly to reference pinouts and orientation. - 3
Tin wires and pads
Apply a small amount of flux and tin the exposed conductor and any PCB pads. This primer ensures reliable wetting and reduces the time heat is applied to the joint.
Tip: Keep the tip clean and tinned between joints to avoid cold joints. - 4
Solder ground/shield to RCA jack outer shell
First, attach the shield/ground connection to the RCA jack’s outer lug. This stabilizes the ground reference and reduces the chance of hum.
Tip: Clamping the jack temporarily can help maintain alignment during soldering. - 5
Solder the signal conductor to center pin
Place the live conductor on the center pin pad and apply a clean, single pass of solder. Avoid bridging to nearby lugs. Let the joint cool undisturbed.
Tip: Use a heated, short duration application to prevent insulation damage. - 6
Inspect, test, and reassemble
Visual check for dull or cracked joints, continuity test between the center pin and signal wire, and confirm the shield is correctly grounded. Reassemble the enclosure and perform a final audio test.
Tip: If you see a dull joint or a whisker of solder, reflow quickly with a minimal amount of fresh solder.
Quick Answers
Can I solder an RCA jack to stranded wire or shielded cable?
Yes. Stranded wire can be soldered to RCA jacks, but tinning the strands first helps prevent fraying and ensures a solid joint. For shielded cables, maintain a good shield connection to the jack ground.
Yes. You can solder stranded wire to an RCA jack, but tinning helps, and keep the shield connected for proper grounding.
What tools or materials are essential for this task?
A temperature-controlled soldering iron, lead-free solder, flux, wire strippers, and a replacement RCA jack are essential. A desoldering tool is helpful for corrections.
You need an iron, solder, flux, wire strippers, and the RCA jack, plus a desoldering tool if you make mistakes.
Do I need to use lead-free solder for safety reasons?
Lead-free solder is common and safer in homes. If working with older equipment containing lead-based solder, follow local safety guidance and consider lead-free options where possible.
Lead-free solder is common today. If you work with older gear, follow safety guidelines and consider switching when possible.
How can I test the RCA jack after soldering?
Use a multimeter to verify continuity between the center pin and signal wire and ensure there is no short to ground. Then perform a live audio test with a known good source.
Check continuity with a multimeter and then test with a real audio source to confirm sound quality.
What if I accidentally damage the PCB or wire insulation?
If insulation is damaged, repair may involve replacing sections of wire or board trace. In many cases it’s safer to rework the joint rather than continuing with a damaged area.
If insulation is damaged, consider reworking the joint or replacing the damaged section rather than risking shorts.
Watch Video
Top Takeaways
- Plan wiring before you solder and verify pinouts.
- Use flux and tinning to improve wetting and joint quality.
- Avoid overheating; apply heat briefly and precisely.
- Test continuity and shielding after soldering.
- Secure strain relief to extend connector life.
