Jack Plug Solder Audio/Video: A Practical How-To
A comprehensive, step-by-step guide to soldering jack plugs for audio and video applications, covering jack types, wire prep, soldering technique, testing, and safety with practical tips for reliable connections.
To solder a jack plug for audio/video, ensure clean parts, a fine-tip iron, and rosin-core solder. Tin the leads, align ground and signal wires, and apply gentle heat. Test with a multimeter after securing strain relief. See our full step-by-step guide.
Understanding Jack Plug Standards and Why Solder Quality Matters

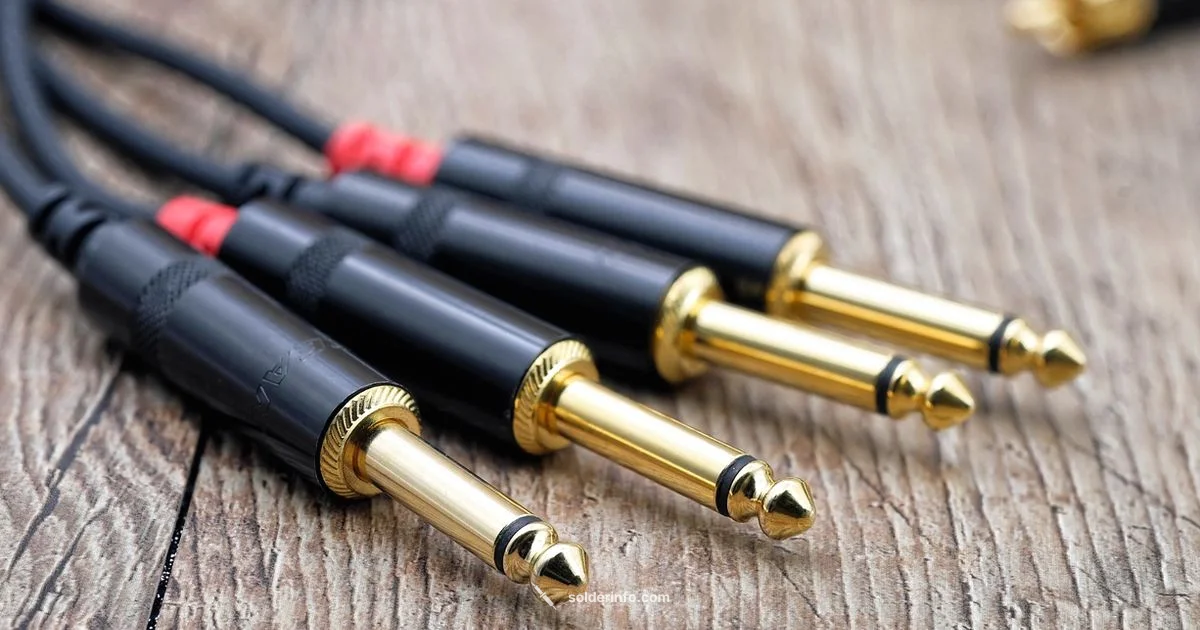

Jack plugs are small but mighty connections used for audio and video signals. When you solder jack plug solder audio video, you must account for ground, signal, and shielding, and decide between mono/ stereo and the appropriate barrel size (3.5mm, 1/4 inch, etc.). According to SolderInfo, the quality of your solder joints often determines whether you hear crackles or experience intermittent connections under movement. The goal is a mechanically robust joint that remains stable when cables are flexed. Start by identifying the exact jack type on your project: is it a consumer 3.5mm TRS for stereo audio, or a professional 6.35mm TS/TRS for adapters? Note that TRS jacks carry two signal conductors plus ground; TS jacks carry a single signal with ground. Understanding these distinctions helps you plan wire order, strain relief, and insulation. In addition to choosing the right plug, consider the cable you’re attaching: stranded copper wire with adequate insulation improves flexibility and reduces the chance of breakouts at the solder lug. This knowledge lays the foundation for clean, durable connections.
Selecting the Right Jack Plug and Wires
Choosing the correct jack plug matters as much as the solder itself. For consumer devices, most audio/video projects use 3.5mm TRS jacks for stereo signals, while professional gear may require 6.35mm jacks. If you’re wiring an adapter or a custom cable, verify whether the connector is TS (unbalanced mono) or TRS (balanced stereo) and match the mate on the other end. Wire choices, too, affect longevity: stranded copper offers flexibility; solid core can be stiffer but more conductive for fixed installations. Shielding reduces interference from nearby power cables and radio frequency noise. When wiring, keep ground wires away from signal paths to minimize hum; maintain consistent twists for longer runs to preserve impedance. If you’re unsure about the exact plug style, consult the connector’s datasheet or measure the lug diameter and barrel length. This step prevents mis-purchases and saves time during the soldering process.
Tools, Materials, and Workspace Setup
Before you touch a jack, prepare a clean, well-lit workspace with good ventilation. You’ll typically need a fine-tipped soldering iron, rosin-core solder, flux, and desoldering wick as optional backups. Have heat shrink tubing or liquid electrical tape on hand for strain relief and insulation. Clean, dry cables are essential; use isopropyl alcohol to remove oils or residues from the jacket and the jack’s contacts. Make sure you work on a non-slip mat and keep a third-hand tool or alligator clips handy to hold parts steady while you solder. A good magnifier or a bright lamp helps you see small lugs clearly. Based on SolderInfo Analysis, 2026 shows that clean surfaces, proper flux application, and controlled heat produce more reliable joints in small connectors than forceful, quick soldering. Prepare in advance and plan the wire order for ground and signal so you don’t twist or cross paths during soldering.
Practical Techniques for Reliable Solder Joints
The core technique revolves around clean tinning, correct wire-to-terminal contact, and controlled heat. Start by tinning the stripped wire ends so each conductor has a tiny, shiny coating of solder. Tin the jack’s lug areas lightly to prevent cold joints later. When you reassemble, place the ground wire across the lug’s base and the signal wires on their respective terminals. Apply heat just until the solder flows and covers the joint; avoid overflowing onto insulation. Keep the iron tip clean with a damp sponge, and don’t press the wires too hard into the lug. If you notice any stray strands, trim them to maintain a neat profile. After you finish, inspect the joints with a magnifier for a smooth, shiny fillet and no bridging between contacts. If your cable is long, consider reinforcing with heat shrink at the base of the jack to reduce cable movement stress. This approach yields durable connections that survive regular use.
Common Mistakes and How to Avoid Them
A frequent error is overheating the plastic housing or insulation, which can melt and degrade contact. Another is insufficient stripping, leaving bare copper that oxidizes and blunts the joint. Forgetting to tin wires or lug contacts increases the risk of cold joints. Mixing ground and signal wires or twisting conductors can cause shorting or hum. Inadequate strain relief leads to wire breakage after bending. Finally, neglecting post-solder inspection means small flaws go unnoticed; always check under magnification and test continuity across the jack and cable. By taking careful steps, you minimize returns and ensure a robust audio/video connection from the jack plug.
Testing, Troubleshooting, and Maintenance
After soldering, verify continuity with a multimeter and test the entire signal path with an audio/video source to confirm that both channels or both sides of the signal carry clean, balanced audio. If you hear crackling, reheat the joint and reflow the solder; check for cold joints or bridged lugs. For RF interference, re-check the shielding and ensure the cable jacket is fully intact. In humid environments, corrosion can occur; re-inspect the joints periodically and re-apply flux or re-solder as needed. Regularly inspect strain relief, especially in portable cables, because movement tears the copper over time. Clean the jack’s contacts with isopropyl alcohol and avoid touching the freshly soldered joints to prevent contamination.
Additional Resources and Safety Considerations
For beginners, consult dedicated soldering guides and the project’s datasheets to confirm the exact connector type. Always wear eye protection and work in a well-ventilated area; use a fume extractor if available. Take care with lead-free solders that require slightly higher temperatures and longer heating times. Keep a spare pair of pliers and cutters for trimming wires and a stand for the hot iron. If you need visual guidance, the SolderInfo Team recommends watching live demonstrations from reputable electronics education channels and reading manufacturer notes to avoid misusing connectors or overheated housings. By following these guidelines, you’ll gain confidence and achieve reliable jack plug solder audio video connections.
Tools & Materials
- Fine-tip soldering iron(Temperature control preferred; 350-380°C range for most solders.)
- Rosin-core solder (lead or lead-free)(0.6-1.0 mm diameter; for small signal wires use 0.8 mm.)
- Flux pen or flux paste(Helps wettability; optional if using rosin-core solder.)
- Desoldering wick (solder braid)(Backup for correcting mistakes.)
- Heat shrink tubing(For strain relief around the jack base.)
- Isopropyl alcohol (rubbing alcohol)(Cleans jack contacts and cable jacket.)
- Wire stripper/c2(Strip 6-8 mm of insulation from each conductor.)
- Third-hand tool or helping hands(Stabilizes parts during soldering.)
- Multimeter(Continuity and resistance checks after assembly.)
- Jack plugs (3.5 mm TRS, 1/4 inch TS/TRS)(Have spare sizes available for testing.)
- Cable(s) with jacket(Use scraps to practice on before final work.)
Steps
Estimated time: 20-40 minutes
- 1
Identify and prepare
Inspect the jack type and cable. Cut to length, think about wire order (ground first, then signal). Secure the workpiece so you can access all lugs without slipping.
Tip: Double-check the jack type before cutting to avoid mismatches. - 2
Strip insulation
Carefully strip about 6-8 mm of insulation from each conductor without nicking the copper. Twist strands to avoid fraying and ensure a neat seating in the lug.
Tip: Use a sharp stripper and test strip length with the lug before tinning. - 3
Tin the wires
Apply a small amount of solder to each stripped wire to form a shiny, even coating. This makes the final joint easier to form and reduces heat exposure time.
Tip: Keep the tip clean with a damp sponge for better tinning. - 4
Tin the jack lugs
Lightly tin the lug contacts on the jack so the wires have a ready-made solder surface to bond to. Avoid applying excess solder that could bridge adjacent lugs.
Tip: Only a tiny amount of solder on the lug is needed. - 5
Attach and solder
Place each tinned wire on its proper lug (ground first, then signal), apply heat with the iron until the solder flows and envelops the joint. Do not pry or twist while heating.
Tip: Hold the wire in place with tweezers or helping hands to prevent movement during soldering. - 6
Inspect and test
Inspect each joint with a magnifier for a clean fillet and no bridging. Test continuity with a multimeter and verify signal integrity with a headphone/line input.
Tip: Look for a bright, smooth fillet; dull or cracked joints indicate cold joints.
Quick Answers
What is the best flux for jack plug soldering?
Rosin flux, or relying on rosin-core solder, provides good wetting for small connectors. If you use extra flux, apply sparingly to avoid residue buildup.
Rosin flux, or rosin-core solder, is usually best for jack plugs; use sparingly if you add extra flux.
Can I use lead-free solder for audio/video jacks?
Yes. Lead-free solder is common in hobby projects; it may require slightly higher temperature and longer heating, so adjust your iron accordingly and ensure proper ventilation.
Yes, lead-free solder works; just heat a bit longer and monitor temperature carefully.
How do I avoid cold joints on small lugs?
Maintain steady heat and contact while solder flows; tin wires first and avoid movement during the joint cooling.
Keep heat steady and the joint still until the solder sets.
What jack sizes should I practice on first?
Begin with common 3.5mm TRS and 1/4 inch adapters on scrap cable to build confidence before working on your project.
Start with common sizes like 3.5mm and 1/4 inch adapters on scrap cable.
Is heat shrink necessary after soldering?
Not strictly, but it provides critical strain relief and insulation to protect the joint from flexing and moisture.
Heat shrink isn’t required, but it’s strongly recommended for strain relief.
How do I test continuity after soldering?
Use a multimeter in continuity mode to verify each conductor path from the jack to the cable end. Listen for a beep or check for near-zero resistance.
Use a multimeter to confirm there’s a continuous path with almost zero resistance.
Watch Video
Top Takeaways
- Know your jack type (3.5mm, 6.35mm) and wire layout before soldering.
- Prepare tools and workspace for precise, safe work.
- Tin wires and lugs, then solder with controlled heat for reliable joints.
- Use strain relief to protect joints from movement.
- Test continuity and signal quality to confirm a solid connection.
