RCA Male Solder Connector: A Practical Guide for DIY Electronics
Comprehensive guide to RCA male solder connectors, how they work, best soldering practices, and common pitfalls for DIY electronics and audio video projects.

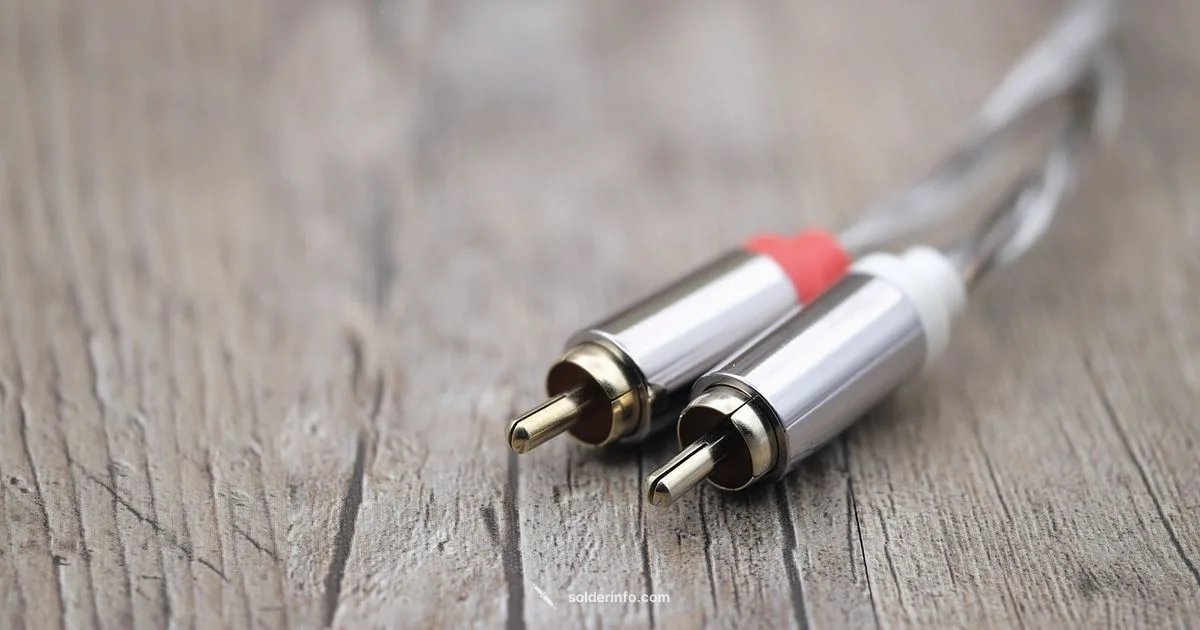

RCA male solder connector is a type of RCA connector designed for soldering to wires or printed circuit boards, providing a male contact that mates with a female RCA jack.
What is a RCA Male Solder Connector?
The term RCA male solder connector refers to a variant of the RCA family that is designed to be terminated with solder to wires or printed circuit boards. Unlike the standard inline RCA plug, this connector presents a male center pin and a grounded outer shell that mate with the matching female jack. In practice, these parts are used in DIY electronics, audio, and video projects where a soldered termination is preferred for reliability, compactness, or low-profile mounting. The connector may appear as a small through-hole part with radial leads or as a surface-mount style. When selecting a RCA male solder connector, consider the impedance of the system, the housing material, and whether you need a panel-mount or wire-lead variant. For hobbyists, the solder-on version is often favored for quick prototyping because it avoids crimping steps and provides a robust, low-resistance junction that remains secure under mechanical stress.
How a RCA Soldered Connection Works
RCA connectors rely on a coaxial arrangement: a central conductor carrying the signal, surrounded by a shield that returns as ground. In a soldered male variant, the center pin is electrically connected to the signal lead, while the outer shell attaches to shield or ground. Soldering ensures both low resistance and good shielding continuity. The physical fit matters for impedance; poor tinning or cold joints can degrade signal integrity, especially at higher frequencies. When soldered correctly, the joint is smooth, shiny, and free of gaps; the shield is bonded along the entire length to minimize radiated interference and cross-talk.
Core Design Considerations for RCA Male Solder Connectors
When selecting an RCA male solder connector, consider a few core design factors. First, impedance compatibility: video paths typically use 75 ohms, while audio paths may tolerate 50-75 ohms depending on the cable and system. Second, housing and shell design influence shielding effectiveness and durability under mechanical stress. Third, the center conductor and shield must be properly aligned to prevent shorting or misalignment during mating. Fourth, mounting style matters: through-hole variants with radial leads offer easy breadboarding, while surface-mount or panel-mount versions suit compact devices and enclosures. Finally, plating and materials impact corrosion resistance and conductivity; common choices include brass bodies with nickel or gold plating for higher-end applications.
Materials, Plating, and Durability
RCA male solder connectors are typically built from a brass or phosphor bronze body with a copper center conductor. Plating choices vary by application and cost: nickel is common for durability, while gold flash is preferred for high-end audio paths where long-term corrosion resistance matters. The center pin and shield should provide solid solderability and low contact resistance. Housing materials range from durable molded plastics to metal shells that enhance shielding. For reliable solder joints, use flux-friendly rosin-core solder and consider lead-free solder for compliance with safety standards. Wire gauge compatibility is important; most hobbyist projects use 22 to 24 AWG wire, while smaller signals may employ fine stranded wire.
Soldering Techniques for a Reliable Connection
Prepare the work area and gather the right tools: a clean soldering iron, rosin-core solder, flux, wire strippers, and a multimeter for quick checks. Start by tinning the wire ends and the connector’s contact surfaces. Apply a small amount of flux to the surface to improve wetting. For center pin terminations, heat the pin and apply solder to the pin-to-wire junction, not directly to the soldering iron tip. Then solder the outer shield or ground path, ensuring a continuous metal bond along the contact area. Use a heat sink orThird hand to protect insulation and avoid melting surrounding plastic. Inspect the joint: it should be shiny, smooth, and free of solder bridges or cold joints. Clean flux residues with isopropyl alcohol after cooling.
Common Issues and Troubleshooting
Common problems include cold joints, dull or cracked solder, and incomplete shielding contact. A cold joint occurs when heat is insufficient, leaving a grainy or dull finish; reheat with fresh flux and adequate heat. Shield connections can develop intermittent contact if the shell is not fully seated or if oxidation is present; ensure a clean, tight mating surface and reflow as needed. Impedance mismatch can manifest as subtle signal loss or distortion, especially in video paths; verify a proper 75 ohm path with consistent shielding. If wires flex during use, add strain relief or a short pigtail to absorb movement and prevent joint fatigue.
Alternatives and Use Cases
Soldering is favored for durability and low resistance paths in fixed installations and prototypes. Alternatives include crimp RCA connectors, which speed assembly but may sacrifice long-term reliability in vibration-prone environments. For panel-mounted equipment, solder-on variants offer a compact solution with good shielding. In high-frequency or RF links, ensure the connector geometry preserves impedance and shielding continuity; if not, consider dedicated coaxial connectors or modular connectors designed for the frequency range.
Safety and Best Practices
Always work in a well-ventilated area and wear eye protection. Use lead-free solder when possible and follow local safety regulations for handling flux and fumes. Keep heat exposure to any plastic parts to a minimum to prevent deformation. Use flux and rosin sparingly to avoid residue buildup. Label and store finished assemblies properly to prevent accidental contact with live circuits. When testing, power systems gradually and verify continuity before full operation.
Quick Answers
What is an RCA male solder connector and how does it differ from other RCA connectors?
An RCA male solder connector is a solder termination variant of the RCA family, designed to be soldered to wires or PCBs and to mate with a female RCA jack. Unlike standard plug-in RCA connectors, it provides a built-in solderable interface for reliable, compact terminations.
An RCA male solder connector is a solder on version of the RCA family that lets you attach wires or boards, then plug into a female RCA jack.
Can RCA male connectors be mounted directly on a PCB?
Yes. Many RCA male solder connectors are designed for through-hole or surface-mount PCB mounting, allowing a solid mechanical and electrical connection for signal transmission. Check the footprint and datasheet to ensure compatibility with your board.
Yes, some RCA male solder connectors are made for PCB mounting, either through-hole or surface-mount, depending on the model.
What tools do I need to solder an RCA male connector?
You will typically need a soldering iron, solder (preferably rosin-core and lead-free for safety), flux, wire strippers, and a multimeter for testing. A helping hand or magnification can improve accuracy on small terminals.
A soldering iron, rosin-core lead-free solder, flux, wire strippers, and a multimeter are the basics you’ll need.
What impedance should RCA connectors support?
RCA connectors used for video commonly expect about 75 ohms of impedance, while audio paths may vary. Always match the connector and cable to the system’s impedance to preserve signal integrity.
Video applications typically use 75 ohms, while audio paths vary; match the connector to your system’s impedance.
How can I test a soldered RCA connection?
Verify continuity between the center pin and the signal line, and ensure the shield is properly connected to ground. Inspect joints for cold or cracked solder and confirm there are no bridges. If available, test with a signal source and scope.
Check continuity from center to signal and ground to shield, and inspect joints for proper wetting.
Are there safety concerns when soldering RCA connectors?
Yes. Work in a ventilated area, use eye protection, and handle hot tools carefully. Consider lead-free solder and proper disposal of flux residues to minimize health risks.
Yes, be safe: ventilate, protect your eyes, use lead-free solder where possible, and clean residues.
Top Takeaways
- Master RCA male solder connectors by matching impedance with your cable system
- Use flux and proper soldering technique to avoid cold joints
- Choose correct mounting style for durability and ease of assembly
- Consider safety and lead-free practices during soldering
- Test continuity and shielding to verify a reliable connection
