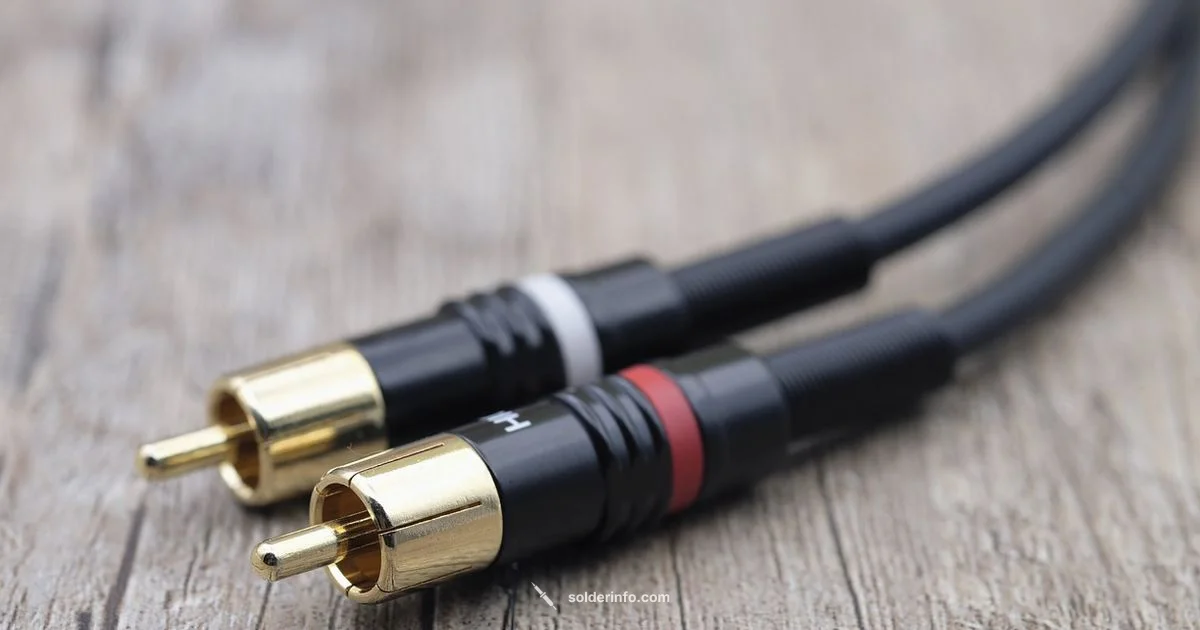

RCA Soldering Guide - SolderInfo
Photo by Bru-nOvia Pixabay
Quick AnswerSteps

By following this guide, you will learn to solder on RCA connectors, including how to prep the cable, choose flux and solder, tin the conductors, and form clean, reliable terminations. You’ll reduce signal loss and noise by using proper heat control and strain relief, while verifying connections with basic testing and long-term reliability.

Why Soldering RCA Connectors Matters

RCA connectors remain common in consumer audio/video gear and older computer equipment. A solid solder on RCA connectors ensures reliable signal transfer, smooth audio, and minimal noise. Poor joints can cause hum, crackling, or intermittent dropouts. According to SolderInfo, mastering the technique reduces mechanical stress, improves shielding continuity, and preserves impedance in short runs. For DIY enthusiasts, a good termination is as important as cable choice. When you solder RCA connections with care, you minimize resoldering, avoid corrosion, and extend the life of your gear. In practical terms, clean, well-wetted joints reduce micro-arcs and RF leakage, especially at higher frequencies. This guide focuses on accessible, repeatable methods that work for electronics, hobbyist audio projects, and entry-level repair tasks.

Materials and Methods: Flux, Solder, and Wire Choices

Selecting the right materials makes a big difference in the durability and audio quality of your RCA terminations. Use a fine rosin-core solder designed for electronics, typically around 0.8 mm diameter for coax work. Flux should be rosin-based or a no-clean formulation to minimize cleanup while improving solder wetting. For shielding and ground paths, maintain a clean shield and center conductor with minimal oxidation. Solder on RCA connectors benefits from a small, consistent amount of flux to promote smooth wetting without excessive buildup. The goal is a clean, mechanically stable joint that conducts without adding unwanted resistance or noise. The combination of proper flux, appropriate solder alloy, and careful technique yields repeatable results across both electronics and home audio projects. In many scenarios, you’ll achieve better results by tinning the conductors lightly before final assembly.

Preparation: Cleaning, Stripping, and Tinning the Cable

Begin with a clean workspace and properly prepared cable. Remove just enough jacket to reach the shield and center conductor without nicking either. Next, tin both the shield braid and the center wire with a thin layer of solder to prevent fraying and to improve wetting when you attach to the RCA connector pads. Use a sharp knife or dedicated stripping tool to avoid damaging conductors. Wipe away any contaminants with isopropyl alcohol and a lint-free cloth before tinning. Keep the conductor lengths controlled to ensure a snug fit inside the connector without pushing in too far. When you tin, apply heat briefly and evenly to avoid overheating insulation, especially on thin-walled coax.

Heat Control and Joint Quality: Getting a Solid, Low-Noise Connection

Heat control is critical for RCA terminations. Use a temperature-controlled iron if possible, with a fine tip for precision. Apply heat to the joint for just long enough to wet the solder; avoid prolonged contact that could melt insulation or deform the connector housing. Start with the center conductor joint, then bond the shield around the connector ground. Maintain a steady, controlled motion and avoid tugging while soldering to prevent stress on the joint. After soldering, gently inspect each joint for a smooth fillet, no cold spots, and proper shielding continuity. If you notice dullness or gaps, reheat briefly and add a small amount of solder. Rode-through testing with a multimeter helps confirm continuity and isolation between conductors.

Common Pitfalls and Troubleshooting

Cold joints, solder bridges, or stressed cables are common issues when soldering RCA connectors. A cold joint appears dull and may crack under flex; it requires re-wetting and re-soldering. Bridges happen when excess solder connects center and shield, causing a short; fix by reheating and lifting the excess with a desoldering braid or wick. Overheating can melt insulation or deform the connector, so keep sessions short and use adequate ventilation. Shield continuity problems may introduce hum or RF noise; verify with a continuity tester and rework if needed. Finally, ensure proper strain relief so that bending does not stress the joints.

Finishing Touches and Testing

After soldering, inspect all joints for clean wetting and mechanical robustness. Trim any excess wire to prevent accidental shorts. Reassemble the RCA housings and perform a functional test with an audio/video source. Listen for clean signal without crackling, hiss, or intermittent dropouts. If you hear noise, recheck grounding and shielding; sometimes reseating the connector or adding a touch more solder to the joint improves performance. A final physical check for smooth, strain-relieved cables helps ensure lasting reliability.

Tools & Materials

  • Soldering iron (40-60W) with clean, fine tip(Chisel or pointed tip preferred for small joints)
  • Rosin-core solder (0.8 mm typical)(Electronic-grade solder; lead-based or lead-free as per safety policy)
  • Flux (rosin-based or no-clean)(Brush-on or pen flux; helps wetting and joint reliability)
  • Precision wire strippers(Small-diameter stripping for coax outer jacket)
  • Cable cutters or snips(Clean cuts to avoid frayed jacket)
  • Isopropyl alcohol (70%+) and lint-free wipes(For cleaning insulation and conductor surfaces before tinning)
  • Heat shrink tubing (optional)(For added strain relief and insulation after termination)
  • Multimeter or continuity tester (optional)(Useful to verify ground and signal continuity after soldering)

Steps

Estimated time: 30-60 minutes

  1. 1

    Power down and prep workspace

    Turn off all equipment and unplug devices. Clear the bench, lay a non-conductive mat, and ensure good ventilation. Gather your tools within easy reach and remove any distractions that could cause mistakes.

    Tip: Keep a damp sponge handy to clean the iron tip between steps.
  2. 2

    Measure, cut, and strip coax

    Cut the cable to length, then strip the outer jacket, exposing the shield and center conductor. Be careful not to nick either conductor. Twist the shield strands neatly and set the center conductor aside for tinning.

    Tip: Use a sharp knife or precision stripper to avoid damaging conductors.
  3. 3

    Tin center and shield

    Apply a light layer of solder to the center conductor and the shield braid. Tinning prevents fraying and improves wetting when you attach to the connector pads.

    Tip: Keep the heat moving; don’t dwell on one spot to avoid insulation damage.
  4. 4

    Apply flux and position connector

    Apply a thin amount of flux to the RCA connector pads. Position the prepared coax so the center conductor aligns with the center pad and the shield lands on the ground pad or shell.

    Tip: Flux reduces surface tension and helps create a solid bond with minimal solder.
  5. 5

    Solder the center conductor first

    Touch the tip of the iron to the joint and apply a small amount of solder to wet the center conductor pad. Remove the heat once the solder flows smoothly, forming a clean fillet.

    Tip: Keep joints compact and avoid creating cold joints by reworking quickly if needed.
  6. 6

    Solder the shield/ground

    Solder the shield braid to the ground path or connector shell. Ensure a solid, continuous shield without bridges to the center conductor.

    Tip: If needed, apply a second, small amount of solder to secure the shield without shorting the center.
  7. 7

    Inspect and trim

    Check each joint for a smooth, bright fillet with no gaps. Trim excess conductor carefully and confirm there are no stray strands that could cause shorts.

    Tip: Look for a consistent angle and symmetric fillet on both joints.
  8. 8

    Reassemble and test

    Reassemble any housings and connectors. Test the assembly with an audio/video source to confirm clean signal and reliable grounding.

    Tip: Use a basic multimeter to verify continuity and isolation before full-scale use.
Pro Tip: Work in a well-lit area and keep the iron tip clean for reliable wetting.
Warning: Never overheat shielded cable; excessive heat can degrade insulation and reduce shielding effectiveness.
Pro Tip: Tin both conductors lightly before final assembly to improve joint integrity.
Note: No-clean flux can simplify cleanup, but ensure it's compatible with your solder.

Quick Answers

What tools do I need to solder RCA connectors?

A basic soldering setup includes an adjustable iron, rosin-core solder, flux, wire strippers, cable cutters, and cleaning alcohol. Optional items like heat shrink and a multimeter help with reliability and testing.

You’ll need a soldering iron, rosin-core solder, flux, wire strippers, cutters, and cleaning supplies. Optional tools can improve reliability and testing.

Can I solder RCA connectors to shielded coax safely?

Yes. Work carefully to maintain shield continuity and avoid shorts to the center conductor. Tin both the shield and center, apply flux, and keep heat brief.

Yes. Be gentle with the shield and keep the center conductor isolated while you solder.

What solder type should I use for RCA terminations?

Use electronics-grade rosin-core solder. Both lead-based and lead-free options are common; follow safety guidelines and local regulations when choosing alloy.

Use rosin-core solder appropriate for electronics; select lead-based or lead-free based on safety and regulation.

How can I test my RCA connection after soldering?

Check continuity between center conductor and its pad, and between shield and connector ground. Listen for hum-free audio/video and verify no shorts between channels.

Test with a multimeter for continuity and listen for clean signal in an actual setup.

Why might my RCA connection be noisy after soldering?

Noises often come from poor shielding contact, cold joints, or insulation damage. Re-inspect joints, reflow as needed, and ensure solid ground connections.

Noise usually means shielding or joint problems; recheck and reflow those joints.

Is it better to replace RCA connectors instead of re-terminating?

If the connector body is damaged or the cable is corroded, replacement may be more reliable. For standard wear, re-terminating with careful technique is practical.

If the connector or cable is damaged, replacement can be wiser; otherwise, re-terminating with care works.

Watch Video

Top Takeaways

  • Plan before soldering: choose materials and joints carefully
  • Tin conductors to prevent fraying and improve wetting
  • Maintain heat control to avoid insulation damage
  • Test continuity and shielding after termination
Process diagram showing RCA connector soldering steps
RCA connector soldering process
