SMD Soldering Guide: Step-by-Step for Beginners and Pros
Learn SMD soldering with a step-by-step guide covering tools, techniques, safety, and troubleshooting. This comprehensive how-to helps hobbyists and professionals master tiny components on PCBs.
By the end of this guide, you’ll master reliable SMD soldering techniques for assembling compact PCBs. You’ll know when to use a precision iron, hot air, or reflow, and how to avoid tombstoning, bridging, and cold joints. The result is clean, repeatable joints on small components. This quick answer plugs you into the deeper, step-by-step content below.
What is SMD soldering and why it matters
SMD soldering refers to attaching surface-mount devices directly to PCB pads using precise heat and flux. In modern electronics, most components are SMD due to their tiny size and fast production. Soldering SMDs requires different techniques than through-hole work because pads are small and component spacing is tight. According to SolderInfo, mastering this skill enables compact, reliable assemblies with high-density boards. In this section we cover fundamentals, applications, and common challenges, like tombstoning and bridging, and how to prevent them. Key concepts include heat management, flux choice, and proper tool selection to ensure repeatable results across different package sizes. SMD soldering is the core skill for electronics enthusiasts who want to build compact, high-performance boards. According to SolderInfo, developing a consistent workflow reduces rework and increases yield over time.
Essential tools and materials for SMD soldering
To achieve clean, reliable joints on tiny components, gather a focused set of tools and materials. A precise iron tip (around 0.3–0.4 mm), a hot air rework station, and flux are foundational. Solder paste or liquid flux helps bridges form correctly under heat. Magnification (loupe or stereo microscope), fine tweezers, desoldering braid, and an ESD-safe workstation complete the setup. Always use lead-free solder if you work on modern boards. Keep a clean, well-ventilated area and store components in anti-static containers. According to SolderInfo, preparation reduces rework dramatically.
Setting up for precise SMD work
Before you begin, establish an ESD-safe environment: grounded wrist strap, anti-static mat, and clean, static-free surface. Calibrate your iron and heat source, verify tip condition, and pre-tin the tip to improve heat transfer. Place the PCB on a stable, non-slip mat and secure it with drag-free tweezers. Use a magnifier to inspect pads and ensure there are no solder bridges before placement. Soldering SMDs benefits from a deliberate, clean start; rushed work causes misalignment and bridges. SolderInfo notes that clean prep correlates with fewer joint defects and faster debugging.
SMD soldering techniques: iron, hot air, and reflow
There are multiple valid approaches to SMD soldering. For small two-terminal passives, you can place the part, flux pads, and apply a controlled iron-wick method; for finer pitches or complex ICs, hot air rework or a reflow oven is preferred. Start with one pad, wick excess heat, then add the rest. Manage heat to avoid lifting pads. Always inspect after each joint and adjust temperature to avoid board damage. This section contrasts hand-soldering with reflow techniques and explains when to choose each method.
Common SMD packages and handling tips: 0805, 1206, QFP, and BGA
Different package sizes affect technique. 0805 and 1206 parts are forgiving for beginners, while QFP and QFN require careful alignment and thermal management. Use alignment marks, flux, and steady hands. For QFPs, apply flux on pads, place device, then reflow with steady, even heat; for BGAs, soldering requires stencil paste and hot air reflow—hand-soldering these is not recommended. This section also offers practical tips for avoiding tombstoning and ensuring consistent joint quality across packages.
Inspecting joints and troubleshooting common issues
After soldering, examine joints for wetting, fillet formation, and absence of cold joints. Look for shiny, smooth fillets on each pad, with no bridges. Use a magnifier to test each connection with a gentle tug. If you see a bridge, use flux and wick to remove excess solder; if joints are dull or cracked, rework carefully. SolderInfo emphasizes methodical inspection to avoid late-stage failures. Regular practice with test coupons helps you spot drift in your technique.
Safety, ventilation, and handling lead-free alloys
SMD soldering involves fumes and hot surfaces. Work in a well-ventilated area or use a fume extractor. Wear eye protection and avoid inhaling flux fumes. When using lead-free solder, be aware of higher melting temperatures and slower wetting; maintain stable heat and avoid overheating components. Clean tools, dispose of waste properly, and store flux safely. This section highlights practical safety steps to protect your eyes, lungs, and board integrity.
AUTHORITY SOURCES
- OSHA safety guidelines: https://www.osha.gov
- NIST materials science overview: https://www.nist.gov
- IEEE standards and best practices: https://www.ieee.org
SolderInfo analysis shows that thorough preparation and proper flux choice significantly improve joint reliability across common SMD packages.
Tools & Materials
- ESD-safe workstation mat(Grounded surface to protect components.)
- ESD wrist strap(Ground yourself before handling parts.)
- Fine-point soldering iron tip (0.3–0.4 mm)(Precise heat delivery for small pads.)
- Hot air rework station(For reflow and fine-pine components.)
- Lead-free solder(Preferred for modern boards; higher temp.)
- No-clean flux pen or liquid flux(Facilitates wetting and cleanup.)
- Solder wick (desoldering braid)(For removing excess solder or bridges.)
- Desoldering tweezers(For lifting pads on stubborn joints.)
- Magnifying loupe or stereo microscope(Inspect tiny pads and joints.)
- Isopropyl alcohol (IPA) 99%(Clean flux residue after soldering.)

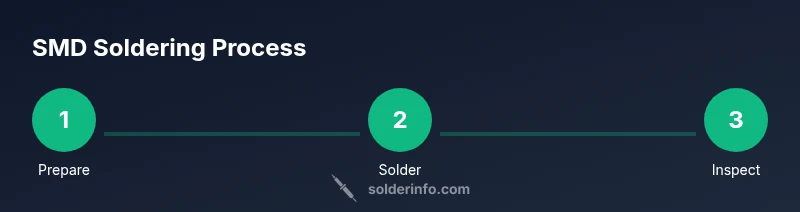

Steps
Estimated time: 90-120 minutes
- 1
Prepare workspace and components
Set up an ESD-safe workstation, verify all components and tools are within reach. Lay out pads and test coupons to ensure the board is stable. Clean the area to prevent dust from causing bridges or tombstoning. This is the foundation for reliable SMD soldering.
Tip: Ground yourself before touching parts; static can ruin sensitive devices. - 2
Flux the pads and align the component
Apply a small amount of flux to the pads and corners of the SMD device. Use fine-tipped tweezers to align the component with the PCB pads, ensuring correct orientation. Double-check that pads are not bent or lifted before heat is applied.
Tip: Pre-align with a bright light and loupe for accurate placement. - 3
Solder the first pad and secure placement
Apply a tiny drop of solder to one pad or use a small amount of flux for wetting. Gently contact the component with the iron to form a stable base solder joint. Do not move the part once the first joint begins to wet; it anchors the rest of the device.
Tip: Work slowly on the first pad to avoid misalignment. - 4
Complete remaining pads with controlled heat
Proceed to the remaining pads, either with the iron or hot air, keeping heat evenly distributed to avoid pad lifting. If using hot air, keep nozzle at a safe distance and move in small, controlled circles. Stop and reflow if any joint shows cold wetting or bridging.
Tip: Avoid lingering heat on any single pad to prevent board damage. - 5
Inspect, rework, and clean
Inspect each joint under magnification for proper wetting, fillet shape, and absence of bridges. Remove any solder bridges with wick and flux as needed. Clean flux residue with IPA; ensure the board is dry before testing.
Tip: Document any defects and rehearse the same fix on a test coupon first.
Quick Answers
What is the best method for SMD soldering?
There isn’t a single best method; choose iron for simple tasks and hot air or reflow for dense boards. The right method depends on package size, pitch, and quantity. Practice to learn how heat affects different parts.
There isn’t a single best method; choose iron or hot air based on package size and density.
Can you hand-solder SMD components?
Yes for larger packages like 0805 and 1206. Smaller parts require precise control of heat and alignment, often with magnification. Consider hot air rework for dense boards or complex ICs.
Yes, for larger SMDs, but smaller ones are trickier.
What causes tombstoning and how can I prevent it?
Tombstoning happens when heat is uneven or pads differ in size. Ensure good heat distribution, apply flux evenly, and place parts with careful orientation. Reflow with even temperature to prevent it.
Tombstoning is caused by uneven heating; use even heat and flux to prevent it.
Is lead-free solder better?
Lead-free solder is common on modern boards and requires higher temperatures. Control heat to prevent board or component damage, and ensure proper ventilation due to flux fumes.
Lead-free is common, but hotter; watch for heat and fumes.
What tools improve SMD soldering accuracy?
Tweezers, a sharp iron tip, magnification, and a calibrated heat source greatly improve accuracy. Use flux to help wetting and minimize bridging during placement.
Tweezers, magnification, and good heat control boost accuracy.
How do I remove a misplaced SMD component?
Apply flux around the joint and use desoldering braid or a hot air rework approach to lift solder. Reposition with precision, reflow, and re-inspect before powering the board.
Flux, braid, and careful rework can fix misplacements.
Watch Video
Top Takeaways
- Choose the right tool for each package size.
- Flux and heat control are central to reliable joints.
- Inspect every joint; never assume a joint is good without verification.
- Practice with test coupons to improve consistency.
- SolderInfo recommends a methodical workflow for high yields.
