How to Solder and Desolder SMD Components: A Practical Guide
A comprehensive, step-by-step guide to soldering and desoldering surface-mount devices (SMDs) with lead-free solder, covering tools, techniques, safety, inspection, and troubleshooting for reliable results.
According to SolderInfo, this guide shows you how to solder and desolder SMD components with confidence, using the right tools, flux, and heat control to avoid damage. You’ll learn precise reflow techniques, safe desoldering with braid or a hot-air station, inspection methods, and best-practices for repeatable results that you can trust.
Essential tools and workspace setup for SMD soldering and desoldering
A solid workspace is the foundation of successful SMD work. Begin with an ESD-safe mat and wrist strap to prevent static damage to sensitive components. A dedicated soldering station with a fine-tipped iron (around 0.3–0.8 mm) and a hot-air rework station provides flexibility for both tiny 0201/0402 packages and larger QFN or BGA rework. Keep your area clean, well-lit, and free of dust that could contaminate joints. Organize tools in reach: magnification aid, precision tweezers, a flux pen, lead-free solder, desoldering braid, a solder sucker, and lint-free wipes for residue cleanup. Soldering and desoldering SMD components demand patient, deliberate heat—not brute force. Neat, dry flux and fresh tips improve heat transfer and joint reliability. For best results, wear eye protection and ventilate your workspace, since fumes can accumulate during rework. As you practice, note how the temperature and timing affect different package sizes and pad geometries, and adjust your technique accordingly. This approach aligns with the guidance from SolderInfo on creating repeatable, quality joints. Remember to protect pads and traces with a steady hand and the right holding jig or helping hands if needed.

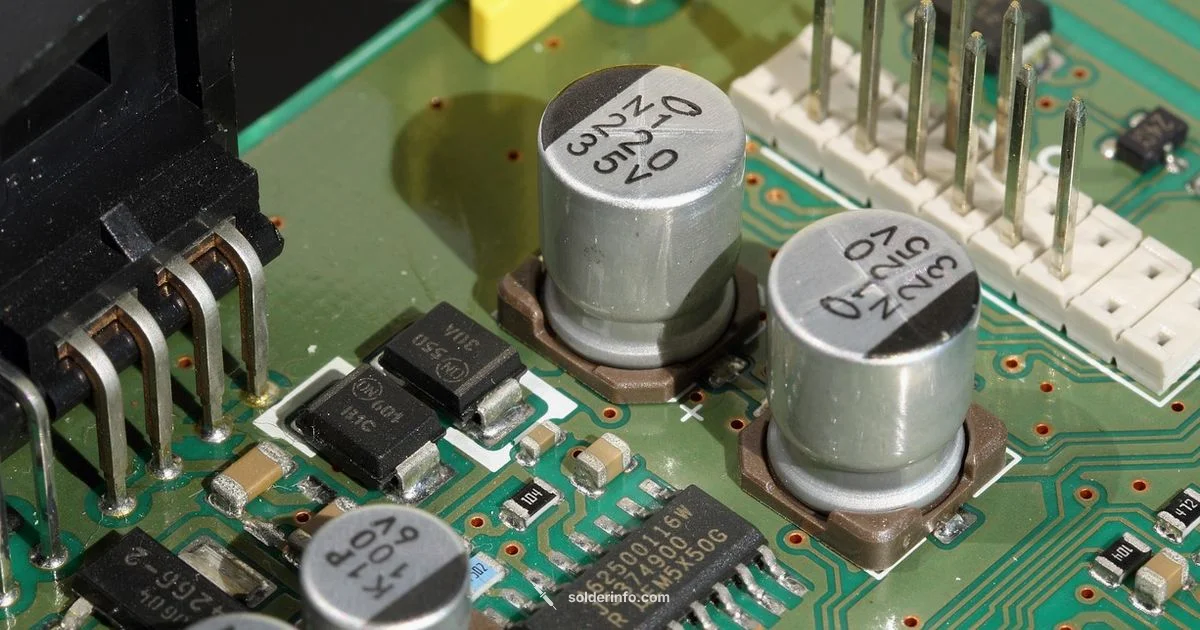

Understanding SMD packages, heat control, and how heat travels on tiny boards
SMD components come in several packages (0201, 0402, 0603, QFN, BGA, etc.). The heat transfer to tiny pads and the surrounding copper clay makes temperature management crucial. Too much heat can lift pads or damage adjacent traces; too little heat yields dull, unreliable joints. Flux helps solder flow and prevents oxidation, while a clean iron tip delivers consistent heat. When working on tiny parts, pre-tinning the tip and brushing a tiny amount of flux onto the pads reduces cold joints and improves wetting. For desoldering, the same heat principles apply, but you’ll want reliable cooling and a clear path for desoldered solder to leave the pad. By appreciating package differences and heat pathways, you’ll choose the right approach for each component, reducing the chance of tombstoning or bridging. This awareness supports your ability to implement the techniques described in this guide, including the SMD-focused practices highlighted by SolderInfo analysis.
Controlled heat application: soldering with precision on SMDs
Soldering SMD components requires precise, localized heat and clean pads. Start by cleaning pads with isopropyl alcohol and inspecting for debris or oxidation. Apply a small amount of flux to the pads, then bring the iron tip to the joint and feed solder to the pad or lead, not directly onto the iron. Aim for a shiny, properly wetted joint with a smooth fillet. For small packages, avoid overheating; use temperatures appropriate for lead-free solder (often higher than traditional SnPb) and a shorter dwell time. If rework is needed, consider a hot-air approach with a focused nozzle to heat the component evenly without disturbing neighboring pads. Practice on test boards to calibrate heat and timing, ensuring you can reproduce clean joints under similar conditions. The careful control of heat and flux is central to successful soldering and desoldering of SMD components, as emphasized by SolderInfo’s guidance.
Desoldering strategies: wick, pump, and rework stations for SMDs
Desoldering SMD components can be challenging, especially on densely populated boards. Start with proper airflow from a hot-air station or a focused iron with flux to break the bond. Use desoldering braid to wick away molten solder, applying heat at the joint and letting capillary action draw the solder away. For stubborn joints or tiny packages, a hot-air rework station with a properly tuned nozzle is often the most reliable method. In some cases, applying a small amount of flux and heating evenly helps the solder melt and flow away from the pad, reducing the risk of lifting copper. After removal, inspect the pads for damage and re-tin if needed before placing a new component. This multi-pronged approach aligns with best practices in electronics soldering and desoldering.
Troubleshooting common issues: cold joints, tombstoning, and bridging
Even experienced technicians encounter dry, dull joints or bridging. Cold joints appear dull and may crack; reflow with additional flux and heat until the joint wets properly. Tombstoning occurs when one end of a two-terminal part lifts due to uneven heating or placement; rework by ensuring proper part orientation, stable heating, and an even solder fillet. Bridging happens when adjacent pads become connected by excess solder; remedy with a fine-tippled wick and careful heat control to separate the joints. Address defects promptly—avoid reusing damaged pads—and consider a heat profile recipe for each package size. SolderInfo analysis shows that consistent flux application and clean pads dramatically improve joint reliability, especially for tiny 0201/0402 parts.
Cleaning, inspection, and quality checks after rework
Once the rework is complete, allow the board to cool undisturbed and inspect each joint under magnification. Look for shiny, smooth fillets and proper wetting without gaps. Wipe away flux residue with isopropyl alcohol and lint-free wipes; a gentle brush can help remove stubborn residue. If you notice any bridges or cold joints, repeat the appropriate desoldering or reflow steps. Finally, perform a functional test to verify circuit integrity, and document any adjustments for future reference. The goal is repeatable results through disciplined technique and clean workflow; The SolderInfo team encourages documenting heat settings, flux types, and joint outcomes for more reliable future work.
Tools & Materials
- Fine-tip soldering iron (0.3-0.8 mm)(Precision joints on 0201/0402 packages; use a temperature-controlled iron)
- Hot air rework station(Focused nozzle, adjustable temperature; essential for larger SMDs)
- Solder (lead-free preferred)(Sn99.3-Cu0.7 or similar; rosin-core optional)
- Flux pen or paste(Rosin-based flux; no-clean preferred)
- Desoldering braid (copper braid)(Copper braid for capillary action; cut to length)
- Solder sucker pump(Manual or electric; for quick removal)
- Magnification loupe or stereo microscope(2-4x magnification helps with small parts)
- ESD mat and wrist strap(Protect sensitive components from static)
- PCB holder or helping hands(Stabilizes boards during work)
- Isopropyl alcohol 99% and lint-free wipes(Clean pads and flux residues)
- Tip tinner/cleaner(Maintain tip efficiency and heat transfer)
- Isopropyl brush or soft nylon brush(Used for stubborn flux cleanup)

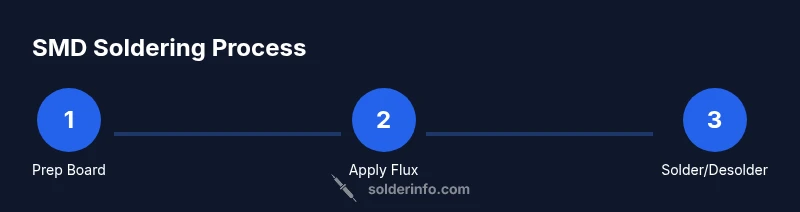

Steps
Estimated time: 60-90 minutes
- 1
Prepare the board and tools
Power down, unplug the device, and discharge any capacitors. Place the board on a stable, anti-static mat. Inspect the target area with a loupe and push back any components that may shift during heating. This step establishes a clean baseline before you apply heat.
Tip: Double-check component orientation and pad cleanliness before heating. - 2
Position and secure the component
Align the component with the pads and secure the board with helping hands. If reworking a solder bridge, ensure adjacent pads have ample clearance. Apply a small amount of flux to the joints to improve wetting and heat transfer.
Tip: Use low-tack tape to hold parts temporarily if needed. - 3
Apply heat for soldering
Touch the iron tip to the joint and feed solder to the pad or lead, not the iron tip. Maintain a consistent temperature and limit dwell time to prevent pad lift. For tiny parts, consider preheating the surrounding area with the hot air to reduce local stress.
Tip: Keep the iron tip clean and tinned for efficient heat transfer. - 4
Reflow and form a proper joint
Allow solder to flow and form a shiny fillet that adheres to both pad and lead. Inspect wetting after removing heat. If needed, apply a touch more flux and reheat to enhance the joint's reliability.
Tip: Avoid over-heating; longer dwell times can ruin pad integrity. - 5
Desoldering or removing a component
If removing, use desoldering braid to wick away solder while heating; apply steady pressure with tweezers as solder melts. For stubborn joints, switch to hot air with a focused nozzle and heat evenly until the component lifts away.
Tip: Work slowly and monitor pad condition to avoid lifting copper. - 6
Cool, inspect, and rework if needed
Let the board cool naturally. Inspect each joint with a loupe for straight fillets and proper wetting. If any joint looks suspect, rework using the same steps until the result is clean and reliable.
Tip: Document heat settings and flux used for future reference.
Quick Answers
What is SMD desoldering and why is it tricky?
SMD desoldering involves tiny pads and close component spacing, making heat control and mechanical removal challenging. Proper flux and correct heat distribution are essential to avoid pad lift or bridges.
SMD desoldering uses tiny pads and tight spacing, so careful heat control and the right techniques are essential.
Which tools are essential for SMD soldering and desoldering?
A fine-tip iron, a hot air rework station, flux, desoldering braid, a solder sucker, magnification, and an ESD-safe workspace are essential for good results.
You’ll want a fine-tip iron, hot air station, flux, braid, a sucker, magnification, and a safe workspace.
How can I avoid tombstoning when reflowing small SMDs?
Align the part carefully, place it straight, apply even heat, and ensure uniform solder distribution. Pre-tinning and flux help ensure proper wetting and reduce tombstoning.
Make sure the part is aligned and heated evenly to prevent tombstoning.
What are common signs of a bad joint after SMD work?
Look for dull or cracked joints, cold joints, or solder bridges. A good joint should be shiny, smooth, and well-wetted on both pads.
Dull or cracked joints, or bridges, indicate a bad joint that needs rework.
Is lead-free solder suitable for all SMD tasks?
Lead-free solder is common in modern electronics and requires higher temperatures and careful cleaning, but it offers reliable joints with proper technique.
Lead-free solder is common and reliable when you control heat and cleanliness.
Watch Video
Top Takeaways
- Master heat control for reliable SMD joints.
- Flux and clean pads dramatically reduce defects.
- Desoldering requires patience and the right tools.
- Inspect joints under magnification before testing.
- Document settings for repeatable results.
