How to Surface Mount Solder: A Practical Guide for PCBs
This comprehensive guide covers flux choices, heat management, and step-by-step techniques for surface mount soldering (SMD) on PCBs, including reflow and hand-soldering tips, inspection, and defect avoidance.
This guide teaches how to surface mount solder (SMD) on printed circuit boards, covering essential flux choices, heat management, and reliable joint techniques. You’ll learn setup, safety, component prep, and inspection tips to improve yield and reduce cold joints. Follow the step-by-step workflow to attach resistors, capacitors, and ICs with confidence.
Why surface mount soldering matters
Surface mount soldering enables smaller, cheaper, and more reliable electronics. By placing components directly onto PCB pads, designers can fit more functionality into a compact footprint. In practice, success hinges on clean pads, consistent flux, proper temperature control, and correct tool technique. According to SolderInfo, disciplined flux usage and careful temperature management are two of the most reliable levers for successful SMD soldering. Mistakes like cold joints, bridging, or overheated pads are common without a defined workflow. The goal is repeatable joints that are electrically reliable and mechanically durable, even under vibration or thermal cycling. Embracing a careful, repeatable workflow reduces rework and improves yield, which is essential for hobbyists and professionals alike.
Essential tools and materials
Before you start, assemble a safe, ESD-protected workspace and gather the core tools and consumables. A precision soldering iron with a fine tip and adjustable temperature, a pair of anti-static tweezers, magnification (loupe or microscope), quality flux, and lead-free solder are essential. Also include flux no-clean or rosin-core types, desolder wick, IPA for cleaning, and an ESD wrist strap. Optional but helpful items include a hot air rework station for complex packages, PCB holder, and pre-cut solder paste if you're using a reflow step. Planning your tools upfront saves time and reduces the chance of mistakes during a first pass.
Flux, solder alloys, and paste choices
Flux is your first defense against oxidation on tiny pads. Rosin-core or no-clean flux simplifies cleaning, while water-soluble flux can require thorough removal. For most hobby and professional SMT work, lead-free solder alloys (often SAC-based) are common, with a melting range that influences heat setup. Solder paste is convenient for reflow-based assembly and large batches; in hand-solder work, you’ll typically use solder wire with flux. Always verify flux compatibility with your solder and board materials, and store flux away from heat and UV light to preserve activity. Being mindful of flux chemistry helps prevent corrosion and reliability issues over the life of the device.
Hand-solder vs reflow: choosing the right method
Hand-soldering with a fine-tipped iron is ideal for small runs, repairs, or selectively populated boards where reflow infrastructure isn’t available. Reflow soldering uses consistent heat to melt solder paste and create uniform joints across many pads, promoting repeatability on dense PCB layouts. The choice depends on project scale, component pitch, and equipment access; for frequent production, plan a reflow-compatible workflow with paste deposition and controlled temperature profiles. In many hobbyist setups, a combination approach—hand-soldering critical pins and reflow for dense stretches—delivers the best balance of speed and quality.
Step-by-step workflow overview

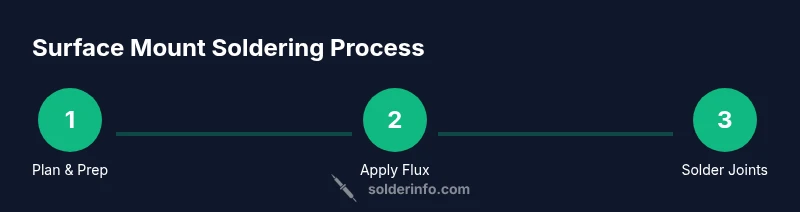

The following outline describes a typical workflow you will translate into the detailed steps below: plan your layout, prepare flux and solder, position components, apply heat with precision, and inspect joints after cooling. This section provides the big picture to help you understand how each action fits into the final board quality. Keep in mind the board material, pad finish, and environmental conditions, all of which influence soldering behavior. A methodical plan minimizes surprises and makes post-work rework easier.
Inspection, rework, and quality checks
After soldering, let joints cool fully and inspect under magnification. Look for proper fillet formation, no bridges between pads, and consistent solder thickening on larger pads. Cold joints often appear dull or cracked and may require rework. If residue remains, clean with isopropyl alcohol and lint-free wipes. Document any anomalies and consider a post-solder test like a simple continuity check or X-ray inspection for densely packed packages. Quality checks reduce field failures and increase customer confidence in DIY builds and professional assemblies alike.
Safety and best practices
Always work in a well-ventilated area and use PPE as appropriate. Ensure your workspace is clean, stable, and free of conductive debris. Proper ESD protection reduces the risk of latent damage to sensitive components. Never exceed the recommended temperature of your solder or pad material, and keep heat exposure to a minimum to avoid pad lift or component damage. By building a routine that emphasizes inspection and gradual progression, you minimize errors and maximize reliability.
Tools & Materials
- Soldering iron with fine tip(Variable temperature preferred; 0.5–0.7 mm tip ideal for fine-pitch SMT)
- Flux pen or bottle(No-clean flux recommended for hobby and professional use)
- Solder wire (lead-free, rosin-core)(Diameter 0.5–0.8 mm; select SAC alloys common in SMT)
- Anti-static tweezers(Fine tips for precise component placement)
- Magnification (loupe or microscope)(2–5x magnification helps verify joints)
- Desolder wick (braid)(For removing bridges or excess solder)
- IPA 70%–99%(Cleaning flux residues and pads)
- ESD wrist strap(Grounded setup to prevent static damage)
- PCB holder or helping hands(Optional but improves stability)
- Hot air rework station(Useful for dense or large packages)
Steps
Estimated time: 45-90 minutes
- 1
Prepare workspace and components
Power down and unplug equipment. Ground yourself with an ESD strap and work on a clean, non-metallic mat. Inspect pads for cleanliness and alignment; verify that components are oriented correctly before touching the board.
Tip: Use a magnifier to confirm pad cleanliness and part orientation. - 2
Apply flux and position components
Dip or draw flux to the pads to improve wetting. Use fine-tipped tweezers to place each component over its pads, checking that orientation is correct and pads line up with the package leads.
Tip: Only apply a small amount of flux to avoid excessive spread. - 3
Tin pads or pre-tin leads
If pads are large or very oxidized, apply a small amount of solder to pads first (tinning) to help the component sit flat. Alternatively, rely on flux to wet the pads during heating.
Tip: Be cautious not to apply solder to adjacent pads. - 4
Attach components with heat
Tack one corner with a short touch of the iron, then reflow across the other sides using the iron or hot air. Keep the iron at a constant temperature and avoid prolonged contact with any single pad.
Tip: Work quickly but carefully to prevent tombstoning on small passive components. - 5
Reflow to form joints
Once all joints are wetted, allow solder to flow and form neat fillets. If using rework heat, monitor the temperature profile and move the heat source slowly to prevent overheating.
Tip: If bridges appear, reflow one side, then wick away excess solder. - 6
Inspect, clean, and test
Let the board cool completely, then inspect with magnification for dull joints or bridging. Clean flux residue with IPA and perform a basic continuity test to verify connections.
Tip: Document any bad joints and plan rework on the next pass.
Quick Answers
What is surface mount soldering and why is it used?
Surface mount soldering attaches components directly to PCB pads, enabling compact, reliable assemblies. It is standard for modern electronics due to small form factors and high throughput. Proper flux, heat control, and pad preparation are essential for quality joints.
Surface mount soldering attaches components directly to PCB pads to save space and improve reliability. It relies on flux and careful heat control for quality joints.
Can I hand-solder SM components, or is reflow required?
Hand-soldering is viable for small runs or repairs with a fine-tip iron. Reflow is preferred for dense boards and production runs because it offers consistent heat with paste deposition.
You can hand-solder small runs, but reflow gives consistent results on dense boards.
What flux should I use for SMD work?
Choose no-clean flux for easier cleanup and reliable wetting with lead-free solder. Rosin-core flux is common, but avoid aggressive water-soluble flux on sensitive boards.
No-clean flux is a good default for SMD work.
How do I prevent solder bridges on fine-pitch parts?
Use precise application of flux, avoid excess solder on pads, and separate pads with proper spacing. If bridges occur, rework with wick and reflow short segments.
Be precise with flux and avoid extra solder; use wick if needed.
What inspection methods help identify cold joints?
Inspect joints under magnification for dull appearance, cracks, or gaps. Use a continuity test to verify connections, and rework any suspect joints.
Inspect under magnification and test continuity to confirm quality.
What safety precautions are essential when surface mounting?
Work in a well-ventilated area, wear eye protection, and use ESD protection. Keep heat sources controlled to prevent pad damage and burns.
Ventilate, protect yourself, and guard against static and burns.
Watch Video
Top Takeaways
- Prepare a clean, ESD-safe workspace.
- Choose flux and solder alloy suited to your board.
- Use proper heat control to avoid damage.
- Inspect joints thoroughly and clean residue.
