Surface Mount Soldering: Step-by-Step Guide

What is surface mount soldering?

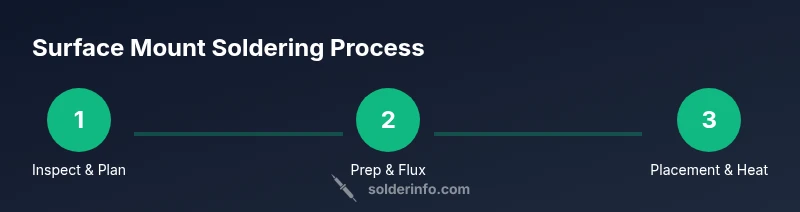

Surface mount soldering (SMT) is the method of attaching components directly to the surface of a PCB. This technique enables compact, high-density assemblies and is essential for modern electronics. In SMT, pads on the board receive solder either by stencil-applied solder paste or pre-tinned surfaces, and the component is placed with precision before heat is applied. According to SolderInfo, successful SMT relies on clean pads, proper flux, and controlled heat to promote reliable wetting and strong joints. The practice blends manual techniques with automated reflow in production settings, but with the right tools and techniques, hobbyists can achieve professional results. An understanding of package types, pad geometries, and paste deposition is foundational to mastering SMT.

Key factors for beginners include choosing the right flux, avoiding excessive heat that can lift pads, and using proper PPE to protect against fumes. In addition, recognizing common SMT packages (QFN, QFP, SOIC, BGA) helps you select the correct placement and reflow strategy for each component. A deliberate workflow that matches your equipment—hand soldering for small tasks or hot air for dense arrays—reduces errors and improves reliability.

SMT vs Through-Hole: Pros, Cons, and When to Use

Through-hole parts have leaded pins that go through the PCB, which can be simpler to hand-solder and are mechanically robust for prototypes. SMT components sit on pads on the surface, enabling higher density and smaller boards, which is essential for modern electronics. Pros of SMT include smaller footprint, faster automated assembly, and better thermal management for dense layouts. Cons include a steeper learning curve, more costly equipment for high-volume reflow, and the need for precise placement and heat control. When to use SMT: for compact designs, high-volume production, and surface-level heat dissipation considerations. When to use through-hole: for hobby projects on larger boards, prototypes needing easy component replacement, or when mechanical robustness is a priority. As you grow more confident, you’ll often blend both approaches in mixed-technology boards.

Essential tools and safety for SMT work

A successful SMT session starts with a clean, organized workbench and proper safety gear. You’ll need temperature-controlled tools, good lighting, and ESD protection to prevent damage to static-sensitive components. Key tools include a fine-tip soldering iron or a hot air rework station, a steady heat source with adjustable temperature, and a magnification aid for precise placement. Flux, rosin-core solder, and no-clean flux help promote reliable wetting and easier cleanup. Ancillary items like desoldering braid, lint-free wipes, isopropyl alcohol, and anti-static wrist straps complete the setup. Always work in a well-ventilated area to minimize fumes and avoid overheating components. When handling hot tools, wear eye protection and keep a safety shield nearby for accidental splashes or flux splatter.

Prepping the PCB: pads, flux, and paste considerations

Preparation is the foundation of good SMT joints. Start with a clean, dry PCB; inspect pads for oxidation, lifted copper, or torn masks. Use a fine-tip brush or IPA to remove any residues and ensure pads are bright and dry. If you’re using solder paste, apply it through a stencil with even deposition, ensuring solder paste volume matches the package size and pad count. Flux helps prevent oxidation and improves wetting; choose no-clean flux for ease of cleanup, or rosin-core flux if you’re hand-soldering with paste present. For larger QFP/QFN footprints, pre-tinning can improve solderability. Always verify orientation marks and ensure the PCB is free of contaminants before component placement.

Placement and reflow strategies: hand-solder, hot air, and reflow ovens

Placement accuracy is critical in SMT. Use anti-static tweezers to position each component with the correct orientation. Start with the smallest or most sensitive components first to minimize disturbance of already positioned parts. For delicate or dense BGA/QFN packages, hot-air rework or a small hot air station provides even heat distribution, while SMD leads for gull-wing packages can be soldered with a precision iron. If you’re using solder paste, reflow through a hot plate or reflow oven and rely on the paste’s soldering performance to fuse joints. Monitor temperature profiles to avoid overheating, which can damage pads or delaminate the copper. Keep your eyes on bridging and tombstoning during the process, and be prepared to rework if needed.

Soldering techniques for common SMT packages

Gull-wing components (SOIC, SSOP) are typically hand-soldered using a fine-point tip and flux to control wetting. For fine-pitch components (0805, 0603), apply a small amount of flux to pads, lay the component, and lightly touch with the iron to initiate solder. QFPs and QFNs may benefit from a stencil-assisted approach or hot-air reflow, particularly for dense arrays. For BGAs, rework stations with controlled nozzle heat ensure the package melts evenly without lifting pads. Always inspect joints under magnification for proper fillet formation, and verify that heating time and temperature do not exceed component tolerances.

Inspection, defluxing, and rework basics

After soldering, inspect joints with a magnifier or microscope to check for proper wetting, solder fillets, and the absence of bridging. Look for tombstoning on dual-lead parts and misalignment in multi-pin components. If residue remains, use IPA and a soft brush to clean, then recheck. Defluxing is recommended for some flux types to prevent corrosion or residue buildup. For failed joints, use desoldering braid to remove excess solder and realign parts, or reflow the entire area if heat-sensitive components permit. A good inspection routine reduces callbacks and boosts reliability in production settings.
