SMA Connector Solder: A Practical How-To Guide
Master SMA connector soldering with a structured approach. Learn prep, flux selection, heat control, and inspection to achieve dependable RF joints on PCBs and coax assemblies.
Goal: Learn to solder SMA connector solder joints reliably on PCBs and coax assemblies. This quick answer outlines key prerequisites, essential tools, and core techniques—proper heating, flux management, clean surfaces, and post-solder inspection—to minimize cold joints and damage while preserving RF performance. This snippet is designed for hobbyists and professionals who work with RF assemblies, micro-coax, and prototyping boards, and it highlights safety considerations and common pitfalls.
SMA Connector Fundamentals
SMA connectors are a staple in RF design for 50-ohm systems, prized for compact size and relatively solid performance at microwave frequencies. When you hear the phrase sma connector solder, it usually refers to making a reliable electrical and mechanical connection between the connector shell, center pin, and the circuit trace or coax. In practice, the goal is to maintain impedance continuity and minimize parasitics while avoiding damage to the delicate center contact or PCB land patterns. Understanding the basic geometry—threaded coupling nut, rugged outer shell, and the male/female center conductor—helps you plan your soldering approach, select the right flux, and decide whether to solder the center pin first or to stabilize the connector with a brief cradle bond before final soldering. In RF work, attention to cleanliness, proper seating, and precise placement are as important as the solder itself. The sma connector solder process benefits from a clean workspace, ESD protection, and a methodical sequence to preserve signal integrity from DC to the upper GHz range.
Key considerations when working with SMA connectors include:
- Ensure the connector is the correct impedance for your system (50 ohms is standard for most RF work).
- Confirm the PCB footprint or coaxial PCB pad geometry matches the connector.
- Use proper flux and avoid over-wetting areas that could wick into the connector body.
- Practice on scrap boards to develop a steady hand and reliable eye for alignment.
Precision is essential. Even a small misalignment can introduce impedance discontinuities and degrade return loss. So, plan the joint, secure the connector, and then execute soldering in a controlled sequence.
Tools & Materials
- Fine-tipped soldering iron(Small chisel or conical tip (1.0–2.0 mm) for precision on pads and center pin)
- Lead-free solder wire (0.6–0.8 mm typical)(Rosin-core or water-based flux compatible with RF joints)
- Rosin-based flux or flux pen(Use minimal flux to prevent wicking into the connector)
- Soldering flux remover / isopropyl alcohol(For post-solder cleaning and residue removal)
- Magnification loupe or microscope(3–6x magnification helps inspect center pin and shell joints)
- Non-conductive PCB holders or third-hand tool(Keeps the connector aligned during soldering)
- ESD mats and grounding bracelet(Protects sensitive RF components from static discharge)
- CNC or manual drill (if adapting footprints)(Optional for custom footprints or rework)
- Tweezers, needle-nose pliers, and a sharp hobby blade(For precise placement and snipping excess leads)
- Hot air rework station (optional)(Helpful for coaxial extensions or complex assemblies)

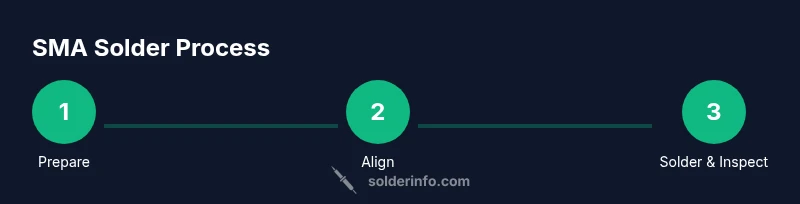

Steps
Estimated time: 30-60 minutes
- 1
Prepare the workspace and safety
Set up a clean, well-lit work area with an ESD mat. Ground yourself and wear protective eyewear. This initial preparation reduces the risk of static damage to the connector and minimizes debris that could contaminate joints.
Tip: Keep a dedicated, flame-free area for RF soldering; never work near flammable solvents. - 2
Identify the connector type and footprint
Confirm the SMA connector variant (male/female, bulkhead, panel, PCB-mount) and verify the PCB footprint aligns with the connector’s mating geometry. Misidentification can lead to mechanical stress and improper impedance matching.
Tip: Lay out the connector on the footprint without solder first to confirm alignment. - 3
Clean and inspect surfaces
Wipe the PCB pads and connector contact surfaces with isopropyl alcohol to remove oils and residues. Dry completely before applying flux. Clean surfaces improve wetting and reduce the risk of voids in the solder joints.
Tip: If you see oxidation on the center pin, gently scrub with a clean fiberglass pen prior to fluxing. - 4
Apply flux to joints
Apply a light, even film of flux to the PCB pads and the connector contact faces. Flux helps prevent oxidation during heating and improves solder flow. Too much flux can wick into the connector housing and cause reliability issues.
Tip: Use flux sparingly; a thin coat is usually sufficient for RF joints. - 5
Position the connector and anchor it
Place the SMA connector onto the PCB pads, ensuring the center pin aligns with the center pad and the shell sits flush with the PCB surface. Use a helping hand or fixture to hold the part in place while you heat.
Tip: Secure the connector mechanically for a moment to prevent movement when applying heat. - 6
Tin the pads and center pin
Lightly pre-tin the ground pads and the center contact if applicable. Tinning provides a consistent solder reservoir and reduces the chance of cold joints. Avoid over-tinning, which can spread too far and cause shorts.
Tip: Aim for a shiny, even coat on each pad; dull or grainy surfaces indicate insufficient cleaning. - 7
Apply heat and form the joints
Apply a short, controlled touch of the iron to each pad and the connector contact. Allow the solder to flow and wet both surfaces. Stop heat as soon as the joint forms a smooth fillet with no gaps.
Tip: Work quickly but deliberately; RF joints benefit from brief, precise heat applications. - 8
Inspect each joint under magnification
Check for even fillets, clean wetting, and absence of solder bridges. A proper center-pin joint should be strong and align with the trace without skewing the connector. If a joint looks dull or shows a void, reflow with fresh flux and solder.
Tip: Use a bright light and magnifier to catch micro-voids and misalignment early. - 9
Clean up and test
Wipe away flux residues with flux remover and isopropyl alcohol. Perform a basic continuity check and, if possible, a simple RF test to verify impedance continuity and acceptable return loss. Document the results for future reference.
Tip: Avoid leaving flux residue near the connector; flux can wick and cause corrosion over time.
Quick Answers
What tools are essential for soldering SMA connectors?
You need a fine-tipped soldering iron, lead-free solder, flux, a magnifier, and basic hand tools. An ESD mat and tweezers help protect components and improve precision. Practice on scrap boards before working on real assemblies.
Essential tools include a fine-tipped iron, solder, flux, and magnification for precise SMA joints.
Is flux necessary for SMA connector soldering?
Flux is highly recommended to prevent oxidation and ensure reliable joints. Use rosin-based flux and apply sparingly to limit wicking into the connector.
Flux helps create clean, reliable joints when soldering SMA connectors.
Why is heat control important when soldering SMA connectors?
Excessive heat can damage the connector and PCB traces. Use a temperature-controlled iron and short contact times, reflow if needed, and let the joint cool gradually.
Keep heat short and controlled to protect parts.
Can I rework an SMA joint if I see a cold joint?
Yes. Reapply flux, reheat the joint briefly, and verify that the surface wets properly. If the pad is lifted or damaged, consider reprinting or repairing the footprint.
If you spot a cold joint, reflow it with fresh flux and heat.
What testing should follow SMA soldering?
Perform a visual inspection, continuity check, and, if possible, RF testing with a network analyzer to confirm impedance and return loss meet expectations.
Always verify RF integrity after soldering with proper tests.
Watch Video
Top Takeaways
- Plan the work before touching heat to metal.
- Maintain clean surfaces for reliable RF joints.
- Use controlled heating and precise alignment to avoid damage.
- Inspect with magnification and test the connection after soldering.
