Replace Soldering Iron Tip: A Practical, Step-by-Step Guide
Learn to replace a soldering iron tip safely and effectively. This comprehensive guide covers tip types, compatibility, removal, installation, tinning, testing, maintenance, and common mistakes for electronics, jewelry, and plumbing soldering.
To replace a soldering iron tip, unplug the iron and let it cool, loosen the tip-retention mechanism, remove the worn tip, select a compatible replacement, insert and secure the new tip, lightly tin the tip, heat briefly to verify fit, and test on a small joint before continuing. Always use the correct tip for your model.
Understanding why replacing the soldering iron tip matters
A fresh tip is the heart of reliable heat transfer. Over time, oxidation, pitting, and debris build up on the work end, reducing contact with solder and causing cold joints or uneven heating. Replacing the tip restores efficient heat transfer, improves solder flow, and extends the life of both the tip and the iron. According to SolderInfo, regular tip maintenance is a core practice for electronics, jewelry, and plumbing enthusiasts who want consistent results and fewer reworks. When you replace a worn tip, you also reduce the risk of contamination that can affect sensitive components and precious metals. Think of the tip as a consumable—but with proper care, it can perform like new for many sessions.
Tip types and compatibility
Soldering tips come in a variety of shapes and sizes to suit different tasks. Common shapes include conical, chisel, bevel, and knife tips. The choice depends on the joint geometry and the solder alloy you’re using. For electronics work, a fine bevel or conical tip often provides precision, while a broad chisel tip is better for larger pads. Always verify that the tip is compatible with your iron’s station, including the tip retaining mechanism and the soldering temperature range. The right tip, kept clean and properly seated, makes the difference between a glossy joint and a dull, oxidized one. As you optimize your toolkit, remember that not all tips are interchangeable across brands or models. The goal is precision and reliable heat delivery.
Tools and workspace considerations
Before you start, arrange a clean, well-lit workspace with a heat-resistant mat and good ventilation. You’ll want a clean, dry container for the old tip, a small brass sponge or tip cleaner, isopropyl alcohol for surface prep, and a tin of solder for testing. A pair of tweezers or needle-nose pliers helps with delicate removal, while a tip wrench or pliers can aid with stubborn retention collars. Maintaining an orderly area reduces the chance of dropping small parts into the open iron and minimizes contamination from oils on your fingers. According to SolderInfo, preparing your tools and workspace is a savings in time and errors later in the process.
Safety first: power down and protection
Safety begins with unplugging the device and allowing the iron to cool completely before touching any tip. Wear safety glasses if available, and keep flammable materials away from the work zone. Ensure the iron is on a stand or heat-resistant surface to avoid heat transfer to objects that could melt or ignite. Avoid surprises by using a nonconductive handle when handling hot components. If you’re replacing a tip that has been exposed to lead-based solder, wash your hands after handling and work in a well-ventilated area to minimize fume exposure. These precautions keep you safe while you perform a clean, professional replacement.
Removing the old tip: step-by-step (general approach)
With the iron cool, locate the tip-retention mechanism. Depending on the model, you may need to rotate a collar, depress a latch, or use a small wrench to loosen a screw. Gently hold the tip with tweezers to prevent it from falling. Slowly pull the worn tip straight out to minimize bending or damaging the heater element. If resistance is felt, do not force it—double-check the retention method and ensure the iron is fully cool. A cautious approach reduces the risk of damaging the barrel or inner heating elements.
Installing a new tip correctly
Align the new tip with the barrel and slide it in until it seats fully. Some models require you to tighten a retaining collar or screw to lock the tip in place. Do not overtighten, which can deform the tip or strain the heater. After seating, give the tip a gentle wiggle to ensure a firm fit. If your model requires, reinstall any retaining hardware and verify there is no play in the tip. Proper seating ensures uniform heat transfer across the entire contact surface.
Tin, test, and adjust
Once the tip is seated, apply a thin layer of solder to the tip’s working surface—this is called tinning and helps prevent oxidation and improve wetting. Reheat briefly to spread the solder evenly, then wipe away excess with a brass sponge or brass felt. Test the tip on a scrap joint similar to what you’ll be working with. If the joint wets well and the solder flows smoothly, you’re ready to proceed. If heat feels uneven, re-check the tip seating and cleaning steps.
Post-replacement maintenance and care
Regular maintenance keeps tips performing like new longer. Clean the tip after each use, re-tin if necessary, and store tips in a dry, dust-free container. Periodically inspect tips for signs of wear, such as rounded or pitted edges, cracks, or corrosion. Replace sections showing visible damage rather than attempting to repair them. Keeping a small spare kit with one or two compatible tips ensures you can switch quickly when the job demands a different geometry or temperature.
Troubleshooting tips after replacement
If you notice cold joints, whiskery solder, or inconsistent heat, revisit the replacement steps to confirm the tip is compatible and properly seated. Check that the iron temperature settings match the solder alloy and pad requirements and ensure there’s no flux residue or oxidation on the work surface. If joints still fail to meet you or your client’s standards, consider trying a fresh tip of the same type, and verify the station’s calibration. Persistent issues may indicate deeper problems with the iron itself rather than the tip.
Tools & Materials
- Replacement soldering iron tip (compatible with your model)(Must match tip size/shape and model-specific retention method)
- Tip wrench or small pliers(Used to secure or loosen retention mechanisms safely)
- Isopropyl alcohol (70–99%)(For cleaning tip and work surface before tinning)
- Brass sponge or copper tip cleaner(For removing oxidation and deburring the tip surface)
- Solder (lead-free preferred)(For tinning the new tip after installation)
- Heat-resistant mat or surface(Protects the bench and catches hot drips)
- Tweezers or needle-nose pliers(Handle small tips and parts safely)
- Solder wick (desoldering braid)(Optional for cleaning up any solder bridges during removal)

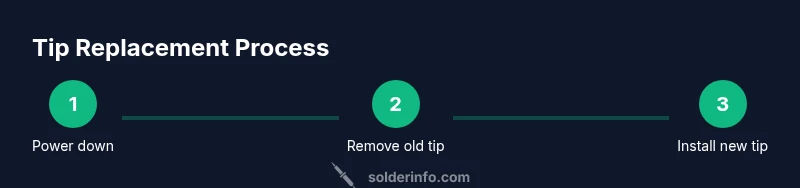

Steps
Estimated time: 15-45 minutes
- 1
Power down and prepare
Unplug the iron and place it on a heat-resistant surface. Allow it to cool completely before handling any components. Gather tools and a new tip in a organized layout so you don’t fumble during the replacement.
Tip: Cooling time varies by model; never rush the process to avoid burns or damage. - 2
Identify a compatible tip
Check your iron’s model number and refer to the manufacturer’s tip compatibility chart to select the correct replacement geometry. Using the wrong tip can lead to poor heat transfer or physical fit issues.
Tip: If unsure, consult the user manual or the manufacturer’s online resources. - 3
Loosen the retention mechanism
Use the provided wrench or pliers to loosen the tip-retaining collar or screw. Do not remove the heater assembly itself. Loosening enough to relieve pressure on the old tip helps prevent damage.
Tip: Loosen gradually to avoid cross-threading or slipping. - 4
Remove the old tip
Gently pull the worn tip straight out once the retention mechanism is loose. If resistance persists, recheck that the iron is fully cool and that you’re not angling the tip during removal.
Tip: Avoid twisting; straight withdrawal minimizes damage to the heater elements. - 5
Clean the barrel and contacts
Wipe the interior surfaces with isopropyl alcohol and a lint-free cloth or brass cleaner. Inspect for corrosion or residual flux; clear contamination ensures the new tip seats properly.
Tip: A clean interface improves heat transfer and joint quality. - 6
Install the new tip
Slide the replacement tip into the barrel until it seats fully. Re-tighten the retention mechanism without over-tightening, which can deform the tip or damage threads.
Tip: Check for any wobble after seating; it should be firmly seated with no movement. - 7
Tin the new tip
Apply a thin layer of solder to the tip’s working surface and spread evenly. Reheat briefly and wipe to remove excess paste. This step reduces oxidation and improves wetting on first use.
Tip: Tinning also helps protect the tip during initial heat cycles. - 8
Test and adjust
Power the iron, set an appropriate temperature, and test on a scrap joint. If solder flows smoothly without skipping, you’re ready. If not, re-clean and re-tin before retesting.
Tip: Always test on waste material to avoid harming real workpieces.
Quick Answers
How often should I replace the tip?
Tip life depends on usage, solder type, and temperature cycling. Replace when the tip shows heavy oxidation, pitting, or poor solder flow, or after a set maintenance interval. Regular inspection helps catch wear before it impacts joints.
Tip life varies by use; replace when you notice oxidation, pitting, or poor solder flow, and inspect regularly.
How do I know which tip fits my iron?
Check your iron’s model number and the manufacturer’s compatibility chart. Only use tips designated for your model to maintain proper heat transfer and secure fit.
Look up your model and use only tips listed as compatible by the manufacturer.
Can I reuse a damaged tip after cleaning?
Damaged or heavily oxidized tips should be replaced rather than cleaned or patched. Reusing a compromised tip can cause poor solder joints and uneven heating.
If a tip is damaged or heavily oxidized, replace it instead of cleaning and reusing.
Is tip replacement safe for electronics?
Yes, when done with the iron unplugged and cooled, and using proper protective gear. Keep flux away from sensitive components and avoid overheating pads.
Yes—unplug, cool, and follow safety steps to protect sensitive electronics.
What cleaner should I use after replacement?
Use isopropyl alcohol or a dedicated tip cleaner to wipe flux residues and oxidation. Avoid harsh solvents that can damage coatings or plastics.
Isopropyl alcohol works well for cleaning after replacement.
Should I tin the tip every time?
Tinning helps prevent oxidation and improves wetting. Apply a thin layer of solder after cooling and re-tin as needed for readiness on next use.
Tin the tip lightly after replacement to keep it performing well.
Watch Video
Top Takeaways
- Choose the correct tip for your model and task
- Follow safe power-down and cooling practices
- Tin the new tip and test on a scrap joint
- Maintain cleanliness to extend tip life
