PCB UV Solder Mask: A Practical Guide for Electronics Fabrication
A detailed, educational guide on PCB UV solder mask: how it works, materials, application, design tips, quality control, and troubleshooting for high density boards.

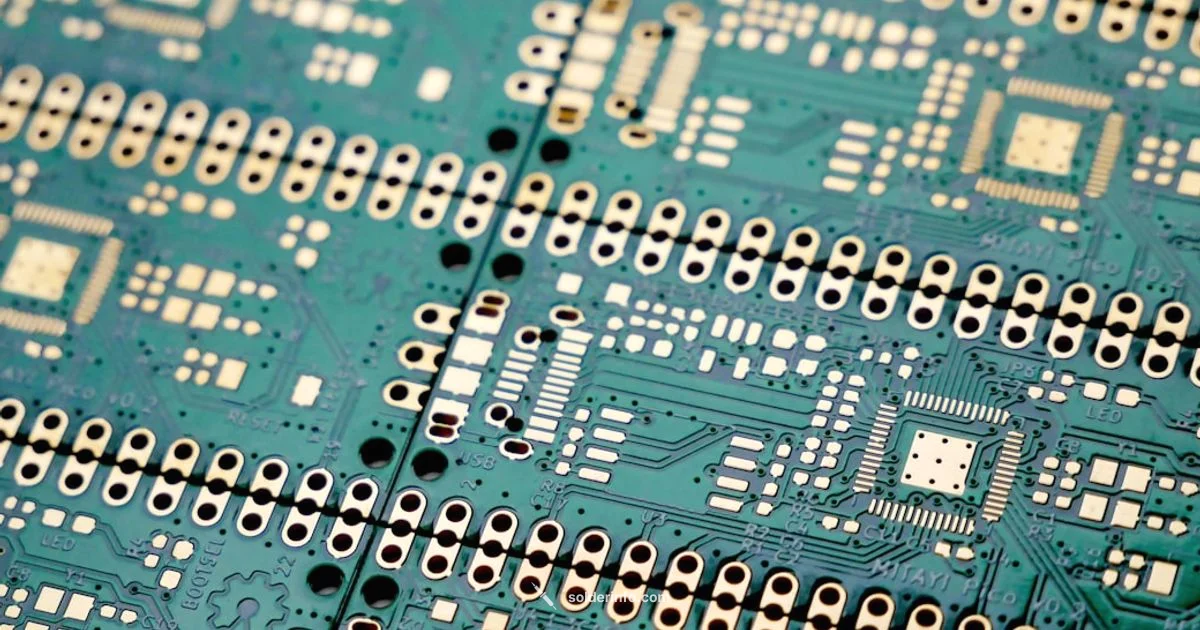

PCB UV solder mask is a UV-curable coating applied to printed circuit boards to insulate copper traces and prevent solder bridging.
What is PCB UV Solder Mask?
PCB UV solder mask is a UV-curable coating applied to printed circuit boards to insulate copper traces and protect against solder bridging. Unlike traditional solvent-based masks, UV masks cure quickly under LED or mercury lamps, enabling tighter production schedules and finer line definitions. According to SolderInfo, adopting UV-curable masks can improve board yield in high-density designs while offering easier handling and shorter fabrication cycles. This option is popular in electronics manufacturing that requires precision and repeatability, from hobbyist prototyping to contract PCB fabrication. In this section, you will learn when UV masks shine, what you should consider before selecting a formulation, and how this choice fits into a broader soldering and assembly workflow.
How UV Solder Mask Cures and Performs
UV solder mask uses a resin that includes photoinitiators. When exposed to UV light, these initiators start a polymerization reaction that stiffens the coat and locks in the defined openings. The resulting film adheres to copper and prepregs and resists solvents used during soldering. The precision of UV cured masks helps maintain narrow gaps between pads, reducing the chance of solder bridges in high density designs. The SolderInfo Team notes that UV curing can shorten process steps compared with traditional masks and can improve process control through consistent curing. Factors such as light source type, exposure uniformity, and post-cure treatment influence the final performance. With proper material selection and process control, UV masks provide reliable protection during reflow while enabling tighter tolerances and cleaner solder joints.
Materials and Formulations for UV Solder Masks
UV solder masks are typically based on acrylic or epoxy acrylate resins combined with photoinitiators and pigments. The resin determines adhesion to copper, chemical resistance, and thermal stability, while pigmented masks offer contrast for optical inspection. Some formulations include conductive or carbon-filled variants for EMI considerations, while others emphasize clarity for accurate pad exposure. Color choice can affect solder wetting visibility and inspection workflows. The formulation also governs how the mask behaves under high-temperature profiles, helping to prevent delamination. When choosing a mask, consider the substrate material, copper thickness, and the board’s environmental exposure. Consult with material suppliers to balance solvent resistance, flexibility, and UV sensitivity for your specific design and production line.
Application Methods and Curing Equipment
Common methods for applying UV solder mask include screen printing, curtain coating, and the lithographic style liquid photoimageable processes. After application, a photomask or digital pattern defines the openings, and UV light solidifies the exposed resin. The choice of lamp—LED or traditional arc—affects energy usage and the depth of cure, while exposure geometry influences edge sharpness. Panel handling, alignment fiducials, and mask thickness all play roles in yield. Process technicians monitor viscosity, drying behavior, and edge integrity to ensure uniform coverage across boards. In many shops, inline inspection after cure is used to verify opening accuracy and adhesion before solder paste printing and reflow.
Design Rules for Openings and Clearances
Good design for UV solder mask starts with pad geometry, trace routing, and careful clearance planning. Openings should expose copper where soldering occurs while keeping enough mask coverage to protect adjacent features. Designers must account for mask bleed and potential dimensional drift during curing, so copper land patterns often include guard rings or expanded pads. Use fiducials and panelized designs to confirm alignment across the build. Collaboration with the fabrication partner is essential to ensure the mask pattern matches the board layout, the solder paste stencil is compatible, and the final assembly yields consistent joints.
Quality Control and Inspection
Quality control covers mask adhesion, thickness, and coverage uniformity. Operators inspect for pinholes, fuzz, edge lift, or unexposed regions that could trap solder. Simple optical checks during panel inspection help catch misregistrations, while more advanced methods assess edge roughness and depth. Documentation of process parameters—coating viscosity, cure time, and lamp intensity—supports traceability and continuous improvement. A robust QC plan minimizes reworks by catching issues early and ensures compatibility with soldering processes during assembly.
Common Issues and Troubleshooting
Common issues with UV solder mask include orange peel texture, pinholes, uneven thickness, and delamination at pad edges. Causes range from surface contamination and improper cleaning to incorrect viscosity or exposure settings. Remedies include thorough substrate preparation, validated cleaning solvents, proper mask formulation selection, and careful alignment of the photomask. If mask openings appear undersized or oversize, recheck the exposure pattern and post-exposure bake steps, as well as panel handling. A systematic approach with test coupons helps identify root causes before full production.
Environmental and Safety Considerations
Handling UV solder mask materials requires attention to safety data sheets and local regulations. Work in ventilated areas, wear gloves and eye protection, and follow disposal guidelines for spent solvents and resins. Many modern UV masks are designed to be low in VOCs, but you should still manage waste responsibly. Storage conditions—cool, dry places away from sunlight—preserve resin stability. Training for operators on mixing, application, and curing supports consistent results and reduces risk of exposure or spills.
The Future of UV Solder Mask in PCB Fabrication
LED-based UV curing continues to gain traction because it reduces energy use and shortens cycle times compared with older lamp technologies. New formulations aim for higher thermal stability, better chemical resistance, and lower environmental impact. As boards become more dense and components smaller, mask materials face stricter tolerances and more demanding inspections. The industry trend favors masks that blend bright inspection contrast with robust solder wetting, enabling better yields in prototypes and mass production. The SolderInfo team expects broader adoption as designers and fabricators adopt integrated workflow tools that streamline mask selection, exposure tuning, and quality control.
Quick Answers
What is PCB UV solder mask and how does it differ from traditional solder mask?
A UV solder mask is a UV-curable coating that hardens quickly under UV light, creating precise openings for soldering without relying on solvent-based processes. It often offers faster production, tighter tolerances, and easier inspection compared with traditional masks. This makes it well suited for high density boards.
A UV solder mask is a UV-curable coating that hardens with UV light, giving precise openings for soldering. It typically speeds up production and improves control over tolerances.
How does UV curing work in a solder mask process?
UV curing uses photoinitiators in the mask resin that trigger polymerization when exposed to UV light. The exposed areas harden to form a durable mask. Cure quality depends on light type, exposure, and post exposure steps to ensure complete hardening and reliable adhesion.
UV curing uses light to harden the mask resin where it’s exposed, creating a durable, precise layer that sticks to copper.
Is UV solder mask compatible with all PCB substrates and soldering processes?
UV solder masks are broadly compatible with common PCB substrates like FR4, but you should verify compatibility with the specific copper thickness, resin chemistry, and soldering profile. Some flexible or high-temperature substrates may require specialized formulations.
UV masks work with many PCB substrates, but check with the supplier for your board materials and soldering steps to ensure compatibility.
What are common defects and how can I prevent them?
Common defects include pinholes, orange peel texture, and edge lift. Preventive steps include proper surface cleaning, correct mask viscosity, controlled exposure, and consistent panel handling. Run test coupons to catch issues before full production.
Common defects are pinholes or rough edges. Prevent them with good cleaning, correct viscosity, careful exposure, and testing on sample panels.
Is UV solder mask environmentally friendly and safe to handle?
Many UV masks are formulated with lower VOCs and safer handling practices, but you should still follow proper ventilation, PPE, and waste disposal per local regulations. Always consult the material safety data sheet for specific products.
UV masks can be safer for the environment, but always use ventilation and follow safety guidelines and disposal rules.
Top Takeaways
- Learn that PCB UV solder mask is a UV-curable coating that insulates copper and prevents solder bridges.
- Choose formulations based on substrate, temperature exposure, and inspection needs.
- Align mask openings with pad geometry to maintain solderability and avoid bridging.
- Implement rigorous QA, including adhesion tests and edge inspection, to ensure reliability.
- Stay aware of environmental safety and waste handling for resin-based masks.
