UV Solder Mask: A Practical Guide

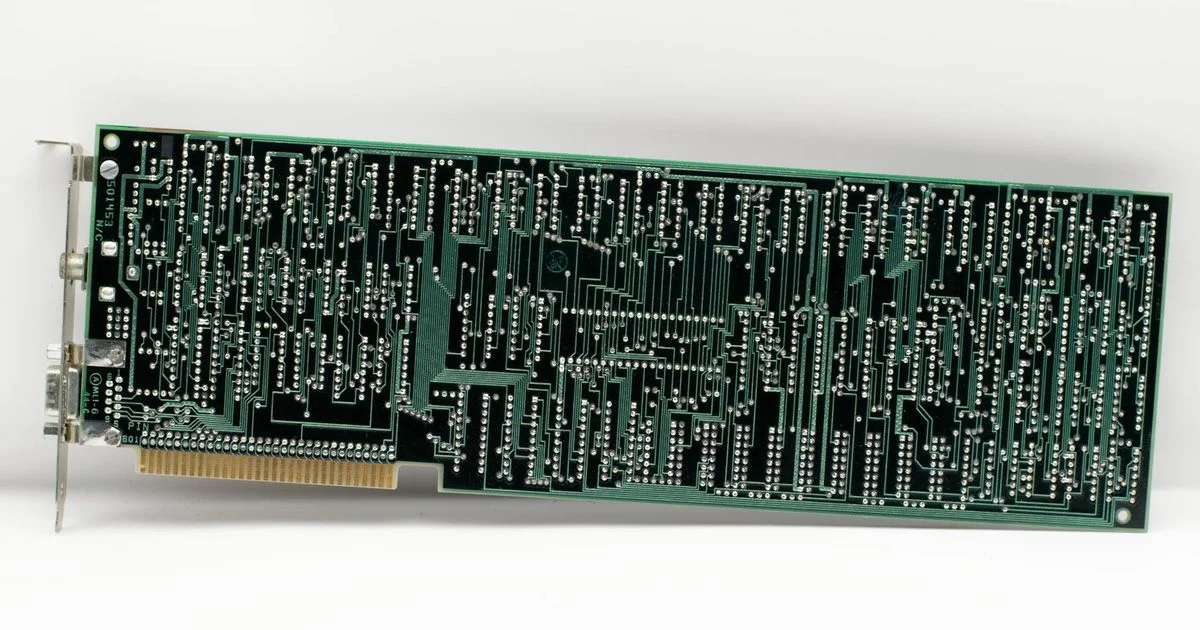

What is UV Solder Mask?

UV solder mask is a photosensitive polymer layer applied to printed circuit boards to insulate copper traces, prevent solder bridging, and shield against moisture and chemicals. It is cured by ultraviolet light to form a durable coating that adheres to copper and the substrate. According to SolderInfo, this approach enables high pattern resolution and sharp edge definition, which is especially valuable on dense boards with fine pitch features. The mask is typically applied as a liquid resin or as a dry film, then selectively exposed through a photomask. After exposure, unexposed areas are developed away, leaving openings over solder lands and protecting the surrounding copper. The result is a consistent, solderable surface where protected regions stay insulated during soldering while exposed pads remain ready for component attachment. UV-curable masks generally offer strong chemical resistance and good adhesion, helping boards survive cleaning and flux removal. For hobbyists and professionals alike, UV solder mask provides precise masking with repeatable results and supports modern, high-density designs.

How UV Cured Solder Mask Works

UV cured solder mask uses a photosensitive resin system that contains photoinitiators. When the coated PCB is exposed to UV light through a photomask, the exposed resin cross-links and hardens, while the unexposed resin remains soluble. During development, the unexposed areas are washed away, leaving a relief pattern that shields copper while exposing solder lands. This process, often implemented with liquid photoimageable resists or dry film masks, enables tight line definition and clean, rounded openings ideal for fine pitch components. The curing step, sometimes followed by a bake to improve adhesion, produces a durable mask that resists flux solvents and moisture. The performance depends on resin chemistry, exposure energy, and post-exposure treatment; proper alignment and clean surfaces are essential for reliable results. UV masks are compatible with standard PCB processes and can be designed to tolerate lead-free solders and various flux chemistries.

Benefits and Use Cases

UV solder mask offers several advantages for electronics production and prototyping. It enables high pattern fidelity, which is crucial for boards with dense trace networks and fine pitch components. The mask provides effective insulation against solder bridges, reduces the risk of shorts, and offers chemical and moisture resistance during cleaning and flux removal. For hobbyists, UV masks simplify workflow by enabling precise masking without expensive tooling. For professionals, the same principles scale to larger runs with consistent results, repeatable thickness, and predictable performance across batches. In addition, UV-curable masks can be tailored for different solder chemistries, improving reliability in lead-free applications and high-temperature environments. These benefits collectively support improved board yield, fewer rework cycles, and longer product lifetimes.

Types and Formulations

There are several formulations and formats of UV solder mask to suit different needs. Liquid photoimageable resists are popular for hobbyist projects and small runs, offering flexible thickness control and easy application through coating methods. Dry film masks provide robust, uniform coverage ideal for higher-volume production and automated lines. UV-curable masks come in various colors and chemistries, each optimized for adhesion, chemical resistance, and exposure latitude. Some masks are tinted to aid inspection and alignment, while others are clear for visibility of underlying copper. Regardless of formulation, compatibility with your PCB substrate, flux, and solder alloy is essential. When choosing a mask, consider the desired pattern resolution, the expected soldering temperature range, and the environmental conditions of your manufacturing process.

Application Workflow

Applying UV solder mask typically follows a defined sequence. Start with a clean, dry PCB surface to ensure strong adhesion. Apply the mask coating either by coating, laminating, or using a dry film process, then perform a pre-bake to remove solvents and stabilize the coating. Align the photomask and expose the board to UV light, transferring the pattern to the resin. A post-exposure bake helps improve adhesion and edge quality. Develop the board to remove unexposed regions, rinse, dry, and then cure the mask to final hardness. Finally, inspect for openings over solder lands and verify edge definition. Each step influences final mask quality, so maintaining clean equipment, stable humidity, and consistent exposure conditions is important for repeatable results.

Troubleshooting and Common Defects

Even with careful processing, UV solder mask can exhibit issues. Pinholes or voids may appear if the surface is not properly cleaned or if coating thickness is uneven. Edge lift or delamination can occur from poor substrate preparation or insufficient bake. Incomplete development can leave unexposed areas, causing masking failures. Color variation or haze might indicate improper curing or contamination. Addressing these defects involves improving surface preparation, ensuring uniform coating, verifying alignment, and revalidating exposure and development settings. Regular inspection and a controlled environment help reduce rework and improve yield.

Practical Guidance for Hobbyists and Professionals

For hobbyists, start with a beginner-friendly UV solder mask kit that includes a photoresist, a simple exposure setup, and a basic developer. Choose a formulation compatible with your substrate and flux chemistry, and practice on test coupons to dial in coating thickness and exposure. Professionals should evaluate mask formulations for their specific production line, considering factors like pattern density, board size, and long-term reliability. In both cases, align masks carefully, maintain clean coatings, and plan for post-processing steps such as final curing and inspection. Always follow safety guidelines when handling chemicals and UV light sources.

Authority sources and further reading

For standards, guidelines, and technical background on solder masks and PCB fabrication, consult reputable sources and standards organizations. These references provide context for best practices, process controls, and quality expectations in electronics manufacturing. Notable sources include IPC standards and peer-reviewed materials in major publications. See the following for foundational information and ongoing developments:

• IPC standards for solder mask materials and application
• IEEE Xplore articles on PCB fabrication and masking techniques
• NIST resources on materials and reliability in electronics manufacturing

These references help you benchmark processes and understand the science behind UV solder mask behavior.
