How to Put Solder on the End of a Wire
Step-by-step instructions for soldering wire ends safely and reliably, covering prep, solder choice, heating technique, insulation, and testing for strong electrical connections in electronics, jewelry, and plumbing.
Learn how to solder the end of a wire to create a clean, reliable connection. This guide covers wire prep, solder choice, flux usage, and proper heating technique to avoid cold joints and frayed strands. Follow the step-by-step process for solid joints in electronics, jewelry, or plumbing applications. Whether repairing a loose wire or wiring a harness, preparation and controlled heat are essential.
How wire soldering works and when to use it
Soldering a wire end creates a metallurgical bond between copper conductors and the solder alloy, producing a reliable electrical connection. The method is versatile for electronics, jewelry, and some plumbing applications where small-diameter wires are involved. This guide on how to put solder on the end of a wire covers when to solder, what materials to choose, and how to achieve a strong joint with proper heat, flux, and tip control. By understanding how heat transfers from the iron to the wire and how solder wets the metal, you’ll prevent oxidation, avoid frayed strands, and achieve a clean fillet. Whether you’re repairing a loose lead in a project or wiring a new harness, success begins with preparation, calm heat management, and a steady hand. The goal is a shiny, smooth joint that conducts without added resistance and withstands typical vibration and movement.
Wire preparation: stripping, cleaning, and tinning
Before you apply solder, strip the insulation to expose a clean conductor. Remove any oxidation with a clean cloth or isopropyl alcohol, then twist the strands so they form a neat, cohesive bundle. Tin the exposed wire lightly by applying a small amount of solder to the copper during heating, which helps with wetting and makes the final joint easier to form. Keep the stripped portion short—about 6–8 mm for many small wires—and avoid nicking the copper strands, which can create weak points.
Solder options and flux best practices
Choose a rosin-core solder suitable for your application, with lead-free alloys commonly preferred for electronics. Flux is essential to break down oxide layers and promote wetting; use a flux pen or rosin-core solder appropriately. For delicate wires or components, flux helps the solder flow smoothly and reduces the risk of cold joints. Always select a compatible flux and solder alloy for the task at hand and avoid excessive flux that can attract dust or cause corrosion if not cleaned.
Getting a strong joint: heat control and tip selection
The key to a durable wire joint is controlled heating. Use a clean, properly sized tip (smaller tips are better for thin wires) and apply heat to the wire and any connector or pad—not directly on the solder. When the copper is hot enough to wet, feed solder into the joint, not onto the iron tip. Remove heat promptly once the joint is filled and allow it to cool undisturbed to form a smooth, shiny fillet.

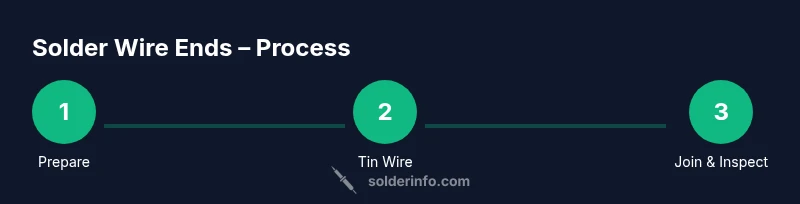

Step-by-step overview (high-level)
This section provides a high-level roadmap without duplicating the detailed steps. Start with a safe workspace, prepare and tin the wire, apply flux to the joint, heat evenly, and feed solder gradually until the joint forms a clean fillet. Finally, insulate the joint with heat-shrink tubing or electrical tape and verify that the connection is solid before placing any stress on the wire.
Finishing touches: insulation, strain relief, and testing
After the solder has cooled, slide heat-shrink tubing over the joint and apply heat evenly to shrink it snugly. This provides strain relief and protects the joint from movement and moisture. Test the connection with a continuity tester or multimeter to confirm a low-resistance path. If the joint shows resistance or wiggles, rework with clean heat and reflow solder until a reliable joint is achieved.
Troubleshooting common problems
Common issues include cold joints, stray strands, and excessive solder forming a bulky fillet. If the joint looks dull or cracks when flexed, rework by reheating and refreshing the tinning of the wires before re-soldering. For bridged joints, carefully remove excess solder with desoldering braid and reflow the joint with proper flux. Ensure good ventilation and remove fumes promptly in a well-ventilated area.
Tools & Materials
- Soldering iron (40-60W recommended for electronics)(Fine tip (0.5–1.0 mm) for control on small wires)
- Rosin-core solder (lead-free preferred)(Choose an alloy suitable for electronics; avoid cheap mixes for critical joints)
- Flux (rosin-based or flux pen)(Use to improve wetting and reduce oxidation)
- Wire stripper(Strip insulation cleanly, exposing 6–8 mm of conductor)
- Heat-shrink tubing or electrical tape(Provides insulation and strain relief)
- Third-hand tool or helping hands (optional)(Helps hold small wires steady during soldering)
- Safety gear (safety glasses)(Protect eyes from hot solder and flux splashes)
- Isopropyl alcohol and lint-free wipes(For cleaning oxidation before tinning)
Steps
Estimated time: 30-45 minutes
- 1
Set up workspace and safety
Arrange a well-ventilated area, plug in a temperature-controlled iron, and wear safety glasses. Posture matters and a stable work surface reduces slips that could cause burns or damaged components.
Tip: Use a clamp or helping hands to keep wires stable while heating. - 2
Strip insulation and clean the wire
Carefully remove insulation with a precision stripper to expose 6–8 mm of copper. Wipe the exposed conductor with isopropyl alcohol to remove oils and oxidation.
Tip: Avoid nicking copper; damaged strands weaken the joint. - 3
Twist and tin the wire end
Twist the strands tight, then apply a small amount of solder to the exposed wire while heating to create a light tin coating.
Tip: Tinning makes the final joint easier to wet and reduces cold joints. - 4
Apply flux to the joint
Coat the mating component, pad, or wire end with flux to promote wetting and prevent oxidation during heating.
Tip: Flux helps solder flow and reduces the risk of oxidation on the copper surface. - 5
Heat the joint and apply solder
Place the tip on the joint and heat until the copper or pad reaches solder-wet temperature. Feed solder into the joint, not the iron tip, until a shiny fillet forms.
Tip: Keep the iron moving to avoid overheating any single point. - 6
Cool and inspect the joint
Let the joint cool undisturbed for a few seconds, then inspect for a smooth, shiny fillet with no pinholes or blobs. If dull or cracked, rework.
Tip: Check for a concave meniscus that indicates good wetting. - 7
Insulate and test
Slide heat-shrink over the joint and apply uniform heat. Test continuity with a multimeter to confirm a solid connection.
Tip: Verify there’s no short to adjacent conductors.
Quick Answers
What wire gauges are best for soldering?
Common hobby wires (tinned copper with small diameters) solder well with a 40-60W iron. Heavier wires require a higher power iron and larger tip. Always tailor heat and time to the conductor size.
For typical hobby wires, a 40-60 watt iron works well; heavier wires may need more power and a larger tip.
Is flux necessary for soldering wires?
Flux is essential for removing oxides and improving wetting. If you’re using rosin-core solder, you already have flux integrated. A flux pen can be used for additional joints.
Flux helps solder flow and removes oxides; rosin-core solder includes flux, but you can add more flux if needed.
What is a cold solder joint and how can I avoid it?
A cold joint fails to wet the metal properly and looks dull or cracked. Prevent by heating both surfaces evenly and using adequate solder flow, then allow the joint to cool without movement.
A cold joint happens when the solder doesn’t wet the metal; heat evenly and let it cool without moving.
Can I solder copper pipe with electronics solder?
No. Plumbing solder and flux are designed for high-temperature pipe work and different joints. Use plumbing solder and flux for pipes, and reserve electronics solder for electrical connections.
Electronics solder isn’t suitable for copper pipes; use plumbing solder instead.
How do I test a solder joint for reliability?
Visually inspect for a shiny fillet and no gaps, then use a multimeter to verify continuity and resistance. A solid joint should show low resistance and be mechanically stable.
Check the joint visually and with a multimeter to confirm low resistance and solid contact.
Should I tin both wires before joining?
Yes. Tin both wires to ensure even soldering and easier alignment, which reduces the chance of creating a poor joint.
Tin both wires for a smoother, more reliable solder joint.
Watch Video
Top Takeaways
- Prepare wires and tools before starting.
- Tin the wire end to improve wetting and solder flow.
- Use flux and controlled heat to form a reliable joint.
- Insulate and provide strain relief after soldering.
- Test the joint with a continuity meter.
