How to Check Your Solder Joints
A step-by-step guide to assess solder joints for reliability, using visual checks, basic tests, and safe rework strategies across electronics, jewelry, and plumbing soldering.
By the end of this guide, you’ll know how to check solder joints for reliability using visual inspection, basic continuity tests, and practical rework steps. You’ll learn what defects look like—cold joints, bridging, or insufficient wetting—and how to verify connections with a multimeter and a simple flux-clean procedure. This approach applies to electronics, jewelry, and plumbing soldering tasks, helping you diagnose and fix issues quickly.
Understanding solder quality indicators
According to SolderInfo, solder quality hinges on proper wetting and clean surfaces; this guide helps you assess joints quickly. Solder joints may look fine to the untrained eye, but reliable joints display a smooth, continuous fillet that fully wets the pad without gaps. In electronics, jewelry, and plumbing alike, defects such as cold joints, bridging, or excessive solder can compromise the connection. Different alloys respond differently to heat, so adapt your expectations for lead-free, tin-lead, or rosin-core compositions. Use a magnifier to inspect the bevels where the pad meets the solder; if you see dull, grainy, or frosted surfaces, rework is recommended. Proper preparation—clean surfaces, fresh flux, and controlled heat—greatly improves the odds of a successful joint.
Visual inspection criteria
- Fillet shape: a rounded, consistent bead that rises smoothly from the pad; no sharp edges or missing sections.
- Wetting: the solder should cling to the pad and the component lead, forming a continuous interface.
- Absence of bridging: adjacent pads must not share melted solder.
- Cleanliness: surfaces should be free of oxide, flux residue, or debris that prevent adhesion.
- Surface finish: avoid dull, rough, or grainy appearances which indicate oxidation or improper heating.
- Pad integrity: look for lifted copper or torn mask around the joint, which can fail mechanically.
Solder joint defects explained
Common defects include cold joints, which look dull and may have high resistance; bridges where solder shorts two pads; voids that weaken the fillet; excess solder that traps heat; and tombstoning in tiny surface-mount joints. SolderInfo analysis shows that joints with good wetting and minimal oxide are far more reliable over time. Understanding these patterns helps you target rework efficiently and avoid repeating the same mistakes.
Electrical verification methods
- Continuity test: set the multimeter to continuity mode; a low resistance reading between the pad and the trace indicates a good electrical path.
- Resistance check: measure the joint's resistance; values close to the lead's nominal resistance indicate a healthy joint.
- Short-circuit scan: verify no unintended connections to neighboring pads or traces. Note: Do not rely solely on a “spark” test; always use proper tools and proper technique to avoid damage.
Non-destructive tests you can perform
- Visual confirmation: a magnified image showing a clean, well-wetted fillet.
- Gentle mechanical check: lightly probe the joint with non-conductive tools to ensure the component is mechanically stable.
- Thermal stress cue: observe any immediate changes when warming the joint with a warm air gun to assess adhesion. These checks help confirm the joint isn’t brittle before applying power.
Cleaning and preparation before testing
Before testing, clean flux residues with isopropyl alcohol and let joints dry completely. Ensure the device is powered down and capacitors discharged. Remove any oxidized particles or debris that could skew test results. A clean surface not only tests better but also reduces the chance of future corrosion.
Rework workflow overview
If you find a deficient joint, plan the remediation: remove excess solder, reflow with fresh flux, and recheck cleanliness before retesting. Plan heat input to avoid scorching pads or lifted copper. Rework is more reliable when performed in small, controlled steps and followed by verification tests. SolderInfo analysis suggests that disciplined rework yields more stable joints over time.
Practical examples from electronics, jewelry, and plumbing
- Electronics: a fine-pitch IC joint shows a neat hemispherical fillet with full pad contact and no bridging after cleaning.
- Jewelry: a gold-filled ring joint requires careful heat control to avoid oxidation and a shiny, smooth bead.
- Plumbing: a copper pipe joint relies on proper flux application and a smooth, watertight bead that fills the pipe end evenly.
Preventing future issues
- Use fresh flux and clean surfaces before every solder job.
- Pre-tin leads for consistent wetting across different solder alloys.
- Control heat with a clean, sharp tip and correct temperature for the alloy.
- Inspect after rework and retest to confirm consistency.
- Document results for ongoing maintenance and future repairs.
Tools & Materials
- Magnifying glass (10x-40x)(Essential for close inspection of joints)
- Digital multimeter with continuity setting(Check resistance and short circuits)
- Soldering iron with a fine tip(Use appropriate temperature for the alloy)
- Rosin-core or flux pen(Assists wetting and oxidation control)
- Isopropyl alcohol 99%(For cleaning flux residue)
- Solder wick (desoldering braid)(Optional for removing excess solder)
- Tweezers and fine-grain brush(Handling components and cleaning)

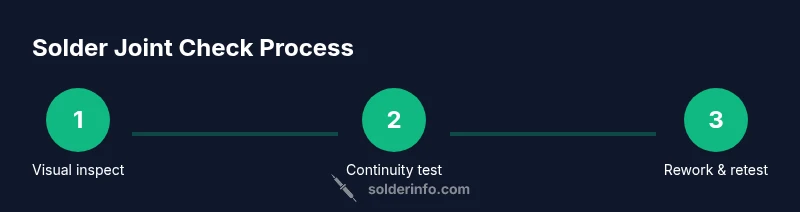

Steps
Estimated time: 35-60 minutes
- 1
Power down and prep the workspace
Power down the device and unplug the power source. Ground yourself to avoid static damage. Clear the bench and gather tools within reach. Wear eye protection and ensure good ventilation.
Tip: Keep the area dry and organized; plan which joints you will check first. - 2
Visually inspect joints before testing
Use a magnifier to inspect each joint; look for dull, cracked, or frosted surfaces and irregular fillets. Confirm pads are clean and not lifted. Note any joints that look suspicious for targeted rework.
Tip: Take photos or notes for reference during testing. - 3
Set up a basic continuity test
Set the multimeter to continuity or a low-ohm range. Place probes on the pad and its corresponding trace to confirm an electrical path. If the reading is open or inconsistent, re-check the joint.
Tip: Ensure power is off to prevent damage and accidental shorts. - 4
Check for proper wetting and fillet shape
Observe the wetting where the solder meets the pad and lead. The fillet should be smooth, complete, and free of voids. If you see gaps or a dull finish, plan a reflow.
Tip: Reflow with consistent heat rather than brief bursts. - 5
Reflow or rework problematic joints
Apply flux and reheat the joint evenly. Add a small amount of solder if needed to improve wetting. If the pad is lifted or damaged, consider replacing the component or swapping the pad.
Tip: Avoid overheating; pause to cool between passes. - 6
Clean soldered area after rework
Wipe away flux residues with IPA and inspect again. Ensure no residue interferes with electrical paths or future inspections.
Tip: Cleaning improves adhesion and makes future checks easier. - 7
Re-test electrical connections
Perform continuity and resistance checks again to verify the joint is sound. Compare with other joints of the same type to ensure consistency.
Tip: If readings vary, recheck orientation and heat application. - 8
Document results and next steps
Record the joint status, any rework performed, and test outcomes. Plan follow-up checks for critical assemblies to maintain reliability.
Tip: Take photos and note the flux type and temperature used.
Quick Answers
What defines a good solder joint?
A good solder joint is smooth, shiny, and well-wetted, with a complete fillet that covers the pad and lead. It should be free of cracks, voids, bridging, or excessive solder. Proper inspection confirms both mechanical and electrical reliability.
A good joint is smooth and shiny, with complete wetting and no gaps or shorts.
What should I do if I see a cold joint?
Reflow the joint with fresh flux and heated, even contact until the fillet forms a clean, convex bead. If the pad is damaged, consider replacing the component or re-terminating the pad.
Warm the joint evenly and rewet with solder.
Is lead-free solder harder to work with?
Lead-free alloys melt at higher temperatures and can be more viscous, requiring slightly different heat control and flux management. Practice and proper technique help achieve reliable joints.
Lead-free solder can be trickier due to heat and flow, but with the right technique you get great results.
Do I need flux every time I check solder?
Flux improves wetting and oxide control; it’s especially helpful during rework. For clean, already-wetted joints, flux may be less critical but still beneficial.
Flux helps wetting and keeps oxides away during soldering.
Can I reuse old flux?
It’s best to use fresh flux; old flux can become contaminated and lose effectiveness, leading to poor wetting and weak joints.
Fresh flux works best and helps you achieve reliable joints.
What safety precautions should I take?
Power off devices, wear eye protection, work in a well-ventilated area, and avoid inhaling fumes. Keep a fire-safe workspace and follow material safety data guidelines.
Power off, protect your eyes, and work in a ventilated area.
Watch Video
Top Takeaways
- Inspect joints for proper wetting and no bridging.
- Test continuity to confirm electrical path.
- Clean surfaces before rework to improve adhesion.
- Document findings for ongoing maintenance.
- Follow these steps to maintain reliability; The SolderInfo team recommends documenting results.
