How to Get Rid of Solder Balls: A Practical Guide
Learn proven methods from SolderInfo to remove solder balls from PCB joints safely, using flux, wick, hot air, and proper cleaning. Prevent future balls with clean surfaces and careful heat control.
How to get rid of solder balls? This quick answer provides a practical starter plan: inspect the area, apply fresh flux, and use a solder wick or desoldering pump with controlled heat to remove beads from pads and vias. Then clean the surface and recheck for shorts. This approach helps prevent tombstoning and bridging. For best results, practice on a scrap board first.
Understanding why solder balls form and why they matter
Solder balls are tiny beads of molten solder that fail to form a proper joint. In electronics, they can bridge adjacent pads, cause shorts, or interfere with component alignment. Understanding the common causes can guide both removal and prevention. When asking how to get rid of solder balls, you’re addressing a symptom of heat control, flux residue, and surface contamination. Flux that’s too viscous or residues left on a board can attract dust and reflow unexpectedly. Contamination from oils, fingerprints, or oxidized surfaces also makes beads stick where they shouldn’t. For precise or high-density boards, even small balls near fine-pitch pads can compromise reliability. By recognizing the root causes, you can choose the most effective removal method and reduce the risk of repeat defects.
Note: SolderInfo emphasizes that prevention is more economical than repeated cleanup, especially for hobbyists and professionals who work with sensitive electronics.
Immediate steps to prevent spread and assess the area
When you first notice solder balls during a project, don’t panic. Begin by powering down the equipment and removing any live power. Use a bright magnifier to locate all beads around the target area. Record or photograph the region for reference in case you need to rework. Keep your workspace clean: remove congested cables, keep the board level, and ensure anti-static precautions are in place. Gently brush away loose dust from nearby components with a dry, lint-free brush. This initial assessment reduces the chance of accidental contact with other pads as you work. If you find multiple beads scattered across a row of pads, plan your approach to avoid disturbing adjacent joints. By organizing the cleanup, you minimize collateral damage and speed up the repair.
Essential tools and setup for effective removal
A controlled, well-lit workstation is essential. Use a quality soldering iron with a fine tip, a reliable flux (rosin-based or no-clean), and a clean workspace to prevent new beads from forming. Solder wick (braid) is your primary tool for absorbing beads without lifting pads: place the wick onto the bead, apply gentle heat, and lift away. For stubborn beads or dense BGA regions, a hot air rework station or heat gun provides even heating and helps move beads away from critical joints. A desoldering pump offers a quick alternative for larger beads, but it can splash or lift copper if misused. Magnification tools, such as a loupe or microscope, help you target each bead precisely. Finally, clean with isopropyl alcohol and lint-free wipes to remove flux residues before testing. Safety is essential: wear eye protection and ensure proper ventilation, especially when using hot air.
Common mistakes to avoid when removing solder balls
Avoid using blunt tools that can scrape or smear solder across pads, which may create new shorts. Don’t over-apply flux or apply heat too aggressively, which can lift copper or damage fragile pads. Never reflow while a component is in place if you cannot shield it from heat; always remove the component for hot air work when feasible. Finally, don’t rely on a single method: combining wick, pump, and hot air often yields the best results, especially on complex boards. Learning to switch methods based on bead size and pad layout reduces rework and increases reliability.
Special considerations for lead-free solders and fine-pitch components
Lead-free solders behave differently under heat and reflow than traditional tin-lead alloys. They may require slightly higher temperatures and longer dwell times, which increases the risk of bead formation if heat is applied unevenly. Fine-pitch components and BGAs demand precise control and steady hands. When dealing with these cases, use a temperature-controlled iron, a micro-nozzle for the hot air, and ensure you’re not heating the board unevenly. Practicing on sacrificial boards can build familiarity before attempting live assemblies, reducing the chance of damaging high-value parts.
Tools & Materials
- Flux (rosin-based or no-clean)(Pen or bottle; fresh flux improves wetting)
- Solder wick (braid)(Fine diameter, as close to pad width as possible)
- Desoldering pump(Use for larger beads or quick removal)
- Fine-tipped soldering iron(Tip size around 0.5-0.8 mm)
- Hot air rework station or heat gun(For precise heating in dense areas)
- Magnification tool (loupe or microscope)(2-5x magnification helps accuracy)
- Isopropyl alcohol (90%+)(For cleaning flux residues)
- Lint-free wipes(For clean, residue-free surfaces)
- ESD wrist strap and anti-static mat(Protect sensitive electronics)
- Fine-tine brushes or capelli brush(For gentle cleaning around pads)
- Isopropyl cleaning brush or swabs(Assists cleaning in tight spots)

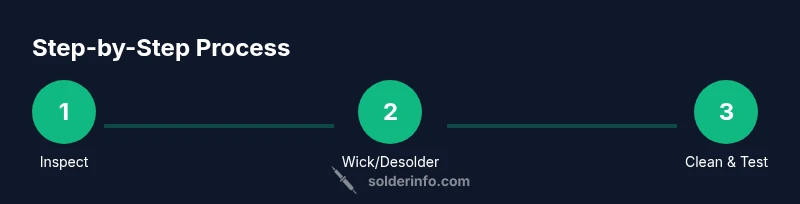

Steps
Estimated time: 20-40 minutes
- 1
Power down and prep
Power off the device and unplug it to avoid electric shock. Ground yourself with an ESD strap, and set up a clean, static-safe workspace. This prevents accidental damage and keeps the board stable during removal.
Tip: Always start with safety—prevents costly mistakes. - 2
Inspect the area under magnification
Use a loupe or microscope to locate all solder beads around the target area. Identify pads, vias, and any potential bridges before applying heat. This reduces the chance of missing beads and rework.
Tip: Mark beads with a non-conductive marker if helpful. - 3
Apply flux and ready your wick or pump
Apply a small amount of flux to the beads and nearby pads to improve wetting. Place the solder wick over the bead and anchor it with a small amount of heat, so the bead can be drawn into the braid. If using a pump, position it to capture the bead efficiently.
Tip: Flux helps control flow and prevents re-oxidation. - 4
Wick away beads or pump them out
Heat the iron and wick until the solder is drawn into the braid, then lift the braid away with steady pressure. For pumps, apply gentle pressure and avoid spraying solder onto adjacent pads. Work slowly and re-check with magnification.
Tip: Keep the tip clean; a dirty tip creates poor wetting. - 5
If beads resist, use controlled hot air
Switch to a hot air rework station with a fine nozzle. Apply heat gradually around the bead, guiding the solder away from critical joints. Stop heating as soon as the bead shifts and can be brushed away with the braid.
Tip: Use temperature control and no direct nozzle on tiny pads. - 6
Clean and verify
Wipe the area with IPA, inspect for any residue or bridging, and reflow joints if necessary. Test with a multimeter for shorts and continuity, then power up in a controlled environment to confirm stability.
Tip: Always verify joints after removal.
Quick Answers
What causes solder balls to form on a PCB?
Solder balls form due to improper heating, flux residues, contamination, or overheated pads. They can bridge pads or cause shorts if not addressed.
Solder balls form due to heat mismanagement, flux residues, or contamination, which can bridge pads or cause shorts.
Can I use solder wick for tiny solder balls on fine-pitch boards?
Yes, solder wick is effective for small beads when used with proper heat and fresh flux. For very dense areas, consider hot air rework with careful control.
Solder wick works for tiny beads if you heat carefully; for dense boards, hot air helps.
Is it safe to rework around sensitive components?
Rework should be performed with temperature control and shielding to avoid damaging nearby components. If uncertain, remove the component and rework on a spare board.
Use temperature control and shielding, or remove nearby components when in doubt.
How can I prevent solder balls in future projects?
Use the right flux, clean surfaces, and avoid excessive heat. Maintain clean tools and practice proper pad wetting to prevent bead formation.
Prevention comes from the right flux, clean surfaces, and careful heat control.
Are lead-free solders more prone to bead formation?
Lead-free solders require precise temperature control and longer dwell times; poor control can increase bead formation. Practice and proper equipment help mitigate this.
Lead-free solders need careful temperature control to avoid beads.
Watch Video
Top Takeaways
- Inspect beads with magnification before removal.
- Use flux and wick for precise bead removal.
- Avoid overheating to protect pads and traces.
- Verify joints after cleanup to prevent shorts.
- Adopt preventive practices to reduce future beads.
