Can You Solder Instead of Crimp? A Practical Guide

Explore when to solder instead of crimp, how to do it safely, and how to choose connectors. Learn practical steps, tips, and common pitfalls in this comprehensive guide.

SolderInfo
SolderInfo Team
·5 min read
Quick AnswerComparison

Yes—soldering can replace crimping in many wire and connector situations, provided the joint is designed for solder and the service conditions won’t undermine reliability. Solder joints offer excellent electrical continuity when performed with proper flux, heat control, and insulation. However, crimping remains preferred in some field or rugged environments due to mechanical strength and speed. This guide explains when soldering is appropriate, how to do it safely, and where to avoid substitution.

When soldering can replace crimp: scope and caveats

Soldering can replace crimping in many electrical and electronics wiring scenarios, but it’s not a blanket rule. If you’re wondering, can you solder instead of crimp, the answer is often yes for small, low-vibration connections and where an accessible joint will be inspected and maintained. However, some connectors and assemblies rely on the mechanical bite of a crimp to retain the conductor and seal against moisture or vibration. Before substituting solder for crimp, verify that your connector is rated to accept a soldered joint and that the service conditions (temperature, humidity, movement) won’t undermine the joint’s long-term reliability. This balance between electrical performance and mechanical integrity is why many professional guides emphasize a connector-by-connector decision rather than a universal rule. Solder joints can be extremely reliable when properly executed, and they offer the advantage of conductive continuity if the joint is clean, fluxed, and insulated. Throughout this guide, we’ll cover when soldering is appropriate and how to perform it with care. can you solder instead of crimp is a common question for DIYers, and the answer often depends on the connector and the environment.

Connector compatibility and design considerations

Not every connector accepts a soldered joint. Some automotive, industrial, and waterproof connectors rely on a mechanical crimp for strain relief and moisture sealing. When can you solder instead of crimp, you’ll want to confirm two things: (1) the connector manufacturer’s specification allows soldering, and (2) the joint will be inspected and maintained in service. Insulation clearance matters too — heat from soldering must not deform housing or insulation. If a connector has tight pin tolerances or requires a crimp contact for proper retention, soldering may introduce variability. In other cases, solderable contacts are designed to accept a wet flux and solder flow, forming a reliable electrical bridge. Always consult the connector datasheet and, if in doubt, test under realistic vibration and temperature conditions before committing to a production method. Soldering can be a good alternative when the design permits.

Wire sizing and heat management

Wire size heavily influences whether you should solder or crimp. For very fine stranded copper (e.g., 22–28 AWG), a properly controlled solder joint can provide robust electrical contact with minimal intrusion into insulation. Heavier gauge wires often benefit from crimping for mechanical strength, especially in high-vibration environments. When you solder, heat management is critical: apply heat to the joint, not the insulation, and feed solder slowly to form a smooth fillet without dripping onto insulation. Pre-tinning the wire ends can help, but avoid excessive solder on delicate insulation. Keep temperature rise short (a few seconds per side) and use flux to prevent oxidation. If you notice insulation melting or discoloration, stop and reassess.

Solder types and flux choices

Choosing the right solder and flux is essential for a reliable connection. For electronics, lead-free alloys with rosin flux are standard, while plumbing may use different alloys. Rosin-core solder provides flux within the core, which helps prevent oxides during heating. For connectors exposed to moisture, flux choice matters: avoid highly acidic flux that can corrode metals and plastics. Use a flux-rated for the joint material and cleaning after soldering to minimize residue. If your project is critical, review material compatibility: some plastics tolerate heat and flux better than others. Remember that flux residues can conduct or trap moisture if not cleaned properly. Soldering with the correct flux and solder reduces the risk of cold joints and weak connections.

Practical soldering technique: wire-to-wire and wire-to-terminal

A solid technique starts with clean, prepared surfaces. Steps include: (1) strip insulation to expose clean copper, (2) tin the exposed ends lightly, (3) apply flux to the mating surfaces, (4) heat the joint with the iron and feed solder until a smooth fillet forms, (5) remove heat and allow to cool without movement, (6) inspect the joint for uniform shine and absence of gaps. For wire-to-terminal joints, ensure the terminal is solderable and properly seated. Avoid overheating plastic housings and insulation; use heat-shrink sleeves to seal and provide strain relief. When done correctly, solder joints can rival or exceed crimped joints in electrical performance, while offering the advantage of reparability with heat control.

Common mistakes and how to avoid them

Common mistakes include overheating insulation, producing cold joints, and leaving flux residues that attract moisture. To avoid these, maintain steady heat, feed solder slowly, and inspect the fillet with a bright light. Ensure both surfaces are clean and dry before joining. Don’t tin the joint so heavily that excess solder bridges to neighboring conductors. If you see a dull or rough fillet, reheat and reflow rather than trying to force a final shape. Finally, don’t skip testing: a successful visual joint can still fail electrical tests if the joint isn’t continuous or mechanically sound.

Testing, inspection, and durability checks

After soldering, perform both electrical and mechanical tests. Use a multimeter to confirm continuity and measure resistance across the joint; check that resistance is low and stable. Perform a gentle tug test to verify mechanical integrity and ensure the joint won’t fail under vibration. Visually inspect for clean, smooth fillets, complete coverage of the copper, and proper insulation. Where applicable, perform a high-humidity soak test or temperature cycling to simulate real-world conditions. If any weakness is detected, rework the joint with fresh flux and solder and re-inspect until the joint passes both electrical and mechanical criteria.

Safety and environmental considerations

Work in a well-ventilated area and wear eye protection. Solder fumes contain compounds that can irritate the lungs; avoid breathing them directly. Use lead-free solder when possible and follow proper disposal guidelines for flux residues and spent solder. Keep a fire-safe work surface and avoid working near flammable materials. Always unplug equipment before starting, and keep children and pets away from the soldering workspace. Proper PPE and workspace organization reduce the risk of accidents and improve overall results.

Quick field guide: when to revert to crimp

If a connector is crimp-only or shows signs of compromised seizure against vibration or moisture, revert to crimping. Field repairs may demand speed and reliability under demanding conditions; in such cases, use a proven crimp method or a validated solderable contact. If uncertain, consult the connector datasheet and consider performing a controlled test under the same environment conditions to compare soldered versus crimped joints. When in doubt, choose the method with validated performance for the target application.

Tools & Materials

  • Soldering iron (40-60W)(Adjustable temperature; use a fine tip for small wires)
  • Lead-free or rosin-core solder(Diameter ~0.8-1.0 mm for small wires)
  • Flux (rosin or water-soluble)(Apply at joint interface to prevent oxidation)
  • Solder wick / desoldering braid(Useful for correcting over-soldered joints)
  • Heat shrink tubing or electrical tape(Insulate and provide strain relief)
  • Wire strippers and cutters(Prep wires cleanly to the copper)
  • Multimeter or continuity tester(Verify continuity and resistance)
  • Helping hands / third-hand tool(Optional but helpful for steady joints)

Steps

Estimated time: 60-90 minutes

  1. 1

    Prepare the wires

    Strip insulation to expose clean copper length. Twist strands and lightly tin the ends to reduce fraying and ease insertion into the joint. Ensure the stripped length matches the connector specification so there is adequate contact area without exposing bare insulation.

    Tip: Keep stripped length consistent; uneven exposed copper can cause gaps in the joint.
  2. 2

    Choose the connector and flux method

    Select a connector rated for soldering if you intend to solder. Apply flux to the mating surface and exposed copper to improve wetting and minimize oxidation during heating.

    Tip: Always verify compatibility with the connector’s material before applying heat.
  3. 3

    Position and heat

    Place the joint in the correct orientation. Apply heat with the soldering iron to the joint interface, not the insulation. Bring the solder to the joint and feed gently until a shiny fillet forms.

    Tip: Keep heat to a minimum; prolonged heating can damage insulation and connector plastic.
  4. 4

    Apply solder and form the fillet

    Feed solder slowly to the joint once the copper is heated; avoid puddling or bridging. Stop feeding as soon as a smooth fillet forms and the joint is fully covered. Remove heat and let cool naturally.

    Tip: Do not move wires until the joint has cooled to avoid a cold joint.
  5. 5

    Inspect and insulate

    Check for a bright, smooth fillet with complete coverage of copper. Slide heat-shrink tubing over the joint and shrink to seal and provide strain relief. If any gaps or dull areas appear, rework the joint.

    Tip: A clean inspection should look glossy; a dull or grainy surface indicates poor wetting.
  6. 6

    Test and finalize

    Use a multimeter to verify continuity. Perform a gentle mechanical tug on the wires to confirm robustness. Document results and proceed to field testing if required.

    Tip: If the joint fails electrical or mechanical tests, rework with fresh flux and solder.
Pro Tip: Keep your soldering iron tip clean and properly tinned for better heat transfer.
Warning: Avoid overheating plastics or insulation; excess heat can melt guides and weaken joints.
Note: Flux residues can attract moisture; clean with isopropyl alcohol after cooling if required.
Pro Tip: Tin both wires lightly before joining to improve wetting and reduce the chance of cold joints.
Warning: For critical connections, test under expected environmental conditions before deployment.

Quick Answers

Is soldering always a good replacement for crimping?

Not always. Some connectors require crimping for mechanical strength or moisture sealing. Always check the connector specifications before substituting solder for crimping.

Not always. Check the connector specs first to ensure soldering is acceptable.

Can you solder aluminum wires safely?

Soldering aluminum is possible with specialized alloys and flux, but it is more challenging and not common for standard electronics. Use aluminum-specific joints or mechanical methods where recommended.

Aluminum soldering is possible but tricky; follow specialized guides and avoid standard solders.

What wires work best with soldering?

Small to mid-size copper wires (e.g., 22–26 AWG) solder well when properly prepared. Heavier wires often rely on crimped joints for mechanical strength, especially in vibration-heavy applications.

Copper wires in the small to mid size range solder well with proper prep.

Does soldering affect connector warranty?

Soldering can affect warranties if the connector is specified as crimp-only or if soldering is not approved by the manufacturer. Always verify warranty terms before modification.

Warranty terms may restrict solder modifications; confirm with the manufacturer.

When should I revert to crimping in the field?

If the connector is crimp-only or if reliability under vibration is critical, revert to crimping. In the field, prioritize methods rated for the environment and use validated procedures.

If in doubt, choose crimping for field reliability and environment compatibility.

What tools are essential for soldering vs crimping?

Essential soldering tools include a suitable iron, flux, and lead-free solder, plus basic hand tools. For crimping, a proper crimp tool and the correct crimp terminals are essential. Always match tools to the connector type.

You’ll need a good iron, flux, and solder for soldering; a dedicated crimp tool for crimping.

Watch Video

Top Takeaways

  • Assess connector compatibility before soldering.
  • Use proper flux and temperature control.
  • Inspect joints for smooth fillets and insulation integrity.
  • Test electrical and mechanical performance after soldering.

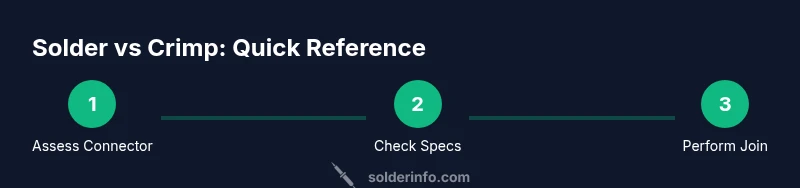

Process diagram comparing soldering and crimping choices in wiring
Solder vs Crimp: quick decision guide
