If you need to fix copper pipe leak without solder, you can use a repair clamp or epoxy putty as a temporary or semi-permanent solution. This quick guide outlines safe, step-by-step methods, essential tools, and when to call a professional. It’s designed for DIYers handling small, accessible leaks in copper piping.
Understanding non-solder repair options for copper pipes
Leaks in copper plumbing often arise from small pinholes, cracks, or corrosion near joints. While soldering provides a permanent seal, non-solder methods offer a practical alternative for urgent repairs or when a torch isn’t feasible. According to SolderInfo, temporary repair methods can buy time while you plan a proper fix, and they’re especially useful for compact, low-pressure sections. This section breaks down the most reliable options, how they work, and their limitations. You’ll learn when to choose a clamp, epoxy putty, rope or fiberglass wrap, or a mechanical sleeve, and which scenarios each method excels in. For many homeowners, a staged approach—temporary repair followed by a permanent replacement—is the safest route.
Key takeaway: non-solder repairs aren’t always permanent, but they can stop active leaks and prevent water damage while you prepare a proper fix.
Safety and prep: shutting off water and protecting yourself
Before touching any pipe, locate and close the main water shutoff or the valve nearest the leak. Open a faucet downstream to relieve pressure and drain the line. Put on safety goggles and gloves to protect against sharp copper edges and sudden bursts. Clear the work area of clutter, place a bucket under the leak, and lay down towels or a tarp to catch drips. If the leak is under a sink or behind a wall, consider temporary access or protective coverings to avoid mold or water damage. Always test the area after applying any repair to ensure the path of water is correctly sealed and that no new drips appear from nearby joints.
Mechanical repair options: clamps, sleeves, and patches
Repair clamps are a quick, reusable solution for pinhole leaks and small cracks. You’ll place the clamp over the damaged area and tighten the screws to compress a gasket that seals the hole. For larger leaks or where clamps won’t fit, a mechanical sleeve with an inner rubber gasket provides a solid seal around a damaged section. Patch kits and rubber repair patches can cover small defects, especially near joints. Remember to clean the area thoroughly and dry it completely before applying any clamp or sleeve. These methods are semi-permanent and should be followed by a long-term plan to replace the affected pipe if leaks recur.
Epoxy putty and fiberglass wrap: temporary, flexible fixes
Epoxy putty can be pressed into cracks and pinholes, then cured to form a hard, water-tight barrier. Choose epoxy designed for potable water applications if the pipe carries drinking water. Fiberglass wrap or reinforcing tape offers additional protection after the epoxy has cured, especially on curved surfaces. These solutions are convenient for rapid response, but they may fail under high pressure or temperature fluctuations. Always ensure the pipe is dry and free of oil or grease before applying epoxy or wrap, and allow adequate curing time as per the product instructions.
Pro tip: apply the epoxy in thin layers, allow each layer to cure fully, and finish with the wrap for extra security. This layered approach reduces the risk of premature failure.
When to replace or solder: making the right call
Non-solder repairs are typically temporary. If the leak is near a joint, on a section of old copper, or if you observe multiple leaks, plan for replacement or soldering as a permanent fix. Replacing a short section of copper pipe with a properly sized copper elbow and a soldered joint provides a longer-lasting solution. If you’re uncomfortable with flame-based soldering, consider having a licensed plumber perform the soldered repair or install a mechanical solder-free alternative, such as a compression fitting. A proper diagnosis reduces recurring leaks and protects the home from water damage in the long term.
Common mistakes and how to avoid them
Rushing repairs without proper shutoff can lead to water spray and injury. Avoid using damaged clamps or peeling epoxy that won’t seal. Never apply a repair that covers more than 1/3 of the pipe length around a leak because it can create stress points. Ensure all surfaces are dry and clean, and always follow product instructions for waiting times and curing periods. If the leak persists after a repair, shut off water again and reassess the area, possibly seeking professional help.
Tools & Materials
- Adjustable wrench(Use to loosen/tighten fittings; avoid over-tightening.)
- Repair clamp (compression or rubber gasket)(Choose size for the pipe diameter; ensure rubber gasket is intact.)
- Epoxy putty for water supply lines(Opt for potable-water-rated epoxy if the pipe carries drinking water.)
- Fiberglass wrap or repair tape(Use as added reinforcement after epoxy cure.)
- Pipe cutter or hacksaw(Needed if you plan to isolate and replace a small section.)
- Bucket and towels(Contain drips and protect surfaces.)
- Gloves and safety goggles(Protect hands from sharp edges and splashes.)
- Rag or cloth,(Wipe area dry before applying repair material.)
- Sandpaper or wire brush(Clean and roughen surface for better adhesion.)
- PTFE tape or pipe thread sealant(Optional for threaded joints; not typically used on copper pipes without threads.)

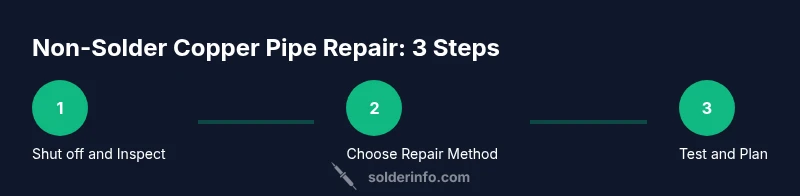

Steps
Estimated time: 60-120 minutes
- 1
Shut off water and prepare the area
Locate the main or branch shutoff valve and close it. Open downstream taps to drain the line and reduce pressure. Move furniture and place a bucket to catch drips, then protect nearby surfaces.
Tip: If you can’t find the shutoff, switch off at the main service panel/fuse box first to avoid flooding. - 2
Assess the leak and clean the pipe
Dry the area around the leak and wipe away rust, grease, and debris. A clean surface improves adhesion for epoxy or the gasket seal of a clamp.
Tip: Use sandpaper to lightly abrade the pipe surface for better grip. - 3
Choose a repair method
Decide between a mechanical clamp, a sleeve, epoxy putty, or wrap based on leak size, location, and pipe accessibility.
Tip: For small pinholes, epoxy + wrap can be quick; for larger leaks, a clamp or sleeve is more reliable. - 4
Apply the repair clamp or sleeve
Place the clamp over the damaged area, align correctly, and tighten screws evenly. If using a sleeve, insert around the pipe and secure the ends.
Tip: Do not overtighten; it can deform the pipe and worsen the leak. - 5
Apply epoxy putty (if chosen)
Mix or knead the epoxy as directed, press into the crack or pinhole, and smooth the surface. Allow curing time per manufacturer instructions.
Tip: Only use epoxy rated for potable water if the line carries drinking water. - 6
Reinforce with fiberglass wrap
Once epoxy has cured, wrap the area with fiberglass tape or reinforcing wrap to add mechanical strength.
Tip: Overlap wraps by at least half the width of the tape for a strong seal. - 7
Slowly reintroduce water and test
Turn the water back on gradually and observe for further leaks. Check all joints and clamps after 5-10 minutes of flowing water.
Tip: Be prepared to shut off quickly if you see drips reappearing. - 8
Plan a long-term fix
Schedule a proper pipe replacement or soldered repair if leaks persist or if the pipe shows signs of aging.
Tip: Temporary fixes are stopgaps; document the area and plan a comprehensive repair.
Quick Answers
Is a solder-free repair safe for all copper pipes?
Solder-free repairs are generally safe for small, accessible leaks and non-pressurized lines. They are commonly used as temporary fixes while planning a permanent solution. For high-pressure systems or major leaks, a soldered joint or replacement is recommended.
Solder-free repairs work for small leaks and non-pressurized lines, but for big leaks or high pressure, you should consider soldering or replacing the pipe.
Can epoxy putty be used on drinking-water lines?
Yes, only if the epoxy is rated for potable water. Verify label claims and manufacturer guidelines before application. If unsure, avoid using epoxy on drinking-water lines and pursue a mechanical repair or replacement.
Only use potable-water rated epoxy for drinking-water lines, and follow the product’s directions carefully.
How long does a repair typically last?
Non-solder repairs are usually temporary, lasting days to months depending on pressure, temperature, and pipe condition. Schedule a proper fix as soon as possible to prevent future leaks.
Non-solder repairs are temporary and depend on conditions; plan a proper fix soon.
What if the leak is near a joint or elbow?
Leaks near joints are more prone to reoccurrence. You may need to replace the section or re-solder the joint for a reliable, long-term seal.
Leaks near joints often require replacement or soldering for a lasting seal.
When should I call a professional?
If the leak is large, persistent, or located behind walls, it’s safer to call a licensed plumber. They can perform a proper soldered repair or install a permanent mechanical solution.
Call a professional for large or stubborn leaks or if the pipe is in a difficult location.
Watch Video
Top Takeaways
- Identify leaks and shut off water before work.
- Choose repair method based on pipe accessibility and leak size.
- Epoxy and wraps are temporary; clamps and sleeves are more durable.
- Test thoroughly and plan a long-term repair.
