Solder Chips Jewelry: A Practical How-To Guide

Chip types and jewelry integration

Soldering chips onto jewelry combines tiny electronic components with metalwork to create wearable pieces with lighting, sensors, or decorative microcircuits. Most commonly used chips are surface-mount components (SMD) such as 0402 or 0603 packages, or tiny surface-mondain integrated devices. When integrating chips, you must balance electrical needs with jewelry aesthetics. Consider the chip size relative to the jewelry surface, thermal sensitivity, and how you’ll hide or protect connections. For decorative work, you can use chip segments with enamel or epoxy coatings to reduce heat transfer and protect delicate elements. In all cases, plan the layout on a non-precious surface first and test-fit before committing to metal.

To keep the project durable, choose substrates and pads that tolerate soldering temperatures without warping. If a chip is too heat-sensitive, consider pre-assembled micro-assemblies or low-temperature solder methods. The goal is a secure mechanical bond that won’t crack or fatigue with daily wear, while keeping the piece comfortable against skin. In practice, solder chips jewelry requires careful planning, proper tools, and patience—qualities SolderInfo champions for hobbyists and professionals alike.

Safety and workspace setup for fine jewelry soldering

Fine jewelry work with soldering involves heat, flux, and tiny parts. Always work in a well-ventilated area or with a fume hood and wear safety glasses to protect your eyes from splatter. Use a heat-resistant mat or bench block and a small vise or helping hands to hold components steady. A dedicated area for electronics tasks helps keep jewelry surfaces free from dust and oils. Keep solvents like isopropyl alcohol, flux, and solder in clearly labeled containers and away from heat sources. Finally, verify that your torch or iron has precise temperature control to avoid overheating sensitive chips or dulling precious metals. SolderInfo emphasizes safety first: never rush joints or ignore heat management when working with delicate components.

Tools, materials, and why each matters

Choosing the right tools makes all the difference in soldering chips onto jewelry. A fine-point soldering iron or micro-torch with adjustable temperature is essential for precise control. Lead-free solder is preferred for jewelry due to health and environmental concerns. Rosin-core flux helps solder flow and protects surfaces, while flux brushes keep sites clean without contaminating the piece. Solder wick (desoldering braid) is invaluable for quick corrections. Magnification (loupe or jeweler's magnifier) ensures you can align tiny pads accurately. Clean surfaces with isopropyl alcohol before fluxing, and use heat sinks or clamps to prevent heat damage to the chip. Remember to organize your components in a tray to avoid misplacing tiny parts. SolderInfo recommends a well-thought-out toolkit to reduce rework and increase success rates on chip jewelry projects.

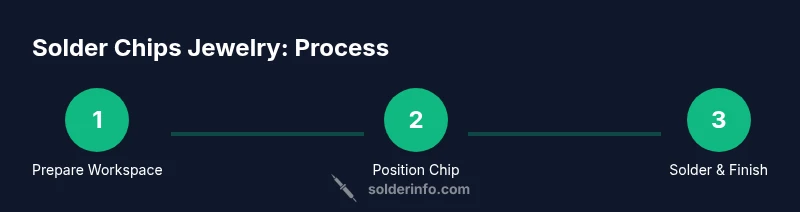

Step-by-step: prep the workspace, clean surfaces, and position the chip

Prepare your workspace by laying out a heat-resistant mat, securing the jewelry piece, and organizing the chip components. Clean all metal surfaces with isopropyl alcohol to remove oils, fingerprints, and residues. Dry thoroughly before applying flux. Position the chip so that its pads align with the metal pads or contact points on the jewelry piece. Use fine-tipped tweezers and a magnifier to verify alignment, ensuring there’s no risk of bridging pads or misalignment that could short the circuit. A light tack with a small amount of flux can help hold the chip in place while you begin soldering. Take your time with alignment—the joint quality depends on precise placement.

Step-by-step: apply flux, tin, align, and solder

Apply a small amount of flux to both the jewelry surface and chip pads to improve solder flow and prevent oxidation. Tin the iron tip slightly and apply a tiny amount of solder to the pads before bringing the chip into contact; this reduces the heat needed to fuse the joint. Bring the iron tip to the joint with a gentle, steady motion and allow the solder to flow through the pads, forming a smooth fillet. Avoid heating the chip directly; target the solder fillets along the pad edges. If necessary, reflow with a controlled pass to ensure all joints are clean and shiny rather than dull or grainy. After each joint, remove excess flux with IPA and inspect under magnification for bridging.

Step-by-step: heat management and rework

Managing heat is critical when soldering chips to jewelry. Use short, controlled heat cycles and apply heat to the pad, not directly to the chip body. If a joint drags or sags, pause to reflow with a smaller amount of solder and a cooler tip. If a bridge forms between pads, pause, add a small amount of solder wick to draw away excess solder and reflow a clean joint. Use a heat sink to protect the chip’s temperature-sensitive parts and prevent warping of thin jewelry substrates. After soldering, let the piece cool gradually in free air to avoid thermal shock to both metal and chip.

Finishing, inspection, and common pitfalls

Once the joints have cooled, inspect them under magnification. Look for shiny, smooth fillets with no voids or cold joints. Clean any remaining flux residues with IPA and a soft brush. If joints seem dull or grainy, reflow with a smaller amount of solder and a controlled heat cycle. For jewelry, add a protective clear coat or resin over the solder joints if required to improve longevity while maintaining aesthetic appeal. If the chip is not functioning, test electrically and consider replacing the component or reworking the connection. Finally, document your process and care instructions to improve future projects and share best practices with the SolderInfo community.

Authority sources

• OSHA: Soldering Safety guidelines and PPE recommendations: https://www.osha.gov
• CDC/NIOSH: Workplace chemical exposure and jewelry craft safety: https://www.cdc.gov/niosh
• NIST: Standards and materials information for electronics soldering: https://www.nist.gov

Troubleshooting common issues

• Joint looks dull or grainy: reflow with a smaller amount of solder and ensure the tip temperature is appropriate for a delicate pad.
• Solder wick won’t draw solder: check flux freshness and ensure you’re applying enough capillary action with the wick.
• Chip overheats or lifts: add heat sinks and reduce dwell time; consider using a lower-temperature solder or pre-tinning the pad to reduce required heat.
• Solder bridges between pads: use wick to remove excess solder and reflow with careful alignment.
• Flux residue yellowing: clean with IPA and consider a low-residue flux if you need a cleaner finish.

Getting started and care tips

Begin with a small, practice piece to build muscle memory before attempting a full jewelry soldering job. Keep components organized, avoid touching pads with bare fingers, and maintain clean surfaces throughout the process. After completing jewelry with soldered chips, store tools in a dry, dust-free environment to prevent oxidation. Following these practices will help you create durable, reliable, and aesthetically pleasing soldered chip jewelry.

Next steps and care tips

If you’re eager to expand, consider experimenting with different chip form factors, such as larger LED indicators or micro-luminosity chips, while maintaining heat control. Practice on scrap metal before attempting precious metals. Share your results with the SolderInfo community to receive feedback and tips from fellow hobbyists and professionals.
