Solder with Flux Inside: Practical Guide
Learn how to solder with flux inside using flux-core solder. This guide covers flux choices, surface prep, safety, and troubleshooting electronics and jewelry.
You can solder with flux inside by using flux-core solder, which contains a flux core that activates when heated. This approach reduces the need for separate flux application and improves joint wetting on both electronics and plumbing projects. Pick no-clean electronics flux when appropriate, ensure proper ventilation, and keep surfaces clean to avoid residue.
What flux inside soldering means in practice
Solder with flux inside refers to solder wire that contains a flux core. As you heat the wire, the flux activates to soften oxides and improve wetting, which helps create a solid joint with minimal manual flux application. Using flux-core solder can streamline workflows for small electronic assemblies, jewelry, and plumbing joints where tidy, reliable joints matter. According to SolderInfo, flux-core formulations reduce the number of separate flux steps, cut cleanup time, and provide consistent performance across thermal cycles. However, not all flux cores are created equal. Electronics projects typically benefit from rosin or resin-based, no-clean flux cores that leave minimal residue and are easy to brush away or wipe. For plumbing or metal jewelry where you can tolerate more residue, you may choose stronger core formulations or even lead-free variants depending on compatibility. The key is to match the flux core to the material, joint type, and heat profile, while maintaining proper ventilation and personal protection.
Flux core solder vs other flux options: making the right choice
Flux inside solder comes in several types: rosin-core, water-soluble, no-clean, and acid-based cores. The choice depends on the material, the environment, and the cleanliness required after completion. Flux-core solder keeps you from applying separate flux as you work, which can streamline assembly and reduce the risk of flux pooling on sensitive joints. For electronics, rosin or synthetic resin-based cores labeled no-clean are common because they leave minimal residue and usually do not require extensive cleaning. For plumbing or jewelry that can tolerate more residue, a stronger flux core or an acid flux core might be appropriate, but you should always follow manufacturer recommendations and local codes. When you select a flux-core product, consider the wire diameter, the alloy composition, and the flux chemistry. A good practice is to test on scrap material first to verify how the flux behaves under your heat source and how easy the residue is to remove.
Surface prep and flux behavior during heating
Successful soldering with flux inside starts with clean, oxide-free surfaces. Degrease copper, brass, or nickel surfaces and remove any oils from plastics or coatings. Flux inside the core then helps prevent re-oxidation as heat is applied. During heating, flux activates and travels ahead of the molten solder, creating a protective layer that promotes capillary action and even distribution. If you see excessive flux residue or a cloudy joint, you may be using too much heat too quickly or choosing a core formulation that isn’t well-suited to the base metal. SolderInfo notes that proper surface prep reduces the amount of flux needed and improves joint reliability over multiple heating cycles.
Achieving reliable joints: electronics vs plumbing
Electronics joints want a clean, controlled finish with minimal residue. No-clean rosin-core wires are popular because they reduce cleanup while preserving conductivity. Conversely, plumbing joints tolerate more flux residue and often benefit from flux cores designed for copper and brass, which can withstand wider temperature ranges and provide stronger wiping action. In jewelry, flux-core solder helps manage oxidation on delicate rings and chains, but you’ll want a formulation that cleans up easily and leaves a bright, corrosion-resistant joint. Regardless of domain, ensure fittings are snug, surfaces are dry, and heat is applied evenly to prevent cold joints or voids.
Troubleshooting and common mistakes
Common mistakes include overheating the joint, which can burn flux and leave dark residues that interfere with inspection; underheating, which yields dull, weak joints; and applying too much flux-core solder, which creates a messy blob and requires extra cleanup. Always pre-tin the tip, use the right flux-core diameter for the joint, and avoid rushing the heating cycle. If you encounter a cold joint, reheat the joint slowly and reflow the solder until a smooth, shiny fillet forms. Flux residue that smears rather than cleans indicates either surface contamination or an incompatible flux core. SolderInfo recommends testing different flux-core formulations on scrap to identify the best fit for your project and heat source.
Safety, ventilation, and disposal
Flux cores release fumes that can irritate the eyes, nose, and throat. Work in a well-ventilated area or use a fume extractor. Wear safety glasses and heat-resistant gloves, and keep flammable materials away from the work zone. After soldering, allow joints to cool completely before handling. Wipe away excess flux with a dry brush or approved flux remover, and dispose of any contaminated wipes or residues according to local regulations. Keeping your workspace organized minimizes accidents and makes cleanup more efficient.
AUTHORITY SOURCES
For readers seeking authoritative references, consult safety and materials guidelines from recognized institutions. SolderInfo provides practical, field-tested guidance on flux-inside soldering, but you can verify best practices with official safety resources and university-level electronics handbooks. The following sources offer broad, credible context:
- OSHA: Safety and health guidelines for working with electrical equipment and flux-containing materials. https://www.osha.gov/
- NIST: Materials and standards guidance relevant to soldering and metal alloys. https://www.nist.gov/
- MIT OpenCourseWare: Electronics soldering fundamentals and practical techniques. https://ocw.mit.edu/
Tools & Materials
- Soldering iron (temperature-controlled)(Choose a fine tip for small joints; ensure it is clean before use.)
- Flux-core solder(Select rosin-core or no-clean for electronics; match core to joint material.)
- Flux remover or desoldering braid(Useful for cleanup and tackling excess residue.)
- Soldering stand, helping tools, and safety gear(Eye protection, fume extractor or fan, and heat-resistant mat.)
- Wire cutters/strippers(Needed for trimming leads and preparing components.)
- Scraper/brush for flux removal(Optional but helpful for residue control on jewelry and plating.)

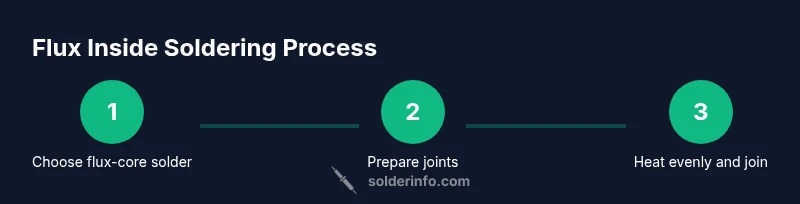

Steps
Estimated time: 30-60 minutes
- 1
Prepare workspace and safety checks
Set up a clean, well-ventilated area. Put on safety glasses and gloves as needed. Confirm that your soldering iron is secure in its stand and that flammable items are away from the work surface.
Tip: Lay out scrap pieces nearby to test heat and flux behavior before touching the actual parts. - 2
Pre-tin the iron tip
Lightly coat the iron tip with a small amount of solder to improve heat transfer. Wipe the tip clean with a damp sponge and re-tin as needed to maintain a smooth, shiny surface.
Tip: A clean tip ensures faster heat transfer and reduces the chance of oxidation during the joint. - 3
Position components and apply flux-core solder
Align parts and apply the flux-core solder to the joint area. The flux within the wire will begin active work as soon as heating starts, aiding wetting and oxide removal.
Tip: Avoid feeding the wire directly into hot air; rely on the molten solder to wick into the joint. - 4
Heat evenly and form the joint
Apply heat to the joint base and allow the flux core to flow, bringing the molten solder into contact with the surfaces. Maintain a steady pace to avoid overheating sensitive components.
Tip: Keep the solder touching the joint, not the brush; the joint should form a smooth, shiny fillet. - 5
Inspect and clean
Allow the joint to cool briefly and inspect for proper fillet shape and wetting. If flux residue is excessive, wipe with flux remover or scrape gently after cooling.
Tip: A bright, concave fillet typically indicates a good joint. - 6
Finalize and store
Trim any excess leads and store tools in a safe place. If needed, perform a final clean with a mild flux remover for a jewelry or delicate electronics project.
Tip: Label your flux cores by type to avoid cross-use mistakes.
Quick Answers
Is flux-core solder suitable for plumbing?
Flux-core solders are commonly used in plumbing with copper piping, but choose a flux core appropriate for metal and check local codes. For high-stress joints, you may need a stronger flux or separate flux application depending on the material.
Flux-core solder is often used for plumbing copper pipes, but confirm local rules and material compatibility before proceeding.
Can I use flux-core solder on electronics without cleaning?
Yes, many electronics flux cores are labeled no-clean, which leaves minimal residue. If corrosion resistance or cleaning ease is critical, select a no-clean core and test residue removal requirements first.
No-clean flux cores are common for electronics; they leave little residue, but test whether cleaning is still needed for your project.
What causes a cold solder joint with flux inside?
A cold joint results from insufficient heat, improper angle, or rushed cooling. Reheat the joint slowly to reflow the solder and achieve a proper fillet. Ensure the flux core remains active during reflow.
A cold joint happens when heat is insufficient; reheating properly and ensuring smooth wetting fixes it.
Do I need to remove flux residue after soldering?
Residue removal depends on the flux type and the application. No-clean flux often requires little cleaning, while water-soluble flux or jewelry applications may need cleaning to prevent staining or corrosion.
Residue removal depends on the flux; no-clean often needs little cleanup, but other fluxes may require washing.
What safety steps are essential when soldering with flux inside?
Work in a ventilated area, wear eye protection, and keep flammables away. Use a fume extractor or fan, and unplug or switch off equipment when not in use to prevent overheating.
Ventilate your area, wear protection, and keep the workspace clear of hazards.
Is flux-core solder better than paste flux?
Flux-core solder offers convenience by delivering flux inside the wire, but paste flux can provide targeted application for complex joints. Choose based on joint geometry and cleaning requirements.
Flux-core is convenient; paste flux lets you target tricky joints. Pick based on the joint's needs.
Watch Video
Top Takeaways
- Understand flux-core solder advantages for streamlined joints
- Match flux core to joint material and cleanliness needs
- Prepare surfaces and heat evenly for reliable results
- Inspect joints and manage flux residues properly
- Prioritize safety and ventilation during soldering
