Flux Essentials: Do You Need Flux When Soldering? A Practical Guide
Discover whether flux is necessary when soldering, how to choose flux types for electronics, plumbing, and jewelry, and best practices for clean, reliable joints. This step-by-step guide includes safety tips, troubleshooting, and real-world examples from SolderInfo.
Yes, flux is typically needed when soldering to ensure a good joint. Flux cleans oxide, prevents re-oxidation, and improves solder wetting, resulting in stronger, more reliable joints. Use rosin-core flux for electronics, lead-free rosin flux for safety, or water-soluble flux for plumbing; select non-corrosive, no-clean varieties when possible.
Flux in Soldering: Why it matters
Flux plays a foundational role in soldering across electronics, plumbing, and jewelry work. The basic purpose is simple: flux cleans the metal surfaces, prevents oxide formation during heating, and lowers surface tension so the solder can flow smoothly into the joint. When you ask, "do you need flux?" the honest answer is: for most metals and joint configurations, flux improves reliability and reduces the chance of cold joints or weak bonds. At SolderInfo, we see that even experienced hobbyists appreciate flux because it shortens troubleshooting time and increases tolerance for imperfect technique. In practice, flux makes the heat source work smarter, not harder, allowing you to achieve a consistent fillet with less effort. Remember that flux is not a solvent; it is a facilitator that keeps the metal surfaces in a receptive state for solder.
For beginners, the concept of flux can feel abstract until you visualize the oxide layer as a rust-like barrier. Flux dissolves or displaces this barrier so the solder can cohere with the metal beneath. In electronics, you typically solder small, delicate joints on PCBs where oxidation can be subtle yet impact performance. In plumbing, flux supports larger joints and copper-to-copper connections that must withstand pressure. Across all disciplines, flux is a partner to heat, helping the metal accept solder cleanly. The takeaway: flux is an essential ally for reliable soldering, especially when working with reactive metals or tight tolerances.
format
Tools & Materials
- Flux (rosin-core, water-soluble, or no-clean)(Choose based on application: electronics typically rosin-core; plumbing benefits from water-soluble flux; no-clean when cleanup is difficult.)
- Flux brush or applicator(Use a dedicated brush; avoid cross-contamination between flux types.)
- Solder (lead-free for safety)(For electronics use rosin-core lead-free solder; for plumbing, use appropriate Core flux solder or non-corrosive flux-grade solder.)
- Isopropyl alcohol or flux remover(Supplemental cleaning after soldering to remove flux residues when using water-soluble flux.)
- Magnification + good lighting(Helpful for small electronics joints to ensure even coverage and inspection.)
- Heat source (soldering iron, torch, or hot air)(Match the heat source to your flux type and joint size; electronics usually use a temperature-controlled iron.)

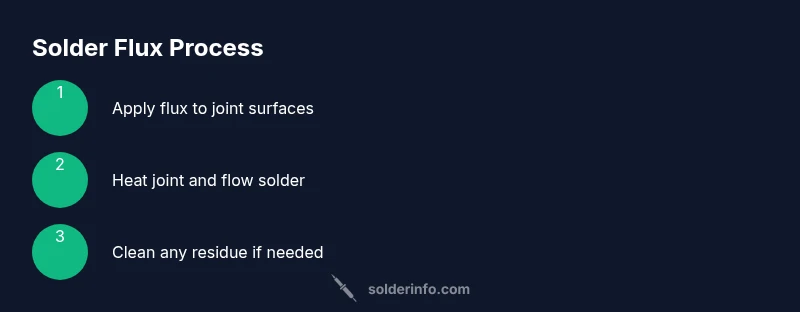

Steps
Estimated time: 30-60 minutes
- 1
Prepare your workspace
Clear the area, secure the workpiece, and ensure ventilation. Clean surfaces with isopropyl alcohol to remove oils that could hinder flux performance. Select the flux type appropriate for your project and inspect the solder for contaminants.
Tip: Organize tools in reach; a tidy station reduces accidental contamination of flux or joints. - 2
Apply a thin flux layer
Brush a very thin, even layer of flux onto the joint surfaces. Avoid globs, since excess flux can burn or leave residues that hinder inspection. For electronics, flux-core solder may already contain flux; apply flux only if needed for a stubborn joint.
Tip: Less is more; over-fluxing can create concealment and cleaning challenges later. - 3
Position components and prepare for heating
Align parts so that the joint faces are properly mated. Ensure you have a clear path for heat and that the flux is in contact with the metal interface. This improves wetting and reduces the chance of misalignment during soldering.
Tip: Tack joints lightly if needed to hold position before final soldering. - 4
Apply heat and introduce solder
Heat the joint with the appropriate tool until the flux activates and the metal surfaces look ready for solder. Touch the solder to the joint, not directly to the iron, and allow capillary action to draw solder into the joint.
Tip: Use a light touch and maintain steady heat; overheating can burn flux and leave residues. - 5
Inspect and dissolve excess flux residues
After cooling, inspect the joint for shiny, uniform fillets. If using water-soluble flux, clean with water or isopropyl alcohol; rosin flux typically requires lighter cleaning or none, depending on the type.
Tip: Look for a smooth fillet; dull or cracked joints indicate poor wetting or contamination. - 6
Store flux properly and document results
Seal containers tightly to prevent drying. Label flux type and the date of use to track residues and future maintenance. Saving a photo of the joint can help with troubleshooting later.
Tip: Storing flux away from heat and direct sunlight preserves its activity and shelf life.
Quick Answers
Is flux always required for soldering?
Flux is typically recommended because it cleans and prepares surfaces for soldering, but some flux-core solders include flux that may suffice for simple joints. Always assess the joint material and environment to decide.
flux is usually recommended, but for simple joints with flux-core solder, additional flux may not be necessary.
What flux should I use for electronics?
Rosin-core flux is common for electronics because it provides good activation with minimal residue. For sensitive assemblies, no-clean rosin flux minimizes cleanup after soldering.
Rosin-core flux is typical for electronics; no-clean options reduce cleanup work.
Can I solder plumbing without flux?
Flux is generally beneficial for plumbing to ensure copper surfaces are clean and the solder wets evenly. Water-soluble flux is often used for plumbing, followed by thorough rinsing.
Flux helps copper joints wet properly; rinse after use.
How do I know if flux residue is harmful?
Some flux residues are harmless and designed to be left on the joint (no-clean), while others may cause corrosion if not cleaned. Follow manufacturer guidance and clean when in doubt.
Check flux type; clean if unsure.
What happens if I over-apply flux?
Too much flux can create a film that interferes with solder flow and can leave sticky residues. Use a thin, controlled layer for best results.
Too much flux can hinder solder flow; apply sparingly.
How should flux be stored?
Keep flux in its original container, tightly closed, away from heat and sunlight. Label with date to monitor shelf life and effectiveness.
Store flux tightly closed in a cool, dark place.
Watch Video
Top Takeaways
- Use flux to improve joint reliability and solder flow.
- Choose flux type by application: electronics, plumbing, or jewelry.
- Apply a thin, even layer; avoid excess residues.
- No-clean fluxes simplify cleanup, but inspect joints post-solder.
- Always store flux properly and document results for future work.
