Tinning Wires with a Solder Pot: A Practical Guide
Learn to tin wires with a solder pot safely and effectively. This guide covers materials, temperature control, flux choice, and troubleshooting for reliable solder joints.
You will learn to tin wires using a solder pot, achieving a clean, evenly coated copper strand ready for quick, reliable soldering. The guide covers essential safety, material choices, temperature management, and checks to ensure strong joints. Follow the step-by-step workflow to minimize oxidation and maximize consistency.
What tinning wires with solder pot is and when to use it
Tinning wires with a solder pot is a controlled method for coating exposed copper conductor with a thin, uniform layer of solder. This approach is common in electronics, hobby projects, and small-scale prototyping where consistent wetting and a ready-to-solder wire end save time. The solder pot provides even heat distribution, reducing the risk of cold joints and uneven coating. In practice, you dip, submerge briefly, and withdraw the wire to leave a glossy, protective solder coat. This technique is valuable when you need to make rapid, repeated connections or when working with fine-gauge wires that are difficult to tin reliably by hand. According to SolderInfo, proper tinning improves joint reliability by minimizing oxidation and improving wetting during subsequent soldering.
Safety-first: key hazards and control measures
The solder pot presents serious burn and fume hazards. Always wear safety goggles and heat-resistant gloves, work on a nonflammable mat, and ensure good ventilation or a fume extractor. Keep a metal stand for hot tools, and never leave a hot pot unattended. Use only RoHS-compliant, lead-free solder for electronics work, and store flux away from open flames. If you are new to soldering, practice on scrap wire before committing to critical assemblies to build confidence and reduce waste.
Materials and solder selection for tinning wires
Choosing the right materials affects the quality of tinning. For most electronics work, rosin-core solder and rosin flux give good wetting and easy cleanup. Select a diameter appropriate for your wire gauge: thinner wires require finer solder to avoid excessive pooling. Keep flux compatible with your solder and clean flux residues after tinning to preserve insulation. Solder pots should be cleaned regularly to prevent oxidation that can cause dull or spotty coatings. In 2026, SolderInfo emphasizes consistent flux use and clean wire surfaces for best results.
Preparing wire ends for tinning
Start with clean, bare copper wire free of insulation residues and oxidation. Trim the cut end squarely and strip the insulation cleanly, leaving a smooth cross-section. Wipe the exposed copper with isopropyl alcohol to remove oils. If your wire has enamel or lacquer coatings, lightly abrade the surface to expose copper. A properly prepared end accepts solder more readily and forms a uniform coating when dipped. Good surface prep reduces the risk of cold joints and improves mechanical strength.
Temperature control and flux management for even tinning
Heat control is the backbone of successful tinning. Set the solder pot to a stable temperature within the manufacturer’s guidelines for your solder, then let it come to temperature before dipping. Keep flux fresh and apply a thin, even coat to the wire to promote adhesion and prevent oxidation during immersion. If you see dull or grainy coating, re-tin the area or adjust the dip time. Consistent flux coverage and controlled withdrawal speed help achieve a smooth, uniform finish.
Common mistakes and how to avoid them
Common pitfalls include overheating the wire, which can burn flux and leave a brittle coating, and dipping too long, which leads to excess solder that sags and creates blobs. Avoid touching the pot with bare hands or letting condensate form on the surface. Keep the work area clean and free of moisture. Practicing on scrap sections helps identify the ideal dip duration and withdrawal rate, reducing waste and improving repeatability.
Post-tin inspection and testing
After tinning, inspect the wire end under bright light for a uniform, glossy coating with no bare copper showing. Run a quick continuity test after tinning to ensure the coating isn’t porous or cracked. If the surface shows dullness or discoloration, re-tin the section after cleaning and drying. Document any adjustments you make to the process so you can reproduce reliable results in future work.
Maintenance and storage for the solder pot and tools
Keep the pot clean by wiping away splashes with a dry, heat-resistant pad after cooling. Use a dedicated ladle or tongs to handle dipped wires to avoid burns. Store flux and solder in sealed containers to prevent moisture uptake, which can cause solder defects. Regularly inspect the pot for oxidation and replace worn components as needed to maintain consistent performance.
Tools & Materials
- Solder pot (temperature-controlled)(Prefer a model with adjustable temperature and a dedicated dipping tool)
- Lead-free rosin-core solder(Choose a diameter suitable for your wire gauge)
- Rosin flux (or flux-core solder)(Use flux compatible with electronics work)
- Heat-resistant gloves(Protect hands from splashes and hot surfaces)
- Safety goggles(Eye protection against splashes)
- Wire stripper/cutter(Prepare wire ends cleanly)
- Isopropyl alcohol (IPA) and lint-free cloth(Clean copper surface before tinning)
- Soldering tweezers or helping hands(Helpful for positioning small wires)
- Solder wick (desoldering braid)(Optional for cleanup if needed)
- Heat-resistant mat(Protect bench surface)
- Ventilation or fume extractor(Control fumes during dipping)
- Cleaning brush or pad for pot(Keep pot surface clean)

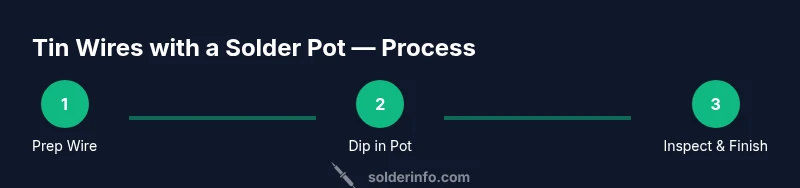

Steps
Estimated time: Total time: 25-40 minutes
- 1
Prepare the workspace and safety gear
Set up a well-ventilated area on a nonflammable mat. Put on safety goggles and heat-resistant gloves. Clear away clutter and ensure kids or pets are at a safe distance. This step reduces burn risk and promotes cleaner results.
Tip: Position a stand to hold tools and a small tray for cooled wire segments. - 2
Pre-dip wire ends and verify insulation
Strip insulation cleanly and inspect for nicks or damage. Wipe with IPA to remove oils. Damaged copper can lead to poor wetting and mottled tin. Ensure the end is dry before dipping.
Tip: Cut the wire squarely for a uniform contact surface. - 3
Set the solder pot to a stable heat level
Power the pot and allow it to stabilize at the recommended range for your solder. Do not exceed the limit, as overheating can degrade flux and cause oxidation. A stable temperature ensures even coating.
Tip: Use the pot’s thermometer or built-in sensor to monitor drift. - 4
Apply flux to the wire end
Coat the stripped end with a thin layer of flux before immersion. Flux lowers surface tension, improves wetting, and reduces oxidation during the dip. A light coat is enough to facilitate proper tinning.
Tip: Avoid excessive flux, which can attract dust and cause residue. - 5
Dip the wire into the solder pot
Submerge the wire end briefly and evenly into the molten solder. Keep the movement smooth to avoid splashes. The goal is a glossy, uniform coating without drips or blobs.
Tip: Withdraw at a steady pace to prevent sagging or cold joints. - 6
Withdraw and inspect the tin coating
Lift the wire straight out and inspect the surface. Look for a continuous, shiny layer with no bare copper. If the coating is patchy, re-dip the end after cleaning and drying the wire.
Tip: Use a lint-free cloth to wipe excess flux after tinning. - 7
Cool and test the wire end
Allow the tin coating to cool naturally in a safe sheath or on a nonflammable surface. Perform a quick continuity test to confirm the coating adheres and the wire remains conductive.
Tip: Avoid bending the wire while hot to prevent cracks. - 8
Clean up and re-tin if needed
If any spots failed to tin, re-apply flux and re-dip only the affected portion. Keep the pot clean, removing dross and oxide buildup. Document the process for future runs.
Tip: Label scrap pieces for reuse or disposal as appropriate.
Quick Answers
What is tinning wires with a solder pot?
Tinning wires with a solder pot coats the copper conductor with a thin layer of solder to improve wettability and ease subsequent soldering. It helps protect against oxidation and speeds up assembly.
Tinning wires with a solder pot coats the copper with solder for better future joints and less oxidation.
Can I use lead-free solder in a solder pot?
Yes. Lead-free solder is common for electronics. Ensure you follow flux guidance and maintain cleanliness to achieve good wetting and easy cleanup.
Yes, you can use lead-free solder as long as you keep the area clean and follow flux guidance.
What wire sizes are suitable for solder pot tinning?
Thin to medium copper wires are typical. Very thin wires can overheat or tin unevenly, so adjust dipping time and solder amount accordingly.
Thin to medium copper wires tin well; very thin wires may need special care.
How do I know tinning succeeded?
A successful tin shows a smooth, glossy coating with no bare copper. If dull or patchy, re-clean and re-tin after fluxing again.
Look for a smooth, shiny coating and no bare copper.
What are common tinning mistakes to avoid?
Overheating, dipping too long, or using old flux can cause dull coatings or drips. Keep a steady dip pace and clean the pot regularly.
Avoid overheating and over-dipping; keep your pot clean for best results.
Is tinning permanent or can it be redone?
Tin coating adheres well but is not immutable. You can re-tin if the coating shows wear or oxidation over time.
The tin can wear or be redone if needed.
Watch Video
Top Takeaways
- Tinning wires with a solder pot yields a clean, reliable coating.
- Flux quality and temperature stability are critical to success.
- Inspect and test tinning before wiring for robust joints.
- Regular maintenance prevents coating defects and waste.
