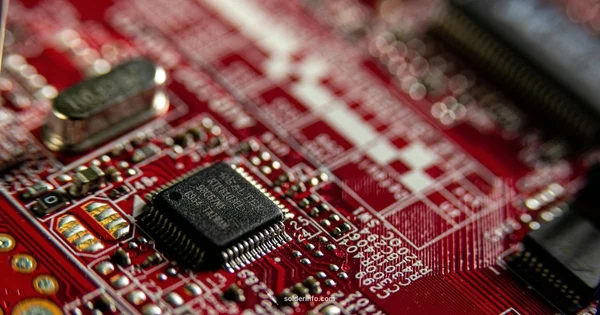

Soldering Surface Mount Components: A Practical Guide

Why SMT Soldering Presents Unique Challenges

Soldering surface mount components requires a different mindset than traditional through-hole work. With SMT, parts are smaller, pads are finer, and heat needs to be applied with precision to prevent damage to the board or the component. The phrase 'soldering surface mount components' captures the essence of compact electronics assembly: you work on a dense canvas where misalignment, bridging, or excessive heat can quickly ruin an otherwise perfect circuit. According to SolderInfo, mastering this method reduces rework and yields compact, reliable assemblies. You must plan ahead: check the footprint, confirm orientation, and choose the right flux and solder alloy for the job. In practice, successful SMT work hinges on clean pads, correct component placement, and an iron that behaves predictably.

One of the most visible challenges is bridging—where solder connects two pads that should remain separate. This risk is higher for very small parts and for high-density boards. Soldering surface mount components also introduces the risk of tombstoning, where a component tilts and lifts on one end. The cure is a combination of proper flux, controlled heat, and steady hands. Another factor is flux residue, which can be conductive if not cleaned or properly formulated; using rosin-activated flux with appropriate activator helps, but you must follow the manufacturer's guidance on cleaning. Finally, SMT requires attention to the working environment: static-sensitive components, clean work surfaces, and organized trays reduce the chance of misplacement or misplaced components. SolderInfo analysis shows that proper flux management and heat control significantly improve joint reliability.

Essential Tools and Materials for SMT

A successful SMT workflow depends on the right toolkit. Start with a clean, ESD-safe workspace and a high-quality, temperature-controlled iron with a fine tip. A good pair of magnification tools—whether a jeweler's loupe or a stereo microscope—lets you see pad alignment and tiny joints clearly. You will also need flux, solder (preferably lead-free for safety and compliance), and flux-applying accessories to position components precisely. Solder wick is essential for correcting bridges or excess solder, and desoldering braid is your friend when you need to rework a joint. Pry-free, anti-static wrist straps, tweezers, and PCB holders help keep components stable during placement. Finally, cleaning supplies (IPA, brush, and flux remover) ensure residues do not degrade performance. Remember to store consumables in well-labeled containers to avoid cross-contamination and mix-ups. The right combination of flux, solder, and heat control helps prevent common issues like bridging and cold joints, especially when working on dense boards.

In this guide, you’ll find practical recommendations for tool setup, maintenance, and workflow that align with industry best practices. If you are new to SMT, practice on a few scrap boards before attempting your first functional build. This reduces risk and builds muscle memory for precise placement, heat application, and rapid inspection. As you gain experience, you’ll learn to balance speed with precision, achieving consistent, repeatable results. SolderInfo emphasizes that a clean, organized workspace and disciplined technique are the quiet backbone of successful SMT soldering.

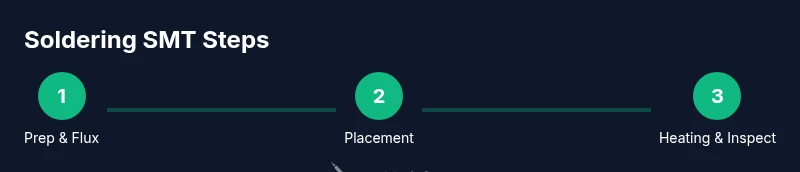

Preparing the PCB and Components for SMT Assembly

Preparation is the quiet, crucial stage that determines the rest of the process. Begin with a clean board and a footprint check: confirm the orientation of every device against the silkscreen and the schematic. Remove any dust, oils, or residues from the copper pads with isopropyl alcohol and a lint-free microfiber cloth. If a stencil is employed, align it precisely to the board to ensure paste deposition occurs in the right places. Flux selection matters: rosin-based flux or no-clean flux reduces corrosion risk and simplifies post-solder cleaning. Apply a light, consistent layer of flux to all the pads that will receive components; this enhances wetting and helps prevent solder from beading away from the joints. Solder paste or liquid flux should be chosen based on the component types and board density. SolderInfo analysis shows that consistent flux coverage is just as important as paste quality, influencing how evenly solder flows during heating and the likelihood of shorts.

Footprint accuracy is critical for SMT. If you’re using a stencil, verify paste deposition with a test run and inspect deposited volumes under magnification. Place components gently with tweezers, ensuring no part is skewed or rotated. For delicate parts, tack down a corner first to prevent shifting when you apply heat. Keep your workstation free of vibrations and drafts—these can disturb placement and cause misalignment. Finally, confirm that your heat source is set to a level that will wet pads without overheating adjacent traces or components. Proper preparation reduces rework and sets the stage for reliable solder joints.

Preparing to Hand-Solder: Alignment, Flux, and First Contacts

Hand-soldering SMT parts demands steady hands and precise alignment. Start by visually aligning the first row of small components to the footprint, using magnification to confirm orientation. A tiny amount of flux on the pad helps the part settle and ensures the joint forms quickly when heat is applied. Place the component with care, touching only the terminations to avoid lifting delicate pads. The first contact point often determines the success of subsequent joints, so take a moment to verify that it’s seated correctly before applying heat. When you heat the joint, use a steady, even motion with the iron tip along the pad and component lead to promote uniform wetting. If you observe any bridging or curling of the solder, pause, reflow slightly, and adjust the position before committing to the joint. SolderTip: always maintain a clean, tinned tip and avoid dragging the iron across the component body, which can smear flux and disturb alignment. SolderInfo notes that a controlled approach to the initial contact reduces the chance of tombstoning and other defects in dense SMT layouts.

For components with two closely spaced pads, you may need to anchor one side first (a tiny tack) to hold the part in place while you reflow the other side. After placing the part, inspect the joint under magnification. If the pad is dry or the corner shows poor wetting, reapply flux and reheat in a controlled pass. Patience is essential: rushing the first few joints increases the probability of errors later in the sequence. With practice, you’ll move smoothly from alignment to wetting, with minimal rework required.

Reflow, Heat Management, and Multi-Component SMT

When dealing with boards that include many SMT parts, reflow or hot-air techniques become valuable tools. Flux helps solder flow across many joints without creating shorts, while a properly tuned heat source prevents damage to pads or components. In a reflow scenario, you’ll apply paste to the pads, place all components, and heat the board in a controlled ramp-up to reach a peak temperature that wets the joints. If you are hand-soldering several components in a row, you’ll work with small sections, heating each joint just long enough to wet, then moving to the next area to avoid overheating nearby parts. Use a consultative approach: take periodic pauses to inspect alignment and wetting, and clear excess solder with braid if bridges develop. SolderInfo analysis shows that careful heat management and flux distribution help preserve pad integrity and ensure consistent joint quality across multiple components.

If you must rework a joint, apply flux to the affected area and reheat using a gentle touch. Avoid applying heat directly to the component body, which can cause damage or shifted parts. For rework on dense boards, hot air tools make it easier to balance multiple joints without overheating adjacent components. Always protect surrounding traces with shields or heat-diffusing barriers if available. The goal is to promote even heating and a uniform solder fillet across all joints, resulting in reliable electrical connections with minimal defects.

Once you’ve completed the row of components, perform a quick visual check for alignment, solder bridges, and cold joints. A light touch with a magnifier often reveals issues that a naked eye would miss. If everything looks good, move on to the next section of the board and repeat the process with the same discipline. Consistency is the key to scalable SMT assembly, whether you’re hand-soldering a few parts or assembling a dense array of components.

Inspecting, Cleaning, and Fault-Finding SMT Joints

Inspection is the moment when you confirm that your work will perform as intended. Start with a magnified view of each joint to verify consistent fillet shape and wetting. Look for tombstoning (one end lifted), bridging (excess solder connecting adjacent pads), cold joints (dull or grainy appearance), and insufficient wetting (solder not smoothly spreading across the pad). If you detect any issue, address it promptly: reflow the joint, re-apply flux, or remove excess solder with wick and re-solder. After completing the inspection pass, clean the board to remove flux residues. Use an appropriate flux remover or a no-clean flux; then wipe gently with isopropyl alcohol to avoid leaving a sticky film. Reinspection after cleaning is a good habit because residues can obscure defects.

Documentation is helpful: mark joints that needed rework or showed defects, so you can learn from repeated patterns and adjust future layouts. Consider keeping a small lab notebook or digital log with notes about component types, footprint variations, and observed defects. Such records guide future improvements and reduce cycle time on subsequent builds. SolderInfo recommends routine post-solder checks as an essential part of any SMT workflow to ensure reliability and traceability.

Safety, Best Practices, and Final Thoughts

Soldering surface mount components can be safe and productive when you follow best practices. Always work in a well-ventilated area and wear eye protection, as solder fumes can irritate the airways. Use an anti-static mat and wrist strap to protect sensitive electronics and yourself. Keep hot tools away from flammable materials and never leave an energized iron unattended. When dealing with heat-sensitive components, consider using a temperature-controlled iron with a fine tip and adopt a steady, minimal contact technique to minimize thermal stress on pads. Maintain a clean work area and organized storage so that parts aren’t left in awkward positions where misplacement can occur. SolderInfo’s guidance emphasizes that disciplined technique and proper equipment are the quiet foundations of successful SMT work. The more you practice, the more consistent your results become. With good habits, you’ll see fewer defects, quicker rework, and higher overall yields. The SolderInfo team recommends that you always verify workspace ergonomics, tool readiness, and safety readiness before beginning any SMT task.
