Solder Wire Connection: A Practical How-To Guide
A comprehensive guide to making reliable solder wire connections in electronics, covering prep, flux, heat control, and troubleshooting for lead-free and conventional solders.
Goal: you will learn to create durable solder wire connections on copper wires and small components by selecting the right solder and flux, preparing the workspace, and applying controlled heat. Key requirements include a clean, fluxed surface, properly stripped wire ends, a temperature-controlled iron, and good ventilation for safe soldering.
What is a solder wire connection?
In electronics, a solder wire connection is formed when molten solder wets both wire surfaces and creates a metallurgical bond as it cools. Achieving this bond requires clean metal, flux to promote wetting, and just enough heat to fuse the metals without damaging insulation or nearby components. The solder alloy's tin content determines its melting behavior and strength; common electronics solders include lead-free tin-silver-copper (SAC) and traditional tin–lead alloys. For hobbyists, rosin-core solder carries flux into the molten joint, simplifying the process. The result should be a smooth, shiny fillet with complete coverage that electrically connects the wires while preserving mechanical stiffness. Poor technique—oxidized surfaces, insufficient flux, or overheating—produces dull, brittle joints, gaps, or cold joints, which can fail under vibration or thermal cycling. Testing with a multimeter or continuity tester confirms a solid connection, and a visual inspection should reveal a properly wetted blend of metal, with no blobs, whiskers, or flux residues that could corrode over time. With practice, solder wire connections become reliable, repeatable steps in small electronics builds, hobby projects, and repair work, from boards to jewelry-grade assemblies. As highlighted by the SolderInfo team, proper prep is the foundation of lasting joints.
Flux, solder alloys, and rosin core explained
Flux acts as a chemical agent that cleans and prepares metal surfaces, reduces surface oxides, and improves solder flow. Rosin-core solder carries flux inside the wire so the joint gets flux even if you don't apply additional liquid flux. The alloy composition matters: lead-free solders (often SAC alloys) are common in consumer electronics for environmental and safety reasons, while tin–lead solders are easier to work with and can produce very bright joints but require proper handling and disposal. Solder wire diameter affects how quickly you build a fillet; thinner wire gives more control on small joints, while thicker wire deposits more solder faster on larger joints. Also consider flux residue: some flux types are water-soluble and easier to clean, while others leave resin that can be corrosive if not removed. The key is to choose a compatible combination of wire alloy, flux type, and cleaning method that suits the project and component sensitivity. For jewelry, specialty solders and fluxes exist with different melting temperatures and color finishes, but the basic wetting principle remains the same.
Workspace preparation and component prep
Start by setting up in a well-ventilated area with a heat-resistant mat or soldering station. Clear away flammable materials and wear safety glasses. Clean the wires and terminals with isopropyl alcohol to remove oils and fingerprints, then inspect for oxidation. Strip insulation to expose just enough conductor length to form a solid joint, then twist strands into a neat, compact bundle. If you’re working with components, ensure there is enough clearance so heat won’t damage plastic housings or delicate leads. Pre-tin the exposed wire ends with a small dab of solder to prevent stray strands from fraying and to help establish an even heat path. Finally, select an appropriate flux path (brush-on or pen) and have the damp sponge ready to clean the tip.
Heat management and iron selection
Heat control is critical for reliable solder wire connections. Too little heat yields dull, grainy joints or cold joints; too much heat can burn insulation or damage components. Use a grounded, temperature-controlled iron or station with a tip suitable for the wire size and joint geometry. Preheat the joint slightly if needed, but avoid prolonged contact with stored heat sources that can wick away heat from the wire. When soldering, apply the iron to the joint first, then bring the solder to the joint—not the iron. This technique ensures the flux and metal melt together to form a consistent fillet. If the tip oxidizes or goes dull, clean it quickly with the damp sponge and re-tin to maintain transfer efficiency. In practice, aim for a shiny, smooth solder fillet with a crisp boundary between wire strands and the joint.
Core technique: tinning wires, aligning, and forming the joint
The typical workflow begins with tinning the wire ends so the surface is solder-ready. Apply a small amount of flux and touch the iron tip to the wire end until a bright layer of solder coats the conductor. Bring the two wire ends together and maintain alignment, then touch the joint with the iron and apply solder to the joint area only. Avoid feeding solder directly into the iron tip; instead, let the molten solder flow into the joint for better wetting. Hold still for a second as the solder cools to form a strong mechanical and electrical connection. If you’re joining two wires, twist them together or use a small butt splice to ensure good contact before the final solder. For small components, minimize heat exposure to prevent damage to sensitive devices; a quick, deliberate motion produces better joints than slow, dragging movements.
Common mistakes and fixes
Common issues include cold joints, solder bridges, and overheating the insulation. A dull, grainy joint often indicates insufficient heat or improper flux; reheat the joint and apply more solder as needed, then recheck the wetting angle. A solder bridge between adjacent leads suggests too much solder or improper spacing; rework by removing excess solder with braid and reflow the joint cleanly. Overheating plastic components or adhesives can melt or delaminate; if this occurs, stop immediately and allow the area to cool, using a heatsink on sensitive areas next time. If flux residues produce corrosion or poor board appearance, choose a no-clean flux or clean after soldering; ensure flux type is compatible with your cleaning method. Finally, verify the joint with a multimeter: continuity should be present, and resistance should be near zero for a good connection.
Finishing touches and inspection
After cooling, inspect the joint under good light. Look for a smooth, shiny fillet with a proper angle and no gaps. Clean flux residues with isopropyl alcohol if needed and inspect for any oxidation or stray wires. Test for continuity with a multimeter; check that resistance is low and stable across the joint. If the wire strands are frayed, trim and re-strip to ensure a clean surface for rework. Label and store tools and materials to keep your workspace organized, which reduces the chance of accidental rework or contamination in future projects.
Safety, ventilation, and storage practices
Soldering produces fumes that can irritate eyes and lungs, so work in a ventilated area or use a fume extractor. Wear safety goggles and heat-resistant gloves if handling hot parts, and keep a fire extinguisher accessible. Use a damp sponge to clean the iron tip to avoid contamination, and turn off the iron when not in use. Store solder wire and flux away from moisture and heat sources; keep rosin flux sealed to prevent oxidation. Dispose of lead-containing solders according to local regulations or switch to lead-free options whenever possible.
Long-term care, repair strategies, and practical scenarios
Keep a small stash of common solder wires, flux, and tips so you can respond quickly to repair projects. For electronics repairs, practice on scrap wires to maintain consistency before tackling critical assemblies. When making mechanical joints, consider using a heat sink or pliers to maintain control and avoid damaging the substrate. For jewelry or delicate components, you may want a lower melting point alloy and smaller diameter wire to preserve shine and finish. Finally, remember that practice improves consistency: set up a regular practice routine, review your joints, and adjust temperature and flux use based on observed outcomes.
Tools & Materials
- Soldering iron with temperature control(Choose a pencil or station with adjustable tip temperature; suitable for small wires and components)
- Solder wire (lead-free rosin-core)(Select a small diameter for precision; rosin-core flux helps wetting)
- Flux pen or flux paste(For surface prep and rework; no-clean flux preferred)
- Wire strippers(Fine blades; remove insulation without nicking copper)
- Helping hands / third-hand clamp(Stabilize wires and components during soldering)
- Soldering iron stand and damp sponge(Keep the tip clean and at proper temp)
- Isopropyl alcohol and lint-free wipes(Clean surfaces and degrease to prevent contamination)
- Safety equipment (goggles, ventilation or fume extractor)(Protect eyes and lungs from fumes)
- Desoldering braid (wick) or flux remover(Optional for cleanup or rework)

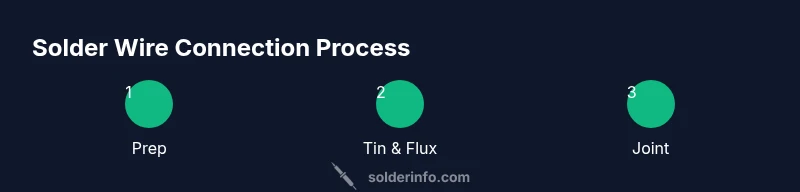

Steps
Estimated time: 30-60 minutes
- 1
Prepare workspace and tools
Set up in a well-ventilated area with a heat-resistant mat. Gather your soldering iron, wire strippers, flux, solder, and a damp sponge. Inspect the components and ensure there is no insulation damage before you begin.
Tip: Keep a clean, clutter-free bench to minimize mistakes and accidental burns. - 2
Strip and twist wire ends
Use a precision wire stripper to expose a short conductor length. Twist the strands neatly to form a compact bundle that will stay intact during tinning.
Tip: Avoid nicking copper or exposing too much conductor; excess exposed copper can wick heat away and weaken the joint. - 3
Tin the exposed wire
Apply a small amount of flux and touch the iron to the wire end until a bright layer of solder coats the conductor. This creates a ready-to-wet surface for the final joint.
Tip: Tin quickly and evenly; overheating during tinning can damage insulation. - 4
Position components and apply flux
Arrange wires and components so the joint will be accessible and at an appropriate angle. Apply flux to the joint area to improve solder flow and reduce oxidation.
Tip: A small amount of flux goes a long way; excessive flux can create post-solder residues. - 5
Join and heat the joint
Touch the joint with the iron, then feed solder into the joint, not the iron. Remove heat promptly once the joint is filled.
Tip: Keep the iron tip clean during the process to ensure consistent heat transfer. - 6
Inspect wetting and mechanical hold
Look for a smooth fillet that fully wets both wires. If necessary, reheat and add a touch more solder to improve wetting.
Tip: If the joint looks dull or has gaps, rework while still warm for best results. - 7
Clean and test
Wipe away flux residues with isopropyl alcohol. Test continuity with a multimeter to confirm a solid electrical path.
Tip: A quick visual and continuity test saves time on troubleshooting later. - 8
Store and protect tools
Switch off and unplug the iron, allow it to cool, and store tools in a dry place. Label commonly used wires and keep spare parts organized.
Tip: A tidy workspace speeds up future projects and reduces errors. - 9
Review safety and future prep
Review ventilation, PPE use, and disposal practices for flux and solder remnants. Prepare a small kit with commonly used supplies for quick repairs.
Tip: Regular practice helps you identify the best flux and heat settings for different wires.
Quick Answers
What is a solder wire connection?
A solder wire connection is formed when molten solder wets two metal surfaces, creating an electrical and mechanical bond as it cools. Clean surfaces, proper flux, and adequate heat are essential for a reliable joint.
A solder wire connection is a molten-metal bond formed as solder cools, after cleaning and fluxing the metal surfaces and applying appropriate heat.
Can I use lead-based solder safely?
Lead-based solders are easier to work with but require proper handling and disposal due to health and environmental concerns. Many hobbyists and professionals prefer lead-free options for electronics.
Lead-based solder is easier to work with but has health and environmental risks; lead-free solders are safer and commonly used today.
Why do joints look dull or cracked?
Dull or cracked joints typically indicate insufficient heat, poor flux, or oxidation. Reheat the joint with fresh flux and solder to improve wetting and fill.
Dull joints usually mean not enough heat or flux; reheat with fresh flux and re-solder carefully.
Do I need to tin wires before joining?
Tinning wires creates a smooth, heat-conductive surface that helps solder flow into the joint. It is especially helpful for tiny wires and precision projects.
Tin the wires to improve solder flow and joint quality.
How can I tell if a joint is good?
A good joint is shiny, smooth, and free of gaps. It should conduct electricity with minimal resistance and withstand light mechanical stress.
A good joint looks smooth and shiny and passes a continuity check without failures.
Watch Video
Top Takeaways
- Prepare a clean, well-ventilated workspace before starting.
- Tin wire ends and apply flux to improve wetting and joint reliability.
- Use controlled heat; avoid overheating components and insulation.
- Inspect joints visually and with a continuity test for reliability.
- Practice regularly to refine technique and reduce defects.
