Solder Reflow Hot Plate Guide for DIY Electronics

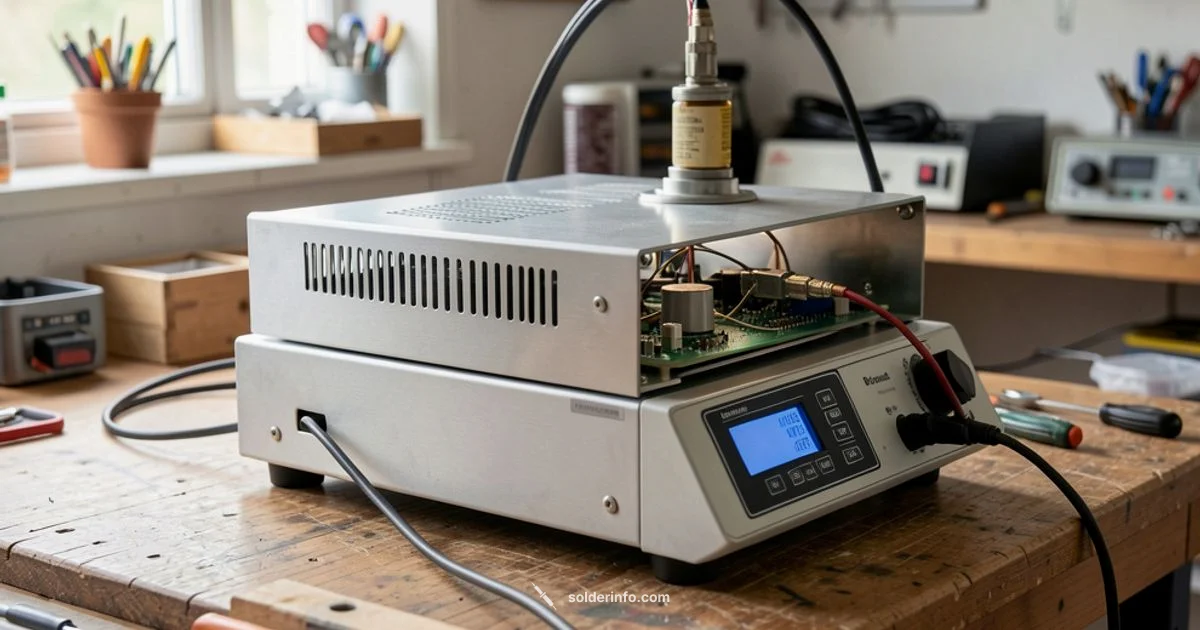

What is a solder reflow hot plate and how it works

A solder reflow hot plate is a flat, electrically heated surface that conducts heat into a PCB from the bottom. It enables solder paste on surface mount components to reflow without a traditional convection oven. According to SolderInfo, this tool is a practical option for rapid prototyping and small-batch boards. The plate relies on a thermocouple and a PID controller to maintain a target temperature and a controlled ramp rate, ensuring even heating and minimizing hot spots. During operation, you place the PCB on the surface, feed the paste through a stencil or apply it precisely, and gradually raise the temperature until the solder paste reflows into robust joints. Uniform contact is essential, so many users employ a thin aluminum plate or a heat spreader to distribute heat evenly and reduce direct contact with the bare metal surface. After reflow, the board cools gradually to minimize warping and residual stress. Regular calibration and clean surfaces help maintain repeatable results.

This mode of reflow relies mainly on conduction rather than convection, which makes board geometry and paste deposition critically important. Keep components away from the plate edge to avoid heat sinking or skewed heating. Remember to observe safety practices and insulate the area around the plate to protect operators and nearby components.

Advantages, limitations, and ideal use cases

A reflow hot plate offers a compact, affordable path to reflow solder on small boards or prototypes without a dedicated oven. It excels for quick turnarounds, testing new PCB layouts, and hobbyist projects where space is at a premium. The upfront cost is generally lower than a full reflow oven, and setup time is shorter for simple boards. However, heat distribution can vary across larger boards, making uniform reflow more challenging. It is best suited for boards with modest footprints, modest component heights, and paste types that tolerate modest dwell times. For lead free solder, careful temperature control and longer soak times may be required to achieve reliable joints. When used correctly, a hot plate complements stencil printing, paste selection, and flux strategy to produce professional results in a compact workspace.

Key features to look for in a reflow hot plate

When evaluating a reflow hot plate, focus on precise temperature control, uniform heat distribution, and safety features. Look for a wide temperature range, accurate thermocouple feedback, and a programmable ramp profile that allows you to set preheat, soak, and peak temperatures with repeatable dwell times. A digital display, stable PID control, and automatic shutoff add reliability. Board size compatibility matters, as does the surface finish and heat diffusion properties. Optional features such as a protective lid, insulated housing, anti static surfaces, and PCB carriers can improve safety and layout consistency. Consider accessories like thermal pads or fixtures to promote even heating and reduce scorching on delicate components.

Best practices for setup and process control

Prepare boards by cleaning pads and applying a consistent layer of flux. Apply solder paste with the chosen technique, whether through stencil printing or careful syringe application. Place the board on the plate, and start with a light preheat to minimize thermal shock. Ramp up to the target temperature in controlled steps, then dwell long enough to allow paste reflow without burning flux. Monitor the process and adjust ramp rates based on paste viscosity, component height, and paste type. After peak reflow, allow a controlled cooldown to avoid thermal shock. Use good ventilation, keep liquids away from the hot surface, and store the plate in a dry area when not in use. Document parameters for different pastes and boards to reproduce reliable results in future projects.

Common issues and troubleshooting

Uneven heating is a common challenge with hot plates. Use flat contact surfaces and heat spreaders; ensure boards lie flat and use a heat barrier if needed. Tombstoning occurs when paste volume or component placement is imbalanced; verify stencil alignment and paste deposition. Overheating can burn flux or delaminate substrates; set safe peak temperatures and enable auto shutoff if available. Insufficient heat can leave solder joints under-reflowed; extend dwell time or slightly increase peak temperature within safe limits. Regularly calibrate the temperature sensor and inspect the plate for residue buildup that could affect conduction.

Maintenance, safety, and best practices for reliability

Regular maintenance keeps the hot plate performing consistently. Calibrate the temperature sensor against a trusted reference and inspect the surface for wear or residue. Clean the plate after use and avoid spills near electrical connections. Follow ventilation guidelines and use eye protection when working with flux and solder paste. Implement ESD precautions when handling sensitive boards and components. Store the device in a dry, clean area and replace worn insulation or gaskets as needed. By following consistent procedures, you extend the life of the reflow hot plate and achieve repeatable results.

Authority sources and further reading

For standards and best practices, consult authoritative sources such as IPC standards and safety guidelines. Useful references include IPC official standards, NIST materials on soldering, and OSHA safety resources to ensure safe operation while prototyping with a reflow hot plate.

Real world workflows and tips for hobbyists

In practical projects, position boards with care, verify paste deposition with a stencil or syringe, and monitor the reflow process closely. Start with simple boards and gradually scale to more complex assemblies as you gain confidence. Document ramp profiles and settings for different pastes to reproduce results across boards. Using a heat spreader and a PCB carrier can improve uniformity and reduce heat‑related damage.
