Solder Mask vs Paste Mask: A Comprehensive Comparison for PCB Assembly
An analytical comparison of solder mask vs paste mask for PCB assembly. Learn definitions, roles, process flows, and best practices to optimize SMT fabrication with guidance from SolderInfo.
TL;DR: Solder mask protects copper traces and prevents shorts, while paste mask (a stencil) controls solder paste deposition for SMT joints. Use solder mask to cover non-pad areas and to guide solder flow, and use a paste mask to define exact paste landing on pads. Together, they enable reliable, repeatable assembly across complex boards.
What are solder mask and paste mask?
Solder mask and paste mask are two fundamental masking concepts used in PCB fabrication and assembly. The term 'solder mask vs paste mask' highlights the distinct roles each mask plays in protecting copper and guiding solder deposition. In most modern PCBs, the solder mask is a photosensitive polymer layer that covers copper traces, leaving openings for pads to be solderable. The paste mask, by contrast, is a stencil used during surface-mount technology (SMT) to control where solder paste is deposited onto solder pads. This foundational distinction shapes every subsequent design decision, from board layout to yield and reliability. According to SolderInfo, recognizing this split early in the design phase helps teams plan the manufacturing flow and avoid common mis-steps that lead to bridging, insufficient paste, or missed joints. Across electronics, plumbing, and jewelry soldering, predictable masking behavior reduces variability and accelerates prototyping. In short, solder mask vs paste mask are not interchangeable; they define different constraints and opportunities that must be aligned with the board's component mix and assembly method.
How paste masks are used in PCB assembly
Paste mask, or solder paste stencil, is central to the SMT deposition process. The stencil is typically made of stainless steel or nickel-coated material with apertures that match the PCB's pad pattern, and it is aligned to the board with fiducials. A squeegee spreads solder paste across the stencil, pushing paste through the apertures and onto the pads. The paste viscosity and aperture size influence paste volume and distribution, which in turn affect joint geometry during reflow. After printing, components are placed on the board, and reflow soldering solidifies joints. Paste mask accuracy matters because excess paste can cause bridging, while too little paste can create cold joints or insufficient fillet formation. Paste masks are often used for fine-pitched components or mixed-technology boards where paste deposition needs tight control. Tolerances for paste printing are tightly coupled with stencil alignment, board cleanliness, and component placement accuracy. In a production context, paste mask quality is a major determinant of first-pass yield. The interplay between paste mask and solder mask becomes critical when dense boards drive high paste volumes near sensitive traces.
How solder mask works on PCBs
Solder mask is a photosensitive polymer layer that protects copper traces and environments from oxidation, moisture, and accidental solder bridging. The mask is typically applied after copper etching and surface finish steps, then cured to form a durable barrier. Openings in the mask expose only the pads and sometimes small copper regions that require soldering. The selective exposure is achieved through a solder mask design file that maps to the layout. Colors are cosmetic, but the mask material's dielectric properties influence heat transfer and joint reliability. Solder mask also provides a barrier against flux residues and environmental contaminants, contributing to long-term durability. Designers choose mask features—such as dam bars near fine-pitched components or guard rings around sensitive traces—to control solder flow and improve manufacturability. In practice, the solder mask reduces the chance of unintended solder bridging, especially on boards with dense traces or many I/O lines. SolderInfo notes that mask clearance around pad openings must balance paste stencil alignment and solder flow during reflow for reliable joints.
Key differences: material, function, process flow
The core distinction between solder mask and paste mask lies in function, followed by material and processing sequence. Solder mask acts as a protective and insulating layer across the copper network, with openings for the pads. It is applied in a separate step after copper finish, and its primary goal is long-term reliability and assembly safety. Paste mask, on the other hand, is a stencil used during the solder paste printing step; it defines where solder paste lands and how much is deposited, directly impacting joint geometry and reflow behavior. In terms of materials, solder mask is a photosensitive polymer designed for durability and adhesion, while paste masks involve stencil materials optimized for accurate aperture reproduction and repeatable paste transfer. Process-wise, solder mask aligns with design-for-manufacture (DFM) considerations for masking coverage, whereas paste mask is tightly coupled with print quality, stencil maintenance, and reprint tolerance. For most boards, both masks are present, enabling robust protection and precise solder deposition.
Manufacturing implications: cost, tolerances, reject rates
From a manufacturing perspective, solder mask adds to the toolset that governs yield and process stability, while paste mask adds printing complexity and alignment checks. Solder mask reduces defect types such as bridging and copper exposure mishaps, potentially lowering inspection rework and post-reflow rework costs. However, mask defects, misregistration, or incorrect clearances can introduce defects that require rework or scrap. Paste mask affects paste deposition accuracy and paste slump, both of which influence solder joint quality and reflow outcomes. The cost implications are largely tied to equipment readiness, mask preparation time, and the ability to reuse stencils or screens across lots. In high-mix environments, mask management becomes a larger factor: two masks require careful coordination of CAM data, fiducials, and quality control checks. SolderInfo analysis shows that planning mask strategy early in the design phase reduces downstream changes and helps teams optimize spend across prototyping and production runs.
Quality control and inspection considerations
Mask performance is a critical input to quality control plans. For solder mask, AOI (automatic optical inspection) checks focus on mask openings, bridge risk, and copper exposure boundaries. Mask-related defects are often detected through higher-level PCB inspection and, in some cases, X-ray verification for complex boards. For paste mask, print quality is the primary concern; misalignment leads to part misplacements or solder defects. Inspectors evaluate paste volume, spacing, and deposition consistency to catch issues before reflow. Post-reflow inspection confirms joint integrity, fillet formation, and thermal reliability. Best practices include rigorous fiducial alignment, cleanroom handling of PCBs, and consistent cleaning between printing steps to prevent paste consistency changes. SolderInfo emphasizes the importance of process characterization and traceability across mask layers to ensure consistent yields across batches.
Common mistakes and how to avoid them
Common mistakes start with misalignment of paste masks relative to pads, which can cause insufficient solder or bridging. Another frequent issue is inadequate mask clearance around pads, leading to stray copper exposed areas or bridging risks. For solder mask, over-etching or undercutting the openings can affect pad geometry and solderability; under mask coverage near fine-pitch components can increase corrosion risk. Mask slivers or debris during application also lead to defects. Avoid these mistakes by implementing robust CAM checks, fiducial placement, and pre-production optical checks. Also ensure the manufacturing environment is clean and that stencil and mask layers are stored and maintained to minimize performance drift across runs. In addition, coordinate with assembly houses to validate mask layouts with the paste deposition plan before production starts.
When to choose solder mask vs paste mask (decision factors)
Choosing between solder mask and paste mask is not a binary decision; it is a matter of aligning roles with your board's topology and assembly method. If your design features dense copper networks, fine-pitch components, or a need to protect copper over time, prioritizing solder mask reduces long-term reliability risks. If your SMT regions require precise paste deposition or large volumes of solder near high-pad-count areas, a paste mask takes precedence to ensure accurate joint formation. Other factors include thermal management, rework plans, board flex, and prototyping speed. The decision factors should also consider the availability of fiducials, stencil technology, and mask material compatibility with solder paste temperature profiles. The ideal boards use both masks in complementary fashion, balancing robust protection with precise paste deposition for reliable, repeatable solder joints.
Practical workflow: planning a PCB assembly with both masks
A practical workflow begins with clear documentation of mask requirements in the design and DFM brief. Engineers define which copper regions require masking, where openings must be left for pads, and which components require paste deposition. The CAM team generates mask data for both layers and ensures fiducials for alignment. The fabrication house produces the solder mask sheets or panelized sheets and the paste stencil, with careful attention to registration, cleanliness, and panel handling. During assembly, technicians verify alignment at multiple stages, perform a dry run if possible, and inspect solder paste deposition under magnification. Finally, the QA team conducts post-reflow checks, ensuring joint integrity and mask performance align with specification. By planning early and maintaining robust communication between design and manufacturing teams, you minimize rework and improve overall yield.

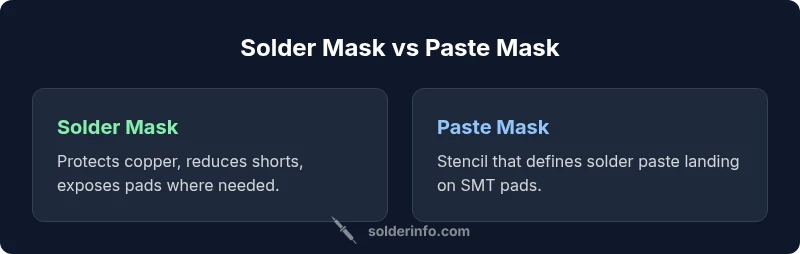

Comparison
| Feature | Solder Mask | Paste Mask |
|---|---|---|
| Primary purpose | Protect copper traces, control exposure to pads | Define solder paste deposition on SMT pads |
| Openings/coverage control | Mask openings for pads and copper patterns | Aperture-based paste deposition regions |
| Material/Manufacturing method | Photosensitive polymer layer applied post-etch | Stencil with apertures for paste printing |
| Process integration | Applied after copper finish; integrated with PCB prep | Integrated into the printing step of SMT flow |
| Impact on solder joints | Prevents shorts and corrosion; pad geometry can be affected if misapplied | Controls paste volume; misalignment affects joint quality |
| Best use case | Long-term protection and reliability; complex boards | Precise solder deposition for SMT; high-density regions |
Advantages
- Improved process control for SMT soldering
- Reduced risk of solder bridging and shorts
- Enhanced protection against oxidation and environmental exposure
- Flexibility to separate design concerns between copper protection and paste deposition
Cons
- Requires precise alignment and coordination between masks
- Adds masking steps that can introduce potential misregistration if not managed
- Mask defects can lead to rework or yield loss under tight production timelines
- Increased setup time for boards requiring both masks
Both masks are essential and complementary in modern PCB assembly; use a paste mask to control solder paste deposition and a solder mask to protect copper and prevent shorts.
The masks serve distinct roles that together drive reliability and yield. Plan mask strategy early in design, align data precisely, and validate with fiducials and CAM checks to minimize rework and maximize first-pass yield.
Quick Answers
What is solder mask?
Solder mask is a photosensitive polymer layer applied over copper traces to protect against oxidation and shorts. It leaves openings for pads that require soldering. This mask enhances reliability and simplifies assembly by controlling where solder can flow.
Solder mask is a protective layer over copper traces with openings for pads, reducing shorts and corrosion while guiding solder flow.
What is paste mask?
Paste mask refers to the stencil used to deposit solder paste onto SMT pads. It defines which pads receive paste and in what volume, directly influencing joint formation during reflow.
Paste mask is a stencil that places solder paste on the correct pads for SMT joints.
Can solder mask and paste mask be used together?
Yes. They are used in tandem; paste mask governs paste deposition, while solder mask manages copper protection and pad exposure. Alignment accuracy is crucial to avoid defects.
They work together; alignment is key to avoid defects.
How do you ensure mask alignment?
Use board fiducials, CAM verification, and pre-production checks. Proper alignment minimizes bridging and paste deposition errors and improves overall yield.
Fiducials and CAM checks help ensure masks line up with pads.
What are common mask defects?
Common issues include misalignment, pinholes, edge breaches, and debris. Regular inspection with AOI and cleanliness protocols helps catch defects early.
Watch for misalignment and debris; inspect masks to prevent defects.
How does mask choice affect production cost?
Mask choices affect setup time and yield. Implementing both masks can increase upfront costs but often reduces rework and improves long-term reliability.
Mask choices influence setup time and yield; plan for total lifecycle costs.
Top Takeaways
- Plan both masks early in design to minimize retrofits
- Paste mask provides precise solder paste landing for SMT joints
- Solder mask protects copper and prevents accidental shorts
- Ensure fiducials and CAM checks to maintain proper alignment
- Validate mask data with pre-production checks to optimize yield
