Solder Electronic: A Practical How-To Guide for Makers

Safety and setup for solder electronic projects

In solder electronic work, safety and setup are the foundation of reliable results. According to SolderInfo, a safe, well-organized workspace reduces accidents and helps you work more precisely. Start with a ventilated area, an anti-static mat, and good lighting. Wear safety glasses and avoid loose clothing. Keep flammable materials away from your soldering station. Use a properly rated power strip and a grounded plug. The bench should be free of clutter so you can reach your tools without overreaching. Before you begin, inspect your soldering iron lead for damage and replace any worn parts. A damp sponge or brass wool near the tip keeps it clean. Soldering fumes can irritate the eyes and lungs; always use ventilation or a fume extractor. In addition, keep components in anti-static bags or trays to prevent static discharge that can damage sensitive electronics.

SolderInfo analysis shows that safety and setup, when done consistently, correlates with fewer handling errors and more reliable joints.

Tools, materials, and workspace optimization

Having the right tools and a clean workspace saves time and improves joint quality. Essential tools include a temperature-controlled soldering iron, lead-free solder, and rosin-core flux. Also gather wire cutters, precision tweezers, a multimeter for testing, a damp sponge for tip cleaning, and safety glasses. Optional accessories like a third-hand tool, helping hands, or an adjustable tilt mat help place components accurately. Organize tools within easy reach and use labeled containers for components. Prepare the work surface by wiping with isopropyl alcohol to remove oils. Store flux and solder in a dry, closed container to prevent oxidation. Isolate electronics from magnets or high-heat sources that could affect solder joints. For projects involving higher temperatures or larger joints, consider a temperature-controlled iron and a hot tweezer for delicate operations. Build a small kit tailored to your typical projects so you don’t have to hunt for parts mid-work.

Flux and solder types: choosing the right materials

Flux is critical for clean wetting and preventing oxidation on copper traces. There are rosin-core, water-soluble, and no-clean flux variants; for electronics, rosin-core or no-clean flux are common. Solder alloys vary by application: lead-free solders such as SAC305 are common for electronics due to safety and compliance. Choose a solder with a compatible diameter for your joints; thinner wires for fine-pitch work, thicker for power joints. Rosin-core flux helps remove oxides and improves wetting; non-corrosive residues are easier to clean. Always check compatibility with your flux and board materials. If you work with sensitive components, test flux on a scrap pad first to confirm it doesn’t corrosion or leave conductive residues. Use a flux pen for precise application in tight spots. Solder paste is used for surface-mount assemblies; for through-hole work, paste is usually unnecessary. According to SolderInfo, selecting the right flux type can significantly reduce the incidence of cold joints.

Preparing components and boards: pads, leads, and adhesives

Before you solder, inspect leads and pads for cleanliness and alignment. Trim long component leads to a comfortable length and avoid excessive gaps between the lead and pad. Clean the pad surface with isopropyl alcohol to remove oils or oxidation. If the board is dirty, use a soft brush and alcohol, then let it dry completely. Place components with care using tweezers or a third-hand tool, ensuring correct orientation. For sensitive PCB traces, avoid applying mechanical stress during soldering. If you’re working on heat-sensitive substrates, consider preheating or using a hot plate to minimize thermal shock. Always verify polarity and pinout before applying heat, especially on ICs or diodes. Keeping components cool while you work helps prevent damage and reduces the risk of tombstoning on small parts.

SolderInfo analysis highlights the impact of meticulous prep on joint quality, particularly for multi-pin components.

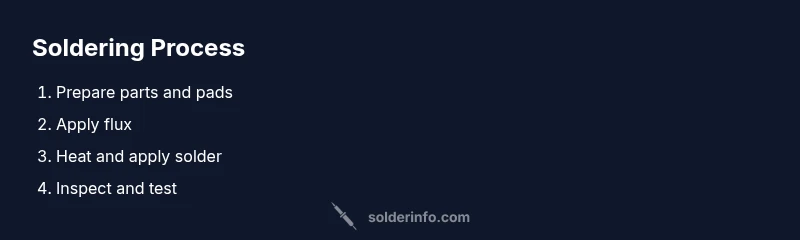

Tinning and the basic soldering sequence

Tinning the iron tip keeps heat transfer efficient and reduces oxidation. Apply a small amount of solder to the tip, then wipe it clean on the damp sponge. When you’re ready to solder, place the component lead on the pad, and bring the iron tip to contact the joint first, followed by the solder. The goal is a smooth, shiny fillet that flows without bridging adjacent pads. Avoid overheating the pad or component; excessive heat can delaminate pads or damage components. If you’re working on larger joints, you may need to pre-heat with a hot plate or use a heat sink to protect sensitive parts. After soldering, inspect the joint for a clean, cone-shaped fillet with good wetting and no stray strands. Allow the joint to cool undisturbed to prevent freezing or micro-cracking.

Common defects and troubleshooting: cold joints, bridges, and tombstoning

Cold joints appear dull and brittle, often caused by insufficient heat or movement during cool-down. Bridges occur when excess solder connects two pads, risking short circuits. Tombstoning happens when a component lifts from one pad during heating, typically with small resistors or diodes. Troubleshooting begins with visual inspection and a quick reflow with fresh flux. If a joint looks dull or cracked, rework it using a clean tip and fresh solder, ensuring the area is heated evenly. For bridges, use desoldering braid to remove the excess solder and reapply with precise heat and flux. For tombstoning, reflow the part with proper heat and ensure correct orientation before cooling. Always test with a multimeter for continuity and verify there are no shorts before powering the circuit. Safety and patience pay off with durable, reliable joints.

Practical workflow example: a simple LED with resistor on a perfboard

A small, repeatable project helps you practice fundamentals. Start by mounting a resistor and LED with the correct orientation. Apply flux to the pads and tin them lightly. Place the LED and resistor, then heat each joint with a steady, gentle touch. Watch for a bright, shiny fillet and avoid excess solder that could cause bridges. After soldering both legs, inspect the joints for proper tilt and clearance. Finally, test the circuit with a battery or power supply and measure current with a multimeter. Building this basic example reinforces proper heat control, flux use, and joint inspection—core skills for more complex boards. For more information on safety and technique, consult OSHA and NIST resources linked in the sources.

Final notes and next steps

Practice consistently to develop muscle memory for your preferred tools and project types. Start with through-hole components and progressively move to surface-mount work as confidence grows. Keep your equipment clean, and replace worn tips or damaged tools promptly. Track your progress by comparing joint quality over time and adapting your technique to different PCB materials and solder alloys. The SolderInfo team recommends incorporating these practices into a regular workflow to build reliable skills over time.
