Steps on How to Solder Electrical Components
A practical, step-by-step guide to soldering electrical components safely and reliably, covering tools, techniques, safety, and troubleshooting to help beginners and hobbyists.
Goal: You will master the steps on how to solder electrical components safely and reliably. This guide covers tool setup, flux selection, heat control, joint preparation, inspection, and common troubleshooting. By following the step-by-step workflow, you’ll produce strong, conductive connections while minimizing cold joints and damage to components. Whether you’re repairing a hobby PCB or assembling a wearable device, this method emphasizes clean technique and repeatable results.
The fundamentals of soldering electrical components
Soldering electrical components is the process of joining metal parts with a filler metal called solder. The goal is to create a strong, conductive, and mechanically stable joint without damaging parts. In electronics, this means clean pads, properly heated joints, and a smooth fillet. According to SolderInfo, good soldering practices reduce intermittent connections and prolong device life. Solder joints come in several forms, including through-hole and surface-mount, each with its own technique. The most common risk in DIY work is a cold joint: a dull, grainy connection that offers high resistance and can fail under vibration. Understanding how heat, cleanliness, and flux influence the joint will help you avoid these problems from the start. To build competence, learn to read joints at a glance: a shiny, wetted pad with a smooth fillet is the goal; a jagged, dull joint indicates insufficient heat or dirty surfaces. Practicing on spare parts and keeping test boards handy will accelerate your learning curve. According to the SolderInfo framework, patience and deliberate action yield the most reliable results across electronics projects, from hobby kits to small appliances.
Tools, materials, and safety prerequisites
Having the right tools and a safe workspace is the foundation of effective soldering. You’ll need a temperature-controlled soldering iron with a suitable tip, rosin-core solder, flux, a stand, and a damp sponge or brass tip cleaner to maintain a clean tip. Safety isn’t optional: wear safety glasses, ensure good ventilation, and keep flammables away from the work area. SolderInfo analysis shows that proper ventilation and a dedicated fume extractor can significantly improve comfort and reduce fume exposure, especially during longer sessions. Organize your components on a non-conductive mat and secure them with helping hands or tweezers to prevent movement during heat transfer. Limit your heat exposure to avoid damaging plastic parts or sensitive LEDs and ICs. A well-lit, clutter-free workspace helps you see joints clearly and reduces mistakes.
Surface preparation and flux selection
Cleanliness is critical for reliable wetting and strong joints. Begin by wiping pads and leads with isopropyl alcohol to remove oils and oxides. Oxidation can prevent solder from bonding and lead to cold joints. Flux acts as a chemical accelerator that lowers surface tension and promotes even solder flow. For electronics, rosin-core flux is standard, while liquid flux or flux pens give you targeted control on stubborn joints. Apply a light, even coat only where heat will be applied, avoiding excessive flux that can create solder bridges or corrosive residues if not cleaned. When reworking on already-soldered joints, ensure the surface is clean before reflow. SolderInfo recommends reserving dedicated flux for electronics work to avoid cross-contamination with other tasks.
The correct heating technique and solder selection
The objective is to heat the joint and pad, not the component itself. Place the iron tip on the joint to transfer heat efficiently, then feed solder to the joint edge, allowing it to melt and flow into the fillet. Do not apply solder directly to the iron’s tip; that wastes heat and can create splashes or cold joints. Leaded solder is generally easier to work with for beginners due to its lower melting point and forgiving wetting, while lead-free solder requires a bit more heat and longer dwell times with careful flux use. If you’re unsure about thermal loads, use a heat sink on sensitive leads to protect them from heat damage. Wipe the tip on a damp sponge to keep it clean and reactive.
Practical example workflow for a simple through-hole joint
Consider attaching a resistor to a PCB pad. Start by cleaning the pad and resistor lead, then apply a thin coat of flux. Heat the pad with the iron, feed solder to the pad–lead junction, and allow the fillet to form a smooth, shiny triangle that covers the pad and lead evenly. Remove heat and let the joint cool undisturbed for a few seconds. Inspect for a uniform fillet with no gaps or skewed angles. If the joint looks pale or grainy, reheat gently and apply a small amount of solder to improve wetting. After cooling, clean any residual flux with isopropyl alcohol. This approach translates well to other through-hole components like diodes and LEDs, where heat control remains the key factor.
Common mistakes and how to avoid them
Soldering mistakes often stem from heat mismanagement, poor surface prep, or flux misuse. A cold joint is dull and brittle, typically caused by inadequate heat or dirty surfaces. Overheating can damage sensitive components and lift pads off the board. Excess flux can drip onto other pads and cause bridges if not cleaned. Not cleaning flux after soldering leaves residues that can corrode over time. Drift-prone joints can occur when the board is moved during cooling, so secure the board and work slowly on each joint. Establish a routine: clean surfaces, apply a light flux, heat properly, then inspect before moving on. The SolderInfo team emphasizes consistent practice and disciplined technique to ensure repeatable, safe results.
Troubleshooting and quality checks (additional guidance)
If a joint looks dull, it may indicate insufficient heat or poor wetting. Reheat the joint briefly and apply a small amount of solder to reflow. If a joint has a shiny solder fillet but a loose lead, reflow while gently applying pressure to seat the part. Bridges occur when excess solder connects adjacent pads; remove with wick while re-heating the joint to maintain a clean gap. For high-resistance joints or intermittent faults, rework by cleaning the surface, reapplying flux, and reflowing with clean technique. Finally, always inspect with a magnifier in critical electronics applications to confirm proper fillet shape and coverage. The ongoing practice improves consistency and reduces the chance of surprises in field use.
Tools & Materials
- Soldering iron (temperature-controlled)(Medium wattage (25-60W) with a fine or medium tip)
- Solder (rosin-core)(Choose leaded for beginners or lead-free for safety/compliance)
- Flux (rosin-core or flux pen)(Use flux appropriate for electronics and rework)
- Soldering iron stand(Keep iron upright and safe)
- Damp sponge or brass tip cleaner(Clean the tip between joints)
- Desoldering braid (wick)(For removing excess solder)
- Isopropyl alcohol (at least 90%)(Clean flux residue after soldering)
- Safety glasses(Protect eyes from splashes and fumes)
- Ventilation or fume extractor(Keeps fumes away from your breathing zone)
- Helping hands or tweezers(Stabilize components during heating)
- Wire cutters/strippers(Prepare leads cleanly)
- PCB holder or anti-static mat(Optional but helpful for stability)

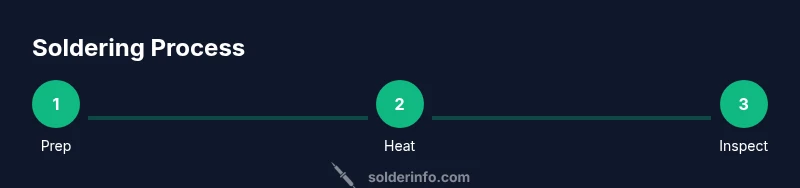

Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and safety gear
Set up a clean, well-lit area with good ventilation. Put on safety glasses and tie back hair or loose clothing. Arrange tools within easy reach and secure the board to prevent movement during heating.
Tip: Keep a test board nearby to practice heat control before touching the actual project. - 2
Tin the soldering iron tip
Warm the iron and apply a small amount of solder to the tip to improve heat transfer. Wipe away oxidation on the tip with the damp sponge. Tinned tips transfer heat quickly to joints for cleaner wetting.
Tip: If the tip oxidizes quickly, re-tin immediately to restore performance. - 3
Prep components and pads
Clean pads and leads with isopropyl alcohol. Remove any coating or oxidation that might hinder wetting. Position the component so leads are aligned with pads and can be heated evenly.
Tip: Tri-point tweezers or a helping hand can prevent movement during heating. - 4
Apply flux to the joint
Lightly coat the joint with flux to improve wetting and solder flow. Flux reduces surface tension and helps the solder spread evenly across the joint.
Tip: Avoid over-fluxing; excessive flux can cause bridges if not cleaned later. - 5
Heat the joint and apply solder
Place the iron tip on the joint to heat both pad and lead. Feed solder into the joint edge, not directly onto the iron, until a smooth fillet forms. Remove heat promptly once the fillet is established.
Tip: If the solder beads up, increase contact time slightly to improve wetting. - 6
Inspect and reflow if needed
Look for a shiny, smooth fillet that covers the pad and lead. If there are dull areas or gaps, reheat briefly and add a small amount of solder. Ensure there are no cold joints or bridges.
Tip: Use magnification for critical joints to confirm quality. - 7
Cool and clean the joint
Allow the joint to cool naturally; avoid forcing rapid cooling. Clean flux residues with isopropyl alcohol after inspecting. Wipe away excess flux that could become conductive over time.
Tip: Do not flex the board while the joint is cooling. - 8
Test the connection
Visually inspect and, if possible, measure continuity with a multimeter. A good joint should show low resistance and maintain stability under mild vibration.
Tip: Test in-circuit first; if the joint is critical, reflow with care. - 9
Document and store your work
Label joints and store tools properly to speed future projects. Keeping a log of what worked helps with repeatable results across future soldering tasks.
Tip: Keep a small notebook or digital dump of settings and materials used.
Quick Answers
What is the essential setup before you start soldering?
Ensure ventilation, safety gear, and a stable work area. Gather tools and prepare the board to prevent delays during the soldering process.
Set up a ventilated workspace with safety gear and all your tools ready before you begin.
Is lead-free solder suitable for electronics?
Yes, lead-free solder is safe for electronics and compliant. It may require slightly higher heat and careful flux use to achieve good wetting and reliable joints.
Lead-free solder is fine for most electronics; you may need a touch more heat and good flux.
How can I prevent cold joints?
Maintain steady heat on the joint, ensure surfaces are clean, and avoid moving parts while the solder cools. Reflow if a joint looks dull or rough.
Keep heat steady and stable, and reflow if a joint looks dull.
Should flux residue be cleaned after soldering?
Yes. Flux residues can attract moisture and become conductive. Clean with isopropyl alcohol after cooling the joint.
Yes, clean the flux residue after cooling the joint.
Can I reuse flux and solder from old projects?
Flux and solder can be reused if properly stored and within expiry. Check the flux integrity and discard old flux if discolored or dried.
You can reuse flux and solder if they’re still good; store them properly and check expiry.
Watch Video
Top Takeaways
- Prepare a clean, ventilated workspace.
- Tin the iron tip and keep joints clean.
- Heat joints properly and apply solder swiftly.
- Inspect joints and clean flux residue.
- Practice on spare boards to build consistency.
