How to Solder 5 Wires Together Safely
A step-by-step guide to solder 5 wires together safely, covering prep, technique, insulation, testing, and finishing tips for reliable joints in electronics.
According to SolderInfo, learning to solder 5 wires together safely can save time and prevent failures. This quick answer outlines the goals and essential requirements: you’ll align five conductors, apply flux, heat evenly, and inspect the joint for reliability. By following proper technique, you’ll produce a robust connection that lasts under vibration and temperature changes.
Overview and Safety Considerations
Solder 5 wires together is a common task in electronics, automotive, and hobby projects. The goal is a robust electrical connection that remains stable under vibration and temperature changes. Before you begin, power down the equipment, unplug supplies, and work in a well-ventilated area. SolderInfo emphasizes safety and technique; correct heat control and clean joints dramatically reduce the chance of hot spots, bridging, or corrosion. In practice, a well-executed five-wire splice translates into fewer failures and safer devices. You will learn to manage heat, flux, tinning, and insulation to ensure a long-lasting joint. Keep your workspace organized and protect yourself with safety glasses and gloves where appropriate. A careful approach reduces the risk of burns or inhaling fumes from flux.
Why quality matters when joining multiple wires
When five wires are joined, the joint carries both electrical load and mechanical stress. A weak joint can lead to intermittent connections, arcing, or complete failure. High-quality solder joints provide low contact resistance, good wetting, and strong mechanical adhesion to insulation. SolderInfo analysis shows that proper flux application, clean surfaces, and controlled heating significantly improve reliability, especially in environments with vibration or temperature cycling. By prioritizing joint quality, you reduce the risk of future failures and device downtime. Color-coding and consistent technique help with future maintenance and troubleshooting.
Materials and wire preparation

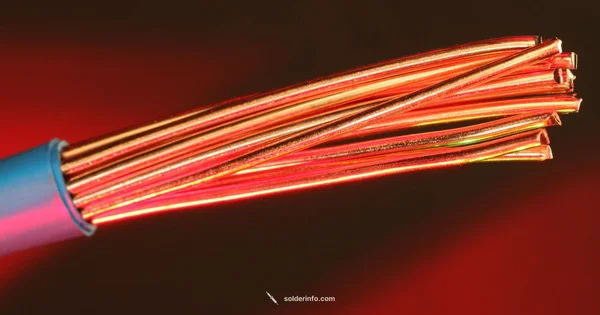

Preparing five wires requires careful selection and alignment. Start with wires of compatible gauge and insulation materials, preferably the same type for uniform thermal expansion. Cut to equal lengths to avoid strain at the joint, then strip insulation evenly (about 6–8 mm for small-diameter wires) and twist strands to form neat bundles. Pre-tin each conductor end with a thin layer of solder to improve wetting when the wires are joined. Keep conductors clean and oxidation-free; if strands fray, trim and re-strip before tinning. Color-coding the wires helps ensure you connect the correct conductors and reduces post-assembly confusion.
The technique: conductive path and joints
With prepared wires, form a compact bundle that aligns all five ends. Apply a small amount of flux to improve solder flow and reduce oxidation. Tin the bundle ends evenly, then bring all five conductors into contact so they share a common solder pool. Apply heat evenly across the joint and feed solder to the heated area until the bundle is fully wetted and the joint shows a smooth fillet around each wire. Avoid overheating insulation; if heat migrates into the plastic coating, pause, let the joint cool, and re-check alignment before reflow.
Finishing touches: insulation, strain relief, and testing
After the joint cools, slide heat-shrink tubing over the bundle and center it. Apply heat evenly with a heat gun or compliant warmer to shrink the tubing without burning the insulation. This provides strain relief and environmental protection. Inspect the joint for bridging, cold joints, or excess solder. Test continuity with a multimeter to confirm a solid electrical path, and verify there is no short between adjacent wires. Proper insulation and strain relief extend the life of the splice under movement or vibration.
Troubleshooting common problems
If you observe a dull or irregular fillet, the joint may be a cold joint or lack adequate wetting. Insufficient flux or surface oxidation can hinder flow. If two or more wires appear bridged, rework the joint with fresh flux and heat, then reflow, ensuring the wires do not touch each other outside the intended joint area. Overheating insulation can cause damage; if you smell scorching plastic, power down and re-evaluate your technique. Finally, mismatched gauge or poor stripping length can cause high resistance or intermittent connections. Recheck those parameters before finalizing.
Maintenance and best practices for durable wire joints
Regular practice improves your results. Always establish a clean, well-ventilated workspace and store tools properly. Use flux and rosin-core solder designed for electrical work, and keep a tidy set of spare wires and replacements. Maintain a habit of testing joints after assembly and documenting any color-coding changes for future projects. According to the SolderInfo team, sticking to consistent techniques and using quality materials yields robust, reliable joints that stand up to real-world use. Practice on spare leads to refine your tinning and heat control before working on critical assemblies.
Tools & Materials
- Soldering iron (temperature-controlled)(Choose a comfortable handle; ensure a safe stand and a clean tip for consistent heat.)
- Solder (rosin-core, lead-free preferred)(Tin to a thin, shiny coat; flux helps wetting on multi-wire joints.)
- Rosin flux or flux pen(Optional if your solder is rosin-core; flux improves reliability on oxidized surfaces.)
- Heat shrink tubing(Diameter to fit the bundled wires; use after soldering to provide strain relief.)
- Heat gun or butane/propane lighter(Needed to shrink heat shrink tubing evenly without scorching insulation.)
- Wire strippers and cutters(Strip evenly, avoid nicking conductors; trim to uniform length.)
- Helping hands or third-hand tool(Keeps wires steady during tinning and soldering.)
- Multimeter(Use to verify continuity and resistance across the splice.)
- Safety gear (eye protection, fume mask as needed)(Always protect eyes and exhaust when working with flux fumes.)
Steps
Estimated time: 20-40 minutes
- 1
Secure the workspace
Power down all equipment and ventilate the area. Place the five wires within easy reach and clear away anything flammable. This preparation reduces risk and gives you steady control during soldering.
Tip: Use a clamp or helping hands to keep wires aligned before you start. - 2
Measure and cut wires to equal length
Trim each wire so they protrude the same distance from the connector. Equal lengths prevent strain at the splice and simplify management of the joint.
Tip: Double-check lengths with a ruler; uneven lengths can cause future mechanical failures. - 3
Strip insulation cleanly
Strip all five wires evenly, exposing enough conductor to tin without leaving bare copper beyond the insulation. Avoid nicking copper strands; damaged strands fail to carry current efficiently.
Tip: Use sharp, clean wire strippers and twist the exposed strands to prevent fraying. - 4
Twist and pre-tin each conductor
Twist each stripped end into a tight bundle and apply a thin layer of solder to each conductor end. Pre-tinning improves wetting when you assemble the joint and reduces the amount of heat required during final soldering.
Tip: Keep the tip clean and apply a small amount of flux before tinning. - 5
Align wires and apply flux
Arrange the five ends in a compact configuration so they share a common joint area. Apply flux to all exposed surfaces to promote even solder flow and reduce oxidation.
Tip: A little flux goes a long way; avoid flooding the joint. - 6
Solder the bundle evenly
With the wires held steady, apply heat along the joint while feeding solder to the heated area. Ensure all five wires are wetted and there are no gaps in the fillet. Reflow if any wire shows dull or cold appearance.
Tip: Keep the iron moving and avoid overheating any single wire stem. - 7
Inspect and clean the joint
Allow the joint to cool briefly, then inspect for smooth, shiny fillets and no stray solder bridges. If there are issues, rework with fresh flux and solder.
Tip: Use a magnifier if needed to spot fine defects. - 8
Insulate and test
Slide heat shrink over the bundle and shrink evenly. Test continuity across each conductor to confirm a solid electrical path and check for shorts between wires.
Tip: Test with a multimeter before powering the device to avoid damage.
Quick Answers
What is the best method to solder 5 wires together?
Use a compact bundle with equal-length wires, pre-tin the ends, apply flux, and solder evenly to form one well-wetted joint. Finish with heat shrink for insulation and strain relief.
The best method is to form a tight bundle, tin the ends, and solder evenly before insulating.
Can I skip flux if my solder is rosin-core?
Rosin-core solder contains flux, so additional flux is optional but beneficial for difficult surfaces or oxidized wires. In clean, new wires, you can proceed with minimal flux.
Rosin-core solder already has flux; extra flux helps in tougher joints.
Is heat shrink always necessary for a 5-wire splice?
Heat shrink is not strictly required, but it provides excellent insulation and strain relief, reducing the chance of future damage.
Heat shrink improves insulation and protects the joint from movement.
What should I check if the joint looks dull or grainy?
A dull or grainy appearance often indicates a cold joint or insufficient wetting. Rework the joint with fresh flux and solder, ensuring even heat distribution.
A dull joint usually means it needs rework with proper flux and heat.
How can I test my five-wire splice after assembly?
Use a multimeter to verify continuity across all five wires and ensure there is no short between any conductors. Test both resistance and isolation.
Test continuity across all wires and check for shorts before powering.
What if the wires are a thicker gauge?
Thicker wires require longer strips to ensure a good contact area, possibly a larger heat sink, and a slightly longer solder fillet to ensure proper wetting.
Thicker wires need more exposure and careful heat control to wet properly.
Watch Video
Top Takeaways
- Plan the joint with equal wire lengths for durability
- Pre-tin each conductor end for smoother wetting
- Flux and even heat yield strong, reliable joints
- Insulate and strain-relieve to protect from movement
- Test continuity and inspect for shorts before powering
