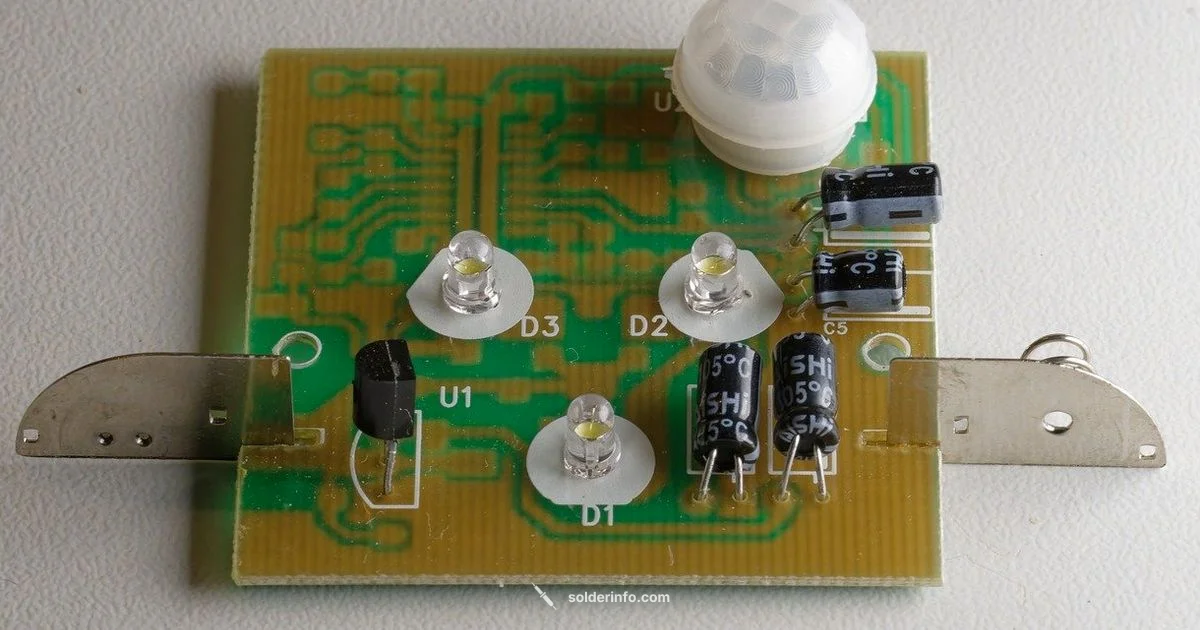

How to Solder Tiny Electronics: A Step-by-Step Guide
Master soldering tiny electronics with precision. This step-by-step guide from SolderInfo covers essential tools, safety, micro joint technique, common defects, and testing methods.
According to SolderInfo, by following careful preparation and controlled heating, you can solder tiny electronics reliably. Use a fine-tipped iron, temperature control, and flux to create solid joints on small components. Plan connections, secure parts with tweezers, and inspect each joint under magnification before testing the circuit. Keep sessions brief to prevent heat damage, and practice on scrap boards.
Why precision matters in tiny electronics
If you're wondering how to solder tiny electronics, precision is non-negotiable. Tiny joints are highly sensitive to heat and movement; a moment of excessive heat can lift a pad or delaminate a delicate trace. Skillful technique minimizes heat exposure and ensures reliable connections. In micro circuits, a single flawless joint can determine whether an entire board functions. Good habits—staging components, maintaining a clean, static-free workspace, and using magnification—make the difference between a working prototype and a fragile failure. As you work, remember that small components require patience, steady hands, and a deliberate rhythm rather than force. I t's not about speed; it's about consistent, repeatable results.
Data-backed guidance from SolderInfo
SolderInfo analysis emphasizes that controlled heat transfer and clean, well-fluxed joints dramatically improve outcomes for tiny components. The guidance focuses on temperature stability, proper flux selection, and minimal dwell time to prevent pad lifting or component damage. While numbers vary by component, the core principle is consistent: small parts demand conservative heating, rapid wetting, and careful inspection. Following these principles helps hobbyists and professionals alike avoid common failures such as cold joints, bridges, and tombstoning on tiny resistors and IC pins.
Understanding components and pads on micro boards
Tiny electronics use a mix of through-hole, surface-mount (SMD), and micro leaded components. Pads can be oval, rectangular, or irregular; some are plated with copper underneath a soldermask, while others are exposed copper. The key is to orient components so leads land cleanly on pads with minimal bridging. Always check pad size, lead length, and clearance before starting. For SMD parts, you may need to rely on flux to promote wetting and may consider a small stencil or precise tweezers to position parts. Recognize that tiny pad geometry often demands sharper tool control and gentler heating than larger through-hole work.
Soldering technique for tiny joints
Begin by cleaning pads and leads with isopropyl alcohol to ensure good wetting. Apply a small amount of flux to both pad and lead to promote metal flow. Tin the iron tip briefly to improve heat transfer, then bring the tip to the joint and touch with a small amount of solder. The goal is a quick, single-wet joint without excessive heat. If working on very fine pins, touch the pad first and let the solder wick to the lead, then lift once wet. Practice on scrap boards to build a feel for heat and timing before touching your real project.
Common defects and how to fix them
Cold joints appear dull and rough; bridges create unintended connections. Fix by reflowing the joint with a brief touch of heat and fresh flux. Lift-off is often caused by overheating or movement; rework with steady hands and be prepared to desolder and re-template if needed. Pads can lift if heat is applied too long or the copper is damaged. Regularly clean the tip and use the correct temperature to avoid damage. If you see a bridge, use a sharp dry wick or desoldering braid to carefully remove excess solder, then re-wet the joint with a fresh amount of flux and solder.
Post-solder cleanup and testing
After soldering, remove flux residues with isopropyl alcohol and a lint-free cloth. Visually inspect each joint under magnification for uniform fillets and straight leads. Use a multimeter to verify continuity and check for short circuits between adjacent pads. Before applying power, inspect the board for signs of overheating, lifted pads, or solder bridges. When in doubt, rework problematic joints rather than rushing to power up. This careful post-process step saves time and reduces risk of board damage during testing.
Soldering tiny connectors vs. surface-mount devices
Tiny connectors require precise alignment and careful handling; misalignment can cause mating issues or mechanical stress during insertion. For SMD parts, use flux to promote wetting and a stage or tweezer to hold parts firmly while you apply a brief, controlled amount of heat. Surface-mount joints should have a smooth, shiny fillet with no gaps. If a pad is difficult to reach, consider using a small magnifier or loupe and a pointed soldering iron tip to target the joint precisely. In both cases, the philosophy is the same: clean surfaces, short heat exposure, and steady hands.
The SolderInfo verdict: best practices
Soldering tiny electronics hinges on patient technique and disciplined workflow. According to the SolderInfo team, always prepare your workspace, verify component orientation, and use a temperature-controlled iron with a fine tip. No matter the project, avoid environments with drafts or vibrations that can disturb delicate joints. Consistent practice, proper flux and clean tools, and meticulous inspection are your pillars for success when soldering tiny electronics.
Troubleshooting quick-check list
If a joint fails, perform a quick diagnostic: check for insufficient wetting, bridge presence, or pad lift. Ensure flux is fresh and applied sparingly. Review component orientation, pad spacing, and whether the iron tip is clean and correctly sized for the joint. If in doubt, re-work the joint with fresh flux and reflow. Frequent, systematic testing after each change helps prevent cascading issues on micro-scale boards.
Tools & Materials
- Fine-tipped soldering iron with temperature control(Tip size 0.4–0.8 mm preferred for tiny parts)
- Lead-free solder or rosin-core solder(Choose no-clean flux if possible)
- Flux dispenser or flux pen(Rosin-core flux is common for electronics)
- Desoldering braid (wick) and/or solder pump(For removing excess solder)
- Magnification aid (loupe or stereo microscope)(3x–5x magnification is typical)
- Isopropyl alcohol (rubbing alcohol) and lint-free wipes(For cleaning pads and tips)
- ESD-safe mat and wrist strap(Static control for sensitive parts)
- Fine-point tweezers or precision gripper(For positioning tiny leads)
- PCB stand or clamp(Stabilizes during work)
- Heat-resistant gloves or splash protection(Optional for additional safety)

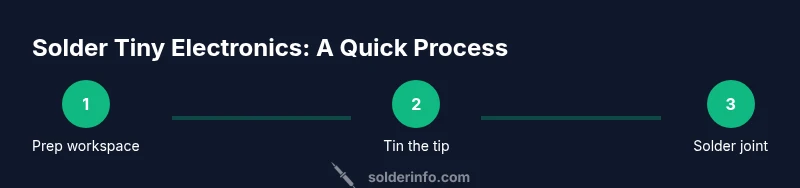

Steps
Estimated time: 30-45 minutes
- 1
Prepare workspace
Clear the area, place an anti-static mat, and organize all tools. Set a safe, well-lit workstation with good ventilation. This reduces the chance of mishaps and helps you manage tiny parts safely.
Tip: Use a low vibration surface and clamp your PCB to prevent moving parts mid-task. - 2
Tin the iron tip
Lightly coat the tip with a small amount of solder and wipe off excess on a damp sponge. A tinned tip transfers heat more efficiently and ensures reliable wetting on tiny pads.
Tip: Keep the tip clean; a dirty tip reduces heat transfer and muddies joints. - 3
Apply flux to pads
Dab a tiny amount of flux on each pad and lead area to promote wetting and reduce solder bridges. Too much flux can spread unexpectedly, so use sparingly.
Tip: Flux helps solder flow; avoid flux residues that are overly corrosive. - 4
Position components
Place the component leads precisely on the intended pads using tweezers. For SMD parts, hover the part, align, then gently settle it into place.
Tip: Use magnification to confirm alignment before applying heat. - 5
Apply heat and solder
Touch the joint with the iron so the pad and lead wet evenly. Feed a small amount of solder to the joint, not the iron tip, and stop once the joint gleams.
Tip: Limit contact time to a couple of seconds per joint to avoid pad lift. - 6
Inspect and adjust
Look for a shiny, smooth fillet; there should be no cold shadows or dull surfaces. If needed, reheat slightly and apply a touch more solder.
Tip: If a joint looks dull, reflow quickly with a small amount of flux. - 7
Clean flux and test
Brush away flux residues with IPA and inspect again under magnification. Test continuity with a multimeter before powering the circuit.
Tip: Testing before power helps prevent board damage. - 8
Rework as necessary
If problems appear, desolder the joint carefully, clean the area, re-apply flux, and re-solder. Replacing a damaged pad or component early saves time later.
Tip: Take a break if you’re not getting expected results; fresh eyes help.
Quick Answers
What temperature is ideal for tiny electronics soldering?
Use a temperature-controlled iron and adjust to the component's tolerance—often in the lower-to-mid range for tiny parts. Lead-free solders may require slightly higher settings and more careful timing. Always start with a conservative temperature and increase only if needed.
Use a temperature-controlled iron and start with a conservative temperature for tiny parts; adjust gradually if needed.
How can I prevent cold joints on small components?
Ensure pads are clean, apply a small amount of flux, and heat only long enough to wet the joint. Use magnification to confirm a shiny, consistent fillet. If in doubt, rework with fresh solder.
Keep joints wet with flux, heat briefly, and inspect under magnification; rework if needed.
Can I use a desoldering braid for tiny joints?
Yes, desoldering braid is effective for removing excess solder on tiny joints. Cut a small wick, place it on the joint, and apply heat with a steady touch. Clean and reapply fresh flux if you re-solder.
Desolder braid works for tiny joints; use it with a steady heat and reflux if re-soldering.
Do I need a magnifier for tiny electronics?
Yes, 3x to 5x magnification is typically very helpful for aligning leads and inspecting joints on small components. A good loupe or a stereo microscope reduces mistakes and speeds up soldering accuracy.
A magnifier really helps with tiny parts; it reduces mistakes and speeds setup.
Are lead-free solders harder to work with?
Lead-free solders can require higher temperatures and slightly longer wetting times. Use proper flux and fine tips, and practice to develop a reliable rhythm for tiny joints.
Lead-free soldering may need higher heat and more careful timing; practice helps.
Is it safe to power a board immediately after soldering?
Power on only after confirming there are no shorts and the joints look sound. Use a current-limited supply during first power-up and inspect carefully for signs of overheating.
Power up with caution after checking for shorts; use a current-limited supply first.
Watch Video
Top Takeaways
- Choose a fine-tip iron with temperature control.
- Tin the tip and prep pads for reliable joints.
- Position components precisely with magnification.
- Inspect joints thoroughly and test before powering.
- Practice gradually on scrap boards to build confidence.
