How to Solder a Joint: A Step-by-Step Guide
A practical, beginner-friendly guide to how to solder a joint, covering tools, surface prep, flux application, heat control, solder selection, and joint inspection for electronics and plumbing.
To solder a joint, gather the right tools, prep surfaces, apply flux, heat the joint evenly with a soldering iron, and feed solder until the joint is fully wetted and shiny. Remove heat, let it cool undisturbed, and inspect for a smooth fillet. Wear eye protection and work in a ventilated area.
What is soldering a joint?
Soldering a joint is a metal-joining technique that uses a filler metal (solder) to create a bond between two surfaces. In electronics, solder forms an electrical connection while also mechanically holding components in place. In plumbing and jewelry, soldering provides a leak-proof seal or durable bond. The process relies on three pillars: clean surfaces, flux to promote wetting, and controlled heat to melt solder without damaging parts. A good joint should be smooth, shiny, and have a visible fillet that fills gaps without excessive splatter or gaps. Understanding these fundamentals helps you troubleshoot issues and refine your technique as you gain experience with different materials and geometries.
Safety considerations for soldering
Soldering generates hot surfaces, fumes, and flux residues. Protect yourself with safety glasses or a face shield, use good ventilation or a fume extractor, and keep flammables away from the work area. Never touch the tip or molten solder with bare skin. Allow joints to cool naturally on a heat-resistant surface, and never move parts while the solder is molten. Have a damp sponge or brass sponge handy for tip cleaning, and store flux and solvents according to the manufacturer’s guidelines to minimize skin contact and inhalation risks.
Tools and materials you’ll need
A basic soldering setup includes a temperature-controlled iron, a suitable stand, solder, flux, and cleaning supplies. A desoldering braid or desoldering pump makes correction easier. Keep a damp sponge or brass wool for tip cleaning, alcohol or flux cleaner for residue removal, and safety gear like eye protection. For plumbing tasks, you may also need a torch or heat source, wire brushes, and pipe-cleaning tools. Choosing the right tools affects heat delivery, joint quality, and ease of use, especially for beginners moving between electronics and plumbing projects.
Surface preparation and flux application
Start with clean, dry surfaces. Remove any oxidation, oils, or corrosion using a solvent or isopropyl alcohol and a lint-free cloth. Lightly abrade plated joints to expose fresh metal, then apply flux to the mating surfaces to promote wetting. Flux removes oxide layers and helps solder flow into tight gaps. In electronics, flux helps prevent thermal shock and ensures reliable connections. In plumbing, flux also acts as a sealant during cooling. Apply flux sparingly yet evenly; excessive flux can cause solder balls or residue that attracts dirt and moisture.
Heating technique and solder flow
Heat is the key to a successful solder joint. Place the soldering iron tip on the joint to warm both surfaces evenly, then feed solder to the joint—not directly onto the iron. The molten solder should flow into the joint by capillary action, forming a smooth fillet around the connection. Avoid overheating the parts, which can damage insulation, components, or copper. If the joint doesn’t wet properly, remove heat, reapply flux, and reheat from a slightly different angle. After soldering, remove heat and let the joint cool undisturbed.
Solder types and flux choices
Choose solder based on the application and regulatory requirements. Lead-free solder is standard for consumer electronics and many plumbing codes, but it requires careful heat management since it often melts at slightly higher temperatures. Rosin-core flux is common for electronics; for plumbing or jewelry, you may encounter acid-core flux or paste flux variants. Flux quality affects joint reliability; always match flux type to the materials and environment, and clean residues after soldering when possible to prevent corrosion or insulation issues.
Electronics vs plumbing joints: differences and tips
Electronics joints emphasize micro-solder joints, minimal heat, and clean, precise wetting to avoid shorts. Keep components stable and use a fine tip for accuracy. Plumbing joints tolerate larger fillets and may require higher heat or soldering flux suitable for copper pipes. In both cases, ensure joint alignment before heating, avoid applying heat to components that aren’t meant to withstand it, and verify the bond after cooling with a visual inspection and gentle movement test.
Quality checks and common mistakes
A good solder joint is smooth, shiny, and free of voids. Common mistakes include cold joints from insufficient heat or premature cooling, excessive solder causing bridging, and flux residue that isn’t cleaned. If a joint looks dull or crumbly, rework it by reheating and applying fresh flux. Inspect from multiple angles and gently wiggle components to test stability. Document a few reference joints so you recognize a high-quality appearance on future work.
Tools & Materials
- Soldering iron (temperature-controlled)(Choose a wattage suitable for your project; keep tips clean and tinned)
- Solder wire(Lead-free with rosin-core is common for electronics)
- Flux(Rosin flux for electronics; paste flux for plumbing or heavy joints)
- Desoldering braid or pump(Helpful for corrections)
- Isopropyl alcohol and lint-free cloth(For cleaning residues before and after soldering)
- Tip cleaner/spong e(Keeps the iron tip tinned and responsive)
- Safety glasses(Eye protection against splashes and fumes)
- Helping hands or third-hand tool(Stabilizes delicate components)

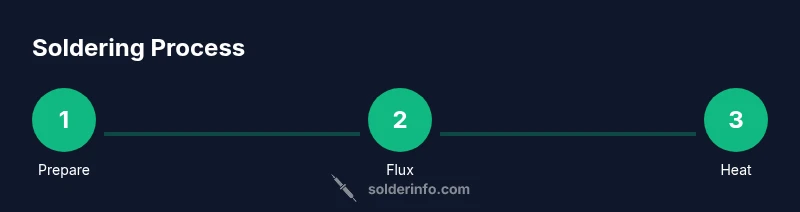

Steps
Estimated time: 45-60 minutes
- 1
Set up a safe workspace
Arrange a well-ventilated area, position materials, and clamp components. Verify you have a heat-resistant mat and a nearby water source or fire extinguisher. This setup reduces the risk of accidents and keeps your workflow efficient.
Tip: Place a spare scrap piece nearby to practice flux application before touching the actual joint. - 2
Prepare and clean surfaces
Wipe surfaces with isopropyl alcohol to remove oils and oxides. Lightly roughen plated surfaces to improve adhesion, then apply a thin layer of flux to assist wetting. Cleanliness is essential for a reliable joint.
Tip: Do not over-clean; a little oxidation removed is enough for good solder flow. - 3
Position components and align
Set components in place and confirm alignment with a helping hands tool or clamps. Ensure there are no gaps that can trap air or create a weak fillet. A steady setup prevents mistakes during heating.
Tip: Double-check orientation before applying heat; rework is harder after solder flows. - 4
Heat the joint evenly
Apply the iron to the joint surface, not directly to the solder. Heat both parts evenly for a moment to reach the right temperature. Move the iron around to avoid heat hotspots and reduce the risk of scorching components.
Tip: Keep the iron tip tinned for efficient heat transfer. - 5
Feed solder and form a fillet
Touch the solder wire to the joint after the surfaces are heated, letting capillary action pull the solder through. Stop feeding once a shiny fillet forms along the joint. Remove the heat gradually once wetting is complete.
Tip: Aim for a small, smooth fillet; avoid blobs that can bridge adjacent connections. - 6
Cool and inspect
Allow the joint to cool undisturbed on a non-conductive surface. Inspect for a uniform fillet without gaps or sagging. If abnormal, rework with heat and flux as needed.
Tip: Do not move the board while cooling; thermal shock can crack components. - 7
Clean residues
Wipe away flux residues with isopropyl alcohol and a clean cloth. For electronics, ensure no residue under components. For plumbing, check for any flux-related corrosion and clean thoroughly.
Tip: Residue removal helps prevent long-term corrosion and signal degradation. - 8
Document and store
Label your joints or projects for future reference. Store solder, flux, and cleaning supplies in a cool, dry place away from moisture. Proper storage extends material life and maintains performance.
Tip: Keep an organized workspace to speed up future projects.
Quick Answers
What is the difference between leaded and lead-free solder?
Leaded solder typically lowers melting temperature and is easier to work with, but it contains lead. Lead-free solder is safer for health and environmental regulations but may require more precise temperature control.
Leaded solder is easier to work with but contains lead; lead-free is safer but needs careful heat control.
Do I need extra flux if I use rosin-core solder?
Rosin-core solder includes flux inside the wire, which helps wetting. Additional flux can improve wetting on hard-to-solder joints or oxidized surfaces.
Rosin-core solder already has flux; extra flux helps in tougher joints.
Why is my solder joint dull or grainy after cooling?
Dull or grainy joints usually indicate insufficient heating, poor wetting, or contaminated surfaces. Reheat with fresh flux and proper heat, then ensure gentle cooling.
A dull joint means it didn’t wet properly; rework with heat and flux.
Can I solder copper pipes with electronics solder?
No, electronics solder is designed for electrical connections and may not form a reliable seal on pipes. Use solder specifically rated for plumbing joints and appropriate flux.
Electrical solder isn’t ideal for pipes; use plumbing-specific solder.
How should I store solder and flux safely?
Keep solder and flux in a cool, dry place, in tightly closed containers. Avoid moisture, which can degrade flux and solder quality.
Store materials in a sealed, dry container away from moisture.
What safety gear should I wear when soldering?
Wear eye protection, ensure good ventilation, and avoid skin contact with flux. Keep a fire extinguisher nearby for larger projects.
Protect your eyes, ensure ventilation, and use a fume extractor if possible.
Watch Video
Top Takeaways
- Prepare the joint precisely with clean surfaces and flux.
- Apply heat evenly and feed solder to wet the joint fully.
- Let joints cool undisturbed and inspect for a smooth fillet.
- Choose solder and flux appropriate to the material and regulation.
